Model # JBS30GV4AD Official GE electric range
Here are the diagrams and repair parts for Official GE JBS30GV4AD electric range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
JBS30GV4AD Ranges
#650

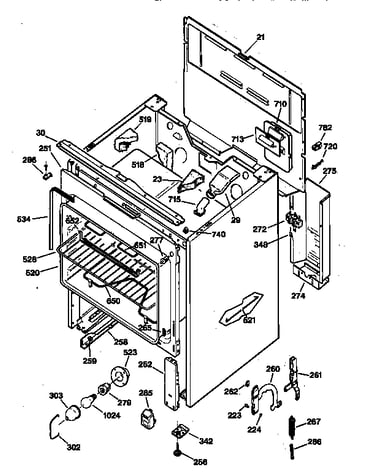

Body parts diagram
Range bake element (replaces 8030, wb44x10003, wb44x5061, wb44x5072, wb44x5082r, wb44x5083)
Part #WB44X5082
$58.43 |
9% OFF Phone Price : $64.43
In Stock
#651
Body parts diagram
Broil unit f
Part #WB44X0185
Replaced by #WB44X173
?
Manufacturer substitution
This part replaces WB44X0185. Substitute parts can look different from the original.
$27.42 |
18% OFF Phone Price : $33.42
In Stock
#279
Body parts diagram
Receptacle
Part #WB08X5095
Replaced by #WB08T10026
?
Manufacturer substitution
This part replaces WB08X5095. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
#397

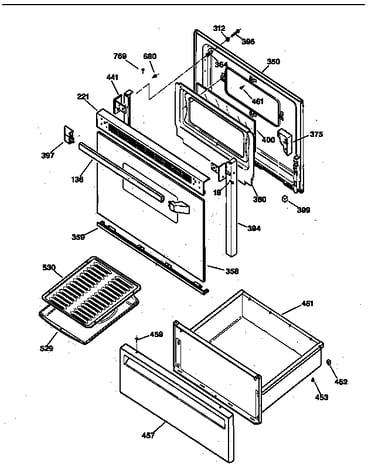

Door & drawer parts diagram
End cap handle
Part #WB07X7183
Replaced by #WB7X7183
?
Manufacturer substitution
This part replaces WB07X7183. Substitute parts can look different from the original.
$17.40 |
10% OFF Phone Price : $19.40
In Stock
#16

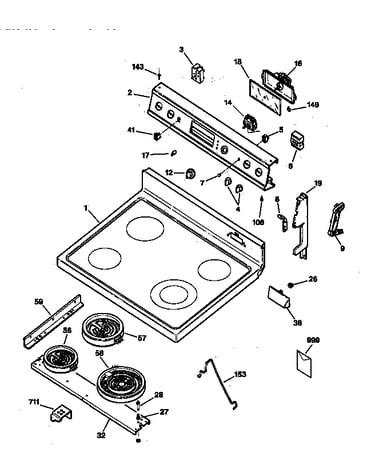

Control panel & cooktop diagram
Timer
Part #WB19X5305
Replaced by #WB19X10008
?
Manufacturer substitution
This part replaces WB19X5305. Substitute parts can look different from the original.
$190.23 |
6% OFF Phone Price : $202.23
In Stock
#530
Door & drawer parts diagram
Grid broiler pan
Part #WB48X5107
Replaced by #WB48X10056
?
Manufacturer substitution
This part replaces WB48X5107. Substitute parts can look different from the original.
$31.29 |
16% OFF Phone Price : $37.29
In Stock
#272
Body parts diagram
Terminal block
Part #WB17X5123
Replaced by #WB17X5095
?
Manufacturer substitution
This part replaces WB17X5123. Substitute parts can look different from the original.
$69.94 |
8% OFF Phone Price : $75.94
In Stock
#461
Door & drawer parts diagram
Screw
Part #WB01X0593
Replaced by #WB1X536
?
Manufacturer substitution
This part replaces WB01X0593. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
#529
Door & drawer parts diagram
Broiler pan
Part #WB49X5547
Replaced by #WB48X10056
?
Manufacturer substitution
This part replaces WB49X5547. Substitute parts can look different from the original.
$31.29 |
16% OFF Phone Price : $37.29
In Stock
#41
Control panel & cooktop diagram
Lamp switch
Part #WB24X5347
Replaced by #WB24T10042
?
Manufacturer substitution
This part replaces WB24X5347. Substitute parts can look different from the original.
$19.38 |
9% OFF Phone Price : $21.38
In Stock
Most common symptoms to help you fix your ranges
Choose a symptom to see related range repairs.
Main causes: broken oven door lock assembly, wiring failure, electronic control board problem…
Main causes: faulty temperature sensor, electronic control board problem, control thermostat failure, weak burner ignite…
Main causes: power supply problem, control thermostat or electronic control board failure, broken element, bad burner ig…
Main causes: food splatters, spilling food on the oven door, allowing liquid to drip through oven door vent when cleanin…
Main causes: broken broiler element, weak or broken broil burner igniter, control system failure, faulty temperature sen…
Main causes: bad bake element, broken burner igniter, control system failure, blown thermal fuse, faulty temperature sen…
Main causes: power supply failure, blown thermal fuse, bad relay control board, damaged terminal block, wiring failure…
