GE
Electric Wall Oven

Model # ZET3038SH4SS Official GE electric oven

Here are the diagrams and repair parts for Official GE ZET3038SH4SS electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

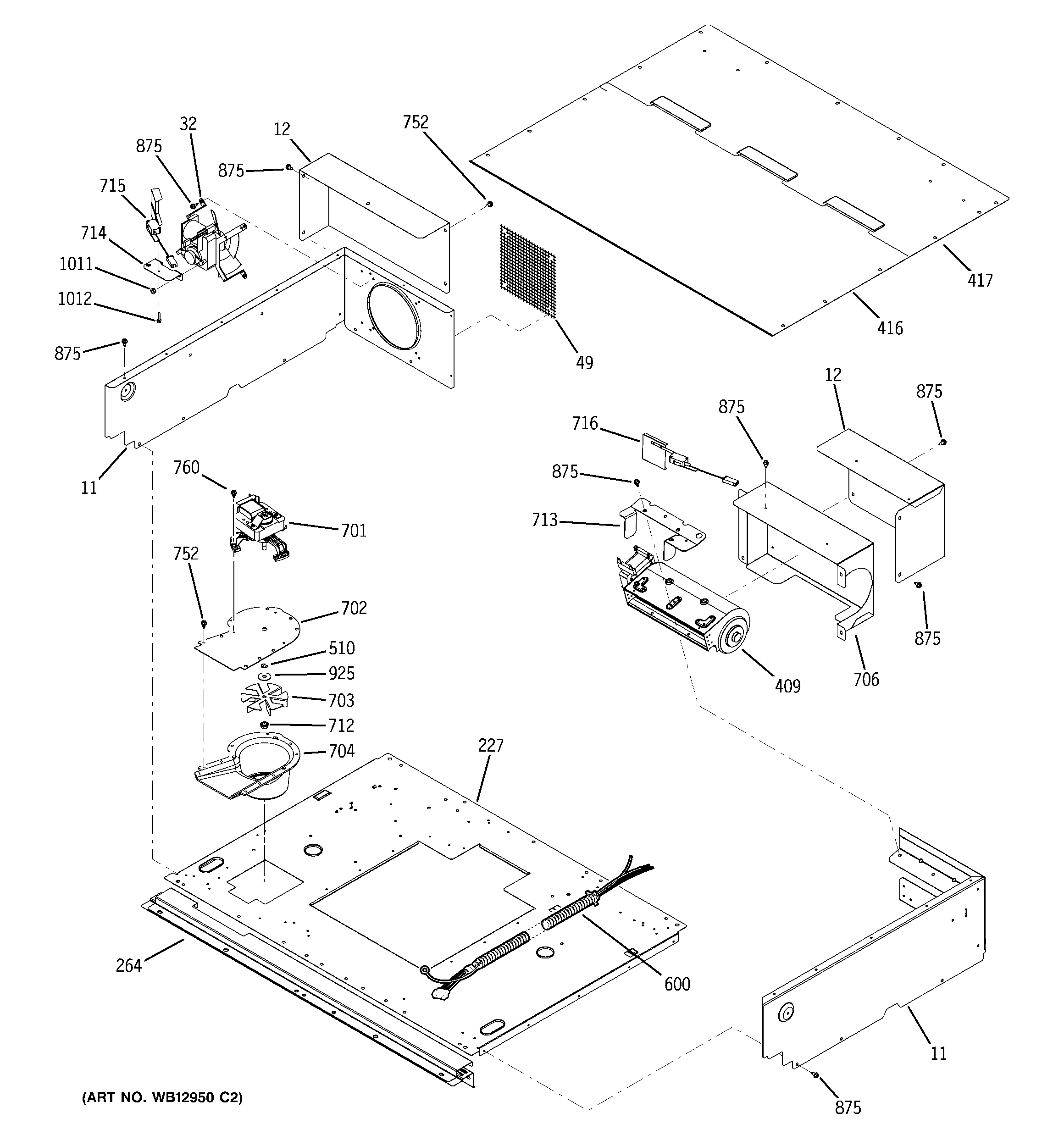

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 138 parts  |
Magnetron WB27T10545
#579

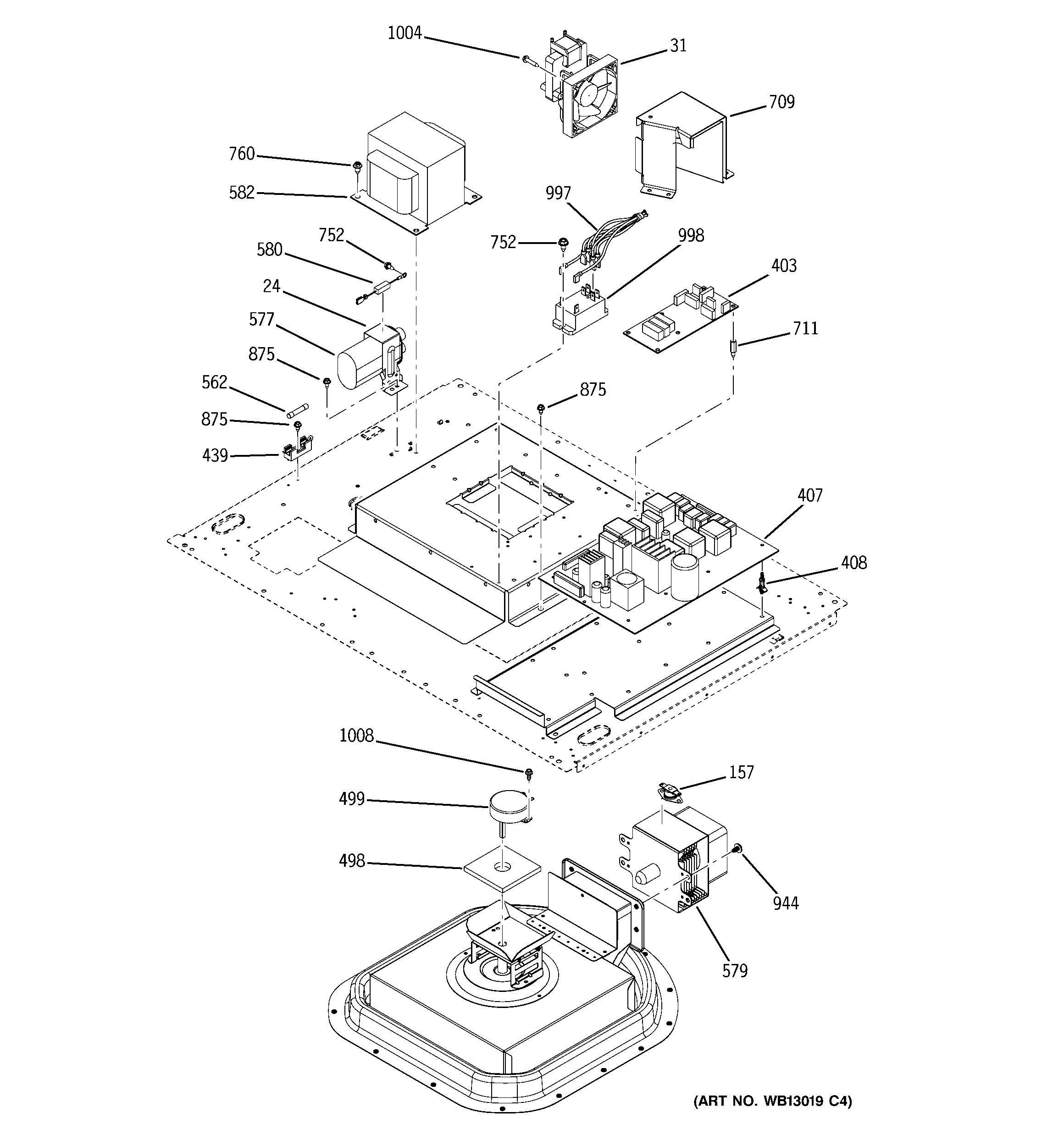

Control section diagram

Magnetron

Part #WB27T10545

The manufacturer no longer makes this part, and there's no substitute part

Diode WB27T10552
#580

Control section diagram

Diode

Part #WB27T10552

Replaced by #WB27X10597

?
Manufacturer substitution
This part replaces WB27T10552. Substitute parts can look different from the original.
BEST SELLER
$40.60 |
13% OFF Phone Price : $46.60
In Stock
Range Oven Door Middle Glass (replaces Wb55t10191) WB56T10105
#338

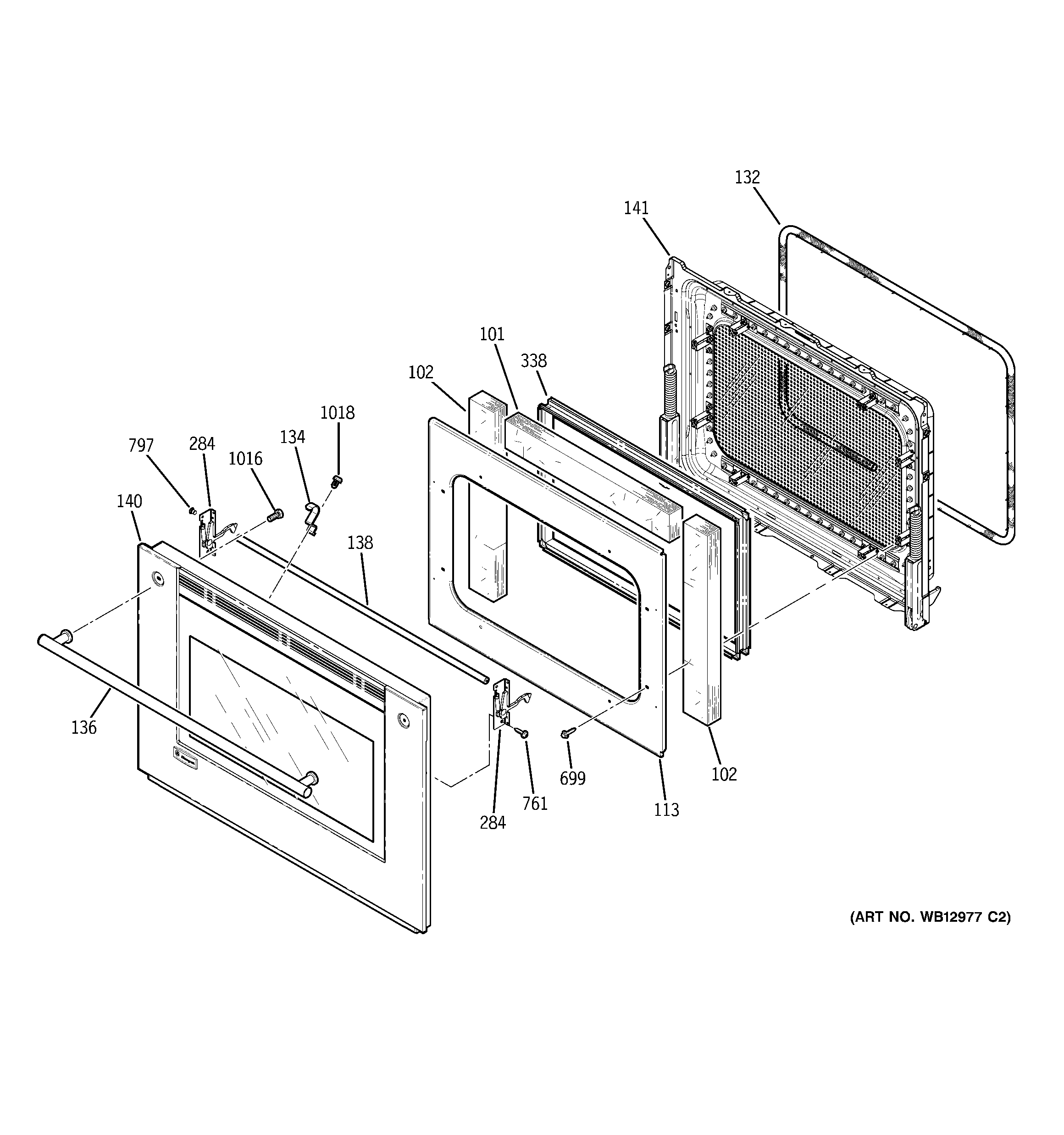

Door diagram

Range oven door middle glass (replaces wb55t10191)

Part #WB56T10105

BEST SELLER
$101.93 |
11% OFF Phone Price : $113.93
In Stock
Range Convection Fan Blade WB02T10289
#43

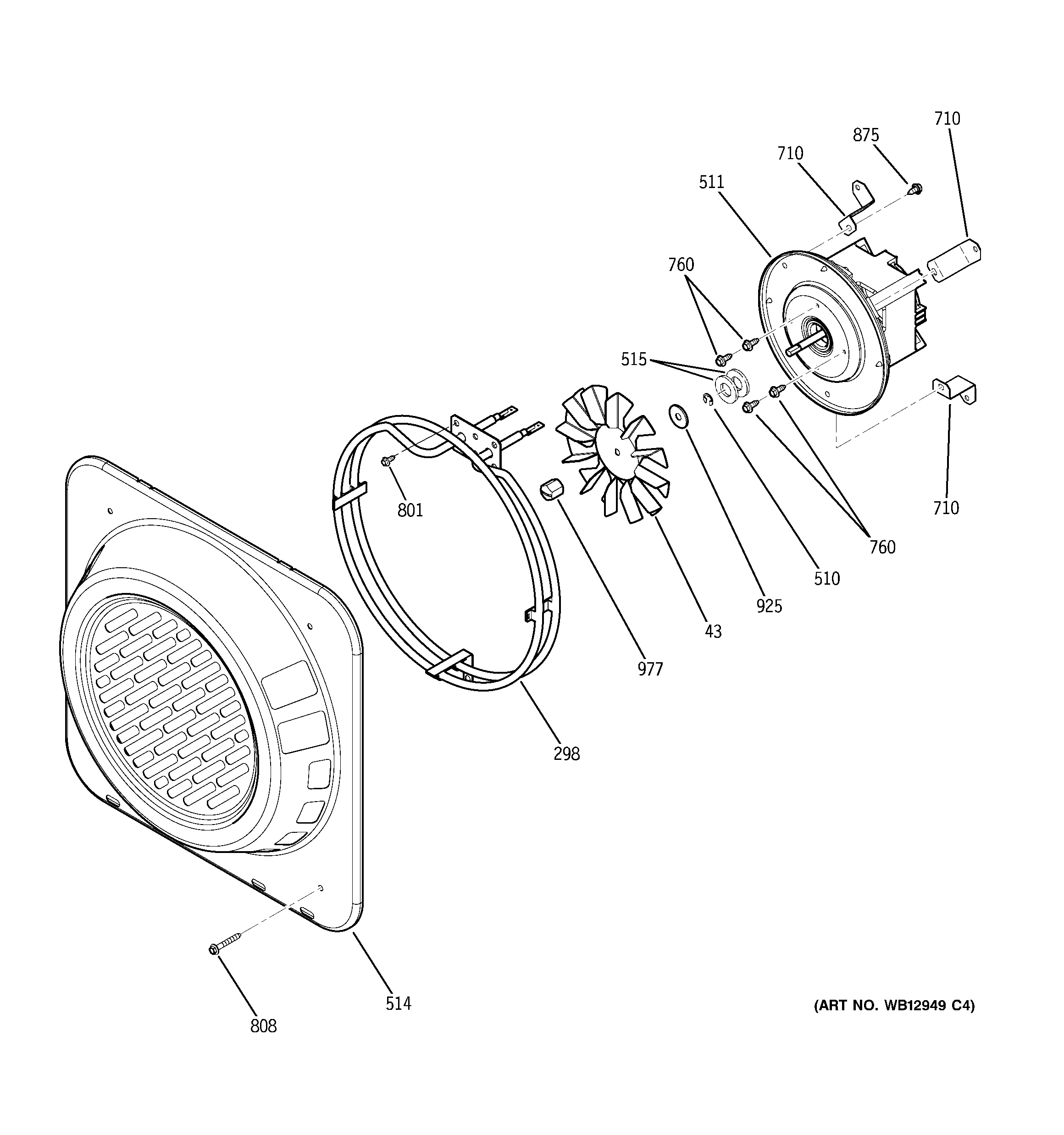

Convection fan diagram

Range convection fan blade

Part #WB02T10289

This item is not returnable
$18.91 |
10% OFF Phone Price : $20.91
In Stock
Screw WH02X0930
Screw

Part #WH02X0930

Replaced by #WH2X930

?
Manufacturer substitution
This part replaces WH02X0930. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw, #10-32 X 17/32-in WB01X1253
#810

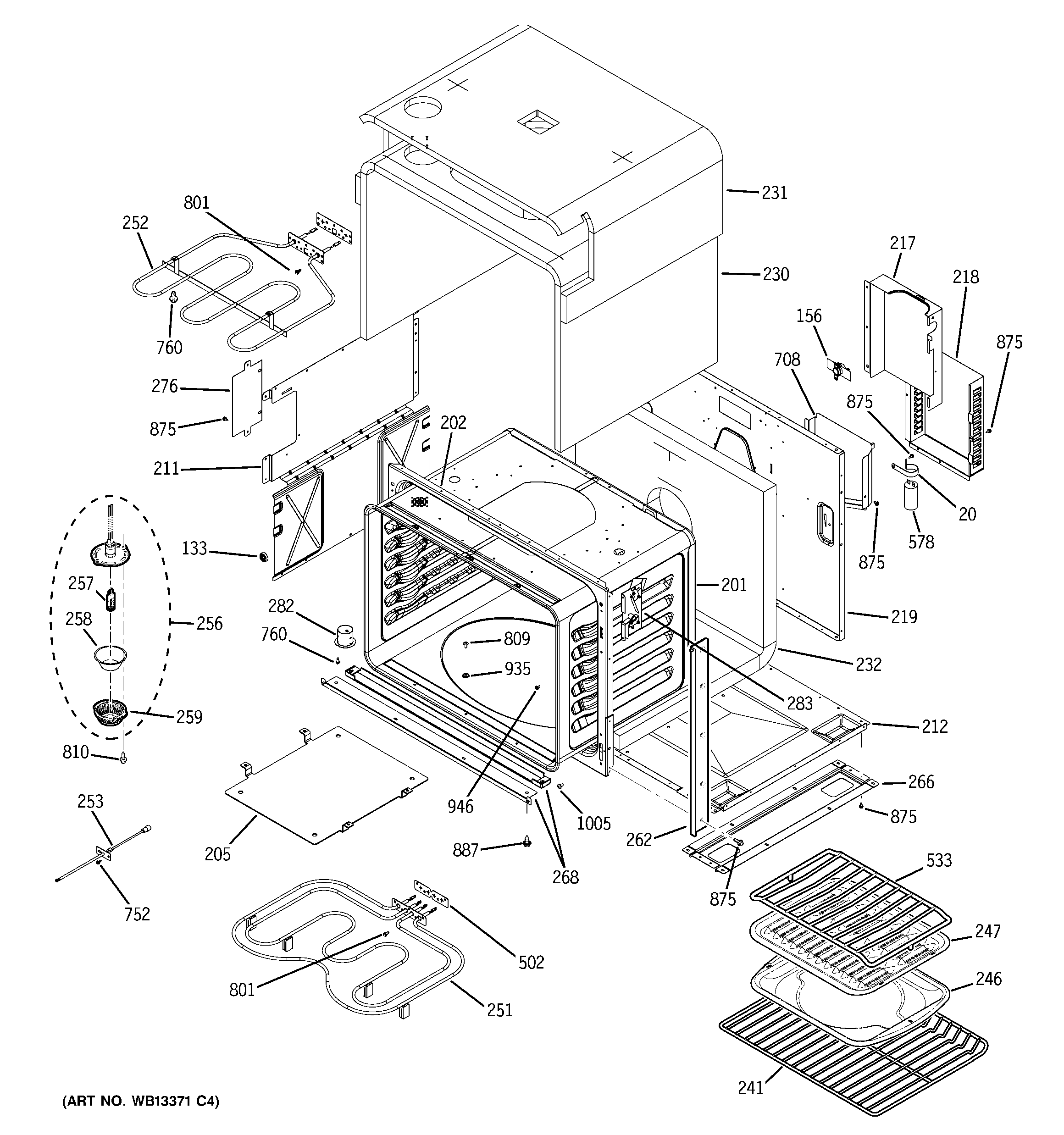

Body parts diagram

Screw, #10-32 x 17/32-in

Part #WB01X1253

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces WB01X1253. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Conversion Gasket WB02T10514
#515

Convection fan diagram

Conversion gasket

Part #WB02T10514

Replaced by #WB01T10079

?
Manufacturer substitution
This part replaces WB02T10514. Substitute parts can look different from the original.
$8.11
In Stock
Halogen Lamp WB08T10046
#257

Body parts diagram

Halogen lamp

Part #WB08T10046

Replaced by #WB49X29679

?
Manufacturer substitution
This part replaces WB08T10046. Substitute parts can look different from the original.
This item is not returnable
$47.12 |
11% OFF Phone Price : $53.12
In Stock
Screw WB01K5119
#797

Door diagram

Screw

Part #WB01K5119

Replaced by #WB1K5119

?
Manufacturer substitution
This part replaces WB01K5119. Substitute parts can look different from the original.
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Range User Interface Control Board WB27T10549
#405

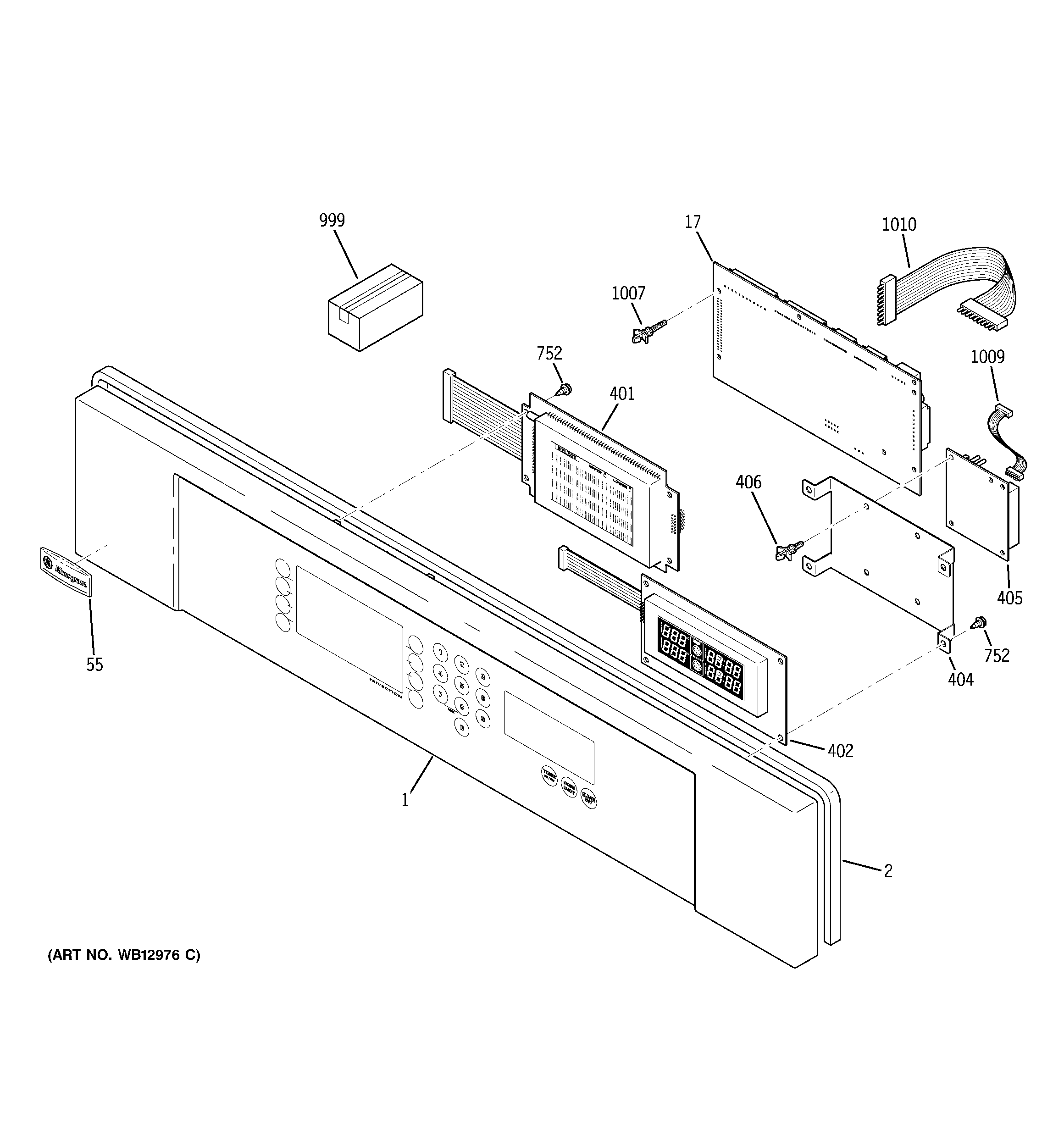

Control panel diagram

Range user interface control board

Part #WB27T10549

$214.30 |
5% OFF Phone Price : $226.30
In Stock

Most common symptoms to help you fix your wall oven

Choose a symptom to see related wall oven repairs.

View all

Why won't my wall oven door unlock?

Main causes: bad oven door lock assembly, faulty electronic control board, wiring failure…

Read more

Why won't my wall oven bake?

Main causes: broken bake element, bad bake burner igniter, tripped thermal switch, control system failure…

Read more

Why isn't my wall oven at the temperature I set?

Main causes: faulty oven temperature sensor, control system problem, weak burner igniter, damaged oven element…

Read more

Why won't my wall oven heat?

Main causes: lack of gas supply, broken igniter, tripped circuit breaker, broken oven element, tripped thermal fuse, con…

Read more
