Model # QT-CD180S Official Sharp portable audio player

Here are the diagrams and repair parts for Official Sharp QT-CD180S portable audio player, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |
Speaker Cover Rt(rd) GCOVH1005SJM3
#205B

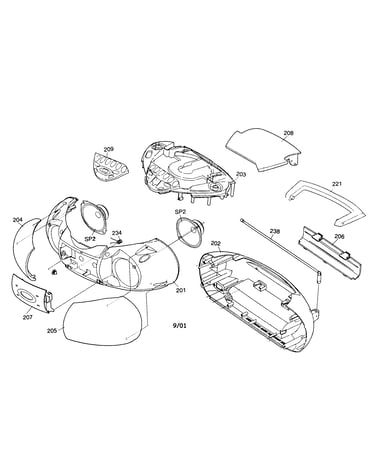

Cabinet parts diagram

Speaker cover rt(rd)

Part #GCOVH1005SJM3

The manufacturer no longer makes this part, and there's no substitute part

Head Record/playback 9GD202100007
#NI

Cabinet parts diagram

Head record/playback

Part #9GD202100007

The manufacturer no longer makes this part, and there's no substitute part

Ac Inlet Socket QSOCA0005SJZZ
#NI

Cabinet parts diagram

Ac inlet socket

Part #QSOCA0005SJZZ

The manufacturer no longer makes this part, and there's no substitute part

Tape Mech Assy(complete) KMECB0006SJZZ
#NI

Cabinet parts diagram

Tape mech assy(complete)

Part #KMECB0006SJZZ

The manufacturer no longer makes this part, and there's no substitute part

Top Cabinet Assy CCABC1054SJ01
#203

Cabinet parts diagram

Top cabinet assy

Part #CCABC1054SJ01

The manufacturer no longer makes this part, and there's no substitute part

Sw601,switchleaf,tape Mech 9GD202100051
#NI

Cabinet parts diagram

Sw601,switchleaf,tape mech

Part #9GD202100051

The manufacturer no longer makes this part, and there's no substitute part

Speaker Cover Rt(s) GCOVH1005SJM1
#205

Cabinet parts diagram

Speaker cover rt(s)

Part #GCOVH1005SJM1

The manufacturer no longer makes this part, and there's no substitute part

Speaker Cover Rt(bl) GCOVH1005SJM2
#205A

Cabinet parts diagram

Speaker cover rt(bl)

Part #GCOVH1005SJM2

The manufacturer no longer makes this part, and there's no substitute part

Head Erase,tape Mech 9GD202100049
#NI

Cabinet parts diagram

Head erase,tape mech

Part #9GD202100049

The manufacturer no longer makes this part, and there's no substitute part

Speaker Cover Lt(s) GCOVH1004SJM1
#204

Cabinet parts diagram

Speaker cover lt(s)

Part #GCOVH1004SJM1

The manufacturer no longer makes this part, and there's no substitute part
