Wall Oven/Microwave Combo

Model # KEHU309SSS00 Official KitchenAid electric built-in oven with microwave

Here are the diagrams and repair parts for Official KitchenAid KEHU309SSS00 electric built-in oven with microwave, as well as links to manuals and error code tables, if available.

By Schematic
By Part

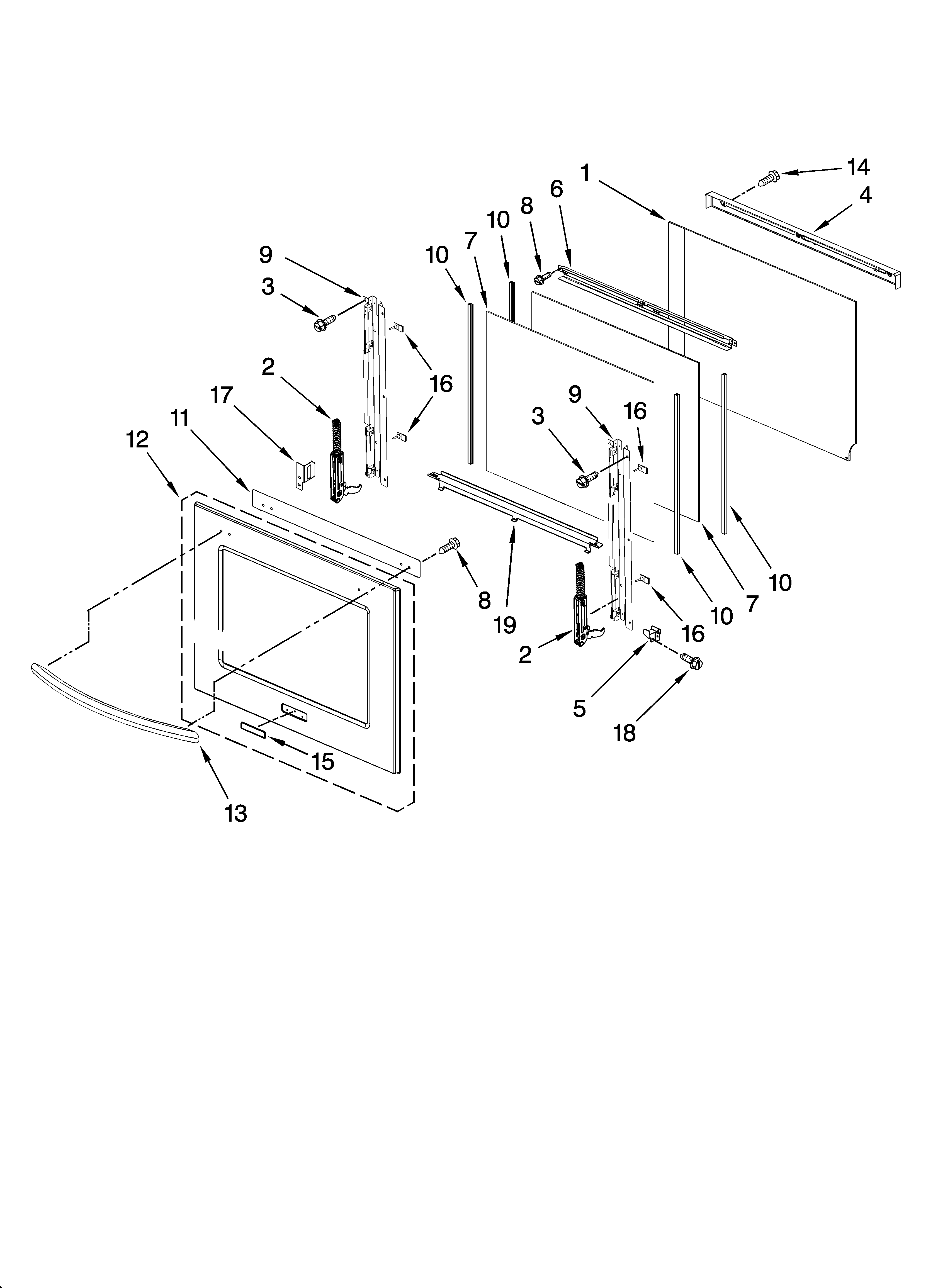

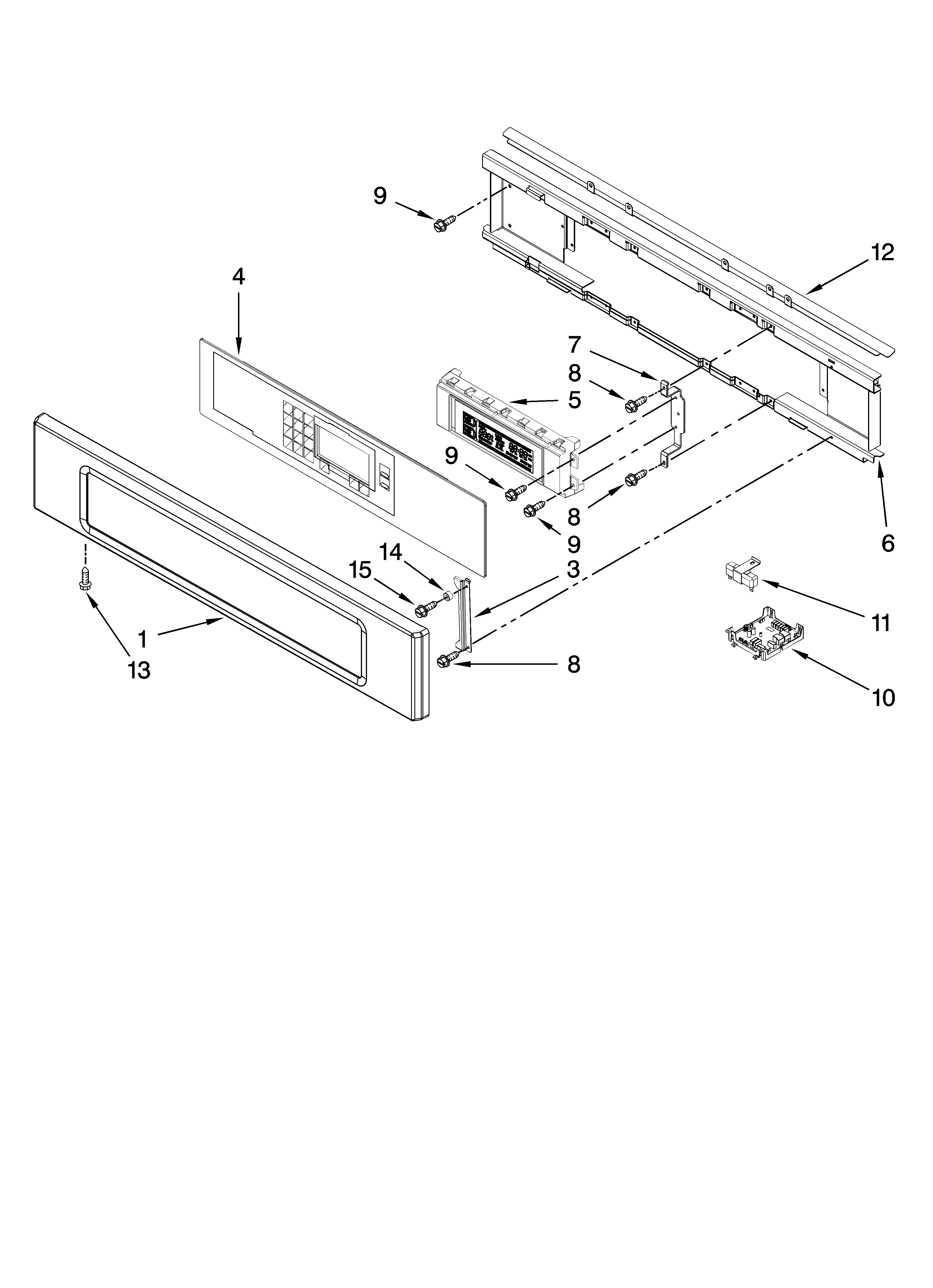

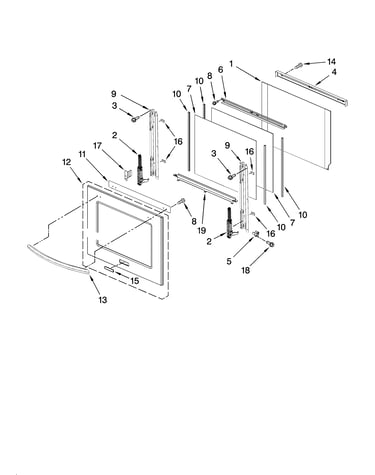

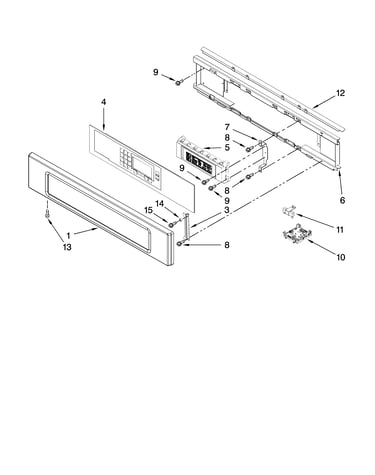

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
KEHU309SSS00 Electric Built-In Oven with Microwave
Switch W10131248
#29

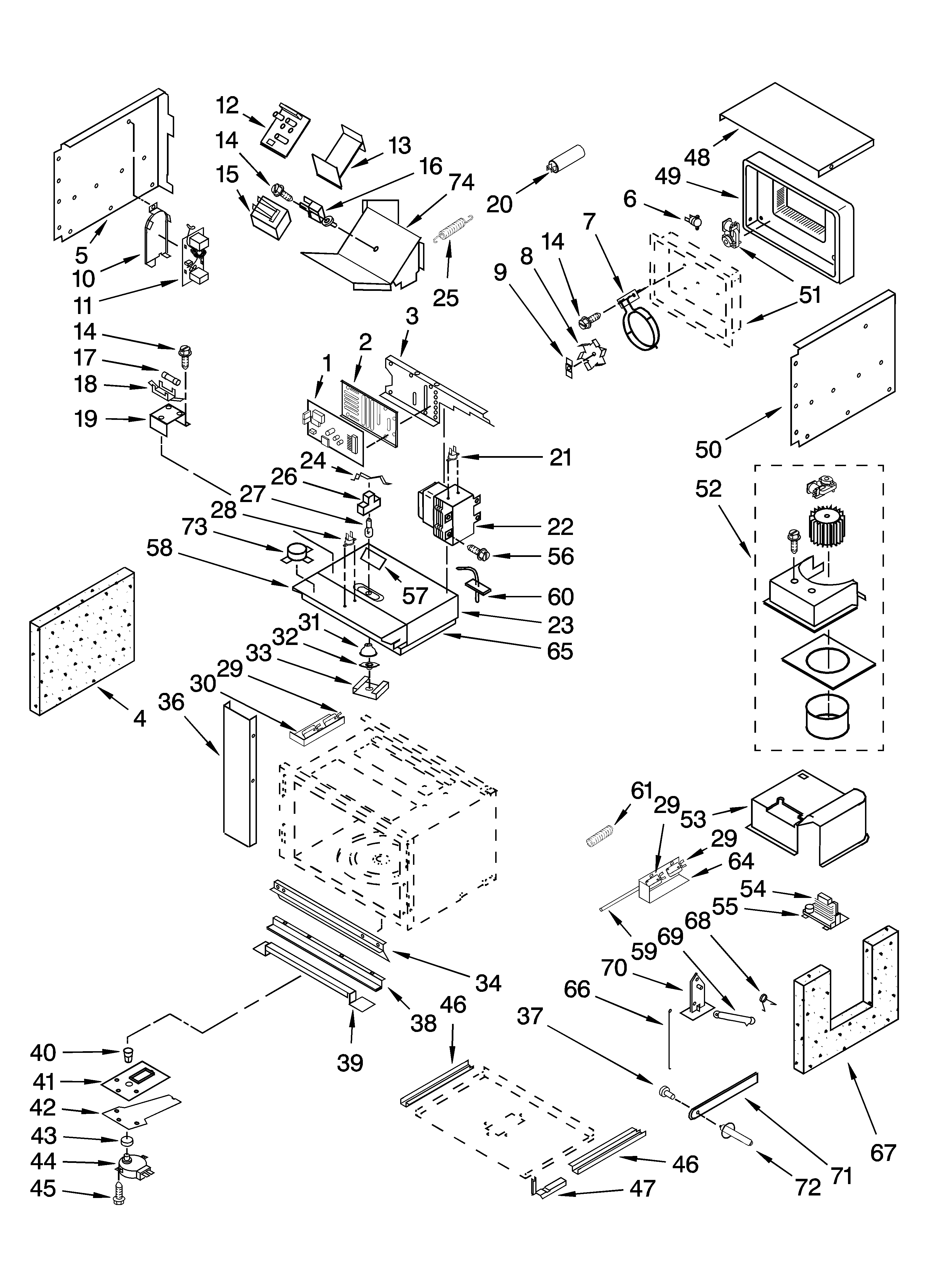

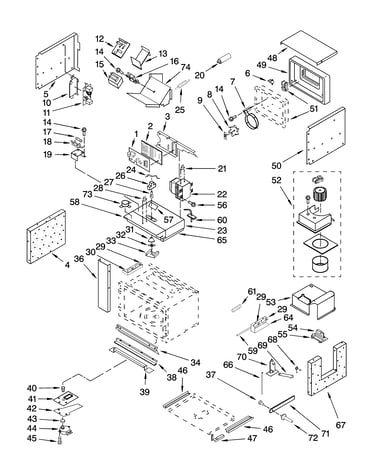

Cabinet and stirrer parts diagram

Switch

Part #W10131248

Replaced by #W10211972

?
Manufacturer substitution
This part replaces W10131248. Substitute parts can look different from the original.
BEST SELLER
$28.80 |
17% OFF Phone Price : $34.80
In Stock
Inverter W10120229
#54

Cabinet and stirrer parts diagram

Inverter

Part #W10120229

Replaced by #W10217711

?
Manufacturer substitution
This part replaces W10120229. Substitute parts can look different from the original.
BEST SELLER
$207.15 |
5% OFF Phone Price : $219.15
Back Order
Bake Element 9760768
#3

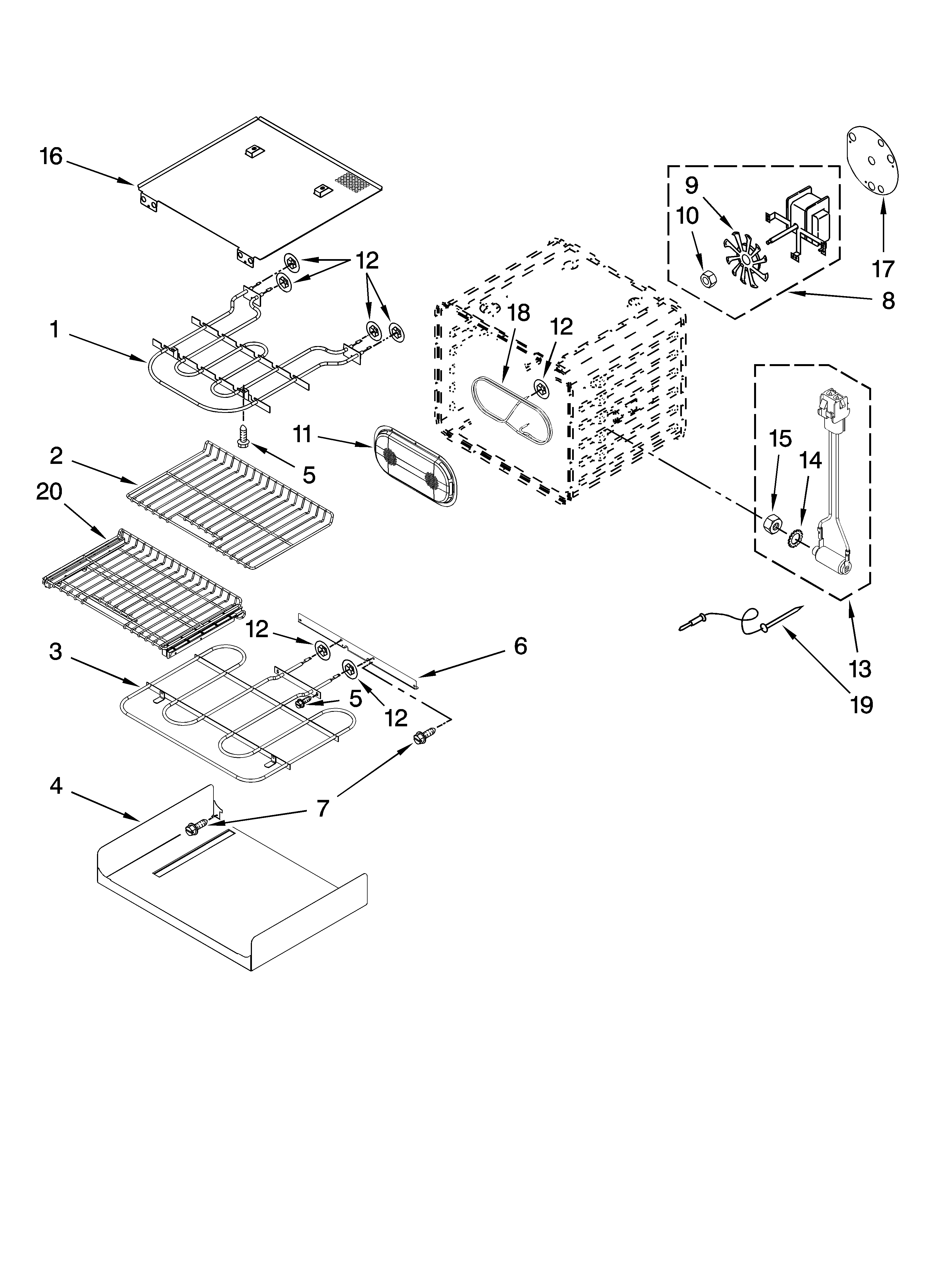

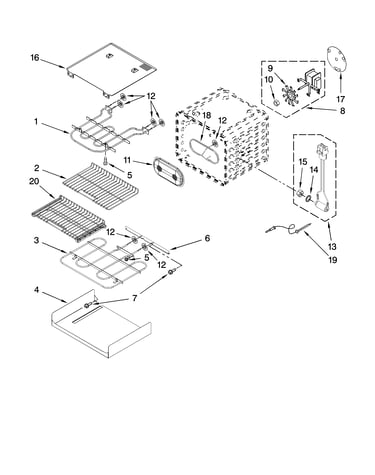

Internal oven parts diagram

Bake element

Part #9760768

Replaced by #WPW10207398

?
Manufacturer substitution
This part replaces 9760768. Substitute parts can look different from the original.
BEST SELLER
$87.58 |
6% OFF Phone Price : $93.58
In Stock
Wall Oven Temperature Sensor 4455636
#29

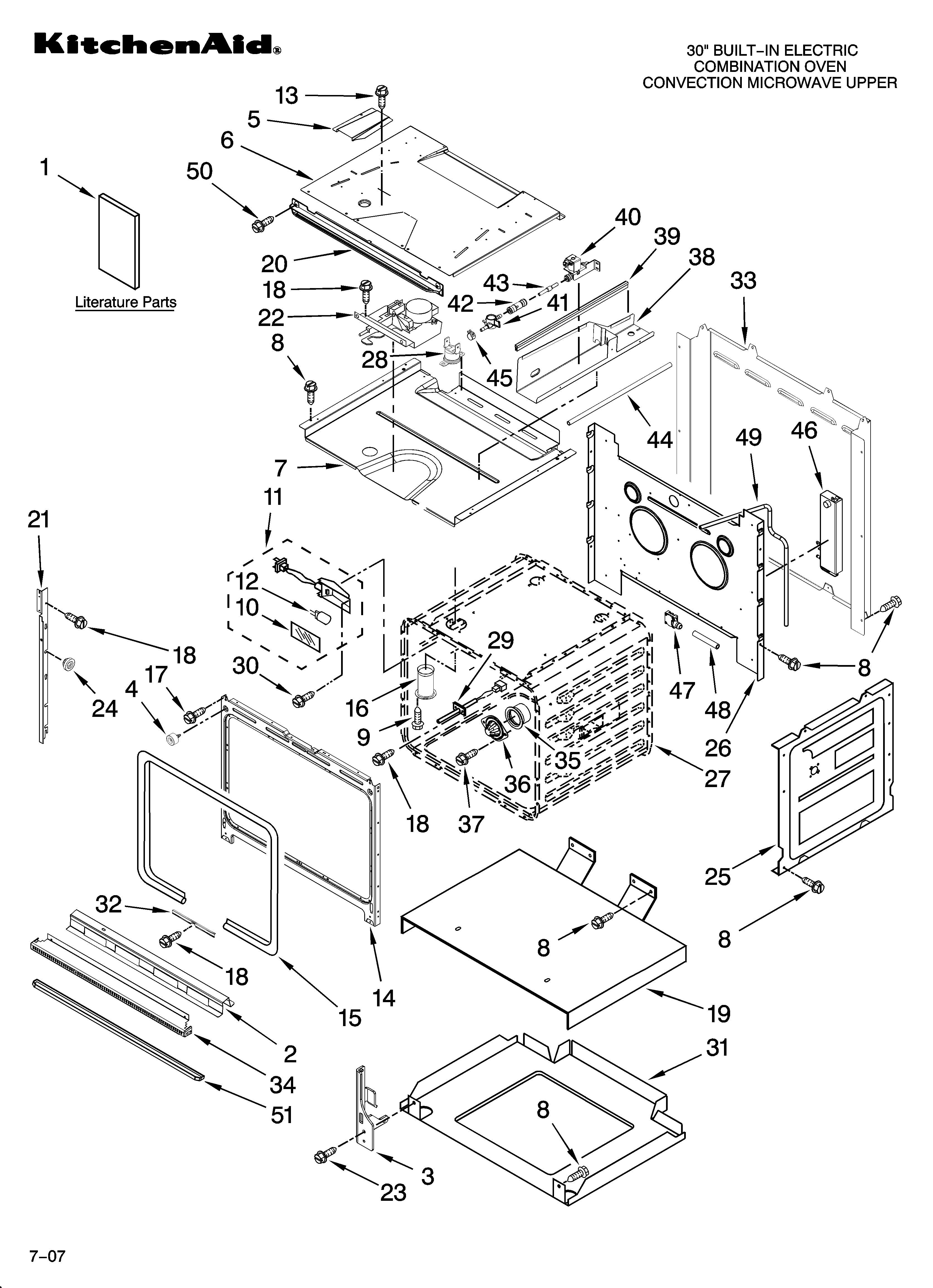

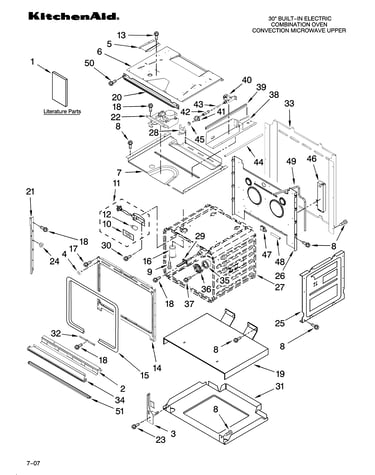

Oven parts diagram

Wall oven temperature sensor

Part #4455636

Replaced by #WPW10131825

?
Manufacturer substitution
This part replaces 4455636. Substitute parts can look different from the original.
BEST SELLER
$59.66 |
9% OFF Phone Price : $65.66
In Stock
Spray W 350930
#NI

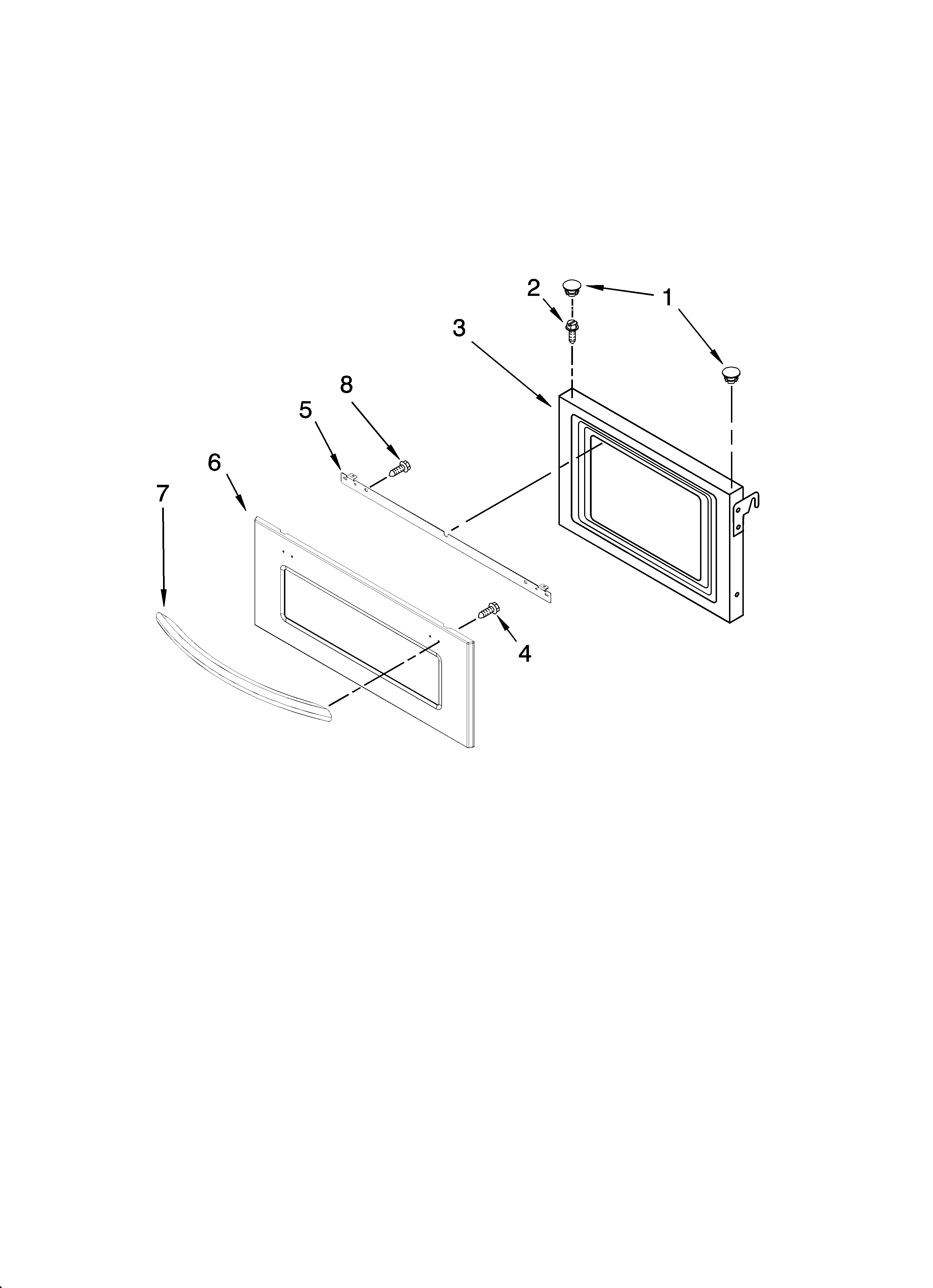

Microwave door parts, optional parts diagram

Spray w

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Touch-up Paint (black) 72032
#NI

Microwave door parts, optional parts diagram

Touch-up paint (black)

Part #72032

Replaced by #72032

?
Manufacturer substitution
This part replaces 72032. Substitute parts can look different from the original.
This item is not returnable
$9.02 |
10% OFF Phone Price : $10.02
In Stock
Fuse (black) 4375321
#17

Cabinet and stirrer parts diagram

Fuse (black)

Part #4375321

Replaced by #WP4375321

?
Manufacturer substitution
This part replaces 4375321. Substitute parts can look different from the original.
$15.44 |
11% OFF Phone Price : $17.44
In Stock
Fuse W10017410
#10

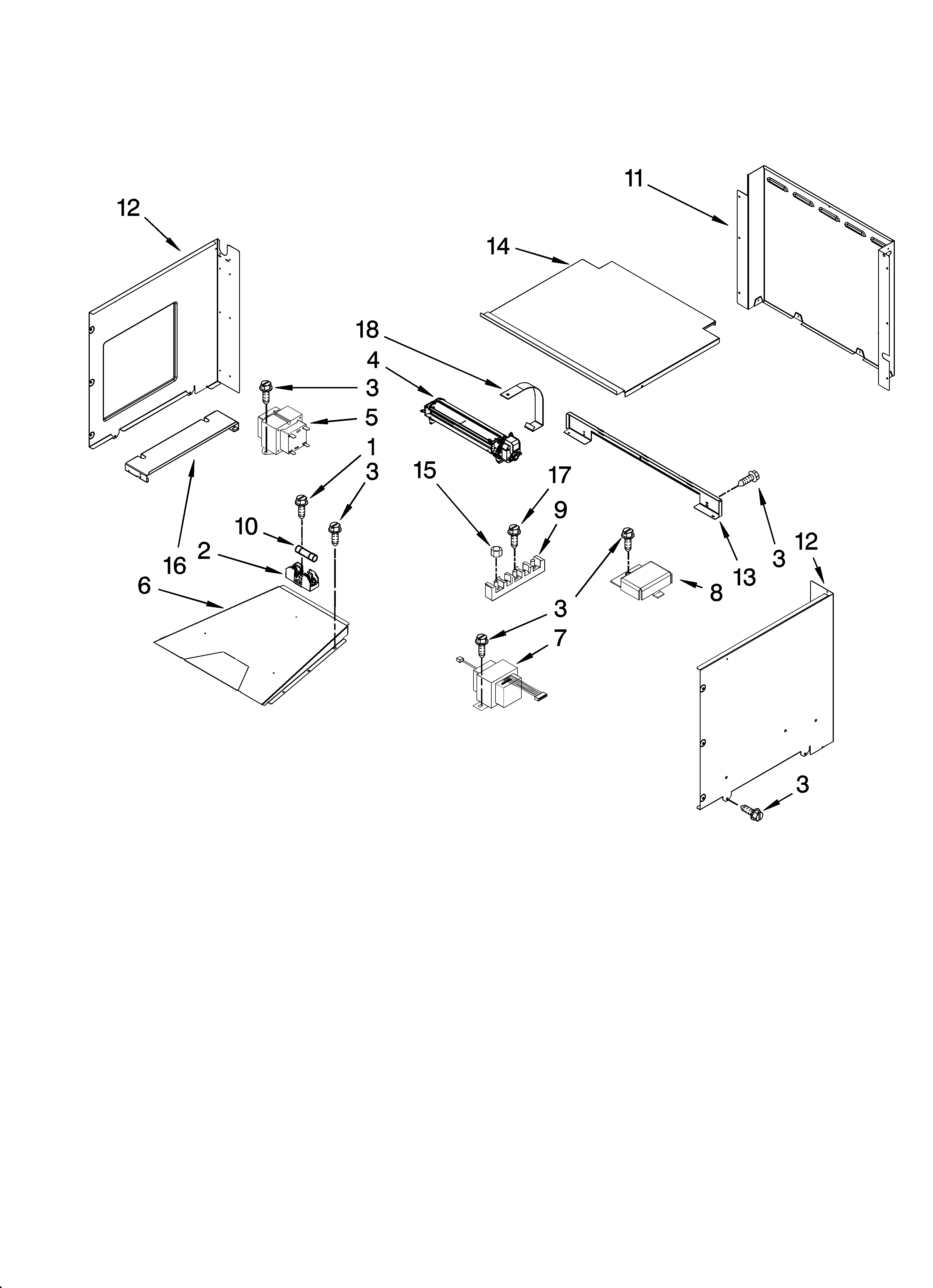

Top venting parts diagram

Fuse

Part #W10017410

Replaced by #WPW10017410

?
Manufacturer substitution
This part replaces W10017410. Substitute parts can look different from the original.
This item is not returnable
$11.89 |
14% OFF Phone Price : $13.89
In Stock
Door Hinge W10120478
#47

Cabinet and stirrer parts diagram

Door hinge

Part #W10120478

Replaced by #W10874474

?
Manufacturer substitution
This part replaces W10120478. Substitute parts can look different from the original.
$33.00 |
15% OFF Phone Price : $39.00
In Stock
Microwave Turntable Motor Coupler 8205677
#8

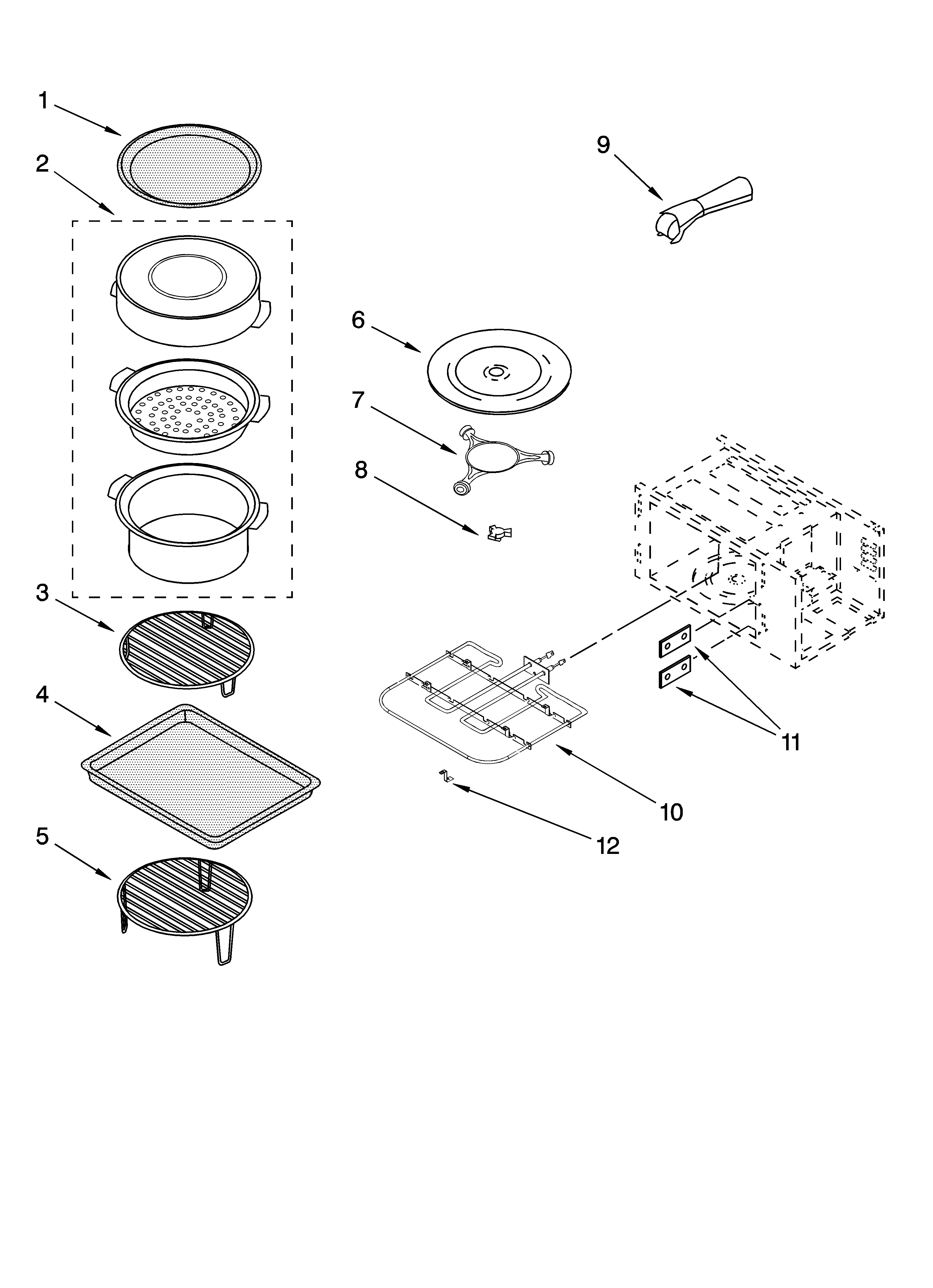

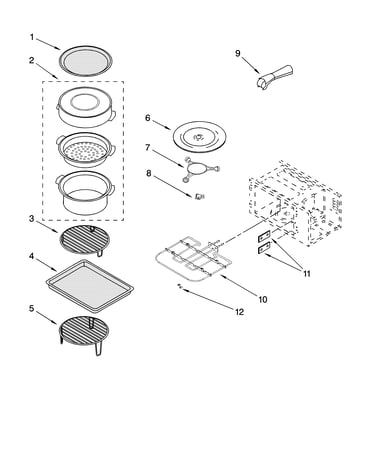

Internal microwave parts diagram

Microwave turntable motor coupler

Part #8205677

Replaced by #WPW10776938

?
Manufacturer substitution
This part replaces 8205677. Substitute parts can look different from the original.
This item is not returnable
$18.89 |
10% OFF Was : $20.99
In Stock
