GE
Electric Wall Oven

Model # ZET1038BF1BB Official GE wall oven

Here are the diagrams and repair parts for Official GE ZET1038BF1BB wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

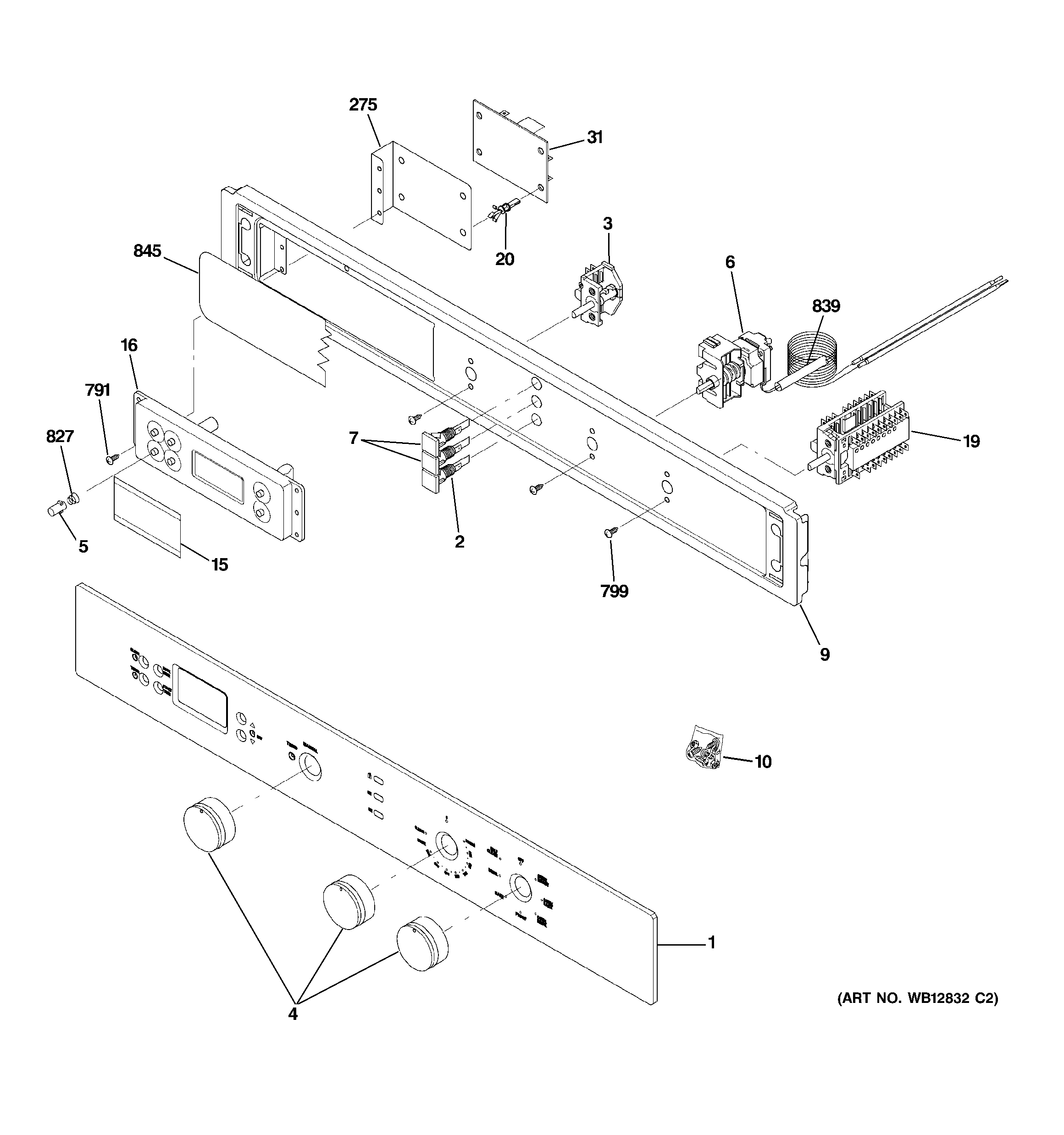

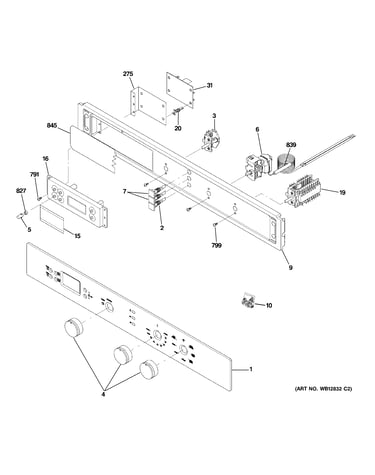

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 132 parts  |

Wall Oven Door Seal WB07X10060
#352

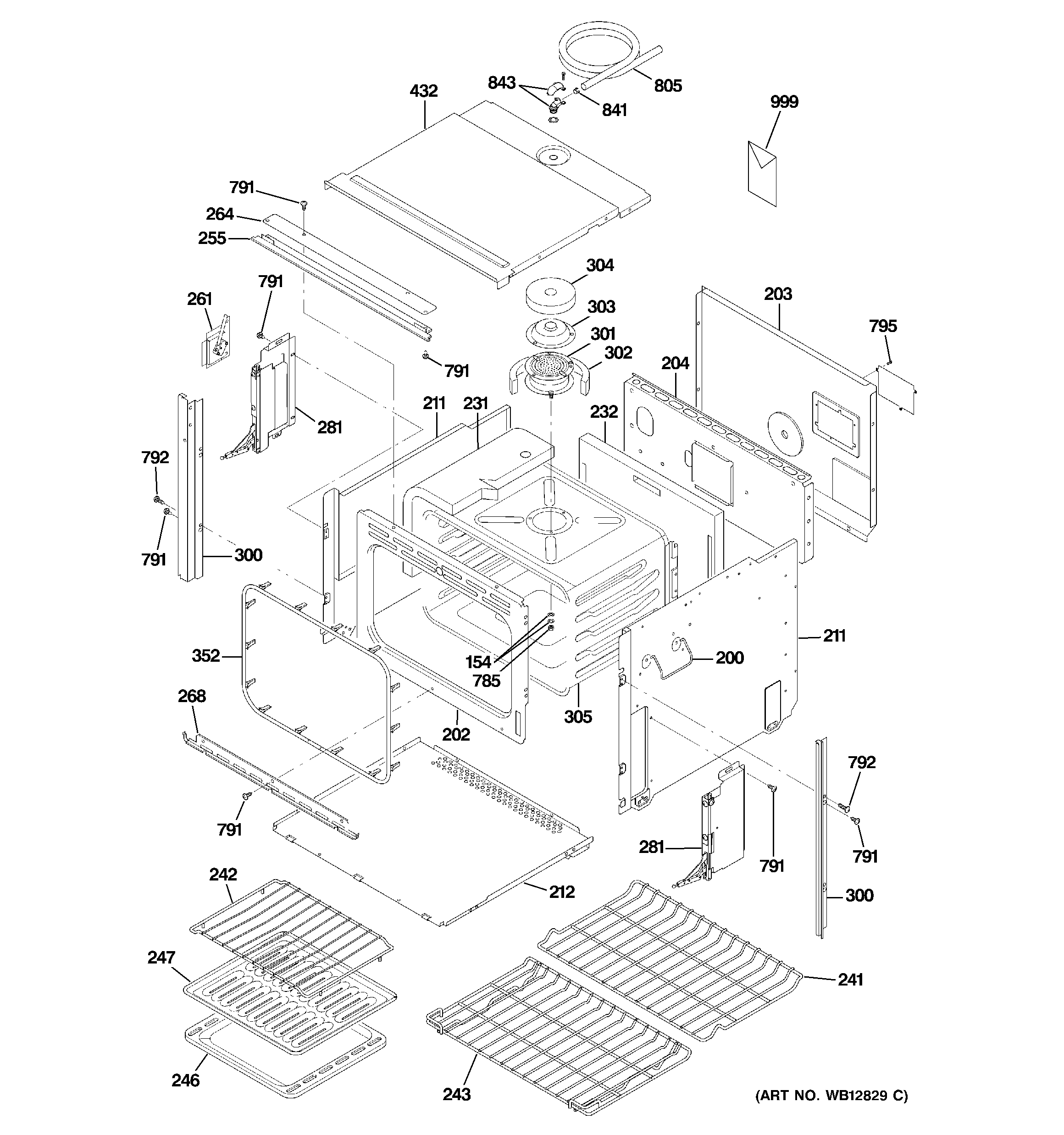

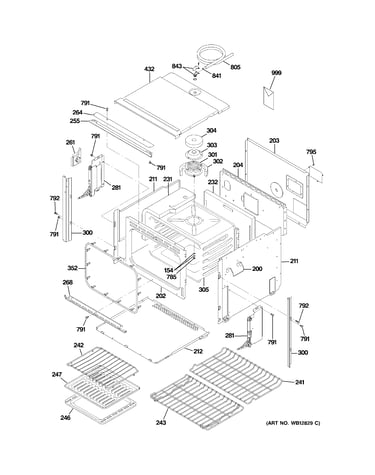

Body parts (2) diagram

Wall oven door seal

Part #WB07X10060

$141.85
8% OFF Phone Price : $153.85
In Stock
Decal WB02X10833
#852

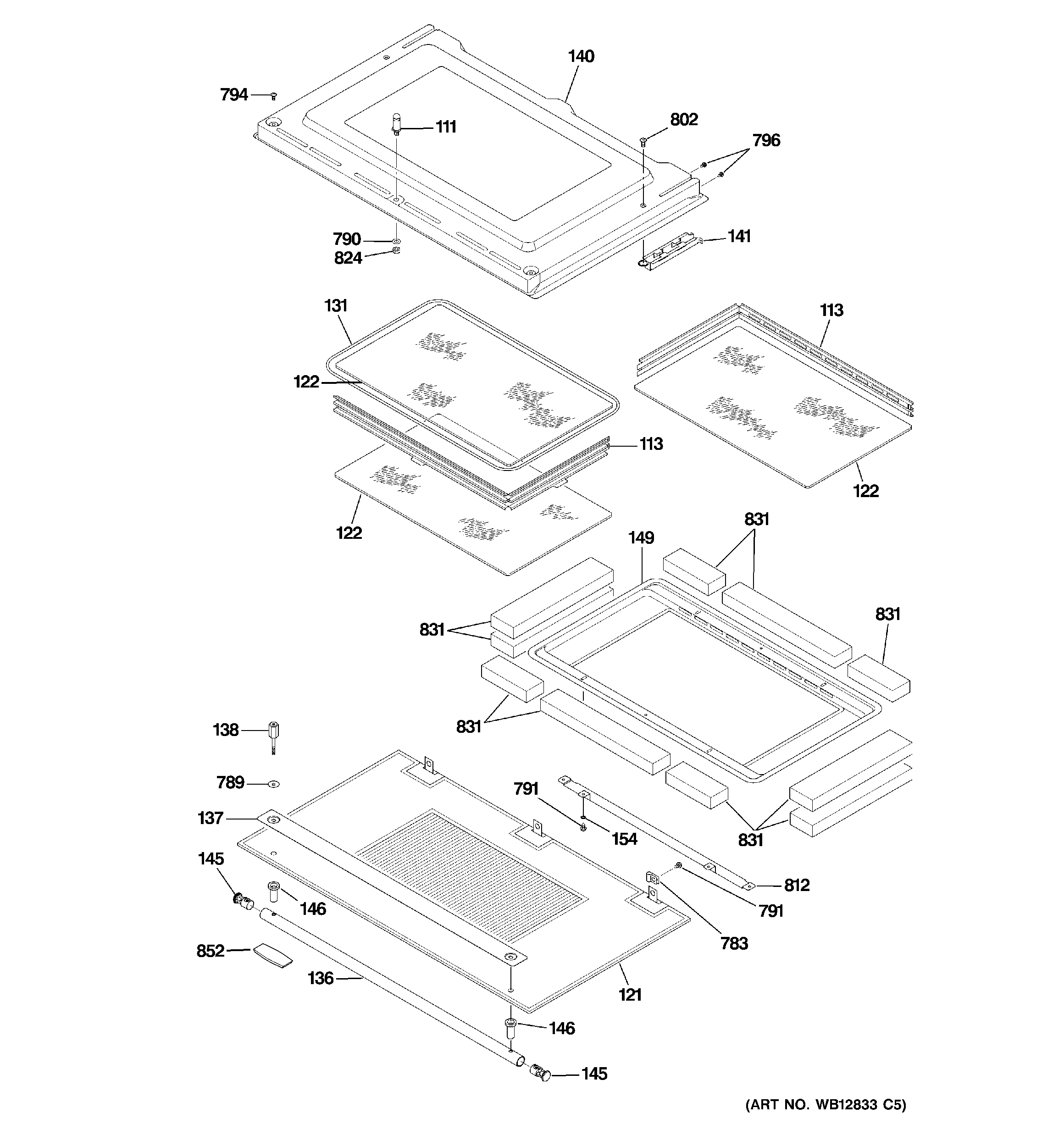

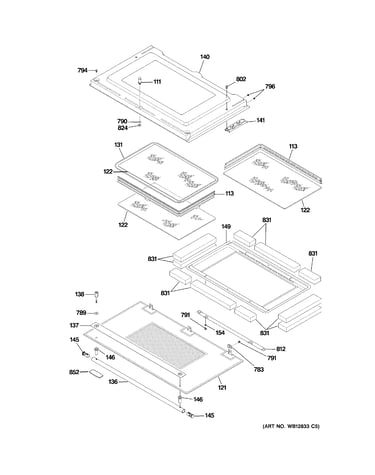

Door diagram

Decal

Part #WB02X10833

In Stock
Cooking Appliance Halogen Light Bulb (replaces Wb08x10045, Wb36x10176, Wr02x11184) WB01X10239
#257

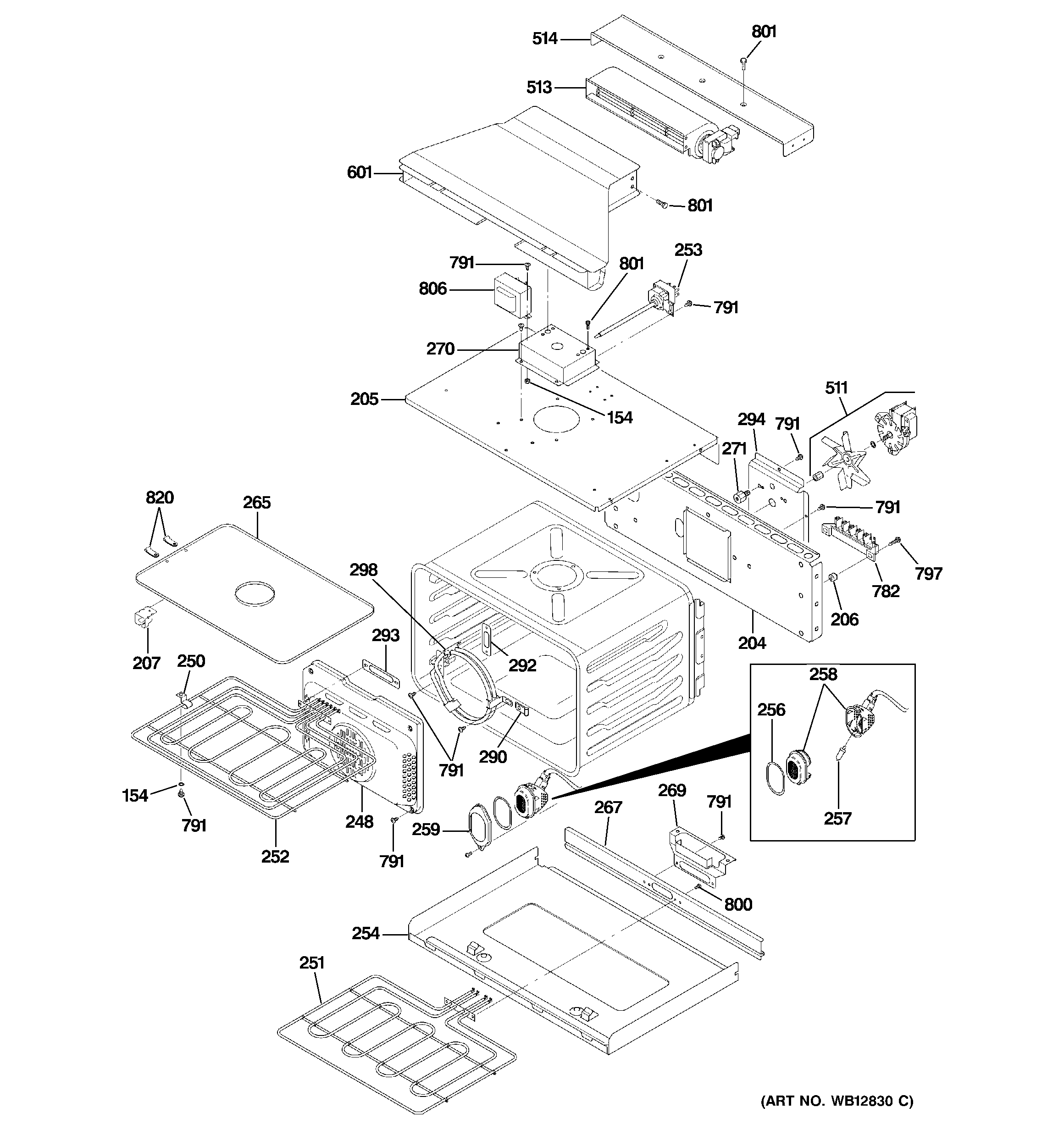

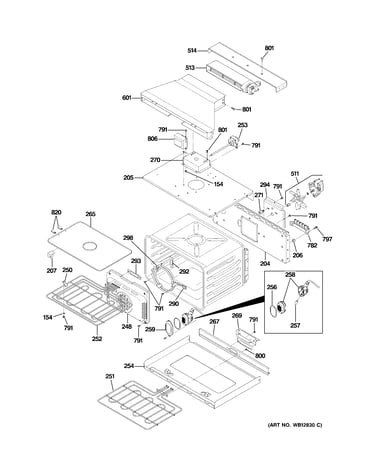

Body parts (1) diagram

Cooking appliance halogen light bulb (replaces wb08x10045, wb36x10176, wr02x11184)

Part #WB01X10239

$27.25
18% OFF Phone Price : $33.25
Back Order
Wall Oven Door Hinge WB10X10028
#141

Door diagram

Wall oven door hinge

Part #WB10X10028

$33.02
15% OFF Phone Price : $39.02
In Stock
Oven Broiler Pan WB49X10115
#246

Body parts (2) diagram

Oven broiler pan

Part #WB49X10115

Replaced by #WB48X10056

?
Manufacturer substitution
This part replaces WB49X10115. Substitute parts can look different from the original.
$31.29
16% OFF Phone Price : $37.29
In Stock
Wall Oven Door Lock Motor WB14X10005
#151

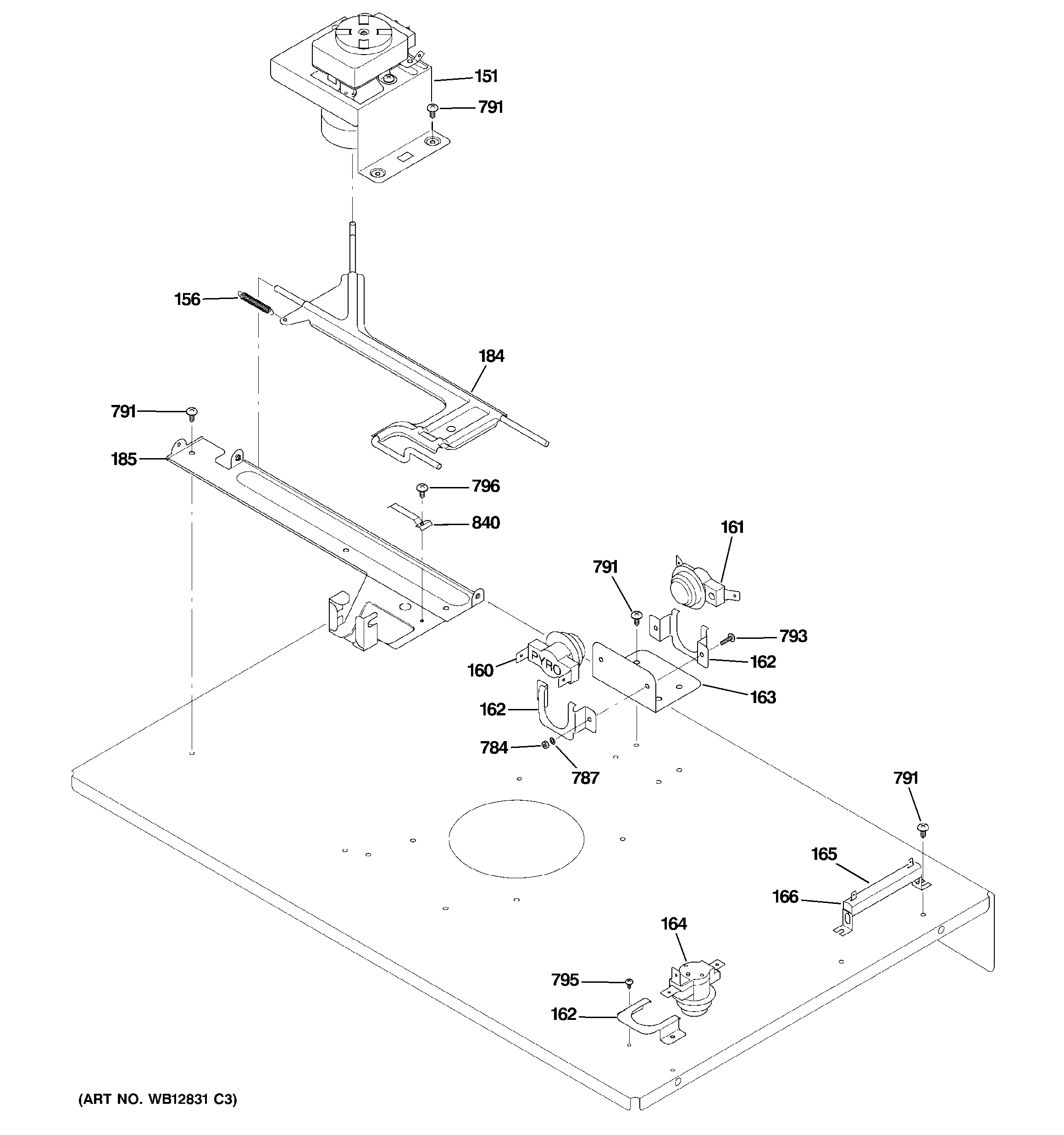

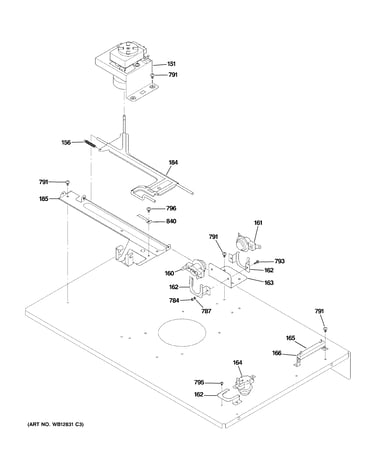

Door lock diagram

Wall oven door lock motor

Part #WB14X10005

Replaced by #WB00X7310

?
Manufacturer substitution
This part replaces WB14X10005. Substitute parts can look different from the original.
In Stock
Wall Oven Cooling Fan WB26X10022
#513

Body parts (1) diagram

Wall oven cooling fan

Part #WB26X10022

The manufacturer no longer makes this part, and there's no substitute part

Element Ring WB44X10032
#298

Body parts (1) diagram

Element ring

Part #WB44X10032

Replaced by #WB44X10012

?
Manufacturer substitution
This part replaces WB44X10032. Substitute parts can look different from the original.
$282.17
$12.00 OFF Phone Price : $294.17
In Stock
Hinge Asm Lf WB10X10051
#281

Body parts (2) diagram

Hinge asm lf

Part #WB10X10051

Replaced by #WB10X10078

?
Manufacturer substitution
This part replaces WB10X10051. Substitute parts can look different from the original.
$135.45
8% OFF Phone Price : $147.45
In Stock
Hinge Asm Rg WB10X10052
#281

Body parts (2) diagram

Hinge asm rg

Part #WB10X10052

Replaced by #WB10X10078

?
Manufacturer substitution
This part replaces WB10X10052. Substitute parts can look different from the original.
$135.45
8% OFF Phone Price : $147.45
In Stock

Most common symptoms to help you fix your wall oven

Choose a symptom to see related wall oven repairs.

Main causes: bad oven door lock assembly, faulty electronic control board, wiring failure…

Main causes: broken broil element, faulty broil burner igniter, control system failure…

Main causes: broken bake element, bad bake burner igniter, tripped thermal switch, control system failure…

Main causes: faulty oven temperature sensor, control system problem, weak burner igniter, damaged oven element…

Main causes: lack of electrical power, bad electronic control board, faulty oven control thermostat…

Main causes: lack of gas supply, broken igniter, tripped circuit breaker, broken oven element, tripped thermal fuse, con…
