Craftsman
Wet/Dry Vacuum

Model # 113179141 Official Craftsman 12-gallon wet/dry vacuum

Here are the diagrams and repair parts for Official Craftsman 113179141 12-gallon wet/dry vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

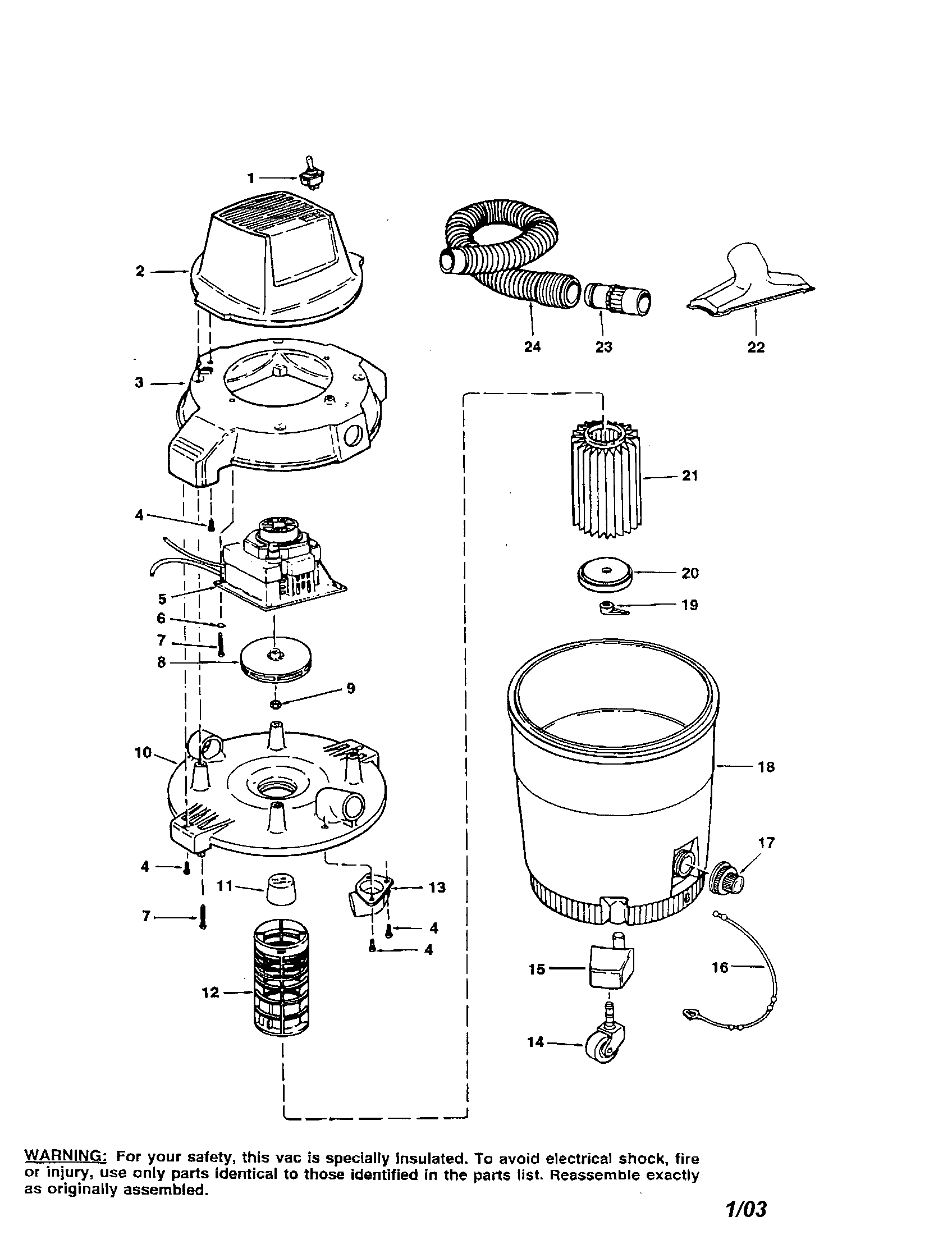

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |

Nozzle 20557-01
#22

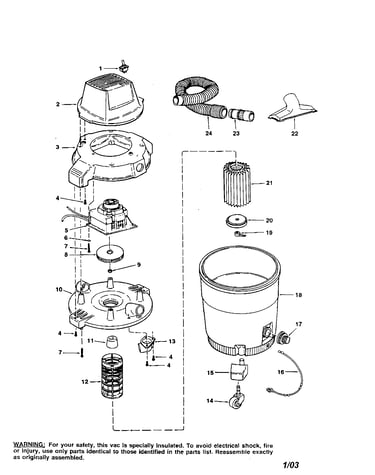

12 gallon wet/dry vac diagram

Nozzle

Part #20557-01

The manufacturer no longer makes this part, and there's no substitute part

Nozzle (black) 28229-01
#13

12 gallon wet/dry vac diagram

Nozzle (black)

Part #28229-01

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Caster (replaces 29776, 73137) 73102
#14

12 gallon wet/dry vac diagram

Shop vacuum caster (replaces 29776, 73137)

Part #73102

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum On/off Switch (replaces 73370, 813213) 73180
#1

12 gallon wet/dry vac diagram

Shop vacuum on/off switch (replaces 73370, 813213)

Part #73180

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Drain Cap (replaces 73107, 817465, 825881) 73185
#17

12 gallon wet/dry vac diagram

Shop vacuum drain cap (replaces 73107, 817465, 825881)

Part #73185

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Drain Cap Retainer Strap 73166
#16

12 gallon wet/dry vac diagram

Shop vacuum drain cap retainer strap

Part #73166

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Filter Nut 73316
#19

12 gallon wet/dry vac diagram

Shop vacuum filter nut

Part #73316

The manufacturer no longer makes this part, and there's no substitute part

Filter Cage 73362
#12

12 gallon wet/dry vac diagram

Filter cage

Part #73362

The manufacturer no longer makes this part, and there's no substitute part

Filter 9-17816
#21

12 gallon wet/dry vac diagram

Filter

Part #9-17816

The manufacturer no longer makes this part, and there's no substitute part

Adapter (black) 73324
#23

12 gallon wet/dry vac diagram

Adapter (black)

Part #73324

The manufacturer no longer makes this part, and there's no substitute part
