Model # NEX-5NK/B Official Sony digital camera

Here are the diagrams and repair parts for Official Sony NEX-5NK-B digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

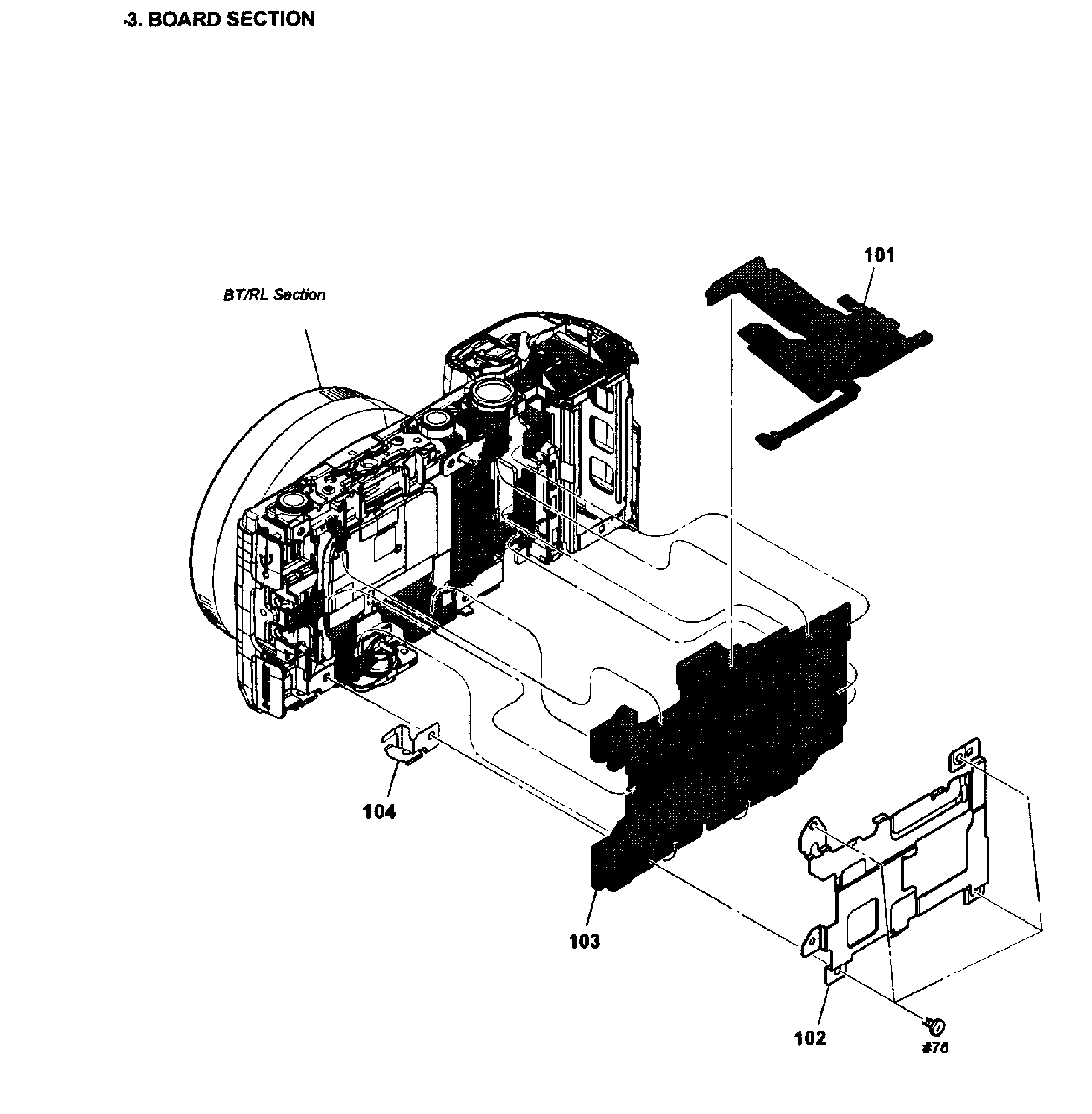

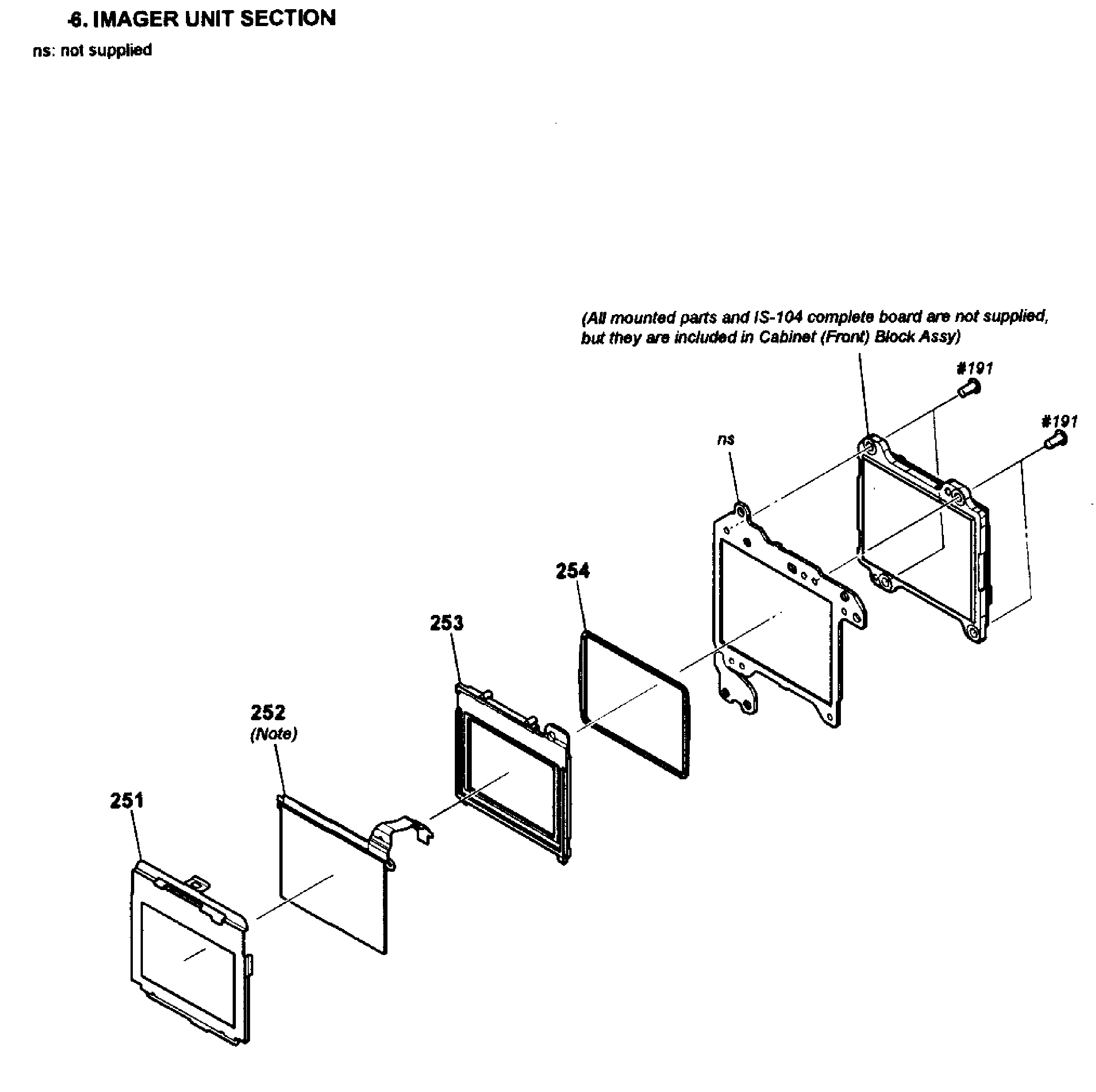

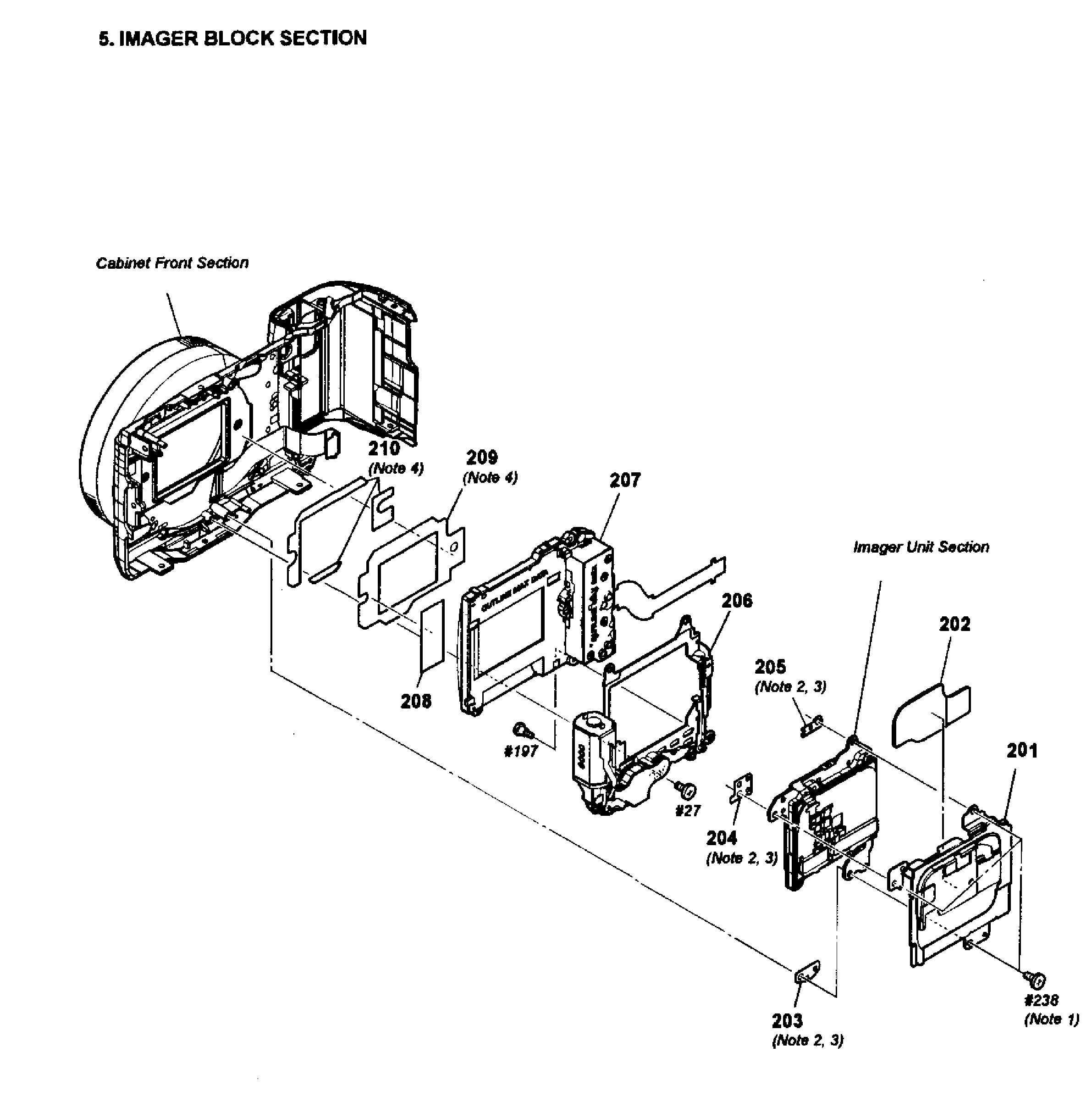

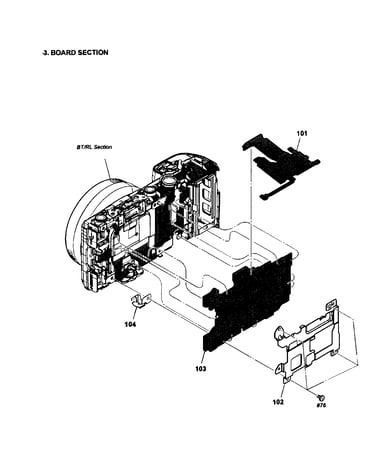

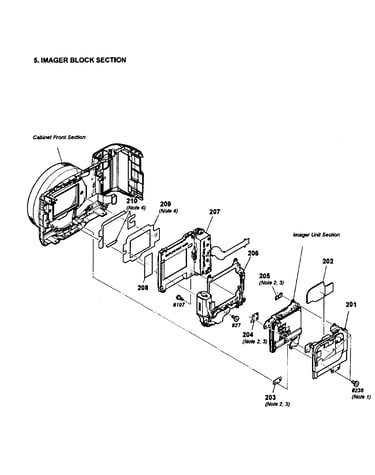

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 94 parts |

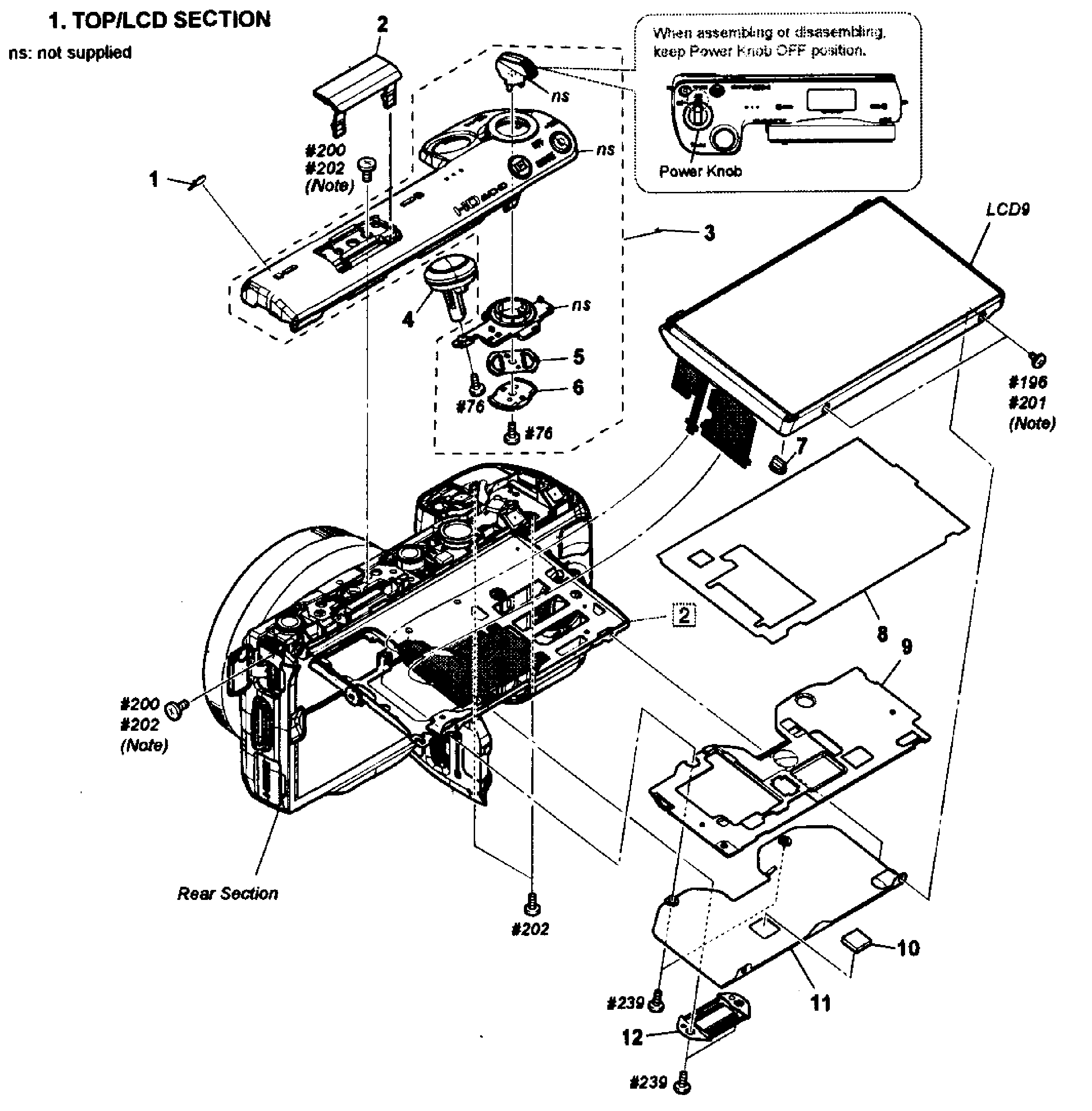

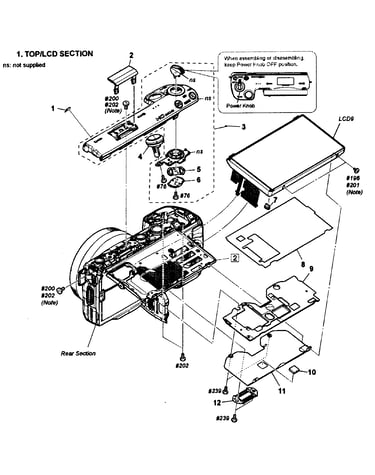

Top/lcd assy diagram

Rear cabinet

Part #429214401

$8.03

In Stock

Qty

Top/lcd assy diagram

Retaining

Part #418652401

This item is not returnable

$3.15

In Stock

Qty

#56

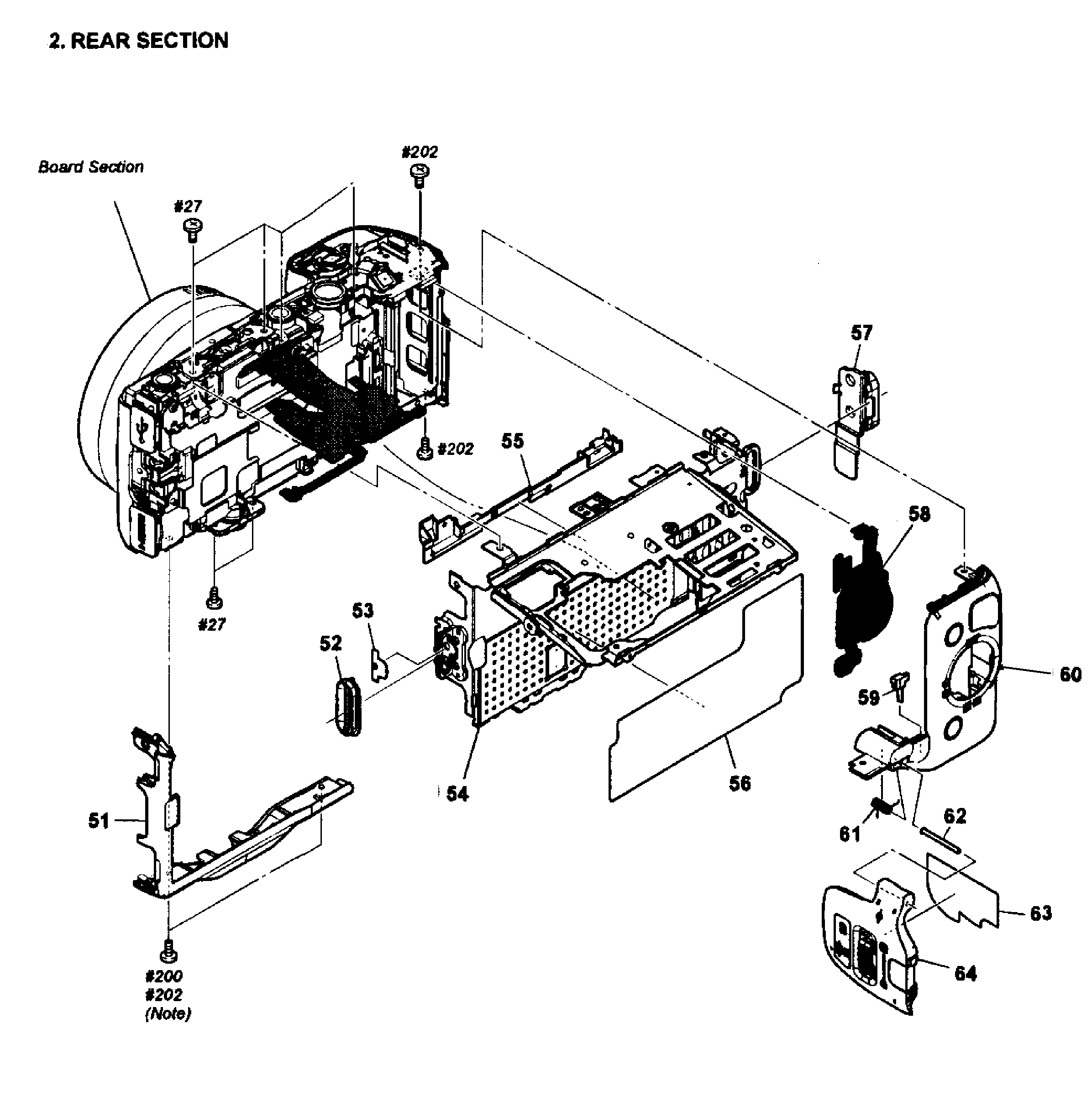

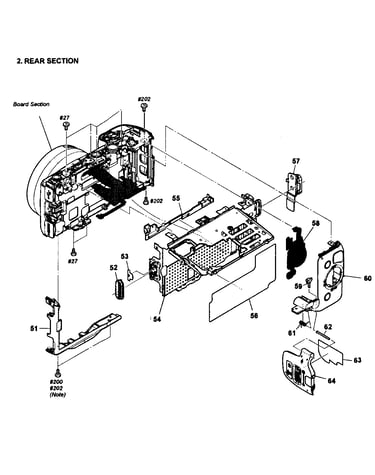

Rear assy diagram

Sheet frame

Part #429225801

$8.03

In Stock

Qty

#59

Rear assy diagram

Light guide

Part #429213301

This item is not returnable

$2.25

In Stock

Qty

#151

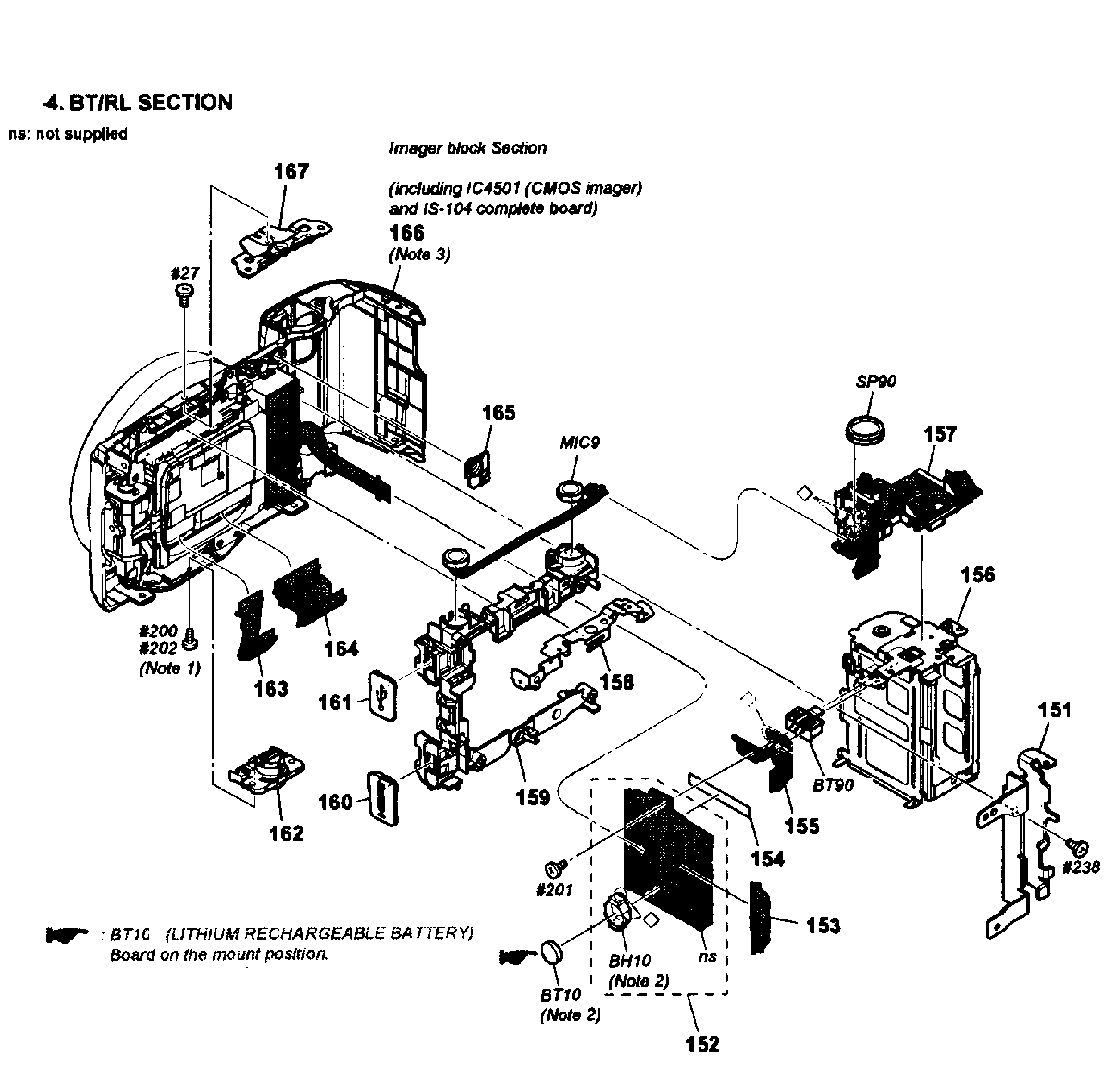

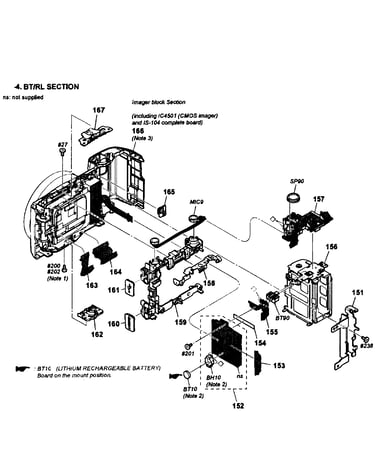

Bt/rl assy diagram

Bt lid base

Part #429213801

This item is not returnable

$4.83

In Stock

Qty

Screw-sil

Part #266655111

This item is not returnable

$3.54

In Stock

Qty

#302

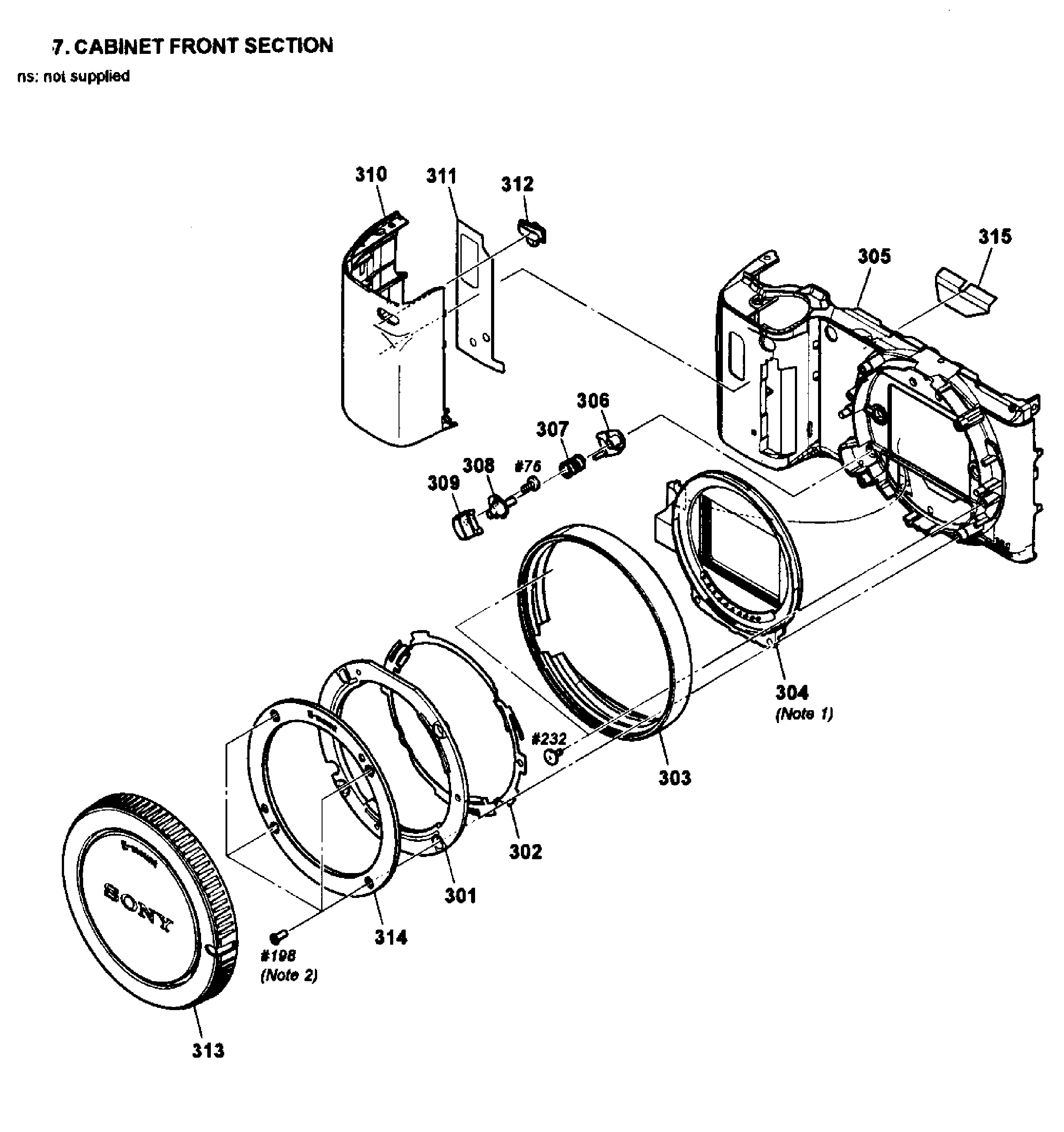

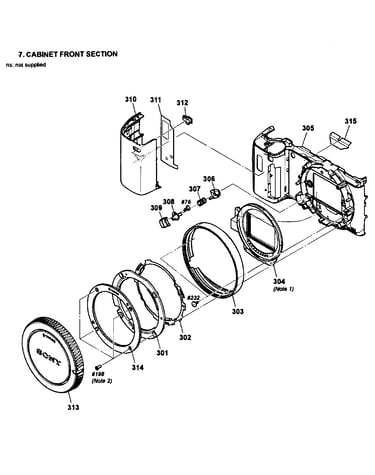

Front assy diagram

Mb-n-plate

Part #418596301

This item is not returnable

$4.41

In Stock

Qty

#167

Bt/rl assy diagram

Shoe plate

Part #429213501

This item is not returnable

$3.93

In Stock

Qty

#161

Bt/rl assy diagram

Sony cover usb,black

Part #418655341

$14.66

In Stock

Qty

#312

Front assy diagram

Window ir

Part #429215301

This item is not returnable

$3.54

In Stock

Qty
