Model # ME17H703SHW/AA-01 Official Samsung microwave/hood combo

Here are the diagrams and repair parts for Official Samsung ME17H703SHW-AA-01 microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 100 parts |

Microwave Magnetron (replaces Om75p21esgn) OM75P-21-ESGN

#30

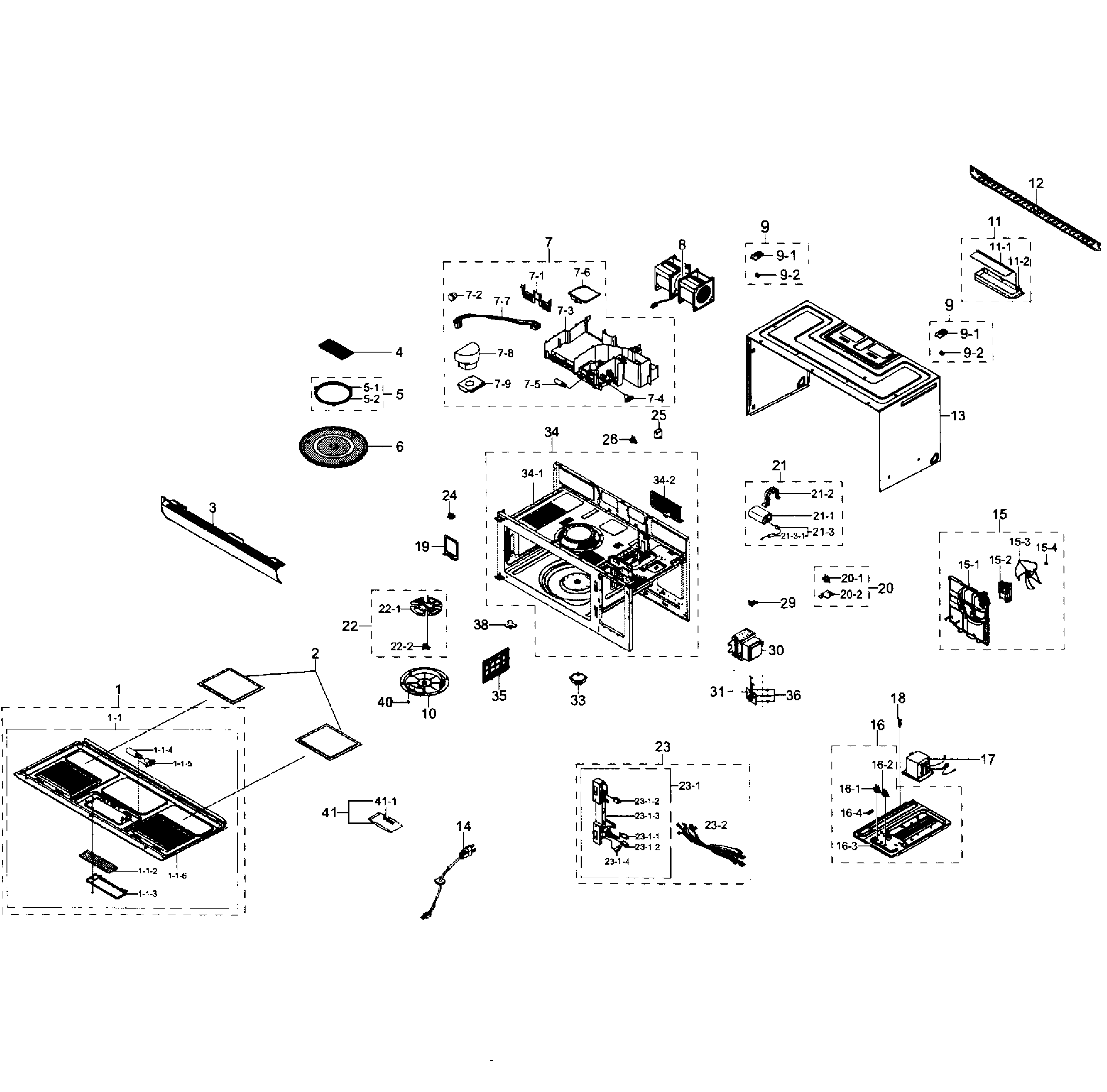

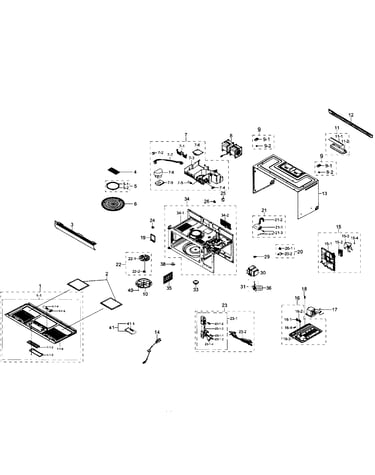

Main section diagram

Microwave magnetron (replaces om75p21esgn)

Part #OM75P-21-ESGN

$132.51 |

8% OFF Phone Price : $144.51

In Stock

Qty

Microwave High-voltage Capacitor (replaces 2501-000258) 2501-001011

#21-1

Main section diagram

Microwave high-voltage capacitor (replaces 2501-000258)

Part #2501-001011

$55.81 |

10% OFF Phone Price : $61.81

In Stock

Qty

#1-7

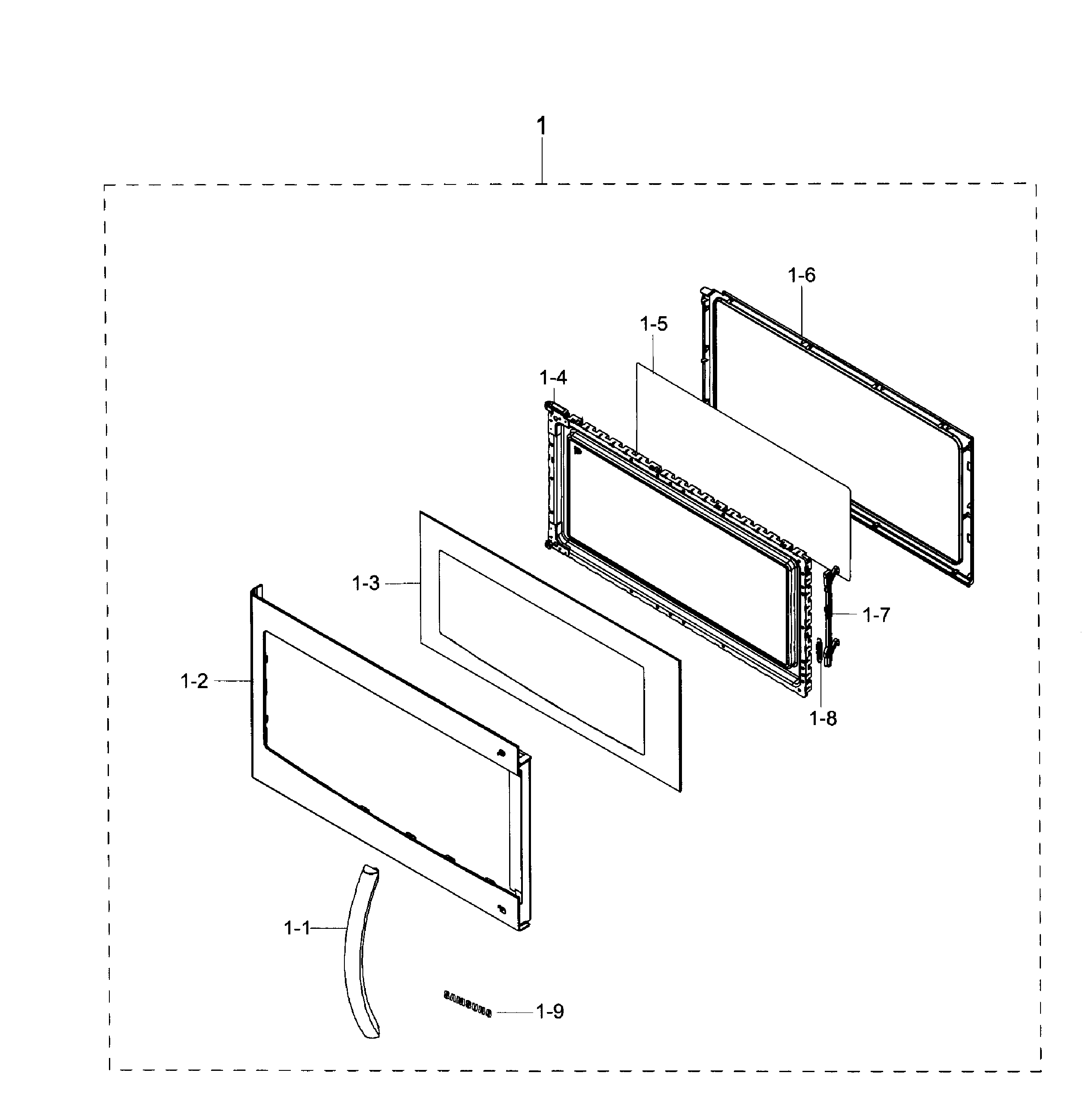

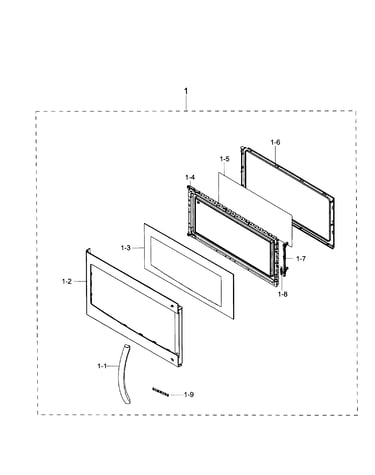

Door section diagram

Microwave door latch

Part #DE64-01308A

Replaced by #DE64-00760A

This item is not returnable

$22.48 |

21% OFF Phone Price : $28.48

In Stock

Qty

Microwave Door Interlock Switch (replaces 3405-000178) 3405-001034

#2312

Main section diagram

Microwave door interlock switch (replaces 3405-000178)

Part #3405-001034

$18.27 |

10% OFF Phone Price : $20.27

Back Order

Qty

Microwave High-voltage Diode DE59-00002A

#2131

Main section diagram

Microwave high-voltage diode

Part #DE59-00002A

This item is not returnable

$17.89 |

10% OFF Phone Price : $19.89

In Stock

Qty

#11-1

Main section diagram

Microwave vent damper cover

Part #DE71-60051B

This item is not returnable

$4.09 |

20% OFF Phone Price : $5.09

In Stock

Qty

#2311

Main section diagram

Microwave door micro-switch

Part #3405-001033

$16.00 |

11% OFF Phone Price : $18.00

In Stock

Qty

Microwave High-voltage Capacitor DE97-00753A

#21

Main section diagram

Microwave high-voltage capacitor

Part #DE97-00753A

$59.22 |

9% OFF Phone Price : $65.22

In Stock

Qty

Microwave Humidity Sensor (replaces De32-60013a) DE32-60011A

#7-2

Main section diagram

Microwave humidity sensor (replaces de32-60013a)

Part #DE32-60011A

$69.73 |

8% OFF Phone Price : $75.73

In Stock

Qty

Microwave Magnetron Thermostat DE96-00912A

#20

Main section diagram

Microwave magnetron thermostat

Part #DE96-00912A

Replaced by #DE91-70101F

$16.47 |

11% OFF Phone Price : $18.47

In Stock

Qty
