Model # JBP60BB1WH Official GE electric range

Here are the diagrams and repair parts for Official GE JBP60BB1WH electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 105 parts  |
Halogen Element WB30K5031
#58

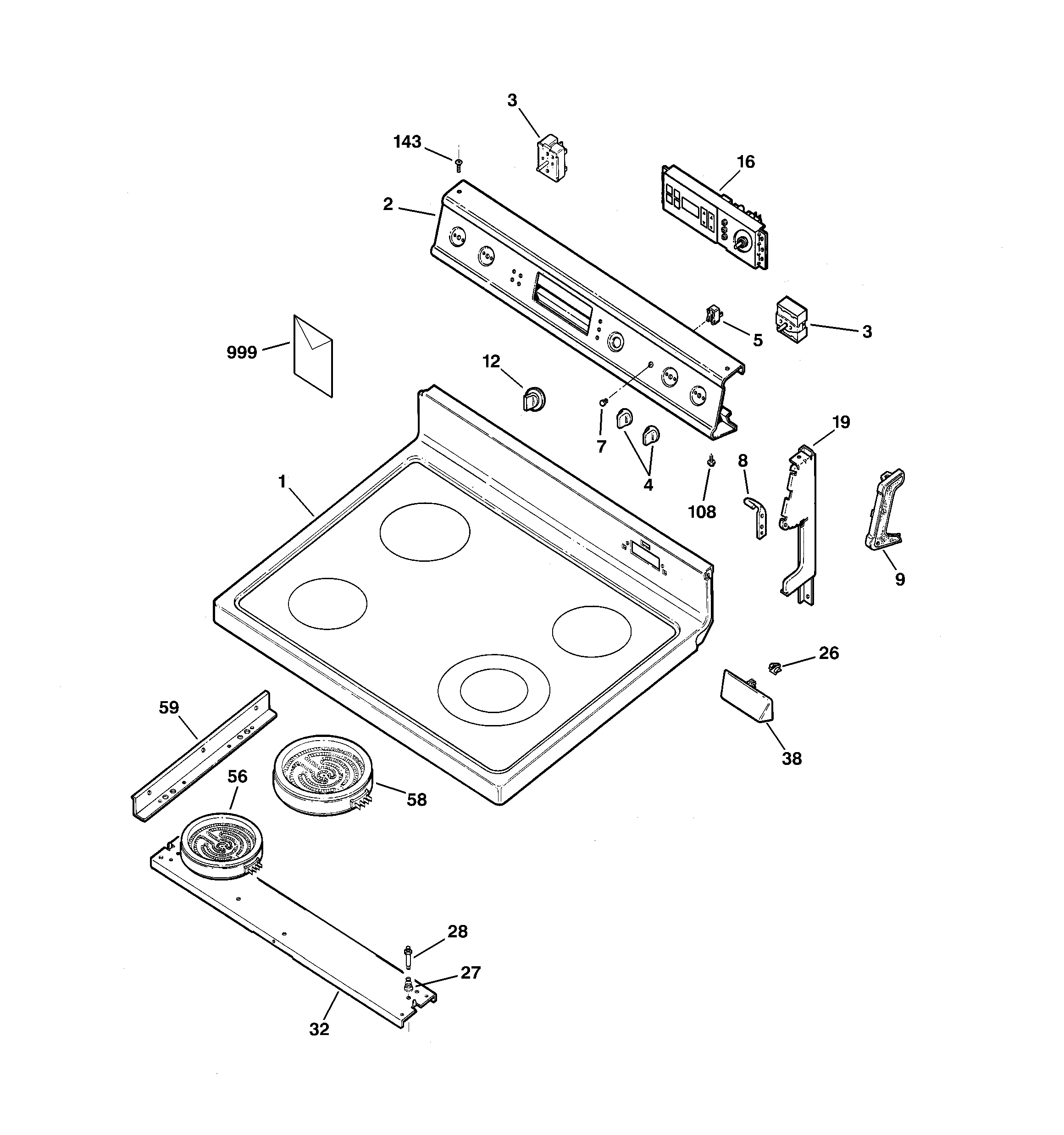

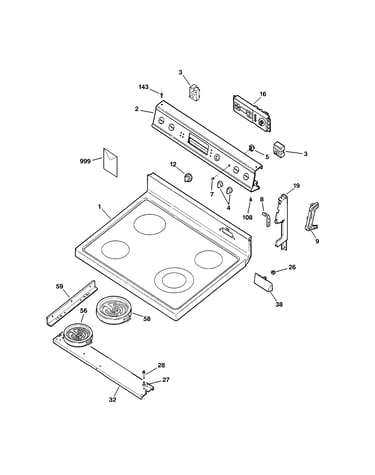

Control panel & cooktop diagram

Halogen element

Part #WB30K5031

Replaced by #WB30T10045

?
Manufacturer substitution
This part replaces WB30K5031. Substitute parts can look different from the original.
$134.96 |
8% OFF Phone Price : $146.96
In Stock
Range Bake Element (replaces Wb44x10005, Wb44x1005) WB44X10009
#650

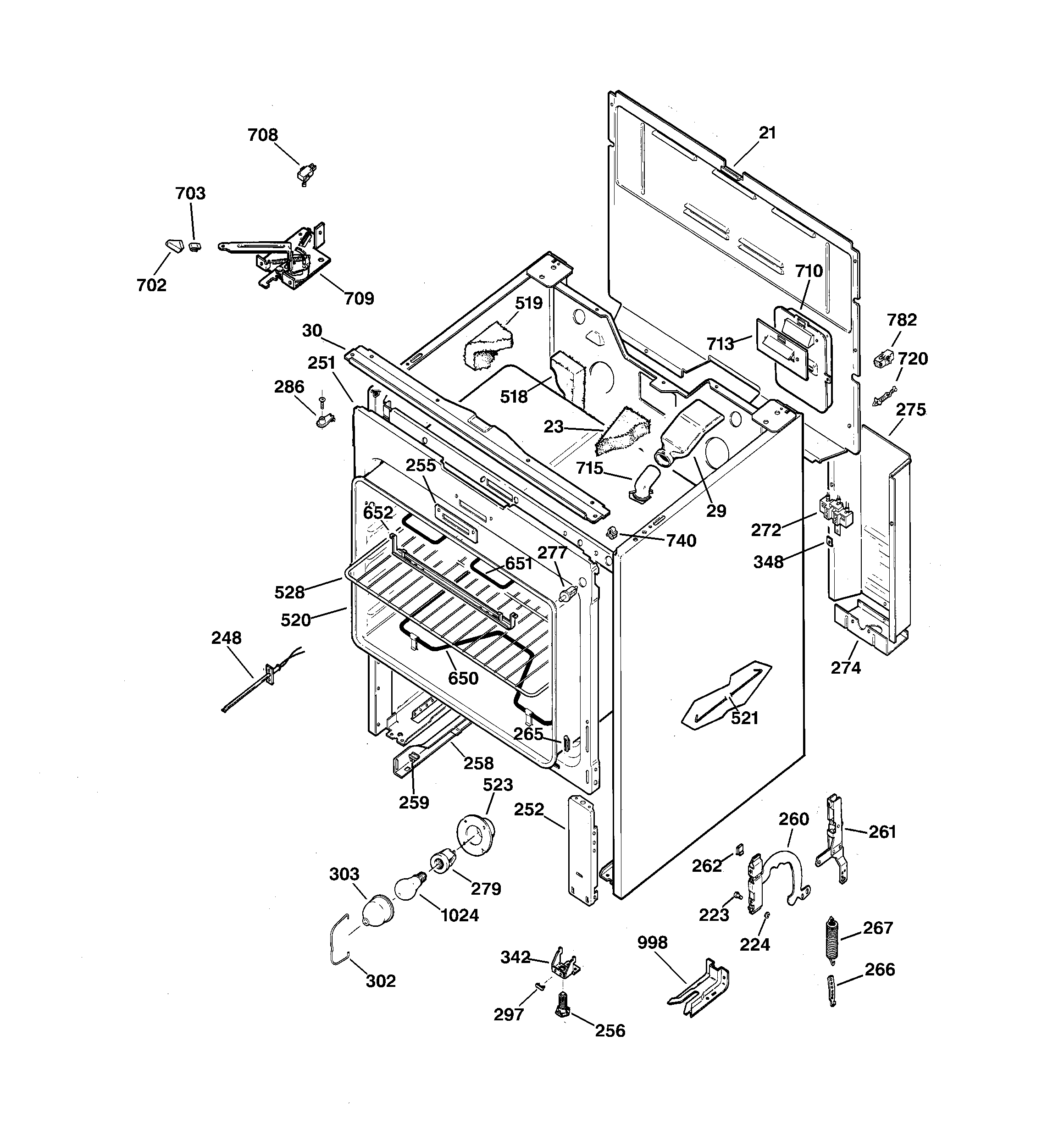

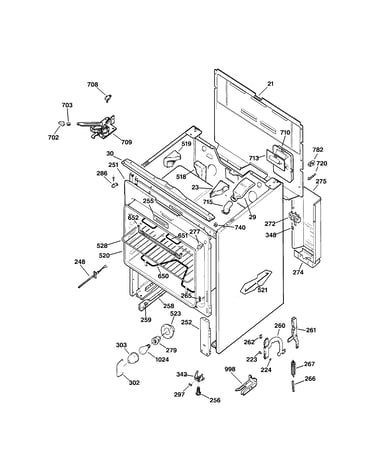

Body parts diagram

Range bake element (replaces wb44x10005, wb44x1005)

Part #WB44X10009

$67.49 |
8% OFF Phone Price : $73.49
In Stock
Terminal Block WB17X5123
#272

Body parts diagram

Terminal block

Part #WB17X5123

Replaced by #WB17X5095

?
Manufacturer substitution
This part replaces WB17X5123. Substitute parts can look different from the original.
$69.94 |
8% OFF Phone Price : $75.94
In Stock
Range Oven Rack (replaces Wb48x5097) WB48X5099
#528

Body parts diagram

Range oven rack (replaces wb48x5097)

Part #WB48X5099

$28.48 |
17% OFF Phone Price : $34.48
In Stock
Range Oven Door Handle (black) WB15X10003
#365

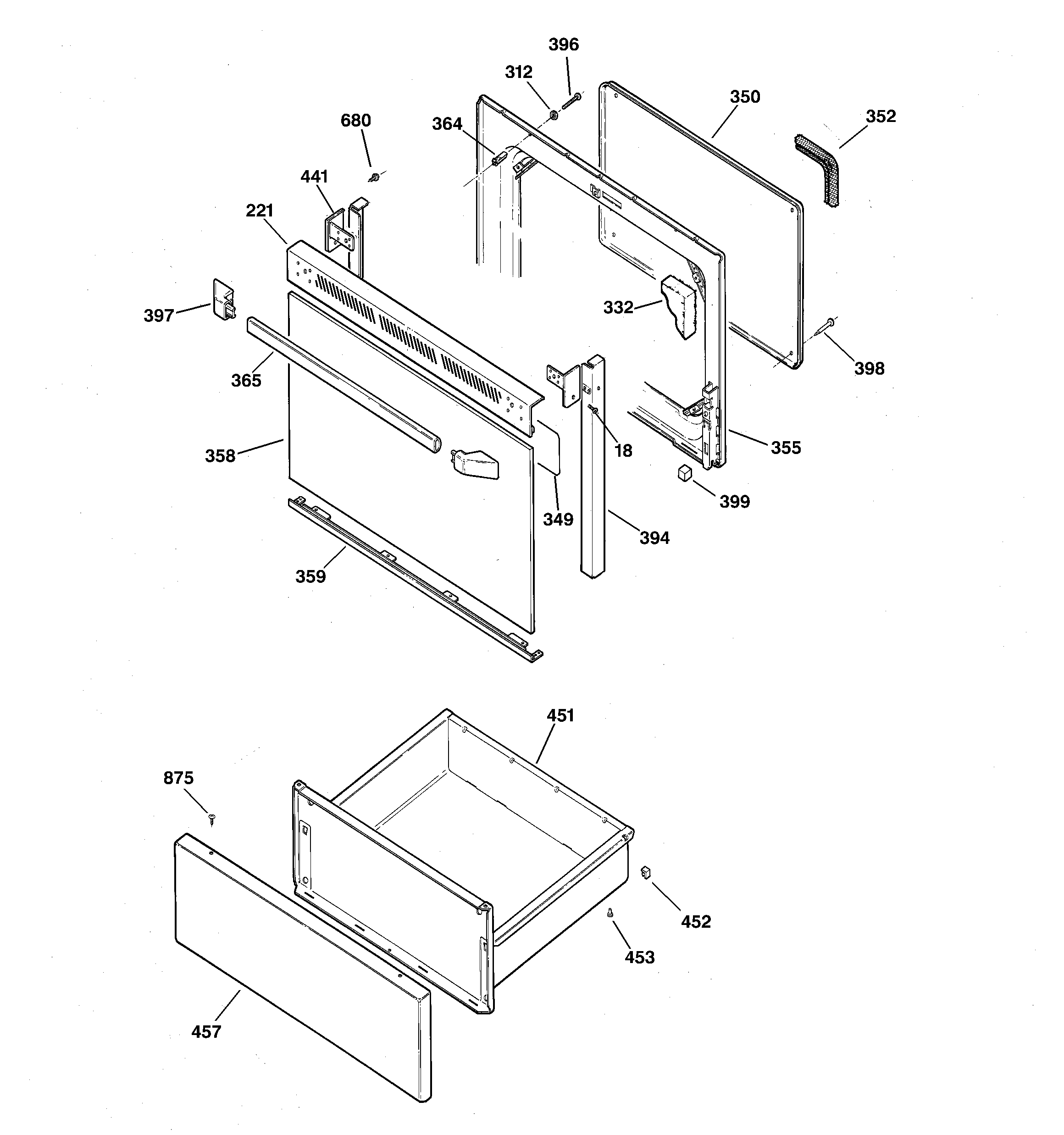

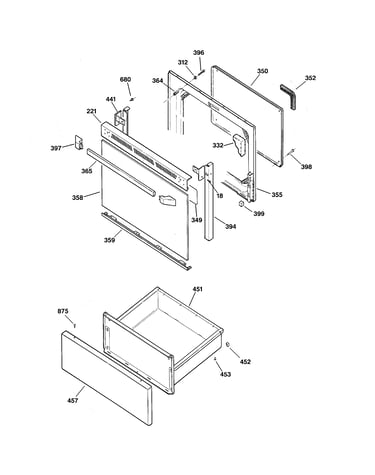

Door parts diagram

Range oven door handle (black)

Part #WB15X10003

$56.17 |
10% OFF Phone Price : $62.17
In Stock
Range Broil Element WB44X10015
#651

Body parts diagram

Range broil element

Part #WB44X10015

$70.10 |
8% OFF Phone Price : $76.10
In Stock
Gasket WB02X8423
#352

Door parts diagram

Gasket

Part #WB02X8423

Replaced by #WB2X3138

?
Manufacturer substitution
This part replaces WB02X8423. Substitute parts can look different from the original.
$120.27 |
9% OFF Phone Price : $132.27
In Stock
Range Oven Door Handle End Cap (replaces Wb7x10034) WB07X10034
#397

Door parts diagram

Range oven door handle end cap (replaces wb7x10034)

Part #WB07X10034

$35.15 |
15% OFF Phone Price : $41.15
In Stock
Mtr Mnt Scrw WR01X1788
#NI

Control panel & cooktop diagram

Mtr mnt scrw

Part #WR01X1788

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Elite Range Leveling Leg (replaces Wb2x10521) WB02X10521
#256

Body parts diagram

Kenmore elite range leveling leg (replaces wb2x10521)

Part #WB02X10521

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
