Kenmore Elite
Electric Cooktop

Model # 79043820000 Official Kenmore Elite cooktop

Here are the diagrams and repair parts for Official Kenmore Elite 79043820000 cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

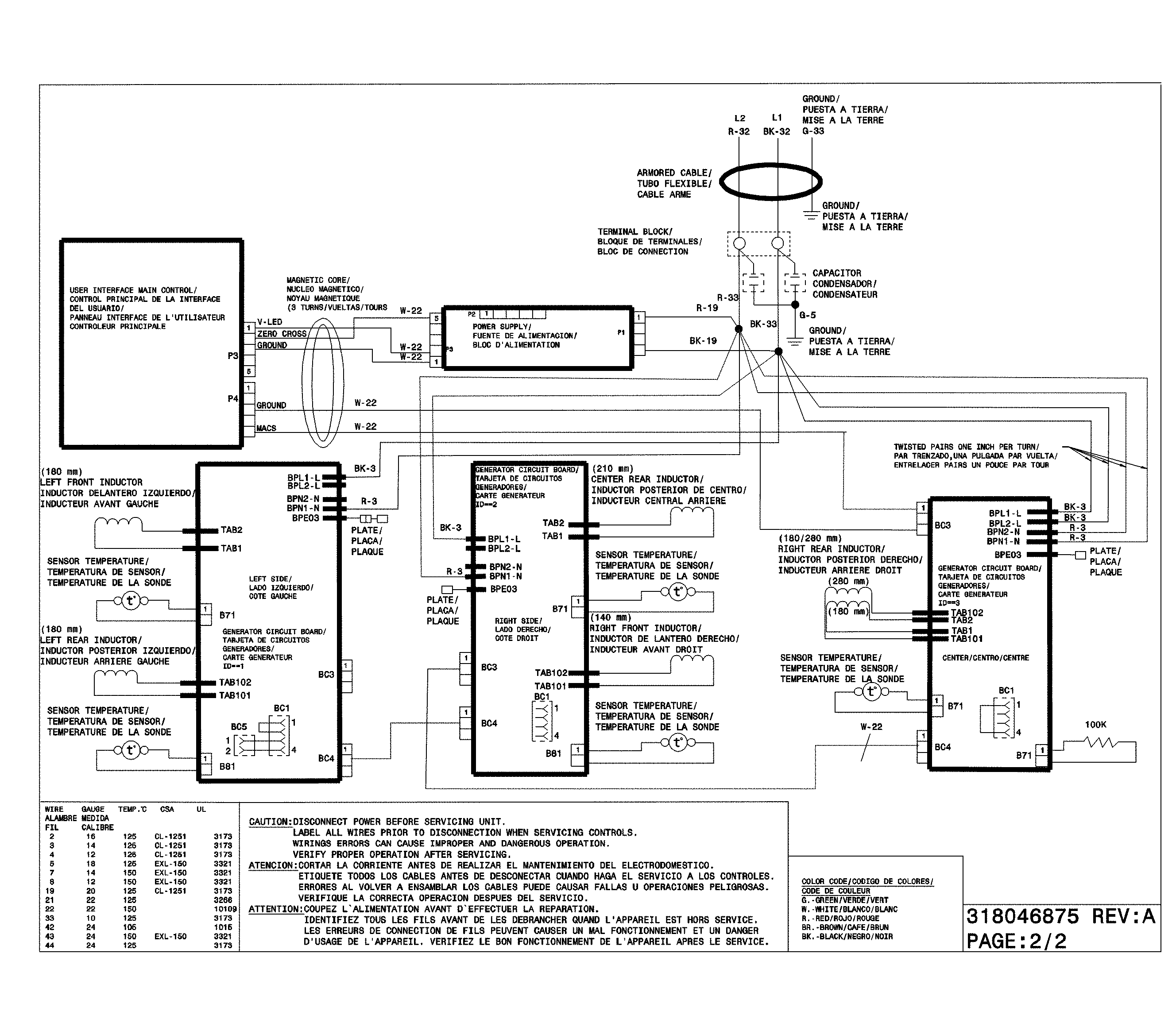

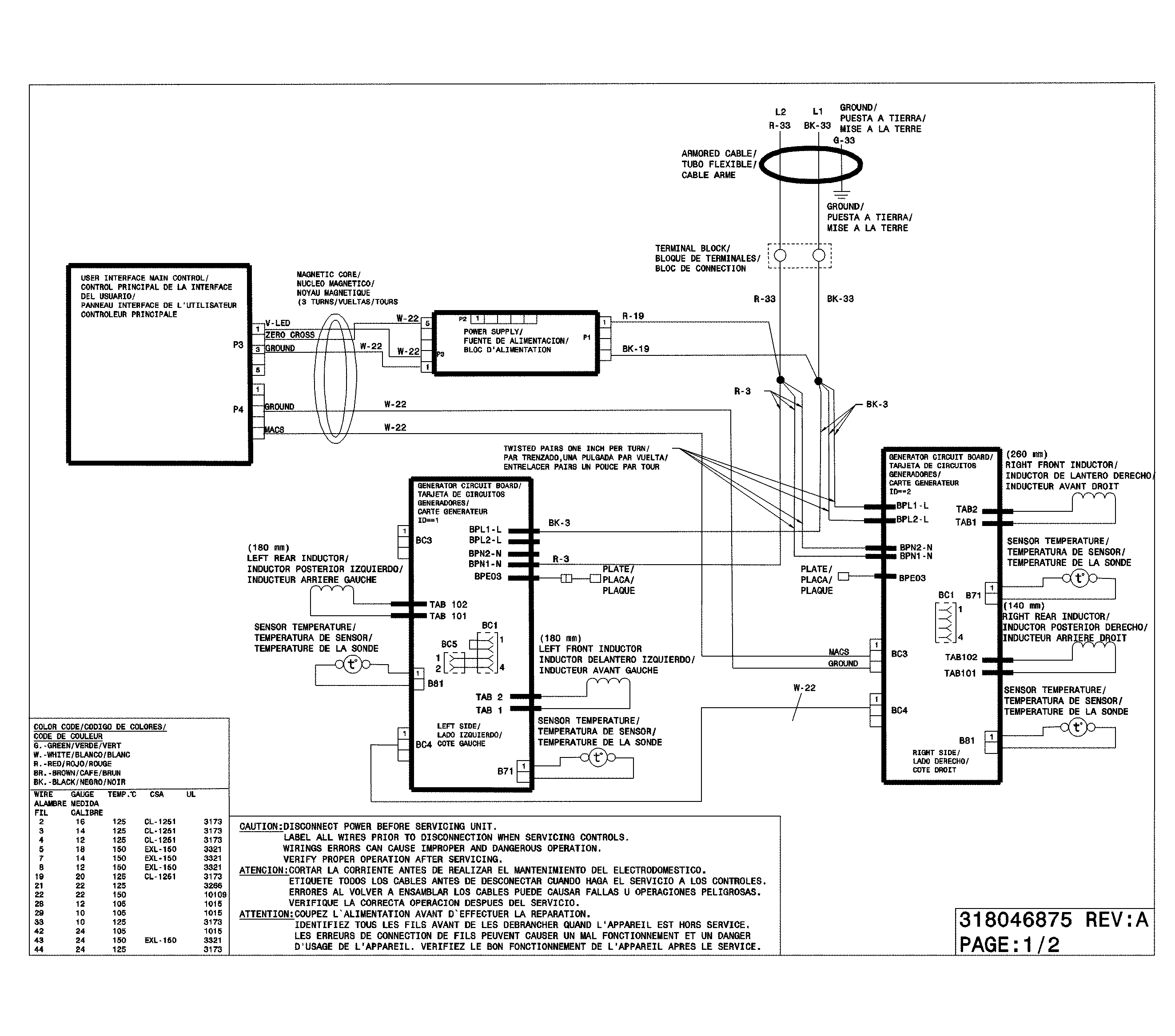

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |
Terminal Block 316056000
Terminal block

Part #316056000

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 316056000. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Electrolux Appliance Stainless Steel Cleaner, 1-oz 316136900
Electrolux appliance stainless steel cleaner, 1-oz

Part #316136900

$22.75 |
21% OFF Phone Price : $28.75
In Stock
Range Surface Induction Element, 180-mm 318329242
#15A

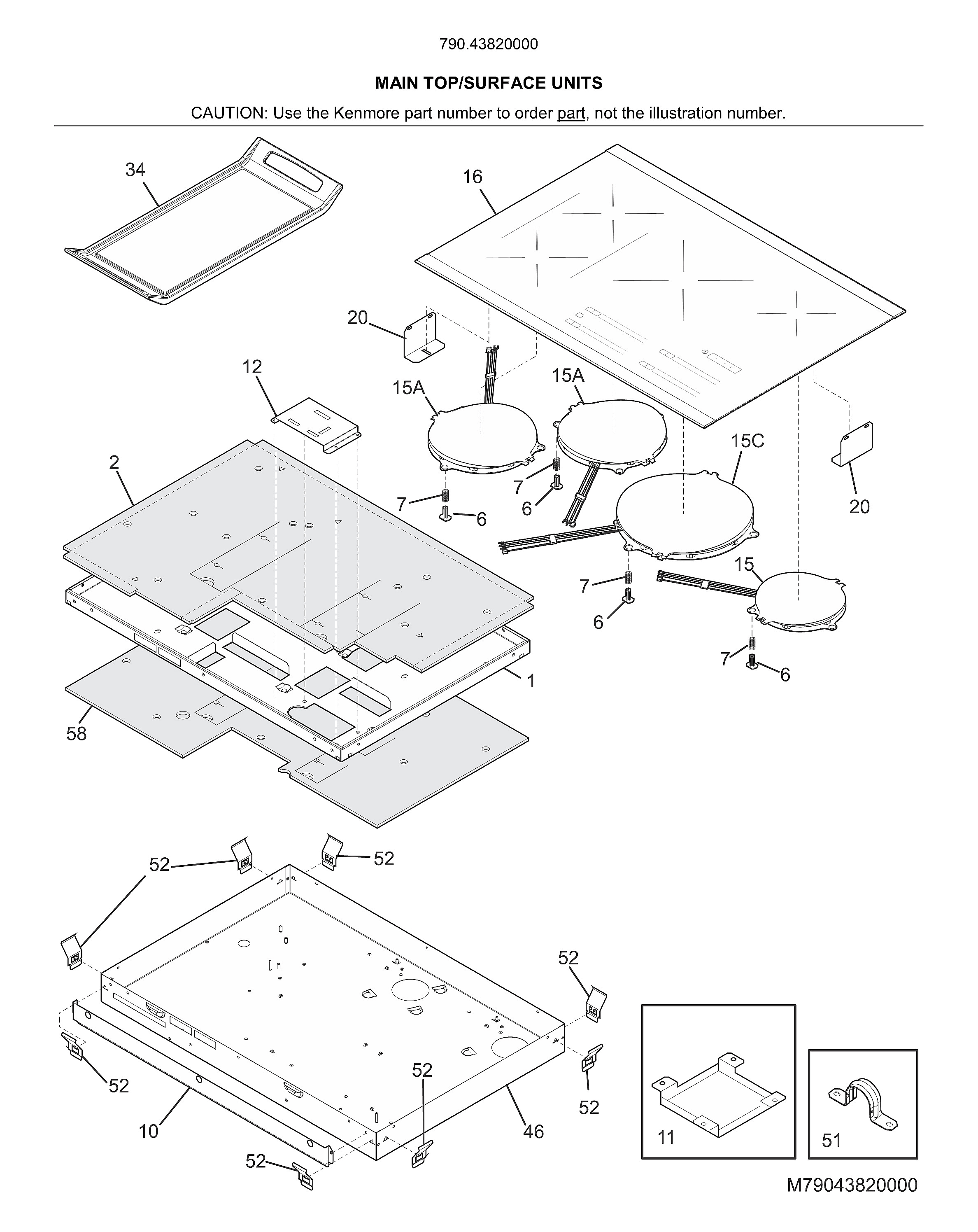

Maintop/surface units diagram

Range surface induction element, 180-mm

Part #318329242

$173.44
In Stock
Cooktop Element 318329241
#15

Maintop/surface units diagram

Cooktop element

Part #318329241

$147.98
In Stock
Cooktop Induction Power Supply Board 318416300
#97

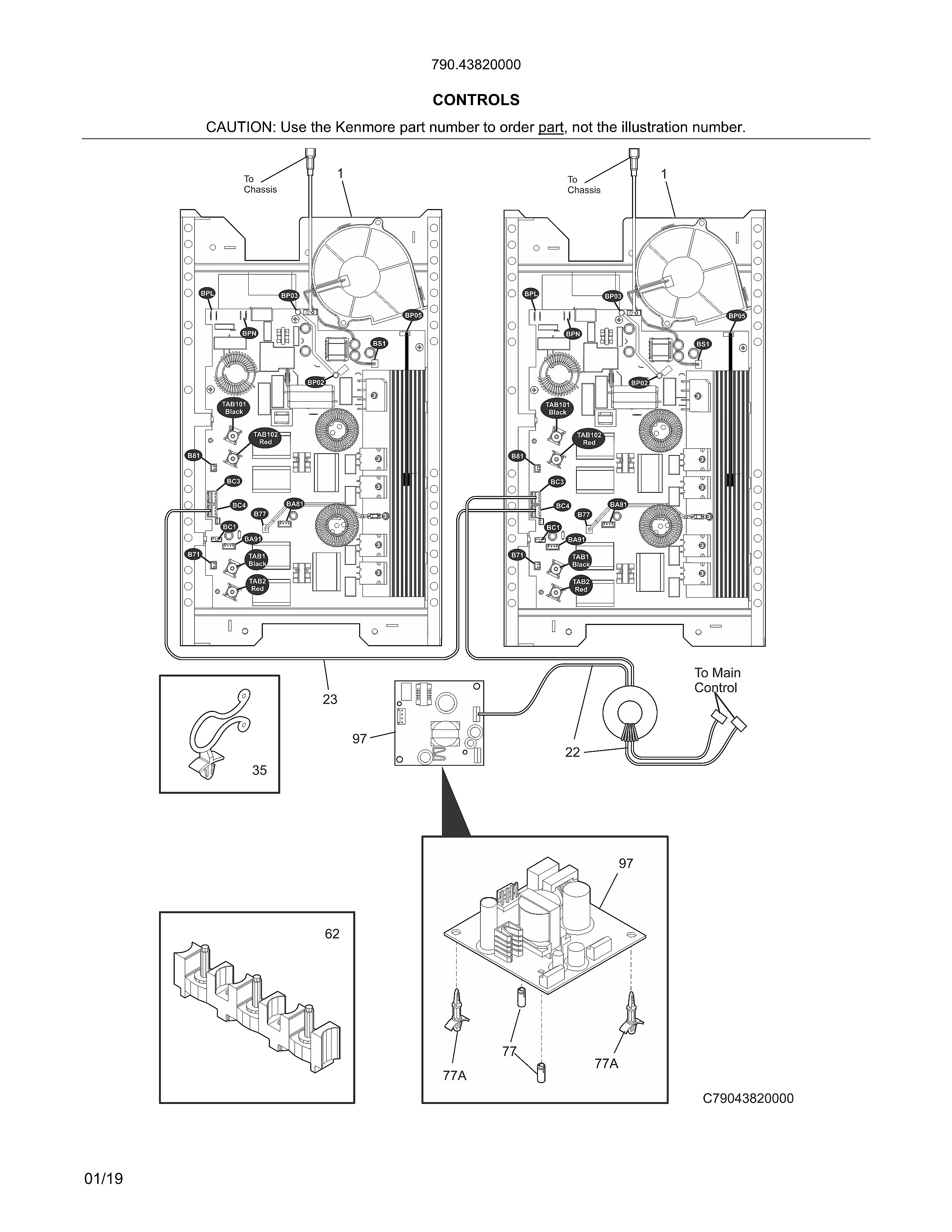

Control/induction unit diagram

Cooktop induction power supply board

Part #318416300

$159.60 |
7% OFF Phone Price : $171.60
In Stock
Washer Screw 5304447555
#NI

Control/induction unit diagram

Washer screw

Part #5304447555

$14.69
In Stock
Cooktop Main Top Seal, 0.5 X 14-in 5304424462
#NI

Maintop/surface units diagram

Cooktop main top seal, 0.5 x 14-in

Part #5304424462

$50.07
In Stock
Hose Clip 216273000
#35

Control/induction unit diagram

Hose clip

Part #216273000

$21.69
In Stock
Gibson Keps Nut 5303325170
Gibson keps nut

Part #5303325170

This item is not returnable
$3.99
In Stock
Range Power Control Board Support 316114100
#77A

Control/induction unit diagram

Range power control board support

Part #316114100

$52.42 |
10% OFF Phone Price : $58.42
In Stock
