Model # LATH100AKM Official Maytag washer
Here are the diagrams and repair parts for Official Maytag LATH100AKM washer, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

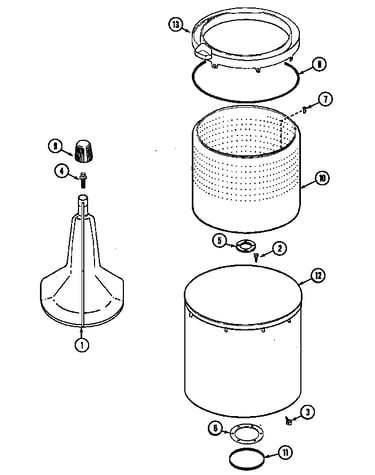

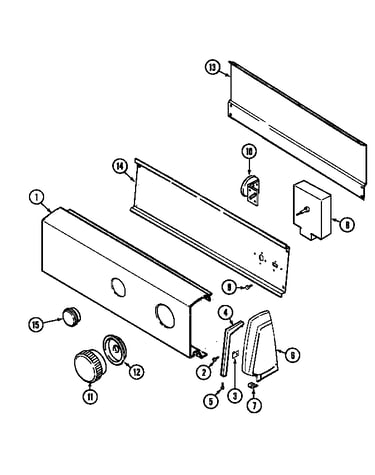

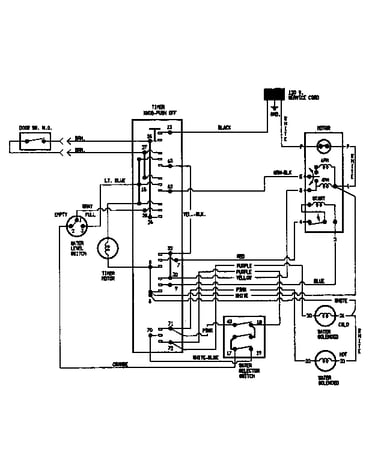

SELECT DIAGRAM
Browse Parts for
LATH100AKM Washer
#30

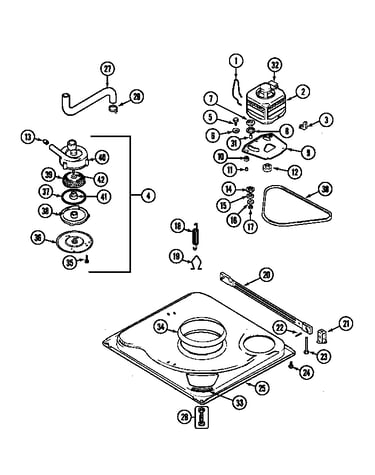

Base diagram
Washer drive belt
Part #21352320
Replaced by #WP21352320
?
Manufacturer substitution
This part replaces 21352320. Substitute parts can look different from the original.
$15.14 |
12% OFF Phone Price : $17.14
In Stock
#24

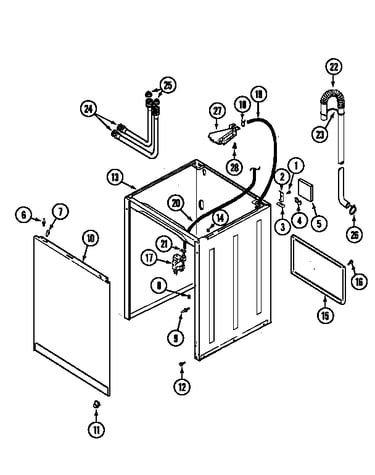

Cabinet diagram
Inlet hose
Part #33-7891
Replaced by #WP89503
?
Manufacturer substitution
This part replaces 33-7891. Substitute parts can look different from the original.
$14.49 |
12% OFF Phone Price : $16.49
In Stock
#25

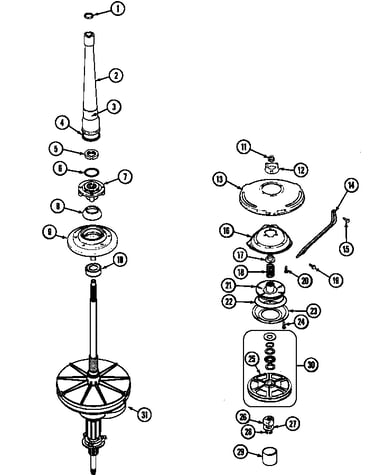

Transmission, dual drive diagram
Pulley, driv
Part #35-3829
Replaced by #12002213
?
Manufacturer substitution
This part replaces 35-3829. Substitute parts can look different from the original.
$41.09 |
13% OFF Phone Price : $47.09
In Stock
#30
Transmission, dual drive diagram
Thrust brg k
Part #12500036
Replaced by #12002213
?
Manufacturer substitution
This part replaces 12500036. Substitute parts can look different from the original.
$41.09 |
13% OFF Phone Price : $47.09
In Stock
#26
Transmission, dual drive diagram
Cam replacem
Part #LA-2007
Replaced by #12002213
?
Manufacturer substitution
This part replaces LA-2007. Substitute parts can look different from the original.
$41.09 |
13% OFF Phone Price : $47.09
In Stock
#8
Cabinet diagram
Locator nut
Part #25-0224
Replaced by #WP3400029
?
Manufacturer substitution
This part replaces 25-0224. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
#6

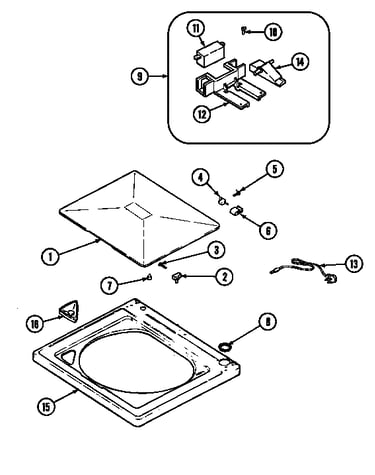

Top diagram
Washer lid hinge
Part #35-2044
Replaced by #WP35-2044
?
Manufacturer substitution
This part replaces 35-2044. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
#10A
Transmission, dual drive diagram
Bearing
Part #35-2972
Replaced by #W10219156
?
Manufacturer substitution
This part replaces 35-2972. Substitute parts can look different from the original.
$148.42 |
7% OFF Phone Price : $160.42
In Stock
#9
Transmission, dual drive diagram
Bearing housing
Part #35-2716
Replaced by #W10219156
?
Manufacturer substitution
This part replaces 35-2716. Substitute parts can look different from the original.
$148.42 |
7% OFF Phone Price : $160.42
In Stock
#2
Top diagram
Washer lid switch actuator
Part #43-0057
Replaced by #WP43-0057
?
Manufacturer substitution
This part replaces 43-0057. Substitute parts can look different from the original.
$38.29 |
14% OFF Phone Price : $44.29
In Stock
