Kenmore
Charcoal Grill

Model # 2582337651 Official Kenmore gas outdoor grill

Here are the diagrams and repair parts for Official Kenmore 2582337651 gas outdoor grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 129 parts  |
Hose 10111-8
Hose

Part #10111-8

The manufacturer no longer makes this part, and there's no substitute part

Hose Assembly 10111-4
#129

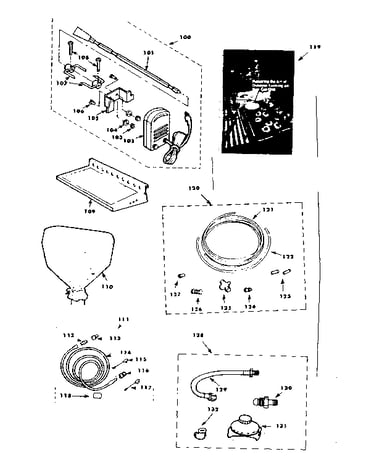

Accessories diagram

Hose assembly

Part #10111-4

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut Y-12285
Hex nut

Part #Y-12285

The manufacturer no longer makes this part, and there's no substitute part

Shelf 10004-184
#109

Accessories diagram

Shelf

Part #10004-184

The manufacturer no longer makes this part, and there's no substitute part

Leg Cap Y-12288
Leg cap

Part #Y-12288

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut Y-11513
#2

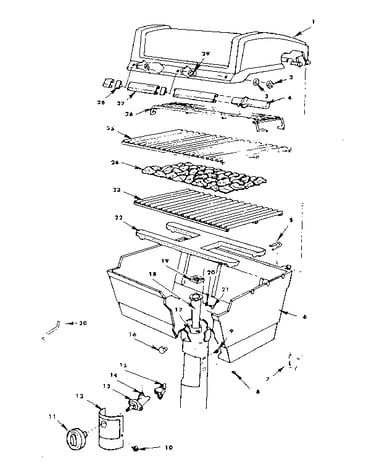

Grill and burner section diagram

Hex nut

Part #Y-11513

The manufacturer no longer makes this part, and there's no substitute part

Adapter 10345-4
#127

Accessories diagram

Adapter

Part #10345-4

The manufacturer no longer makes this part, and there's no substitute part

Stiffener 10519-1
#123

Accessories diagram

Stiffener

Part #10519-1

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut STD541110
#30

Grill and burner section diagram

Hex nut

Part #STD541110

The manufacturer no longer makes this part, and there's no substitute part

Bolt Y-12450
#59

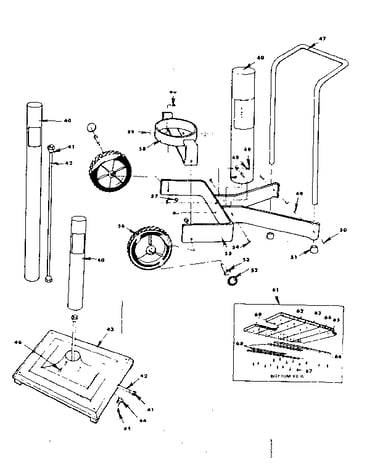

Post, patio base and economy cart parts diagram

Bolt

Part #Y-12450

The manufacturer no longer makes this part, and there's no substitute part
