Model # FFC20M5AW1 Official Frigidaire chest freezer - 5995234431

Here are the diagrams and repair parts for Official Frigidaire FFC20M5AW1 chest freezer - 5995234431, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

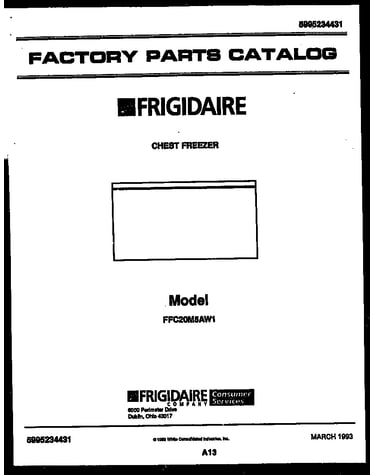

Model diagram and schematic

SEARCH WITHIN THIS MODEL

Filters

Screws

ALL PARTS

Showing 10 of 57 parts |

#80

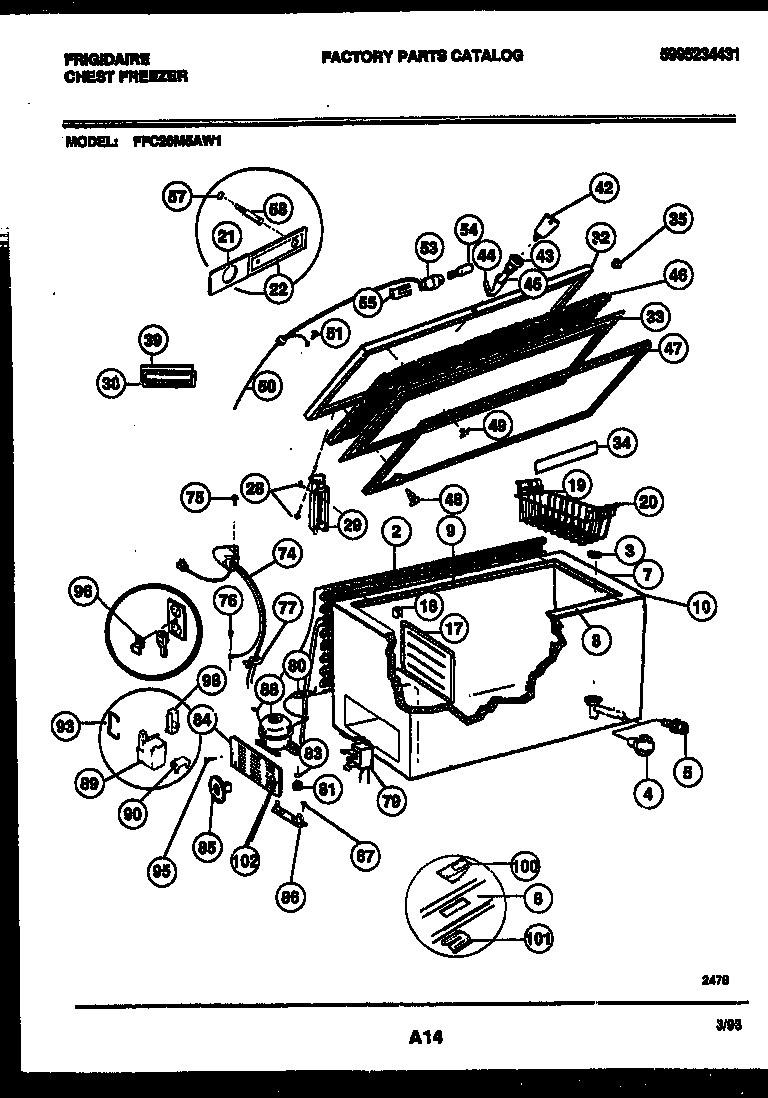

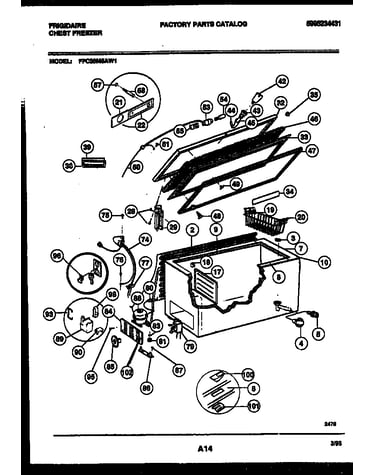

Chest freezer parts diagram

Filter

Part #5308000027

Replaced by #5303305677

$12.71 |

14% OFF Phone Price : $14.71

In Stock

Qty

#98

Chest freezer parts diagram

Capacitor

Part #5303289028

Replaced by #5304464438

$45.87 |

12% OFF Phone Price : $51.87

In Stock

Qty

Freezer Inner Door Panel Rivet 5303212828

#48

Chest freezer parts diagram

Freezer inner door panel rivet

Part #5303212828

$19.49 |

9% OFF Phone Price : $21.49

In Stock

Qty

#47

Chest freezer parts diagram

Gasket

Part #216080100

Replaced by #216481411

$161.63 |

7% OFF Phone Price : $173.63

In Stock

Qty

Chest Freezer Temperature Control 5303212610

#79

Chest freezer parts diagram

Chest freezer temperature control

Part #5303212610

Replaced by #5304496560

$35.89 |

14% OFF Phone Price : $41.89

In Stock

Qty

Screw

Part #08009412

Replaced by #216036601

$12.57

In Stock

Qty

#77

Chest freezer parts diagram

Freezer wire harness clamp

Part #5303212614

This item is not returnable

$2.16

In Stock

Qty

Chest freezer parts diagram

Condenser

Part #5300300173

This item is not returnable

$810.35

In Stock

Qty

#29

Chest freezer parts diagram

Hinge

Part #216035300

Replaced by #297322000

$91.53 |

6% OFF Phone Price : $97.53

In Stock

Qty

#32

Chest freezer parts diagram

Freezer panel

Part #216130105

Replaced by #5303925192

$135.99

In Stock

Qty
