Model # EER3000K02TW Official GE electric range

Here are the diagrams and repair parts for Official GE EER3000K02TW electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 147 parts  |
Range Oven Light Bulb WX12X1510
#257

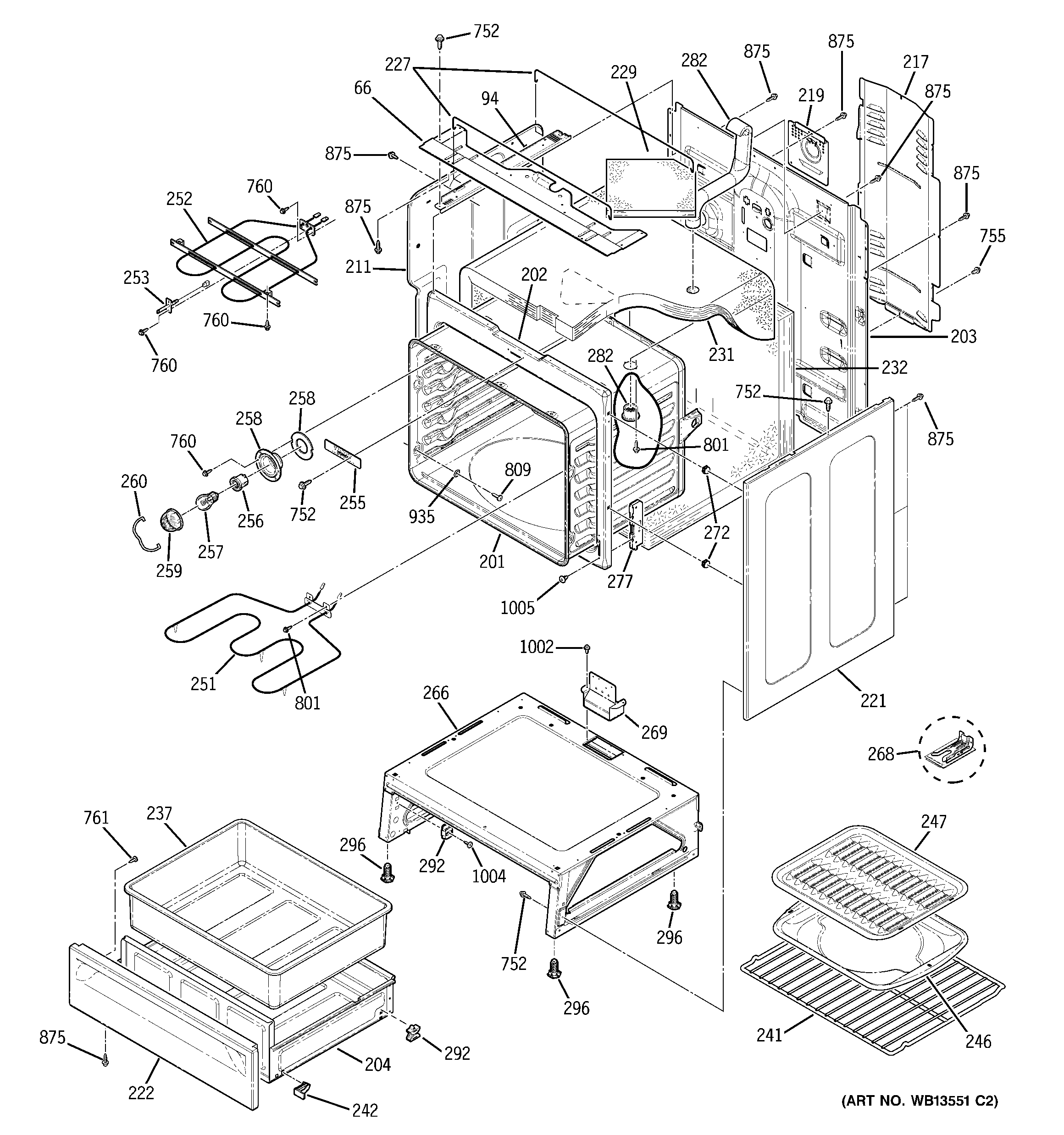

Body parts diagram

Range oven light bulb

Part #WX12X1510

Replaced by #40A15

?
Manufacturer substitution
This part replaces WX12X1510. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Oven Control WB27T10467
#16

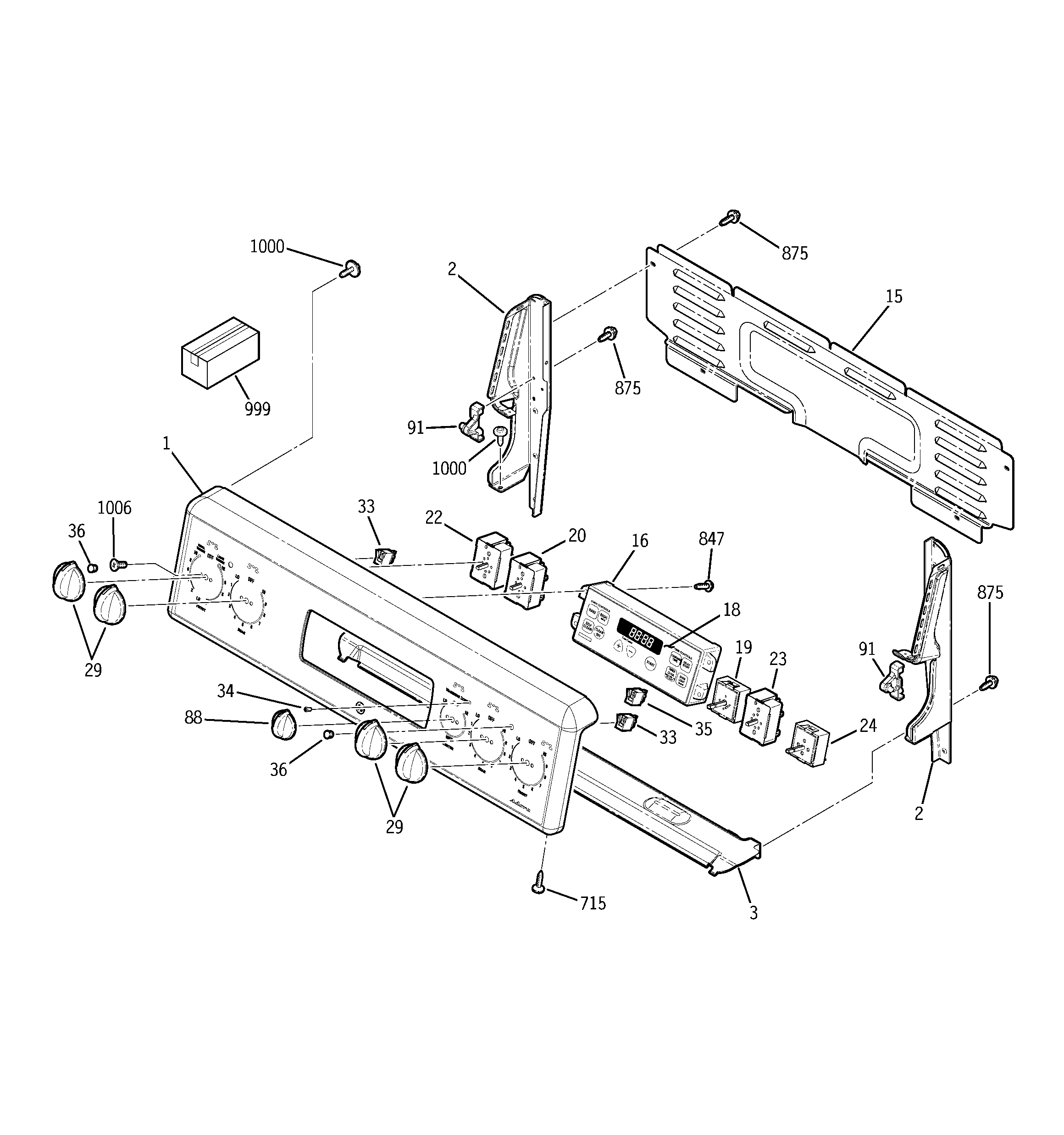

Control panel diagram

Oven control

Part #WB27T10467

Replaced by #WB27X45466

?
Manufacturer substitution
This part replaces WB27T10467. Substitute parts can look different from the original.
BEST SELLER
$142.37 |
8% OFF Phone Price : $154.37
In Stock
Wall Oven Temperature Sensor WB21T10007
#253

Body parts diagram

Wall oven temperature sensor

Part #WB21T10007

Replaced by #WB21X22134

?
Manufacturer substitution
This part replaces WB21T10007. Substitute parts can look different from the original.
BEST SELLER
$24.05 |
20% OFF Phone Price : $30.05
In Stock
Range Bake Element (replaces Wb44t10059) WB44T10011
#251

Body parts diagram

Range bake element (replaces wb44t10059)

Part #WB44T10011

BEST SELLER
$79.56 |
7% OFF Phone Price : $85.56
In Stock
Infinite Control Switch WB27T10384
#19

Control panel diagram

Infinite control switch

Part #WB27T10384

Replaced by #WB24T10153

?
Manufacturer substitution
This part replaces WB27T10384. Substitute parts can look different from the original.
BEST SELLER
$98.13 |
11% OFF Phone Price : $110.13
In Stock
Range Dual Surface Element Control Switch (replaces Wb24t10031) WB24T10058
#24

Control panel diagram

Range dual surface element control switch (replaces wb24t10031)

Part #WB24T10058

BEST SELLER
$103.81 |
10% OFF Phone Price : $115.81
In Stock
Cooktop Indicator Light WB27T10668
Cooktop indicator light

Part #WB27T10668

BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Radiant Surface Element, 8-in (replaces Wb30k5031, Wb30t10007) WB30T10045
#57

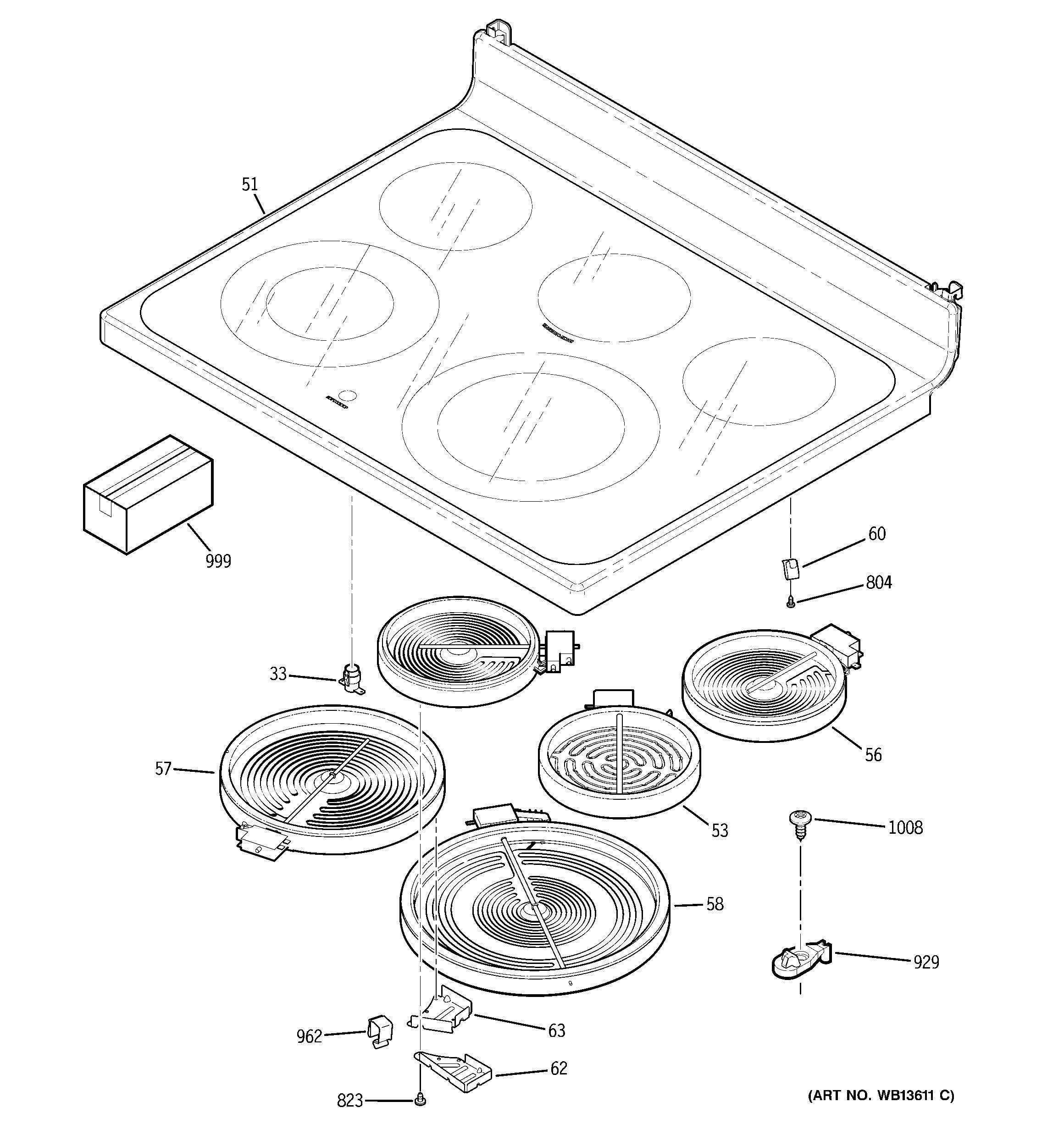

Cooktop diagram

Range radiant surface element, 8-in (replaces wb30k5031, wb30t10007)

Part #WB30T10045

BEST SELLER
$134.96 |
8% OFF Phone Price : $146.96
In Stock
Range Oven Door Trim, Lower (white) WB07T10478
#119

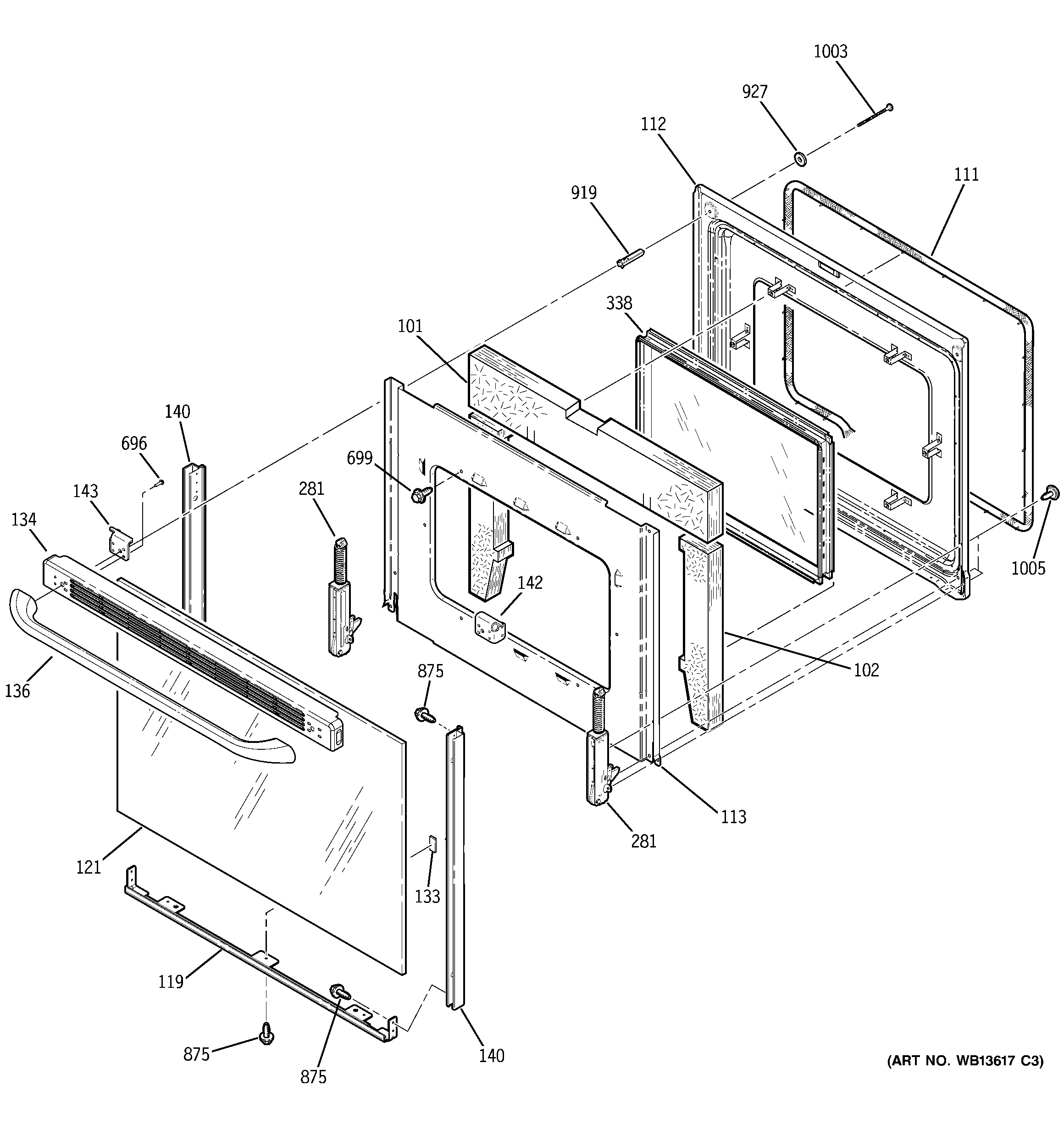

Door diagram

Range oven door trim, lower (white)

Part #WB07T10478

Replaced by #WB07X42948

?
Manufacturer substitution
This part replaces WB07T10478. Substitute parts can look different from the original.
$14.71
In Stock
Cooking Appliance Screw, #10-32 (replaces Wb1t10008) WB01T10008
Cooking appliance screw, #10-32 (replaces wb1t10008)

Part #WB01T10008

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
