GE
Top-Mount Refrigerator

Model # TBX21PKCR Official GE refrigerator

Here are the diagrams and repair parts for Official GE TBX21PKCR refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 180 parts  |
Dryer Assembly WR86X0083
#740

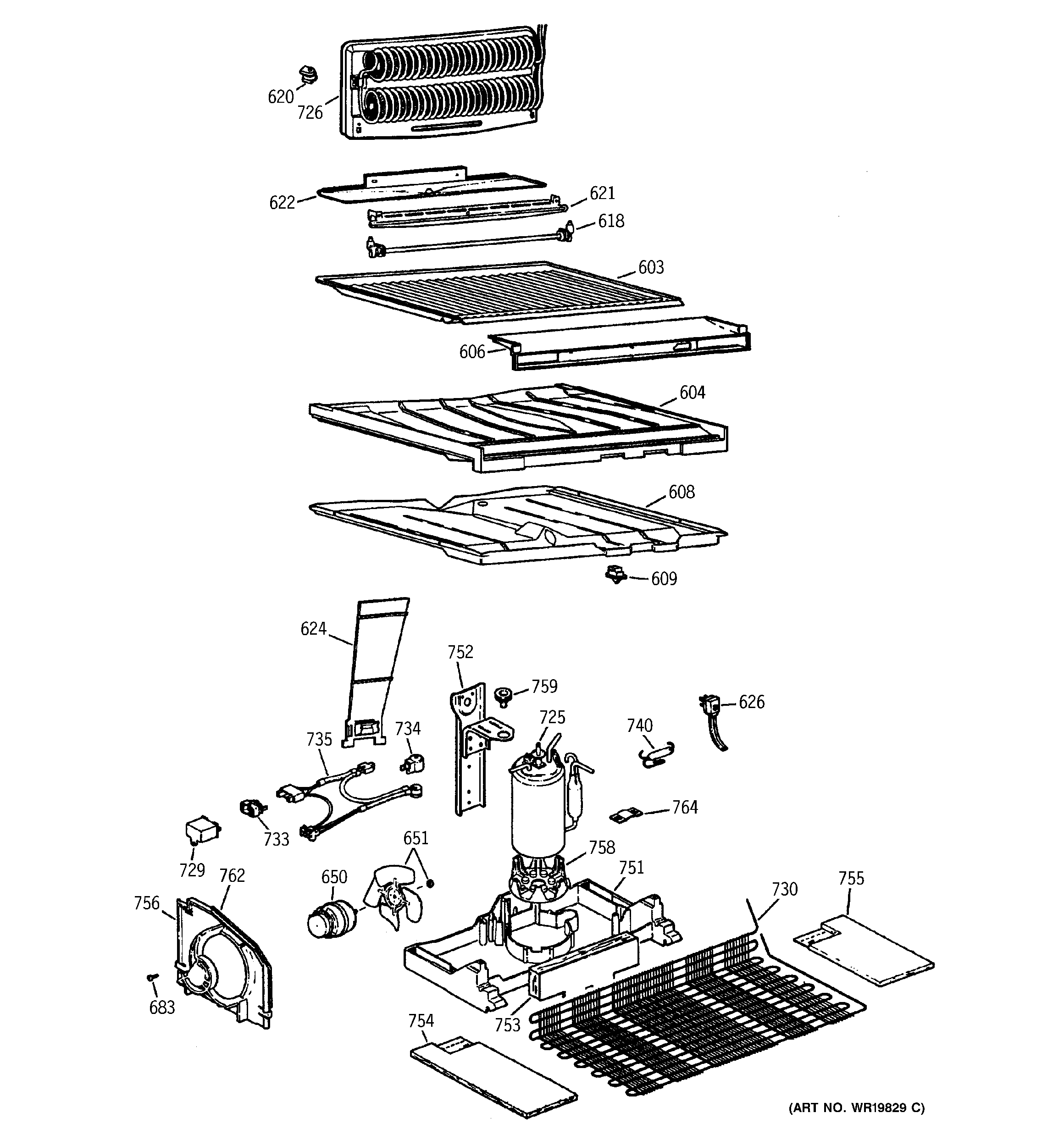

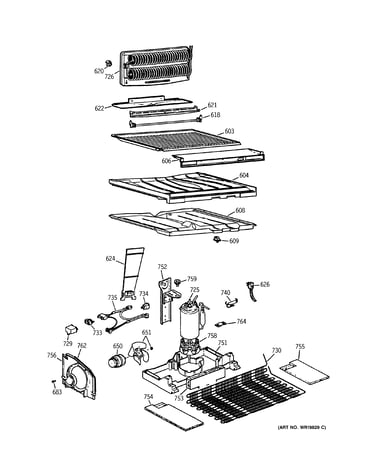

Unit parts diagram

Dryer assembly

Part #WR86X0083

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0083. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
40a15/22 STD372402
#435

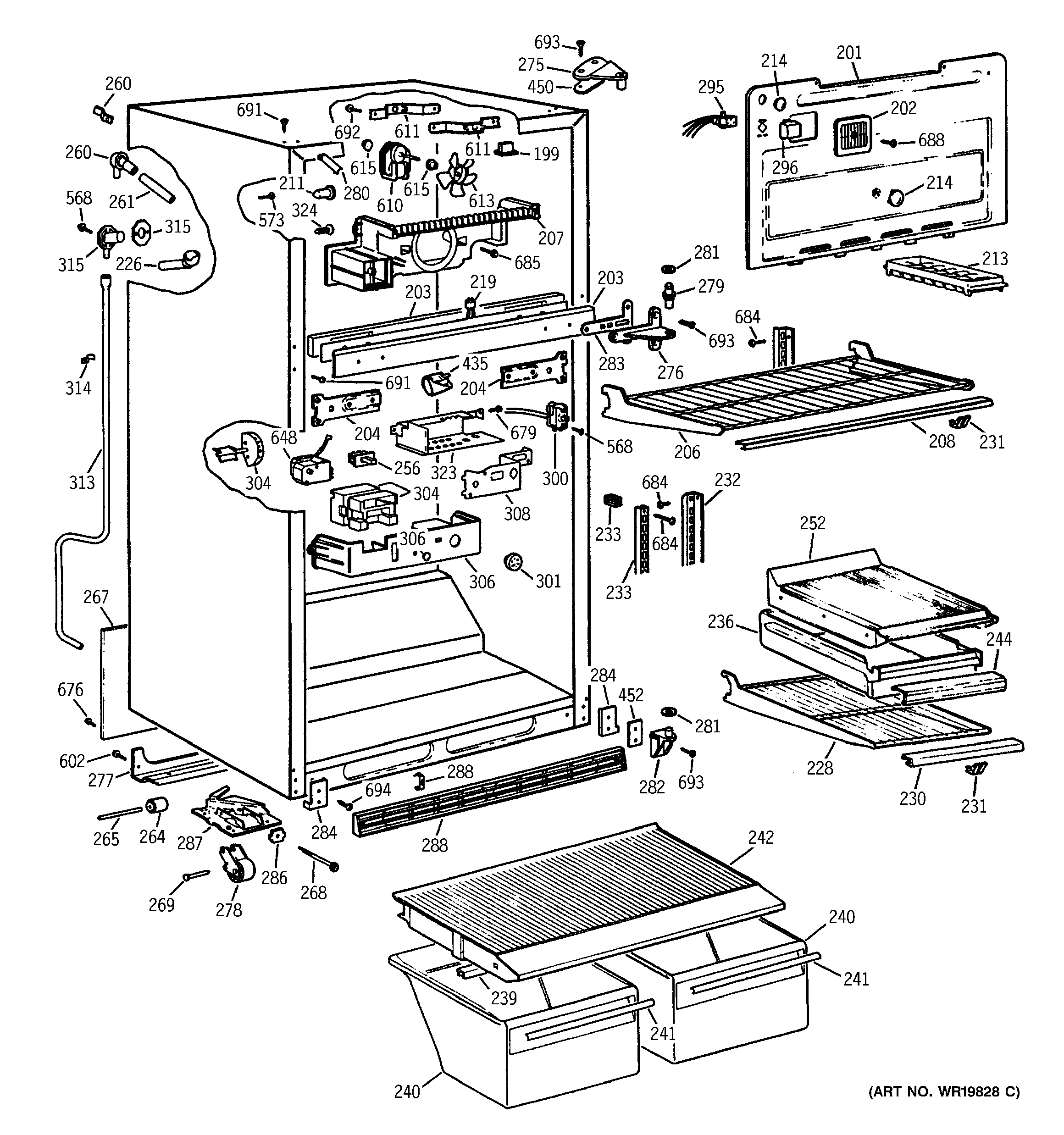

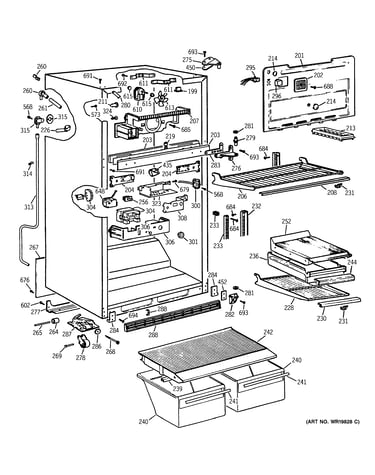

Cabinet parts diagram

40a15/22

Part #STD372402

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372402. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Refrigerator Defrost Heater WR51X0317
#618

Unit parts diagram

Refrigerator defrost heater

Part #WR51X0317

Replaced by #WR51X465

?
Manufacturer substitution
This part replaces WR51X0317. Substitute parts can look different from the original.
$118.07 |
9% OFF Phone Price : $130.07
In Stock
Light Switch WR23X0193
#609

Unit parts diagram

Light switch

Part #WR23X0193

Replaced by #WR23X37285

?
Manufacturer substitution
This part replaces WR23X0193. Substitute parts can look different from the original.
$8.11
In Stock
Cap Shelf Fr WR02X7617
#21

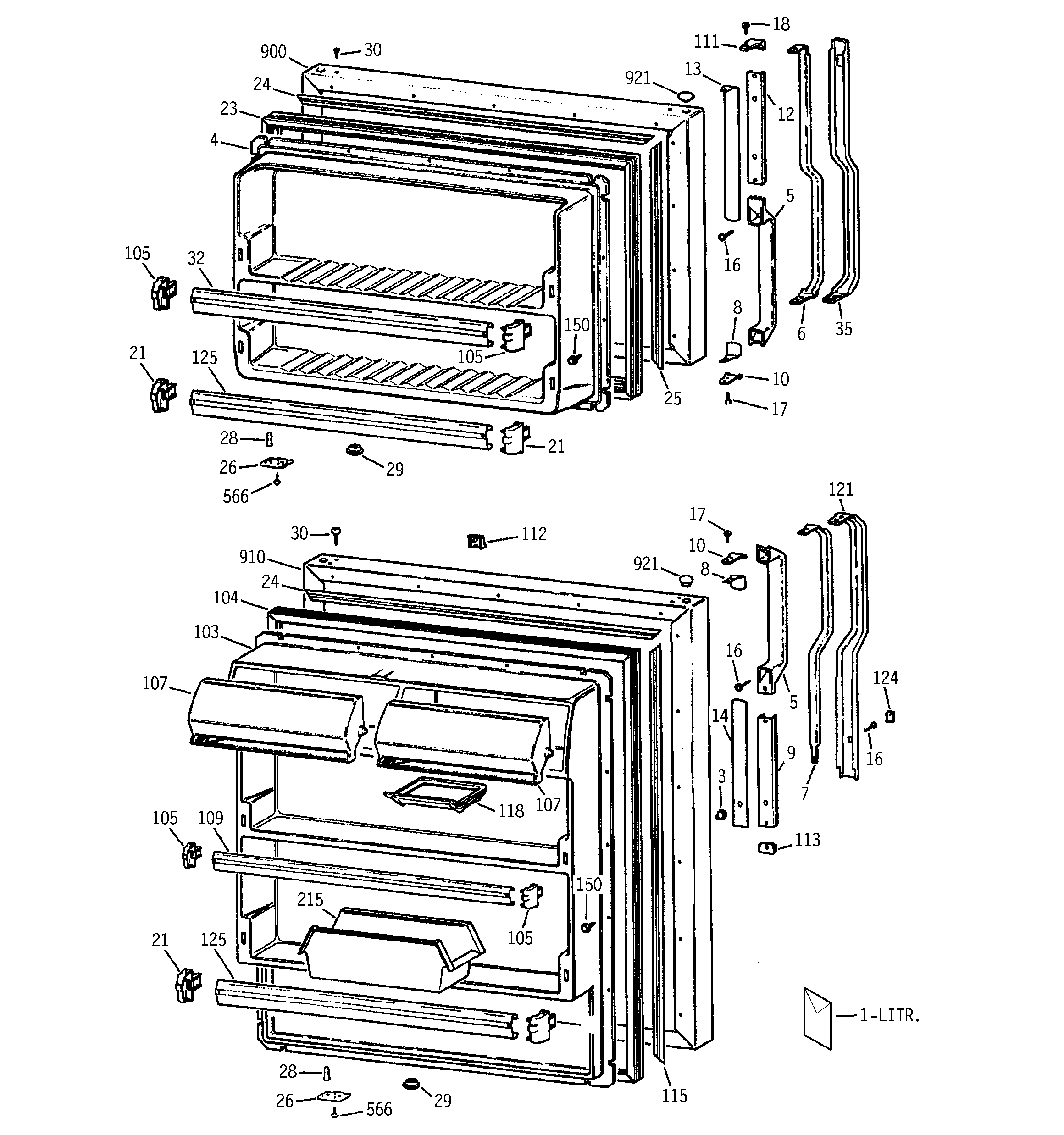

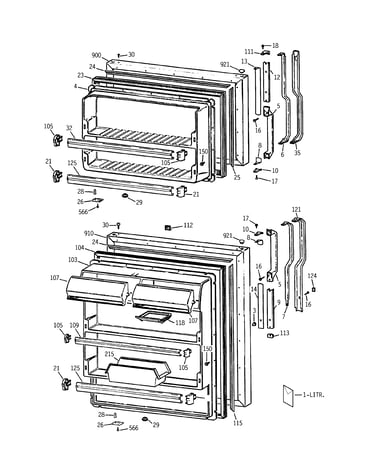

Door parts diagram

Cap shelf fr

Part #WR02X7617

Replaced by #WR2X8345

?
Manufacturer substitution
This part replaces WR02X7617. Substitute parts can look different from the original.
This item is not returnable
$15.26 |
12% OFF Phone Price : $17.26
In Stock
Refrigerator Fan Blade WR60X0123
#613

Cabinet parts diagram

Refrigerator fan blade

Part #WR60X0123

Replaced by #WR60X123

?
Manufacturer substitution
This part replaces WR60X0123. Substitute parts can look different from the original.
$65.59 |
8% OFF Phone Price : $71.59
In Stock
Power Cord WR23X0108
#626

Unit parts diagram

Power cord

Part #WR23X0108

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X0108. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
Refrigerator Capacitor WR62X0046
#729

Unit parts diagram

Refrigerator capacitor

Part #WR62X0046

Replaced by #WR62X51

?
Manufacturer substitution
This part replaces WR62X0046. Substitute parts can look different from the original.
This item is not returnable
$27.79 |
18% OFF Phone Price : $33.79
In Stock
Ff O Dr Wh WR78X7962
#910

Door parts diagram

Ff o dr wh

Part #WR78X7962

Replaced by #WR01X21159

?
Manufacturer substitution
This part replaces WR78X7962. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Refrigerator Wheel WR02X3594
#264

Cabinet parts diagram

Refrigerator wheel

Part #WR02X3594

Replaced by #WR2X3594

?
Manufacturer substitution
This part replaces WR02X3594. Substitute parts can look different from the original.
This item is not returnable
$21.62 |
22% OFF Phone Price : $27.62
In Stock
