Troybilt
Rear-Tine Tiller

Model # ECONO HORSE #E9434 AND UP Official Troybilt roto tiller power composter

Here are the diagrams and repair parts for Official Troybilt ECONO-HORSE-E9434-AND-UP roto tiller power composter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

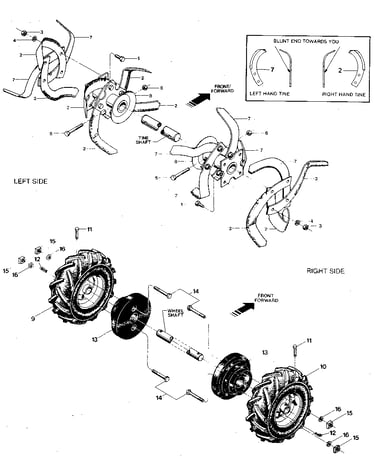

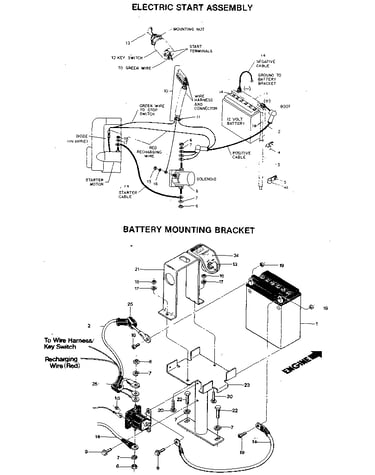

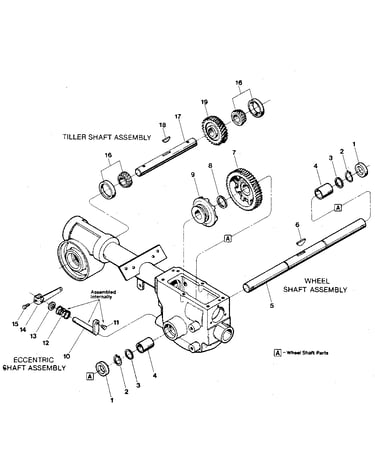

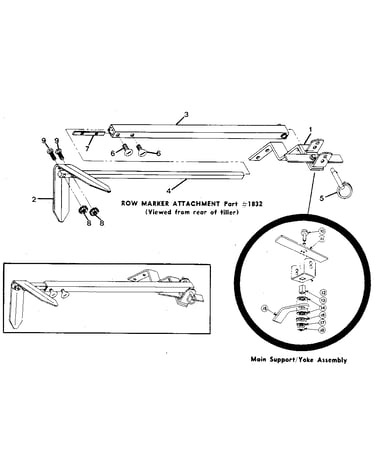

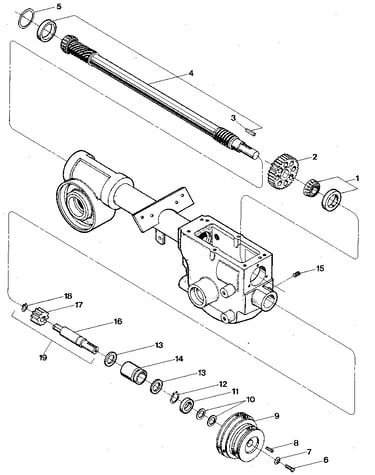

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 251 parts  |
Screw 9552
Screw

Part #9552

Replaced by #710-0599

?
Manufacturer substitution
This part replaces 9552. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.91 |
17% OFF Phone Price : $5.91
In Stock
Bolt 9703
Bolt

Part #9703

Replaced by #710-3008

?
Manufacturer substitution
This part replaces 9703. Substitute parts can look different from the original.
This item is not returnable
$4.62 |
18% OFF Phone Price : $5.62
In Stock
Washer 9955
#5A

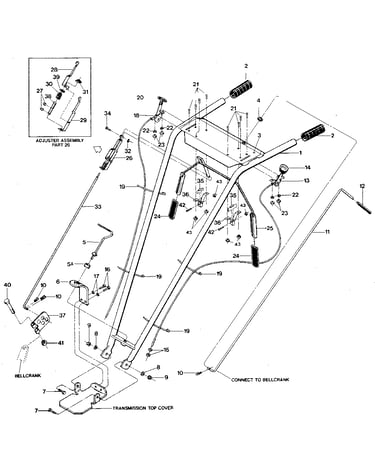

Handlebars & mounting bracket- & control levers diagram

Washer

Part #9955

Replaced by #736-04445

?
Manufacturer substitution
This part replaces 9955. Substitute parts can look different from the original.
This item is not returnable
$5.77
In Stock
Oil Seal 9600
Oil seal

Part #9600

Replaced by #921-04044

?
Manufacturer substitution
This part replaces 9600. Substitute parts can look different from the original.
$13.91
In Stock
Bolt 9664
#40

Handlebars & mounting bracket- & control levers diagram

Bolt

Part #9664

Replaced by #710-0606

?
Manufacturer substitution
This part replaces 9664. Substitute parts can look different from the original.
This item is not returnable
$8.21 |
11% OFF Phone Price : $9.21
In Stock
Roll Pin 9308
#9

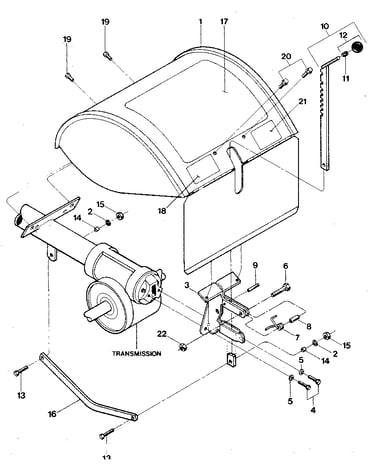

Hood, bracket & depth regulator diagram

Roll pin

Part #9308

Replaced by #715-0108

?
Manufacturer substitution
This part replaces 9308. Substitute parts can look different from the original.
$8.66
In Stock
Bracket Support 20673
#3

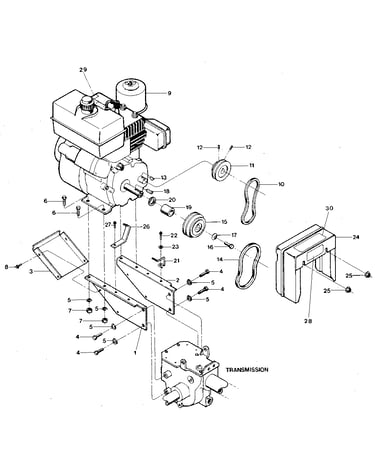

Engine & support brackets, pulleys, belts, belt cover diagram

Bracket support

Part #20673

Replaced by #786-04080-0638

?
Manufacturer substitution
This part replaces 20673. Substitute parts can look different from the original.
$28.31
In Stock
Bushing 20532
#27

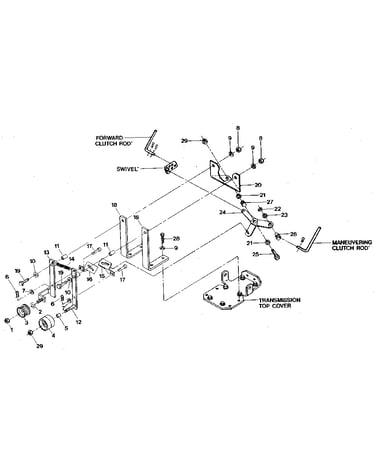

Forward/reverse idler assembly diagram

Bushing

Part #20532

Replaced by #GW-20532

?
Manufacturer substitution
This part replaces 20532. Substitute parts can look different from the original.
$14.69
In Stock
Gasket 20693-2
#19

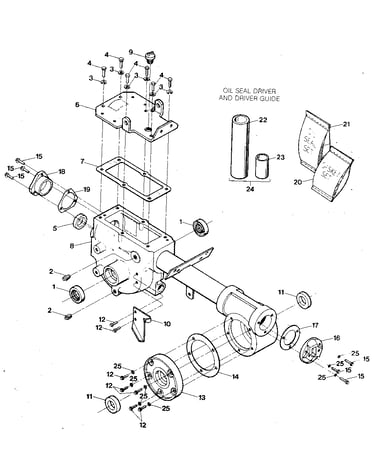

Transmission housing, covers, seals, gaskets & plugs diagram

Gasket

Part #20693-2

Replaced by #GW-20693-2

?
Manufacturer substitution
This part replaces 20693-2. Substitute parts can look different from the original.
$27.54
In Stock
Furrwr Blad 1269
#1

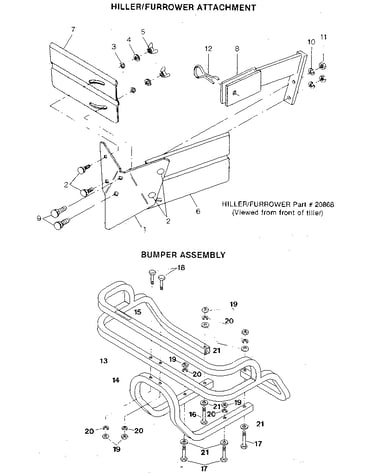

Furrow and bumper diagram

Furrwr blad

Part #1269

Replaced by #1900771001

?
Manufacturer substitution
This part replaces 1269. Substitute parts can look different from the original.
$78.22
In Stock
