Universal/Multiflex (Frigidaire)
Upright Freezer

Model # CFU17F3HW0 Official Universal/Multiflex (Frigidaire) freezer

Here are the diagrams and repair parts for Official Universal/Multiflex (Frigidaire) CFU17F3HW0 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 89 parts  |
Filter Drier 216634500
#4

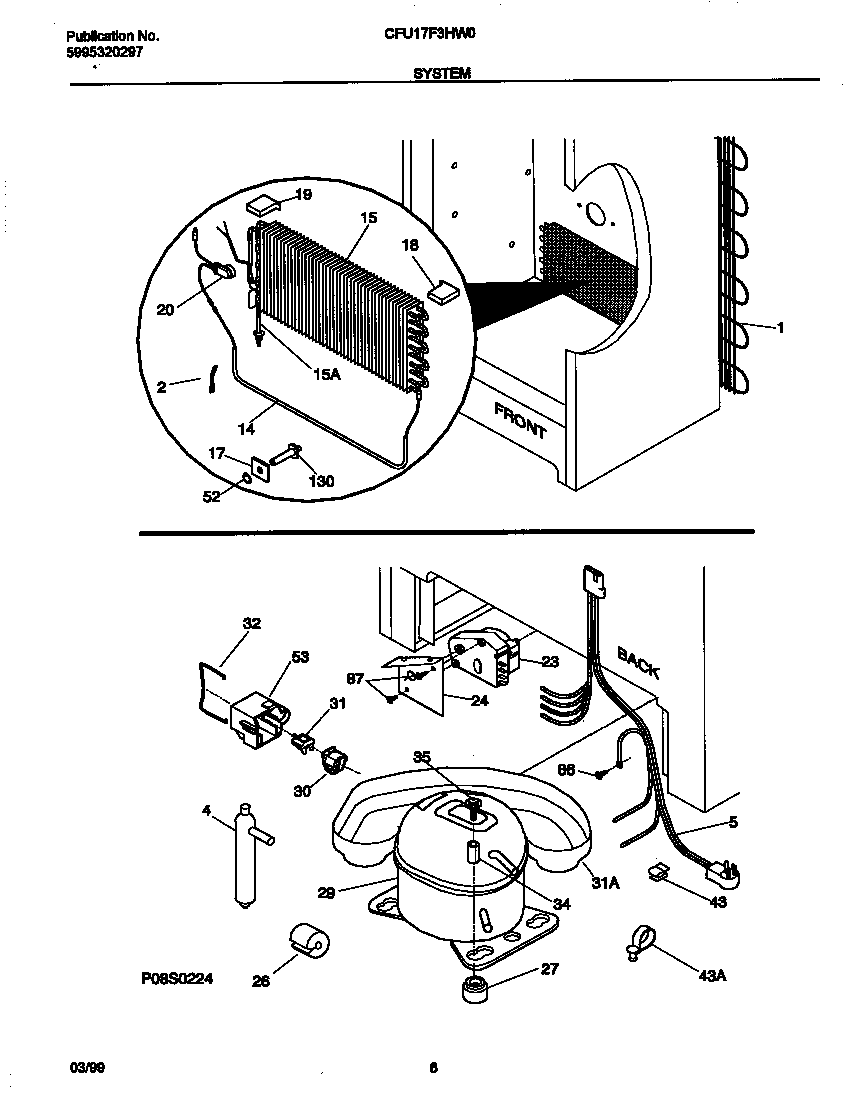

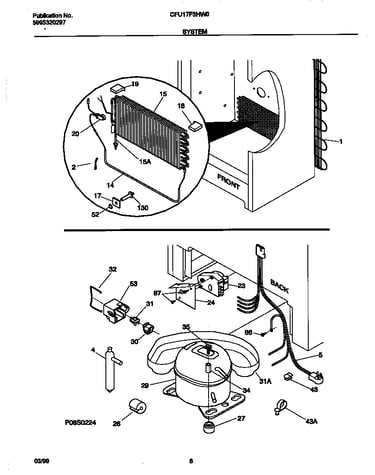

System diagram

Filter drier

Part #216634500

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 216634500. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Key 216388700
#5

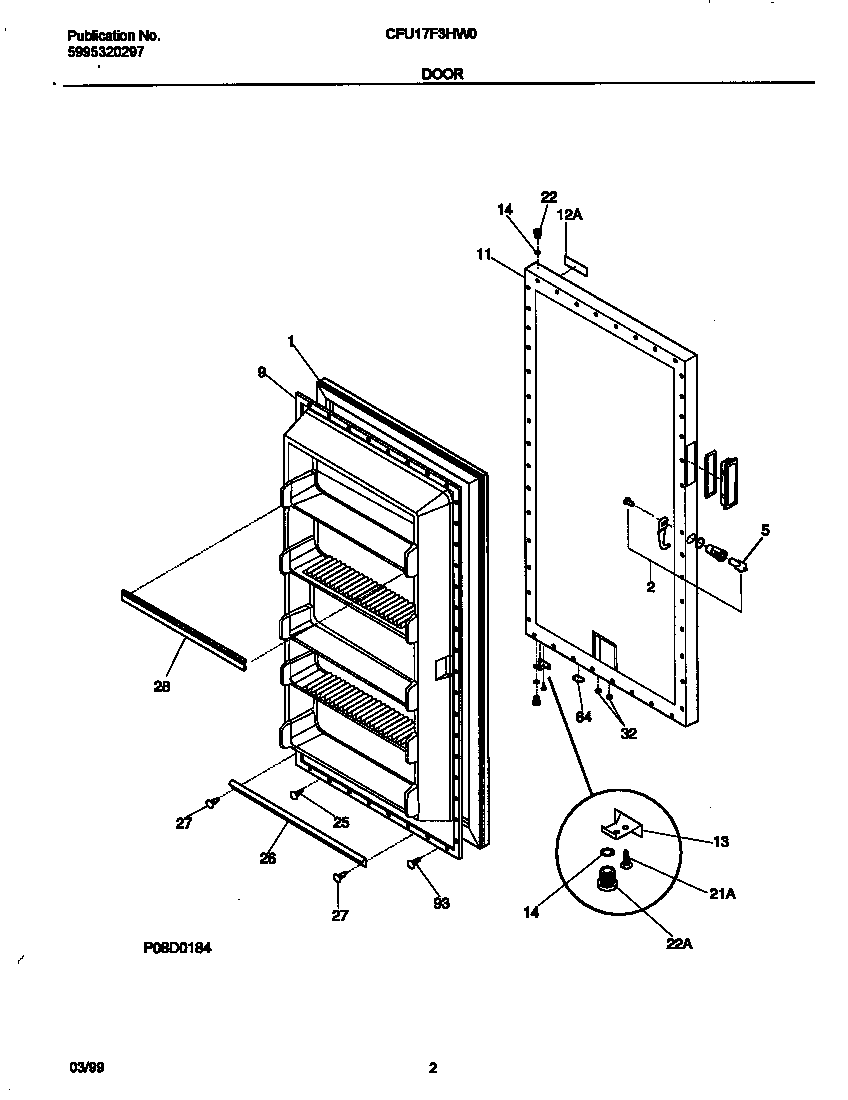

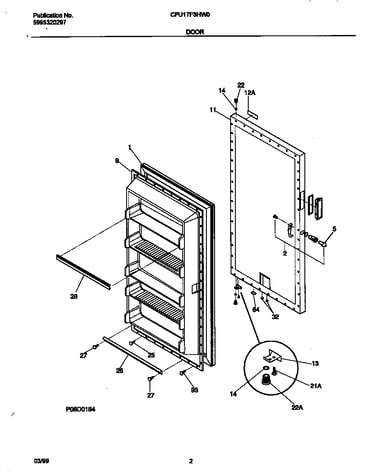

Door diagram

Key

Part #216388700

Replaced by #297147700

?
Manufacturer substitution
This part replaces 216388700. Substitute parts can look different from the original.
BEST SELLER
$9.25 |
10% OFF Phone Price : $10.25
In Stock
Upright Freezer Defrost Timer 216517400
#23

System diagram

Upright freezer defrost timer

Part #216517400

Replaced by #5304518034

?
Manufacturer substitution
This part replaces 216517400. Substitute parts can look different from the original.
BEST SELLER
$45.98 |
12% OFF Phone Price : $51.98
In Stock
Freezer Door Gasket 216522309
#1

Door diagram

Freezer door gasket

Part #216522309

Replaced by #5304507200

?
Manufacturer substitution
This part replaces 216522309. Substitute parts can look different from the original.
BEST SELLER
$116.27 |
9% OFF Phone Price : $128.27
In Stock
Defrost Thermostat 5304404743
#20

System diagram

Defrost thermostat

Part #5304404743

Replaced by #297216600

?
Manufacturer substitution
This part replaces 5304404743. Substitute parts can look different from the original.
BEST SELLER
$19.36 |
9% OFF Phone Price : $21.36
In Stock
Grille Screw 131168200
#71

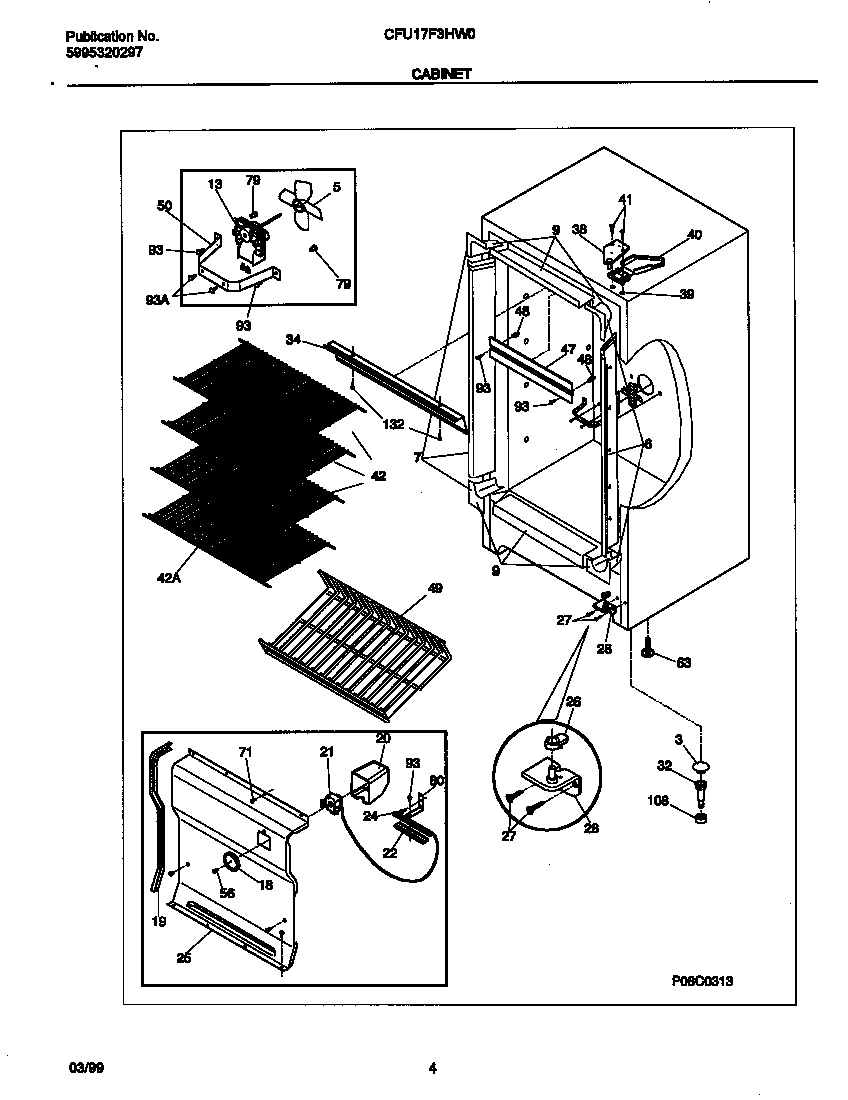

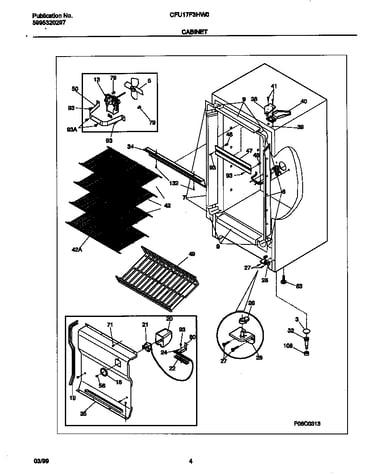

Cabinet diagram

Grille screw

Part #131168200

Replaced by #131168200

?
Manufacturer substitution
This part replaces 131168200. Substitute parts can look different from the original.
BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Compressor Kit 216639700
#29

System diagram

Compressor kit

Part #216639700

Replaced by #5304511983

?
Manufacturer substitution
This part replaces 216639700. Substitute parts can look different from the original.
BEST SELLER
$493.71 |
$12.00 OFF Phone Price : $505.71
In Stock
Hinge Bearing 216503200
#22

Door diagram

Hinge bearing

Part #216503200

Replaced by #297006800

?
Manufacturer substitution
This part replaces 216503200. Substitute parts can look different from the original.
This item is not returnable
$12.59 |
14% OFF Phone Price : $14.59
In Stock
Sec, Gasket 216524200
#26

Door diagram

Sec, gasket

Part #216524200

Replaced by #216524201

?
Manufacturer substitution
This part replaces 216524200. Substitute parts can look different from the original.
This item is not returnable
$36.81 |
14% OFF Phone Price : $42.81
In Stock
Evaporator Motor 216570900
#13

Cabinet diagram

Evaporator motor

Part #216570900

Replaced by #5304442620

?
Manufacturer substitution
This part replaces 216570900. Substitute parts can look different from the original.
$147.29 |
8% OFF Phone Price : $159.29
In Stock
