Kenmore
Mechanical Sewing Machine

Model # 158480 Official Kenmore sewing machine head

Here are the diagrams and repair parts for Official Kenmore 158480 sewing machine head, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 344 parts  |
Washer 4867
#74A

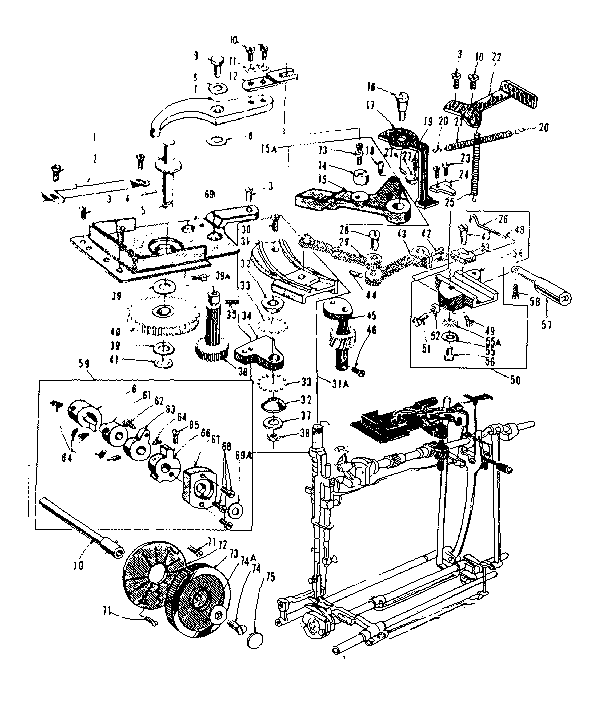

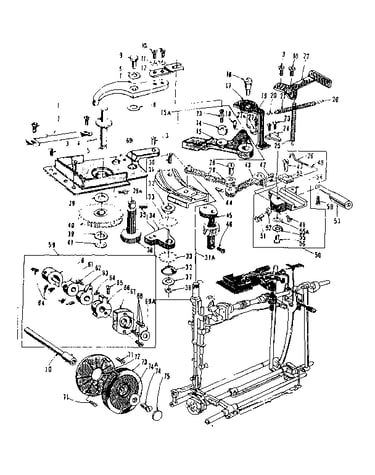

Feed regulator assembly diagram

Washer

Part #4867

The manufacturer no longer makes this part, and there's no substitute part

Fitting Pin 4704
#26

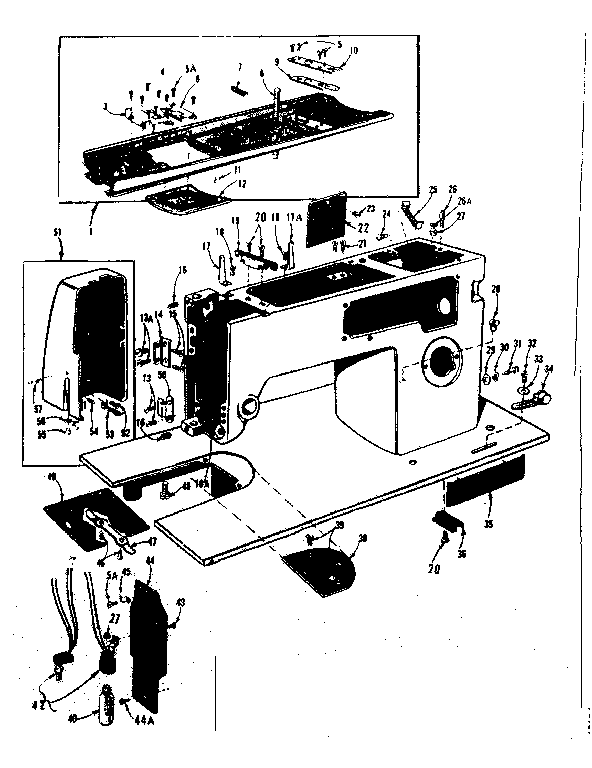

Base assembly diagram

Fitting pin

Part #4704

The manufacturer no longer makes this part, and there's no substitute part

Rack 4817
#51

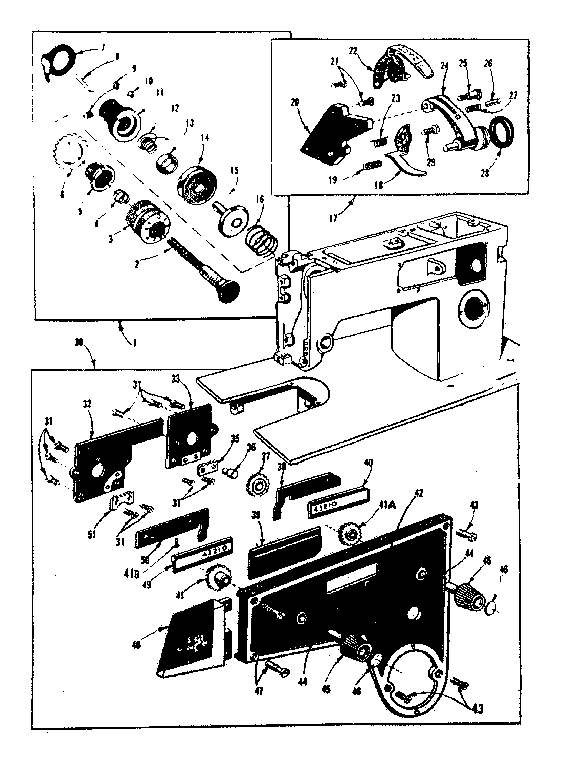

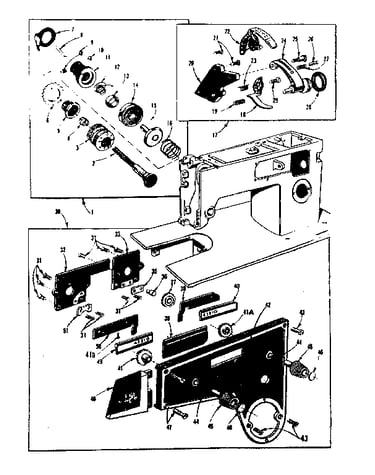

Tension controls diagram

Rack

Part #4817

The manufacturer no longer makes this part, and there's no substitute part

Lamp Plate 4710
#44

Base assembly diagram

Lamp plate

Part #4710

The manufacturer no longer makes this part, and there's no substitute part

Bushing 20
#5

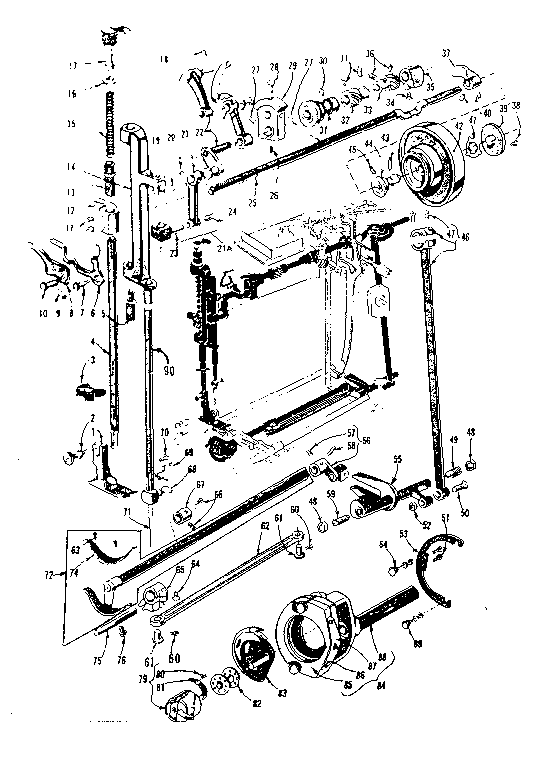

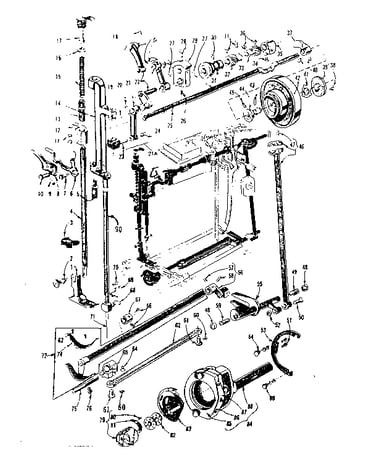

Presser bar and shuttle assembly diagram

Bushing

Part #20

The manufacturer no longer makes this part, and there's no substitute part

Bracket-lowr 4819
#19

Base assembly diagram

Bracket-lowr

Part #4819

The manufacturer no longer makes this part, and there's no substitute part

Set Screw 97
#56

Feed regulator assembly diagram

Set screw

Part #97

The manufacturer no longer makes this part, and there's no substitute part

Lever Base 4822
#17

Feed regulator assembly diagram

Lever base

Part #4822

The manufacturer no longer makes this part, and there's no substitute part

Washer 4843
#13

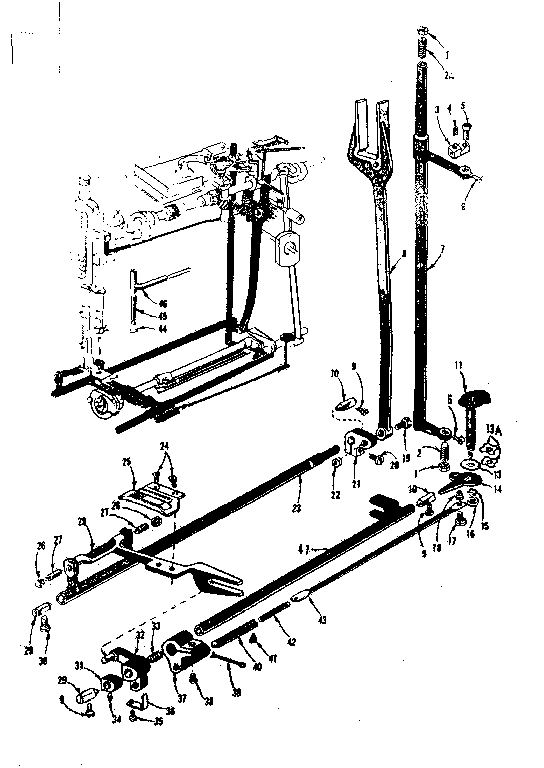

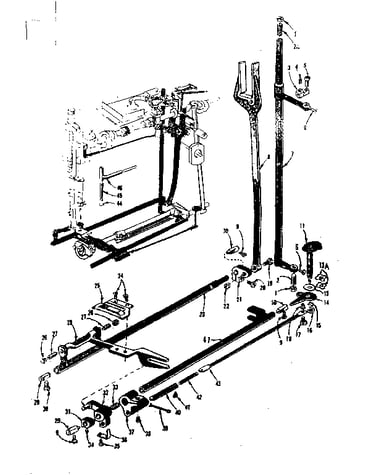

Zigzag guide assembly diagram

Washer

Part #4843

The manufacturer no longer makes this part, and there's no substitute part

Shaft Block 2611
#63

Feed regulator assembly diagram

Shaft block

Part #2611

The manufacturer no longer makes this part, and there's no substitute part
