DeWalt
Reciprocating Saw

Model # DW321KTY2 Official DeWalt jig saw

Here are the diagrams and repair parts for Official DeWalt DW321KTY2 jig saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

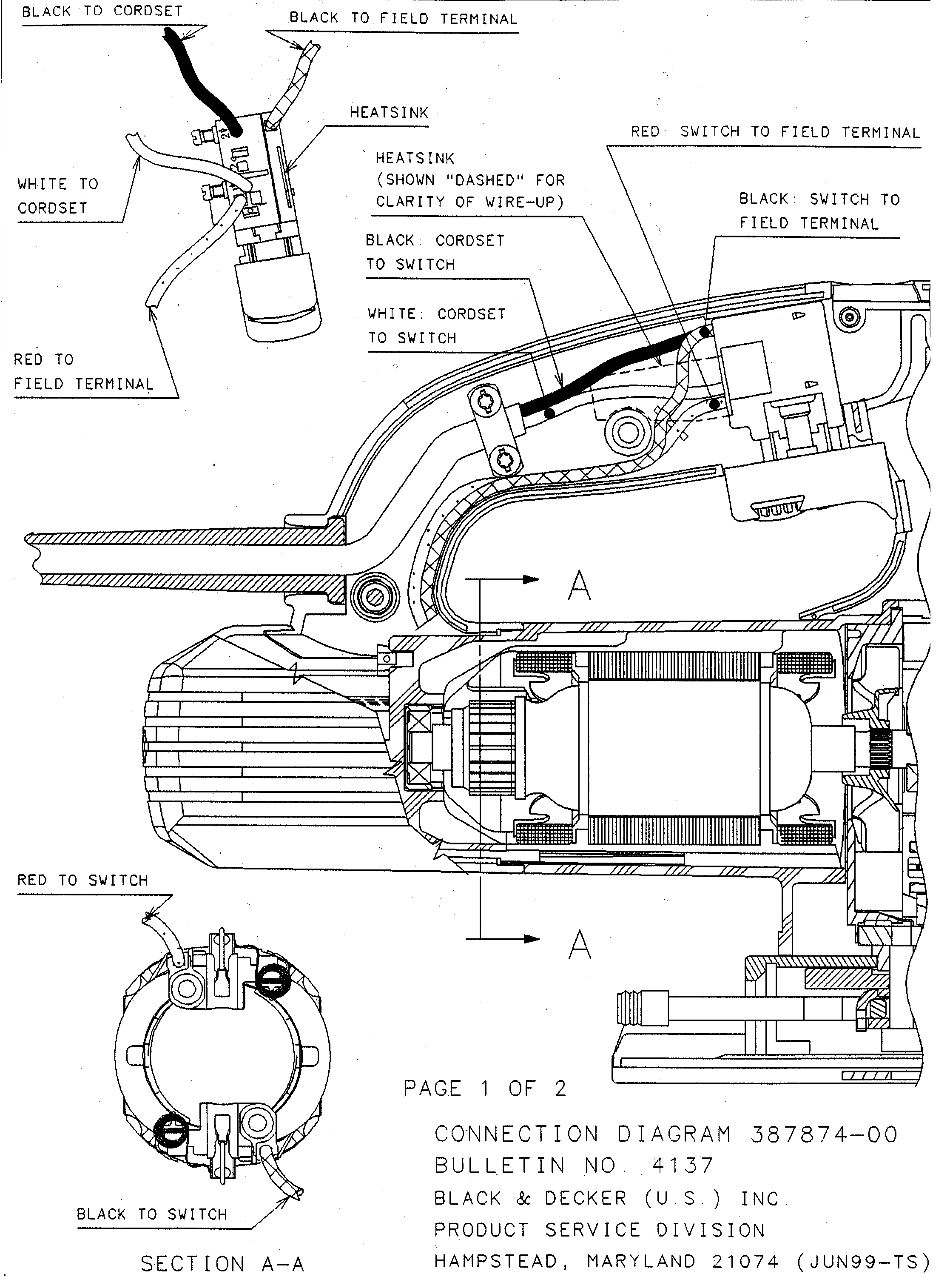

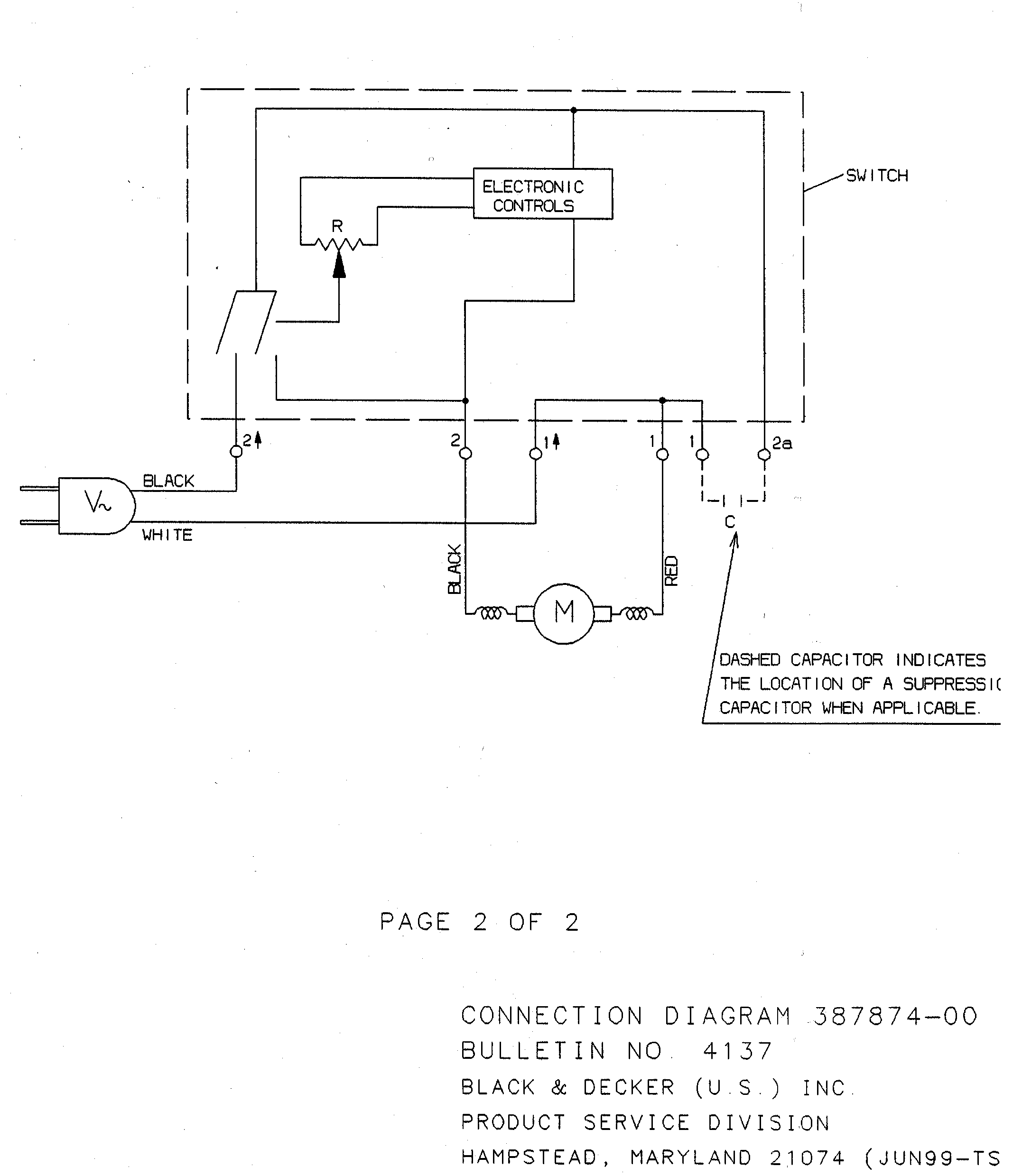

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 94 parts  |
Plug 941374-01
#176

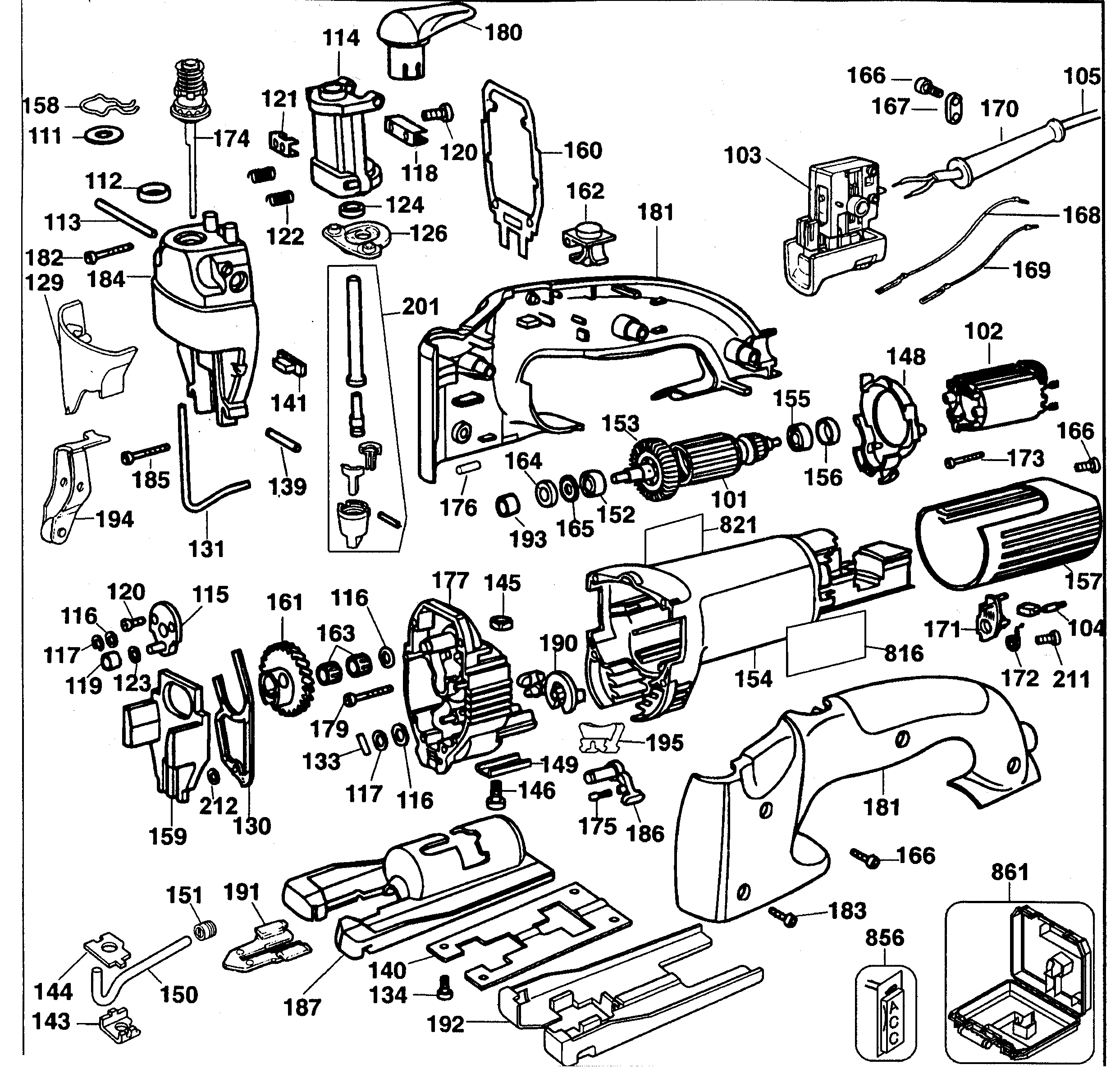

Saw diagram

Plug

Part #941374-01

The manufacturer no longer makes this part, and there's no substitute part

Lever 329977-00
#186

Saw diagram

Lever

Part #329977-00

The manufacturer no longer makes this part, and there's no substitute part

Lead 940988-63
#168

Saw diagram

Lead

Part #940988-63

The manufacturer no longer makes this part, and there's no substitute part

Bolt 330045-06
#183

Saw diagram

Bolt

Part #330045-06

The manufacturer no longer makes this part, and there's no substitute part

Counterwht 402098-00
#159

Saw diagram

Counterwht

Part #402098-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 330065-06
#211

Saw diagram

Screw

Part #330065-06

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Id Label 946194-00
#816

Saw diagram

Black & decker id label

Part #946194-00

The manufacturer no longer makes this part, and there's no substitute part

Spring 402111-00
#158

Saw diagram

Spring

Part #402111-00

The manufacturer no longer makes this part, and there's no substitute part

Felt Washer 949400-03
#164

Saw diagram

Felt washer

Part #949400-03

The manufacturer no longer makes this part, and there's no substitute part

Washer 388957-00
#110

Saw diagram

Washer

Part #388957-00

The manufacturer no longer makes this part, and there's no substitute part
