Gas Walk-Behind Mower

Model # 917370752 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917370752 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 245 parts  |
Lawn & Garden Equipment Nut 409148
#33

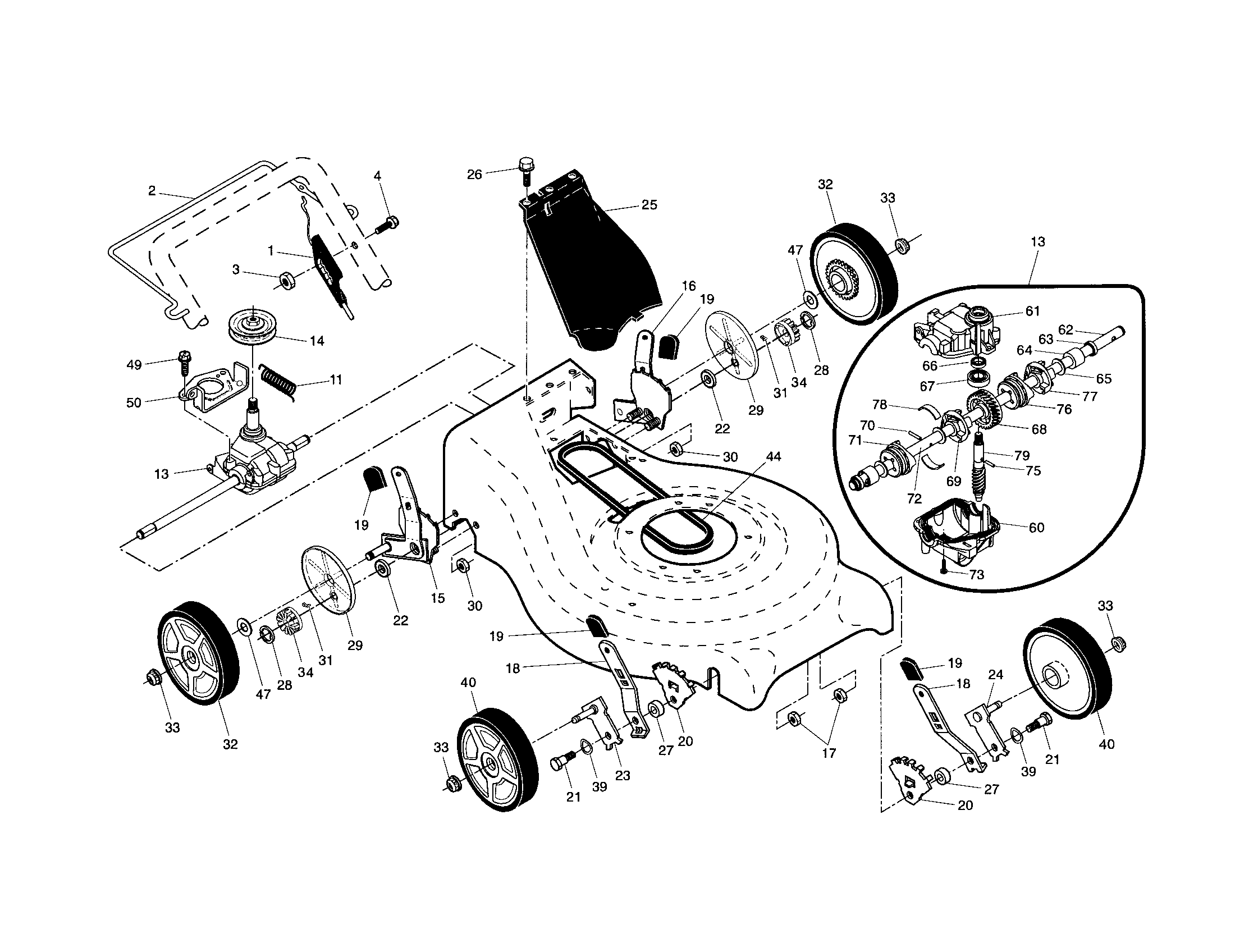

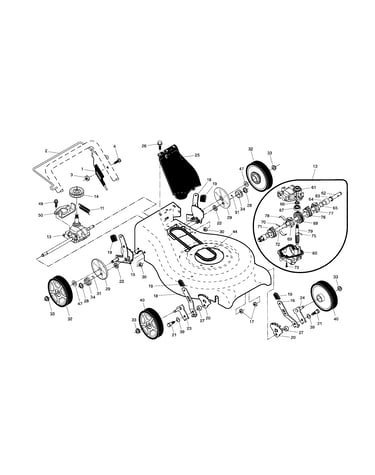

Drive control/gearcase/wheels diagram

Lawn & garden equipment nut

Part #409148

Replaced by #532409149

?
Manufacturer substitution
This part replaces 409148. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Hndl.knob.bl 189713X428
#8

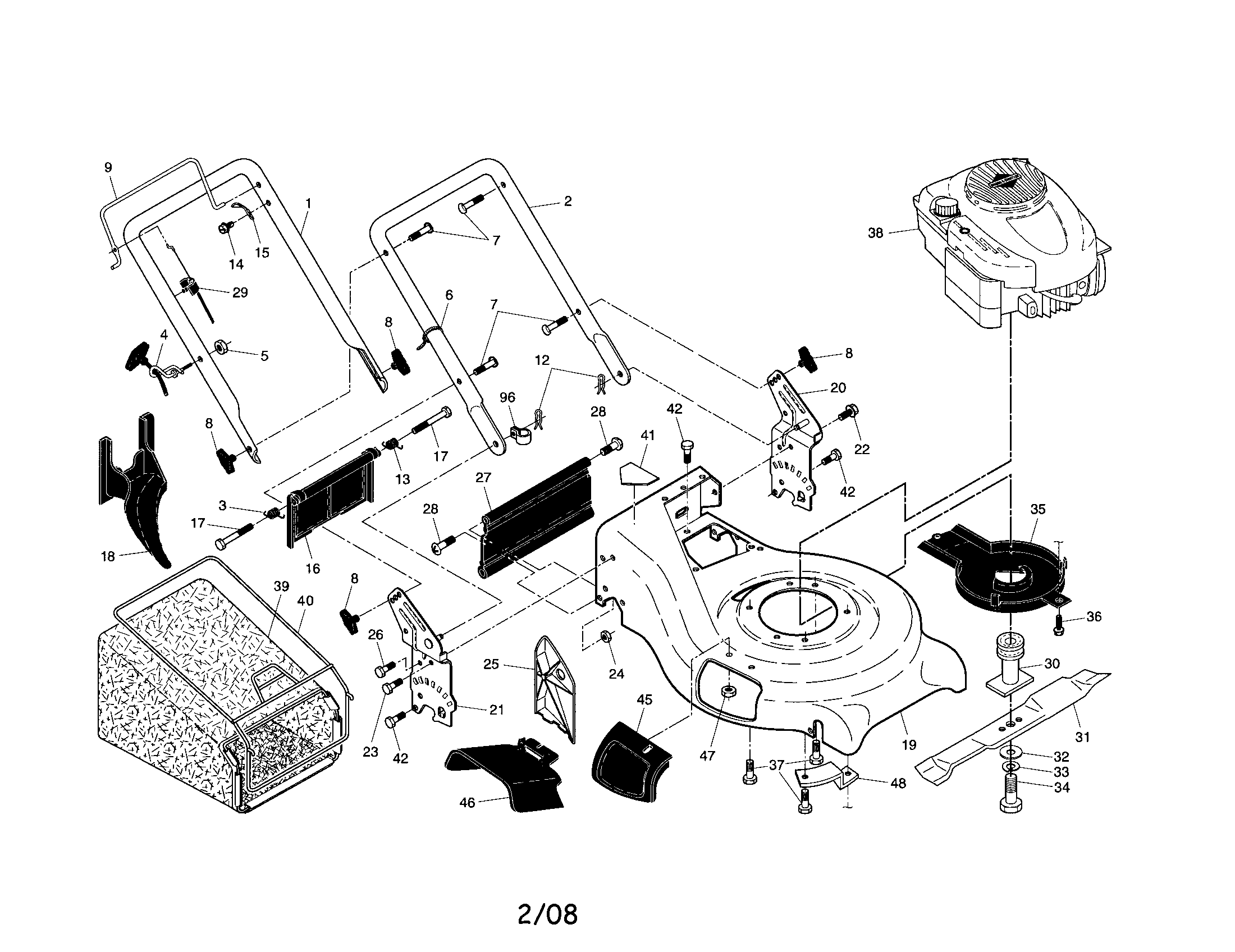

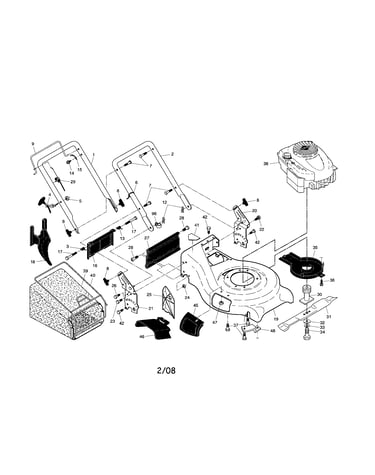

Handle/engine/housing diagram

Hndl.knob.bl

Part #189713X428

Replaced by #532185577

?
Manufacturer substitution
This part replaces 189713X428. Substitute parts can look different from the original.
BEST SELLER
$10.64 |
16% OFF Phone Price : $12.64
In Stock
Lawn Mower Wheel Dust Cover 189403
#29

Drive control/gearcase/wheels diagram

Lawn mower wheel dust cover

Part #189403

Replaced by #581840401

?
Manufacturer substitution
This part replaces 189403. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Lock Nut 73800500
#24

Handle/engine/housing diagram

Lock nut

Part #73800500

Replaced by #596040501

?
Manufacturer substitution
This part replaces 73800500. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.11
In Stock
Lawn Mower Ground Drive Belt 406557
#44

Drive control/gearcase/wheels diagram

Lawn mower ground drive belt

Part #406557

Replaced by #580364604

?
Manufacturer substitution
This part replaces 406557. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$15.99 |
11% OFF Phone Price : $17.99
In Stock
Bolt 401638
#21

Drive control/gearcase/wheels diagram

Bolt

Part #401638

Replaced by #596203801

?
Manufacturer substitution
This part replaces 401638. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Return Spring 406558
#11

Drive control/gearcase/wheels diagram

Return spring

Part #406558

Replaced by #532406558

?
Manufacturer substitution
This part replaces 406558. Substitute parts can look different from the original.
BEST SELLER
$9.31 |
10% OFF Phone Price : $10.31
In Stock
Washer 67725
#47

Drive control/gearcase/wheels diagram

Washer

Part #67725

Replaced by #532067725

?
Manufacturer substitution
This part replaces 67725. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Height Spacer 401629
#27

Drive control/gearcase/wheels diagram

Height spacer

Part #401629

Replaced by #532401629

?
Manufacturer substitution
This part replaces 401629. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Upstop Bracket 850733X004
#15

Handle/engine/housing diagram

Upstop bracket

Part #850733X004

Replaced by #532850733

?
Manufacturer substitution
This part replaces 850733X004. Substitute parts can look different from the original.
This item is not returnable
$8.54
In Stock
