Model # JB750DF4CC Official GE electric range

Here are the diagrams and repair parts for Official GE JB750DF4CC electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

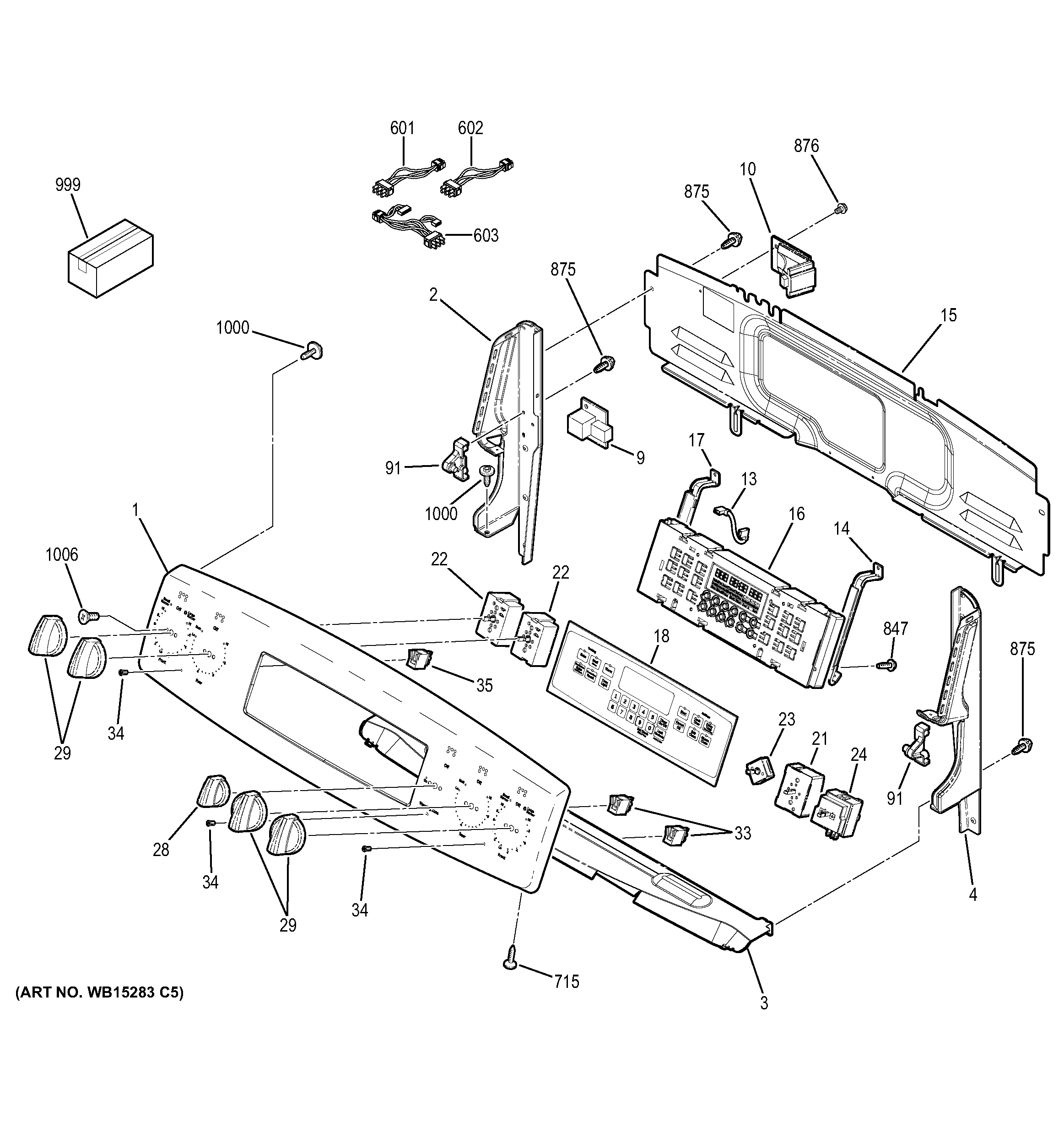

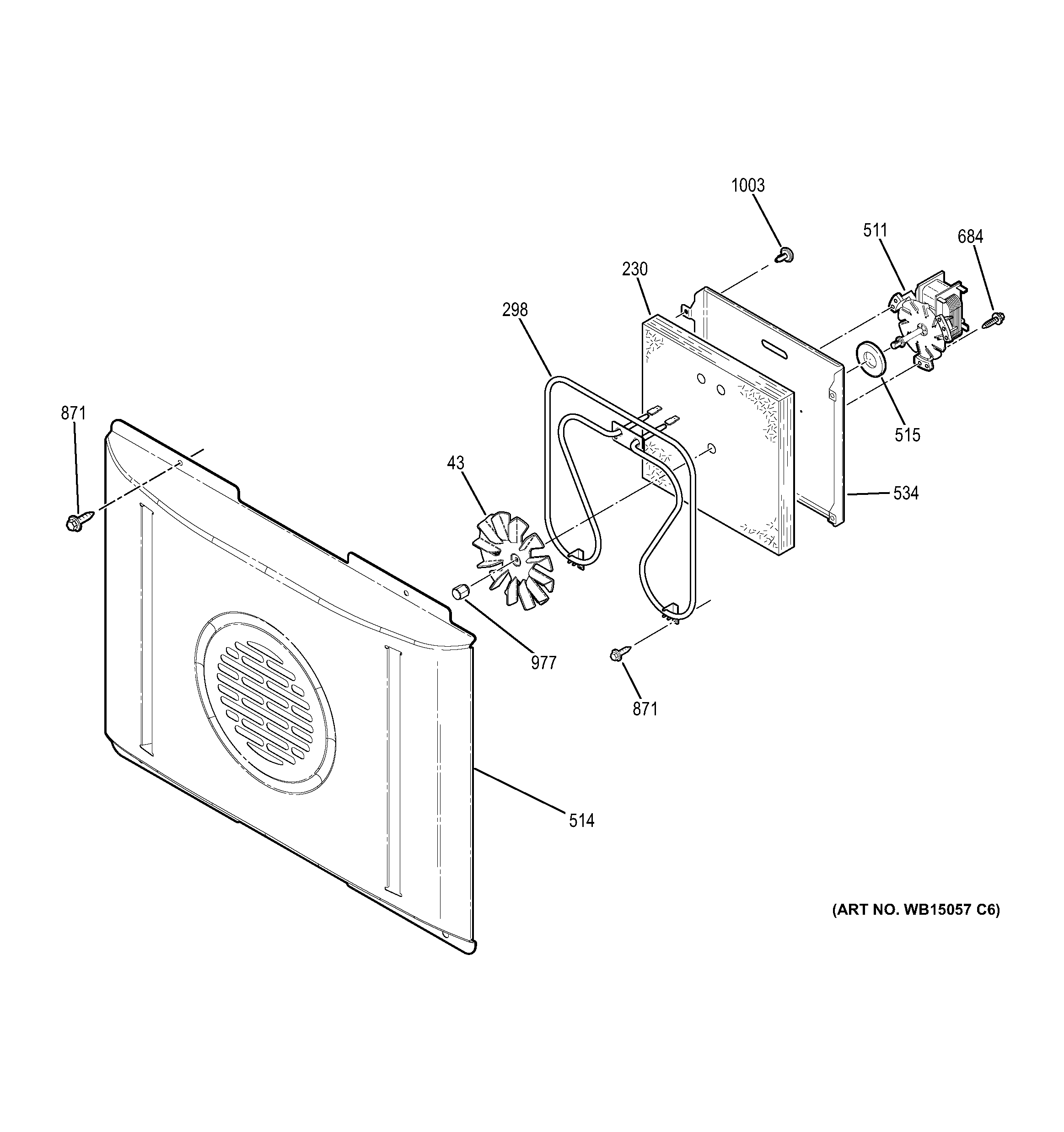

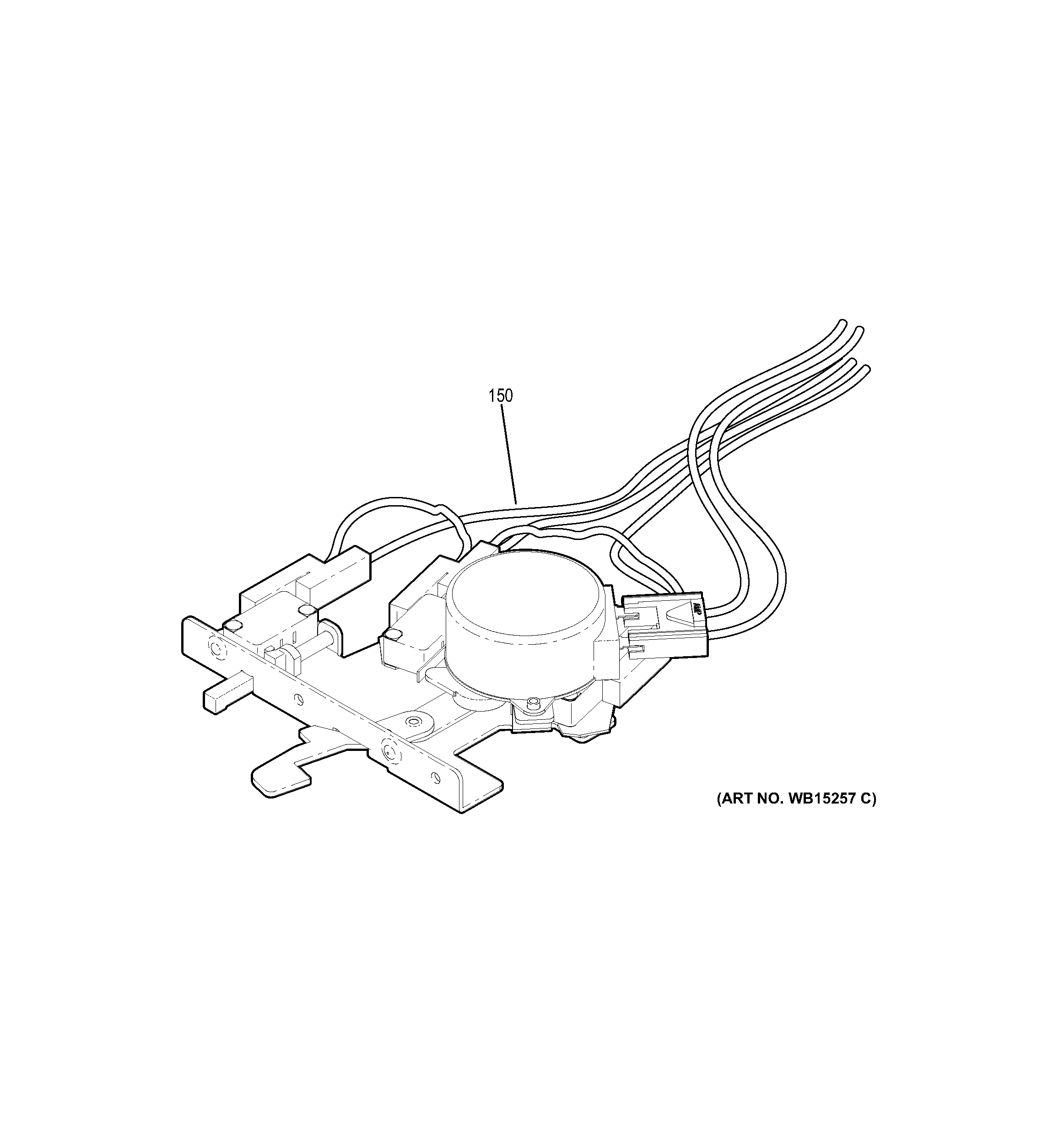

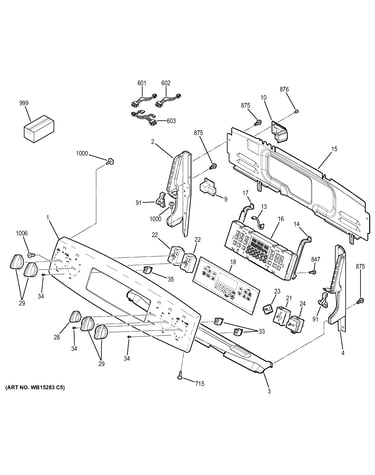

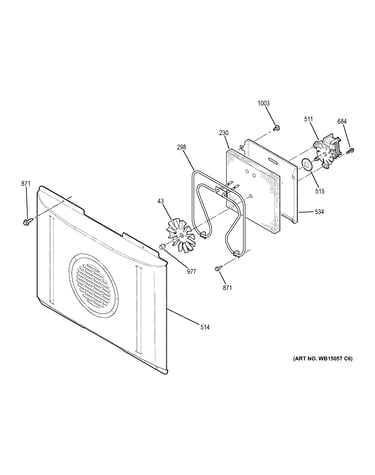

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 133 parts  |
Kenmore Range Oven Temperature Sensor (replaces Wb21t10007) WB21X22134
#253

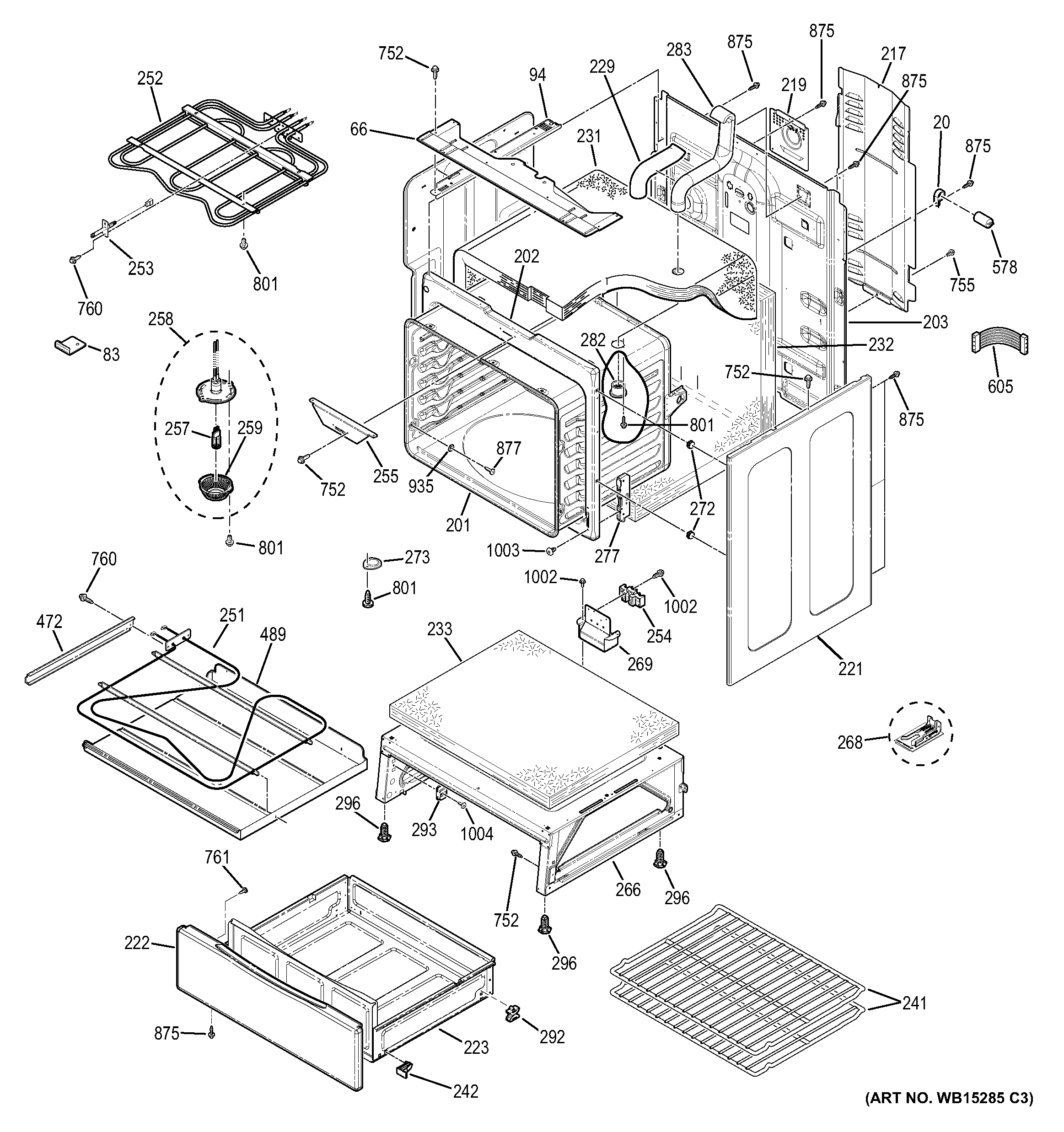

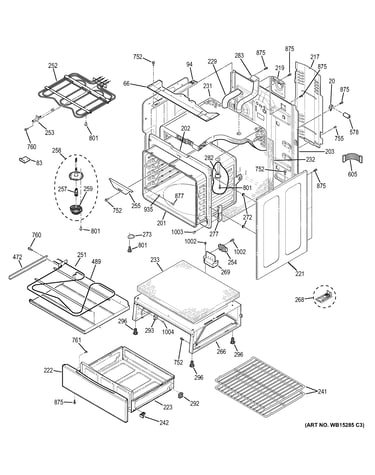

Body parts diagram

Kenmore range oven temperature sensor (replaces wb21t10007)

Part #WB21X22134

BEST SELLER
$24.05 |
20% OFF Phone Price : $30.05
In Stock
Range Radiant Surface Element, 5-1/2-in (replaces Wb30t10127) WB30T10145
#56

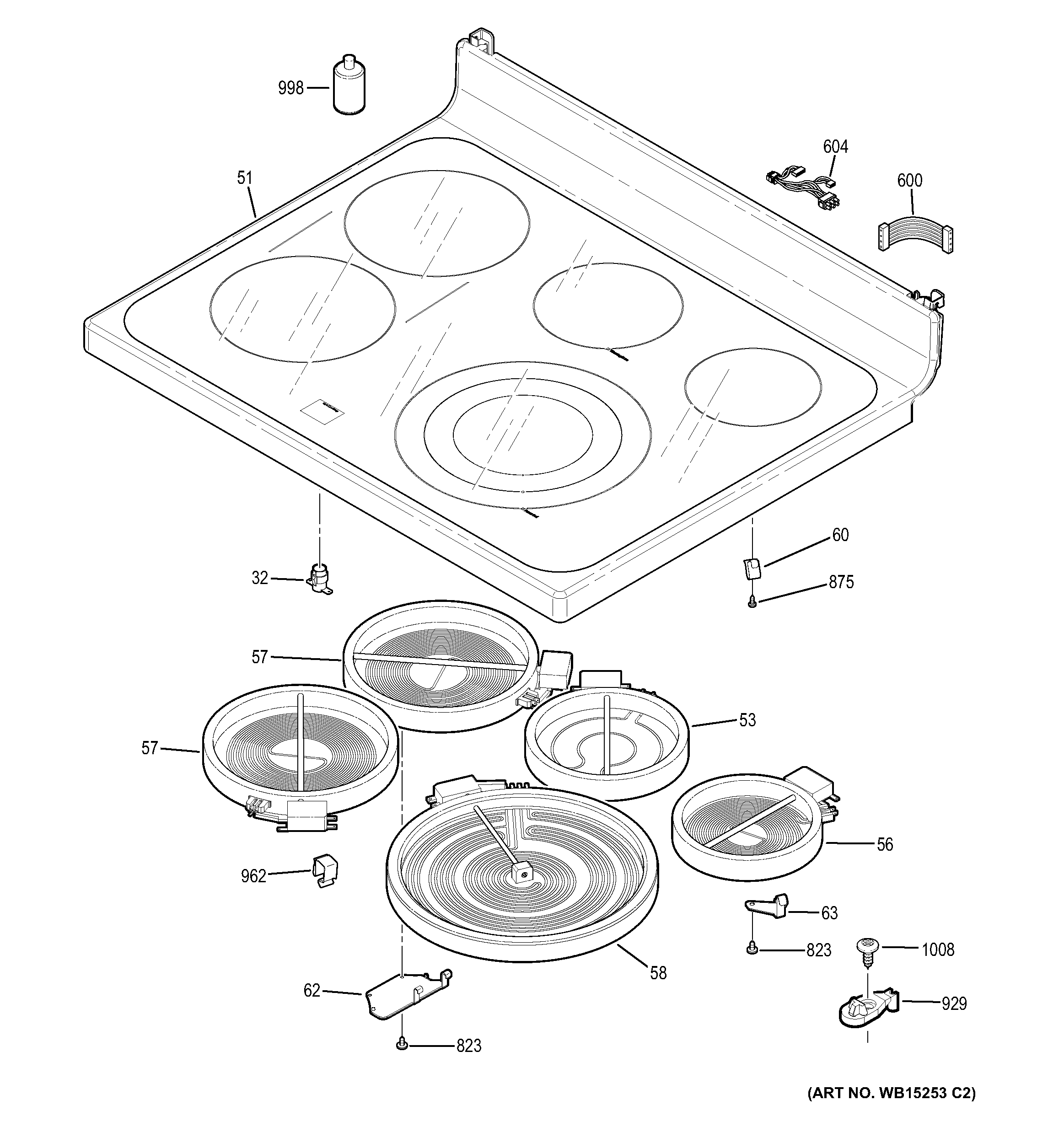

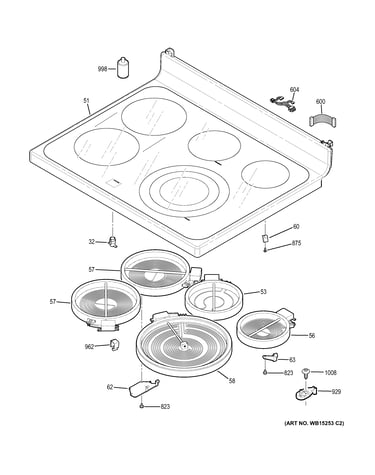

Cooktop diagram

Range radiant surface element, 5-1/2-in (replaces wb30t10127)

Part #WB30T10145

BEST SELLER
$89.97 |
6% OFF Phone Price : $95.97
In Stock
Range Radiant Surface Element, 8-in (replaces Wb30t10128) WB30T10132
#57

Cooktop diagram

Range radiant surface element, 8-in (replaces wb30t10128)

Part #WB30T10132

BEST SELLER
$51.57 |
10% OFF Phone Price : $57.57
In Stock
Range Oven Door Inner Glass (replaces Wb55t10154, Wb56t10152, Wb56x26391) WB56X22160
#338

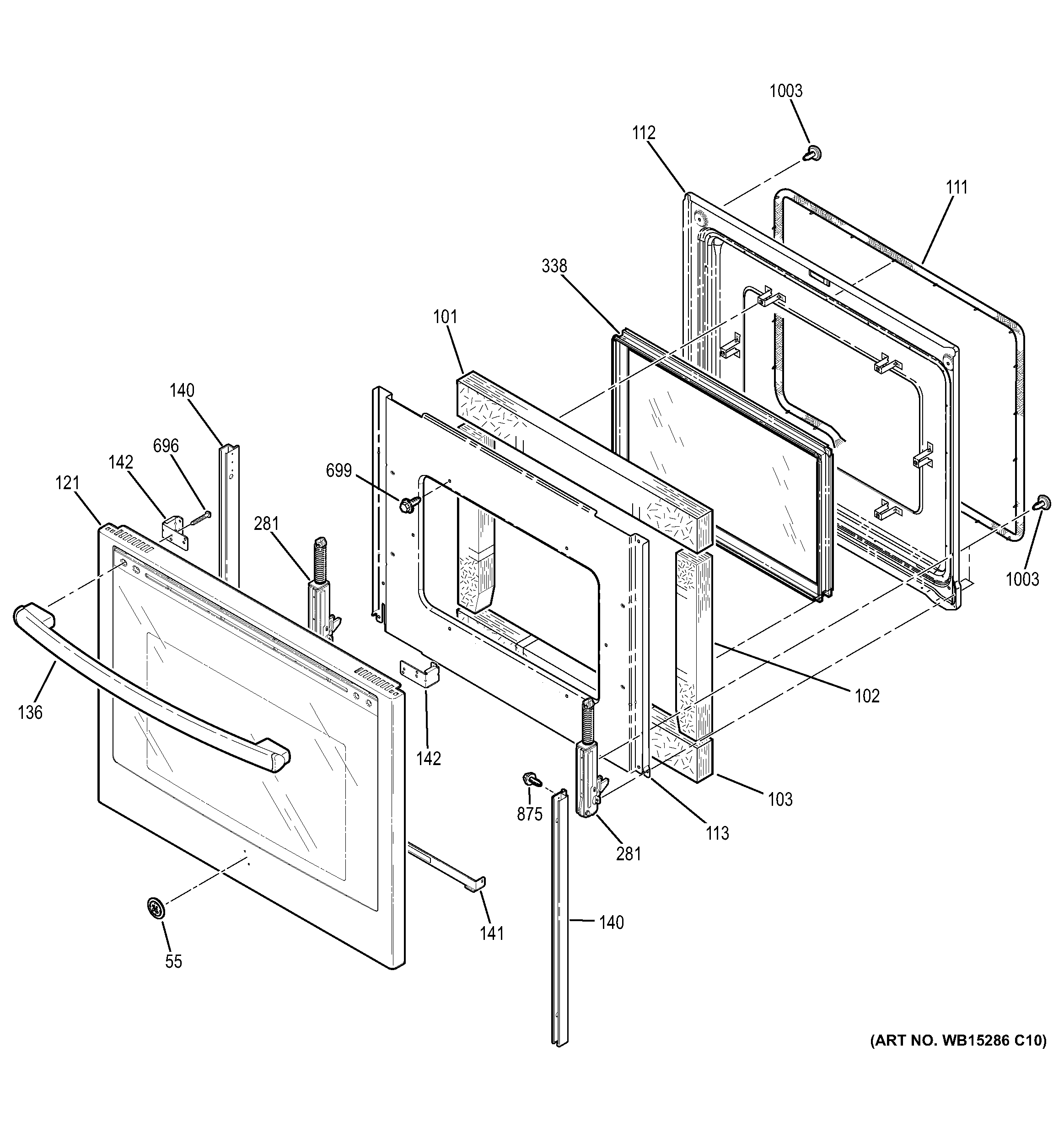

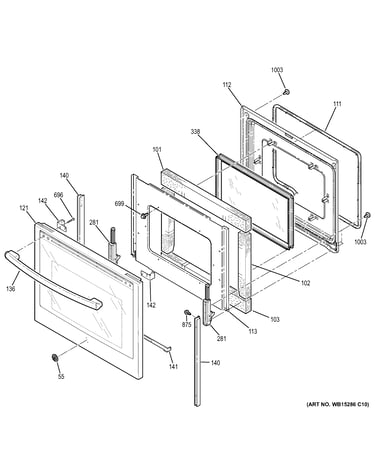

Door diagram

Range oven door inner glass (replaces wb55t10154, wb56t10152, wb56x26391)

Part #WB56X22160

BEST SELLER
$370.15 |
$12.00 OFF Phone Price : $382.15
In Stock
Cooktop Indicator Light WB27T10668
#32

Cooktop diagram

Cooktop indicator light

Part #WB27T10668

BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Terminal Block (replaces Wb17t10016, Wb17t10023) WB17T10011
#254

Body parts diagram

Range terminal block (replaces wb17t10016, wb17t10023)

Part #WB17T10011

BEST SELLER
$40.67 |
13% OFF Phone Price : $46.67
In Stock
Range Oven Door Gasket (replaces Wb04t10001) WB04T10086
#111

Door diagram

Range oven door gasket (replaces wb04t10001)

Part #WB04T10086

$39.75 |
13% OFF Phone Price : $45.75
In Stock
Range Bake Element (replaces Wb44t10049) WB44T10104
#251

Body parts diagram

Range bake element (replaces wb44t10049)

Part #WB44T10104

Replaced by #WB44X45499

?
Manufacturer substitution
This part replaces WB44T10104. Substitute parts can look different from the original.
$63.11
In Stock
Cooking Appliance Screw, #10-32 (replaces Wb1t10008) WB01T10008
Cooking appliance screw, #10-32 (replaces wb1t10008)

Part #WB01T10008

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw WB01M0001
#801

Body parts diagram

Screw

Part #WB01M0001

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB01M0001. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
