KitchenAid
Refrigerator

Model # KSRS22QDAL02 Official KitchenAid refrigerator

Here are the diagrams and repair parts for Official KitchenAid KSRS22QDAL02 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

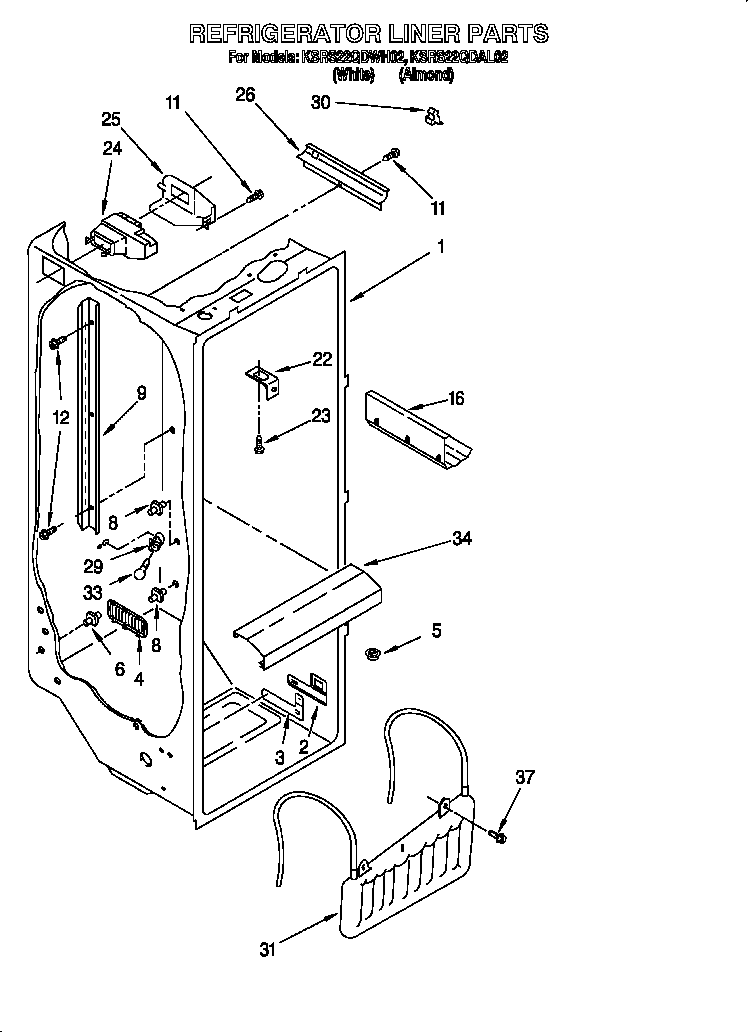

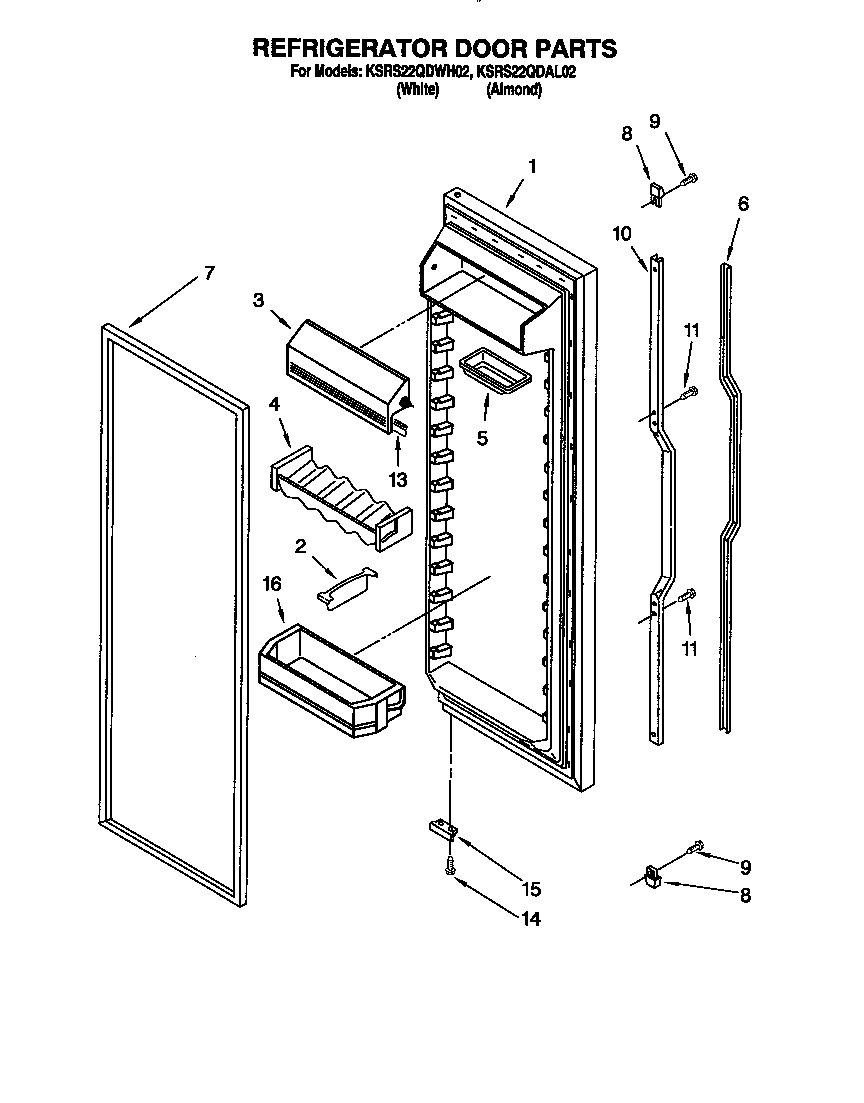

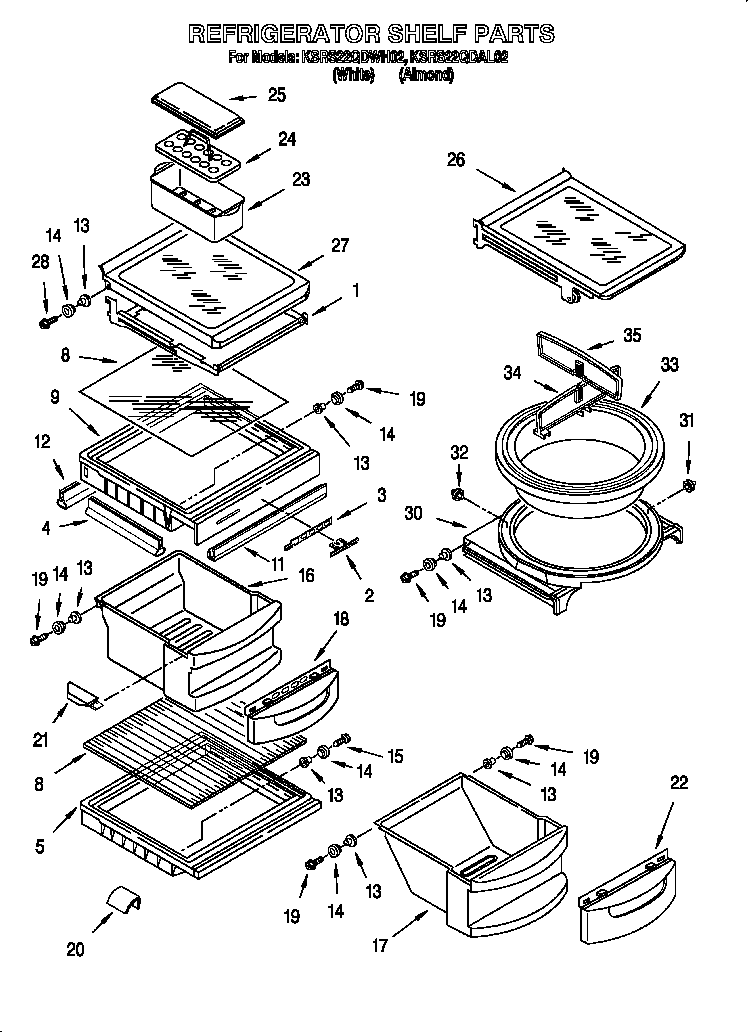

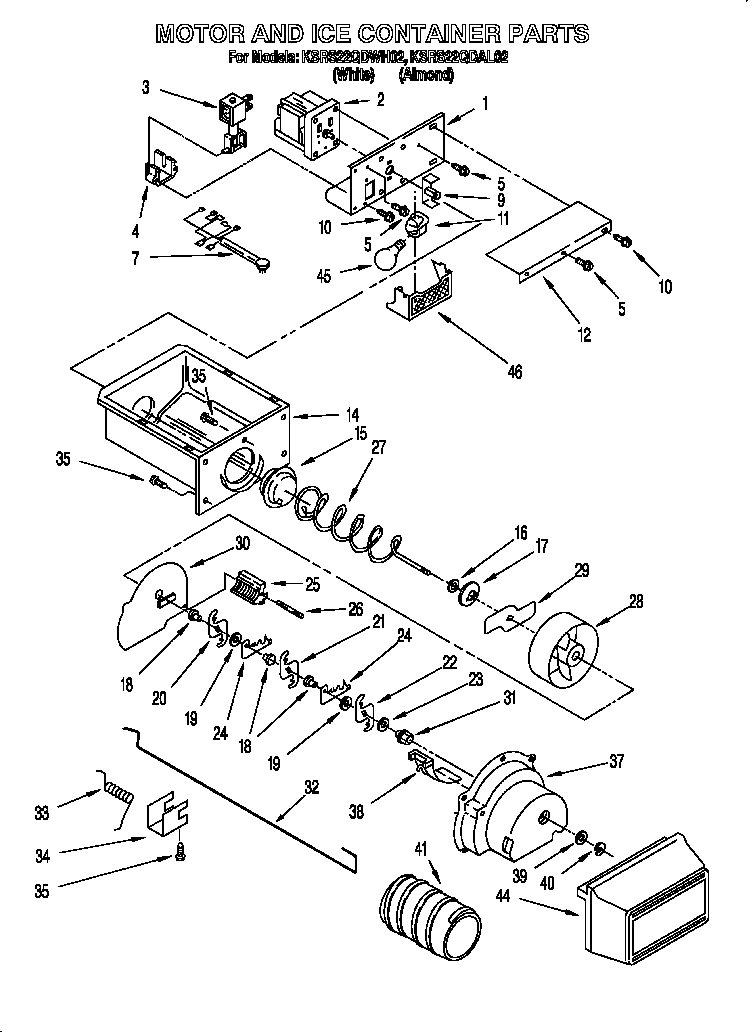

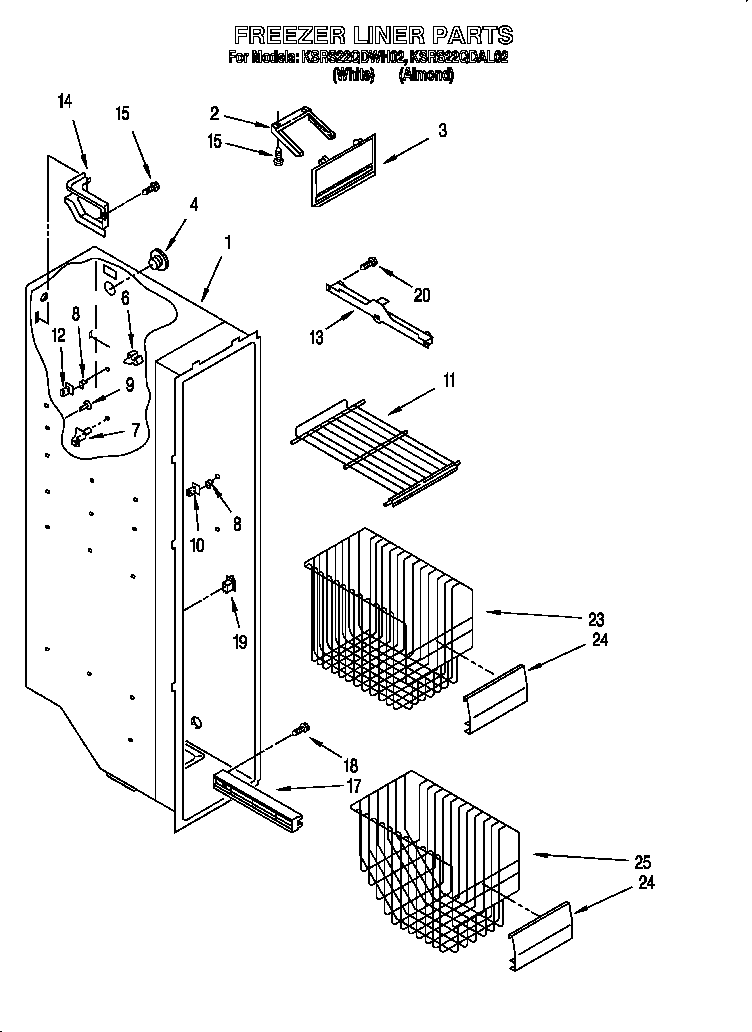

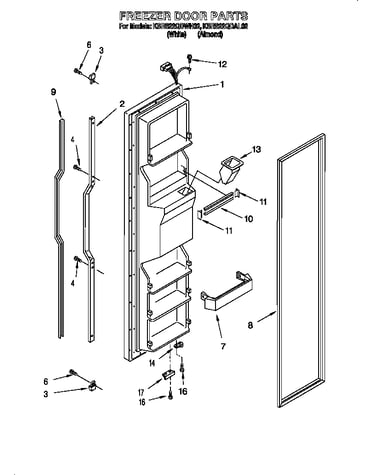

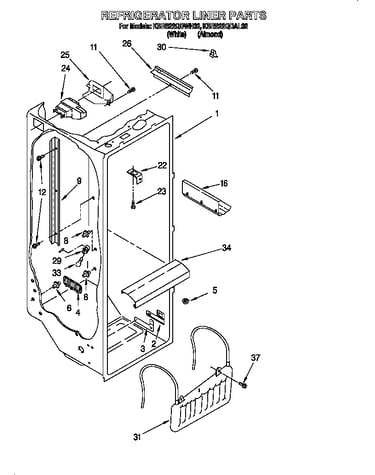

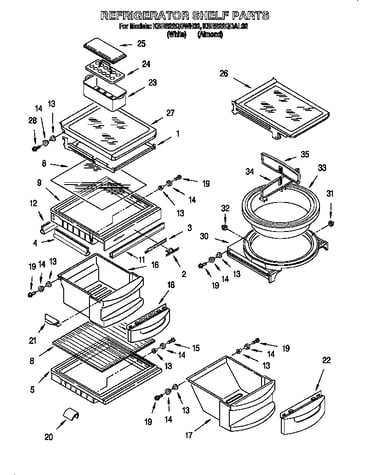

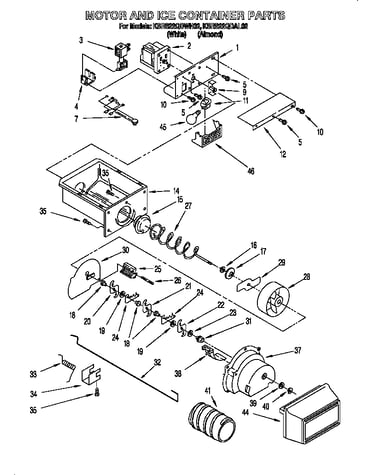

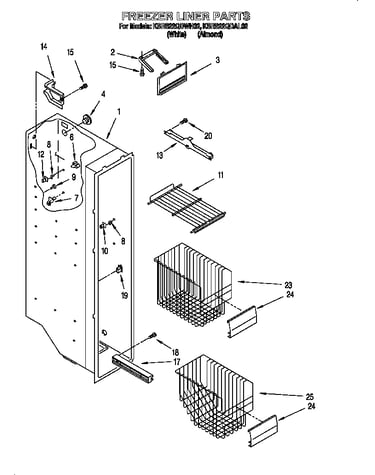

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 358 parts  |
Ice Maker Assembly (4317943) - Refrigerator Ice Machine Part By Whirlpool 4317943
#100

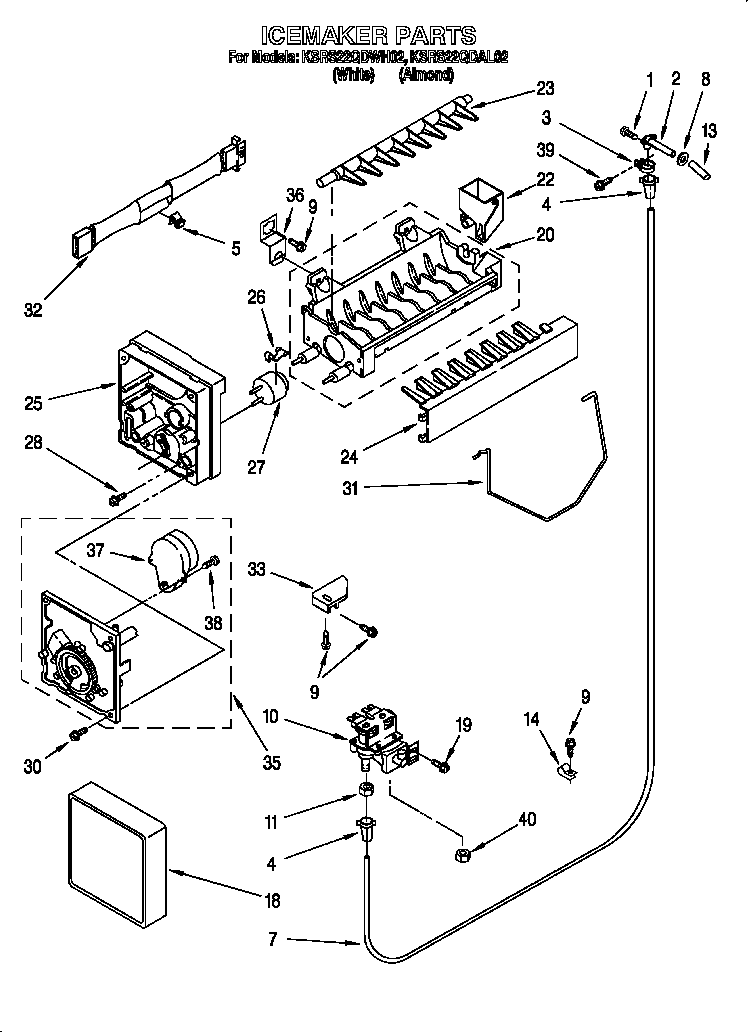

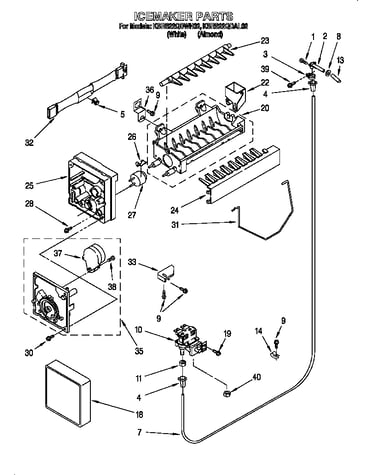

Icemaker diagram

Ice maker assembly (4317943) - refrigerator ice machine part by whirlpool

Part #4317943

BEST SELLER
$93.89 |
6% OFF Phone Price : $99.89
In Stock
Refrigerator Defrost Bi-metal 2176066
#35

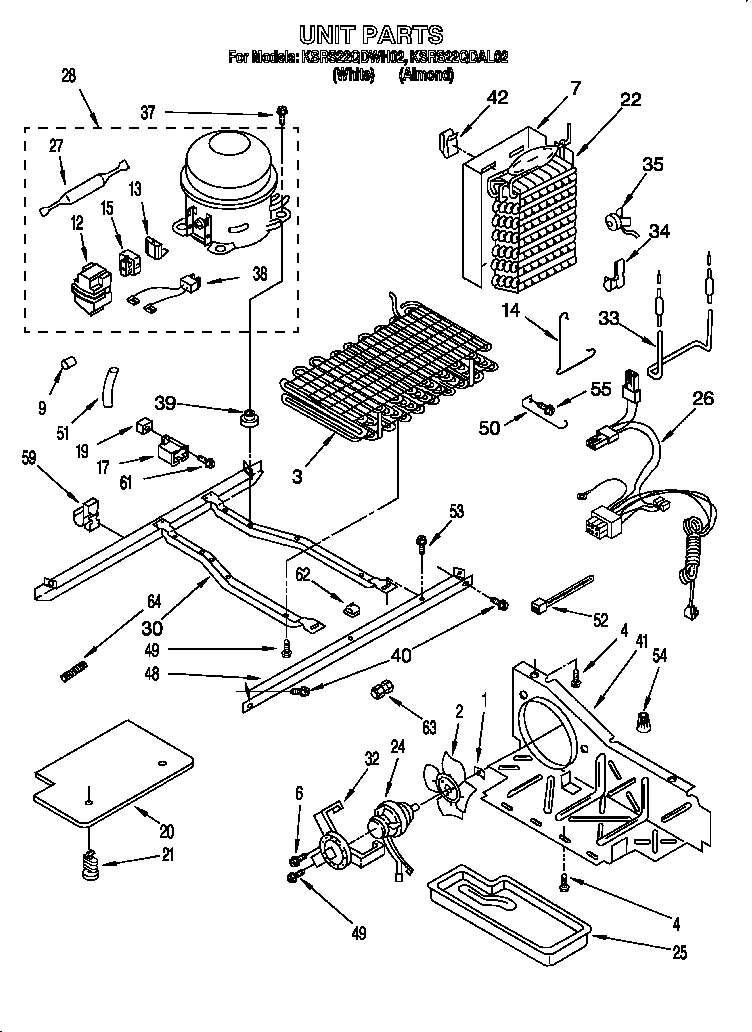

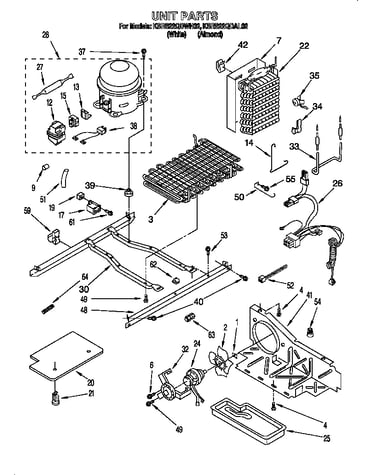

Unit diagram

Refrigerator defrost bi-metal

Part #2176066

Replaced by #WPW10225581

?
Manufacturer substitution
This part replaces 2176066. Substitute parts can look different from the original.
BEST SELLER
$31.46 |
16% OFF Phone Price : $37.46
In Stock
Light Bulb 527949
Light bulb

Part #527949

Replaced by #40A15

?
Manufacturer substitution
This part replaces 527949. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Light Bulb 946059
#19

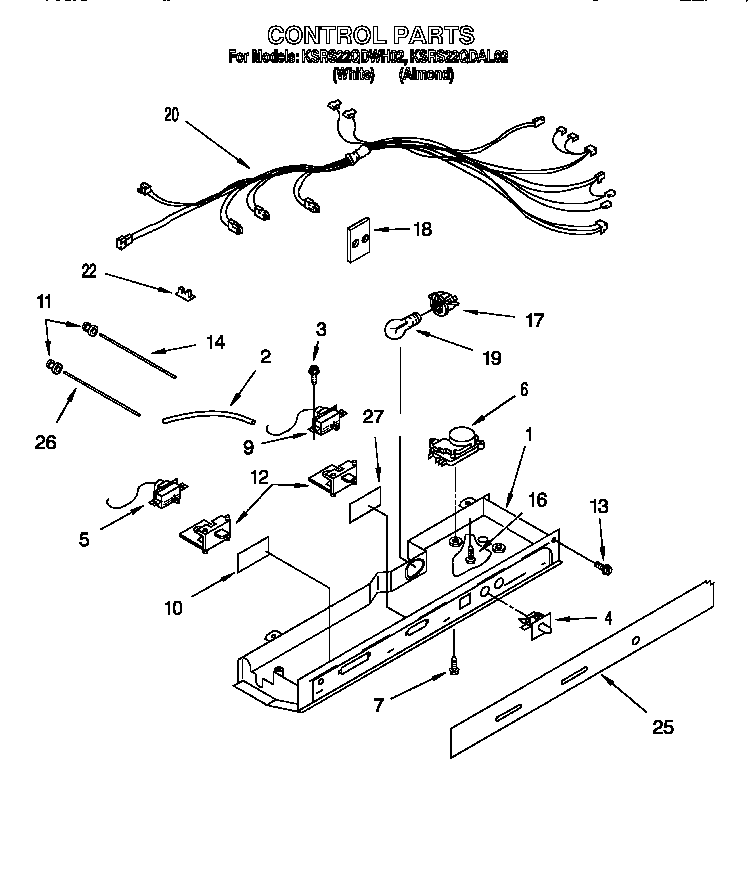

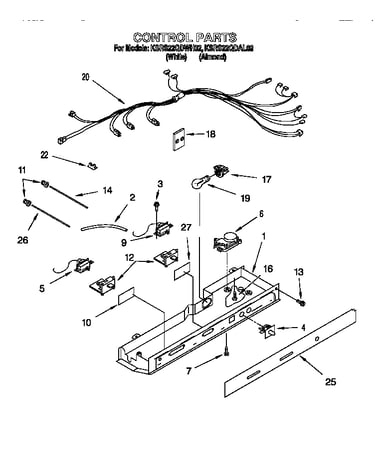

Control diagram

Light bulb

Part #946059

Replaced by #40A15

?
Manufacturer substitution
This part replaces 946059. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Door Closer Cam 2155311
#54

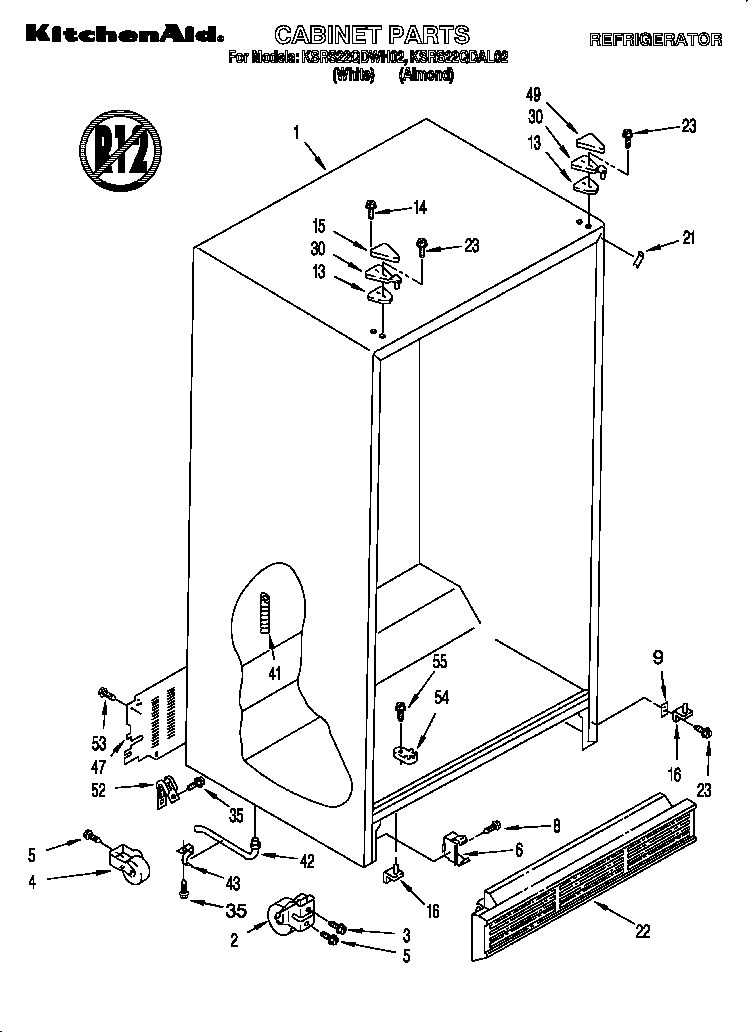

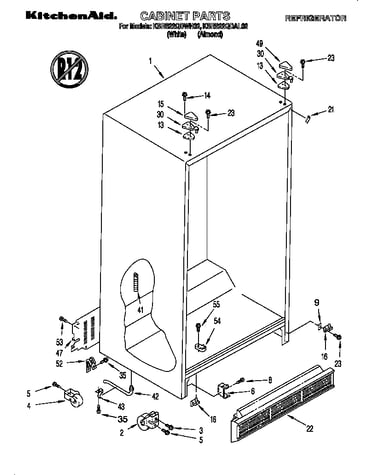

Cabinet diagram

Refrigerator door closer cam

Part #2155311

Replaced by #WPW10329686

?
Manufacturer substitution
This part replaces 2155311. Substitute parts can look different from the original.
BEST SELLER
$10.54 |
16% OFF Phone Price : $12.54
In Stock
Refrigerator Door Chute 2177296
#9

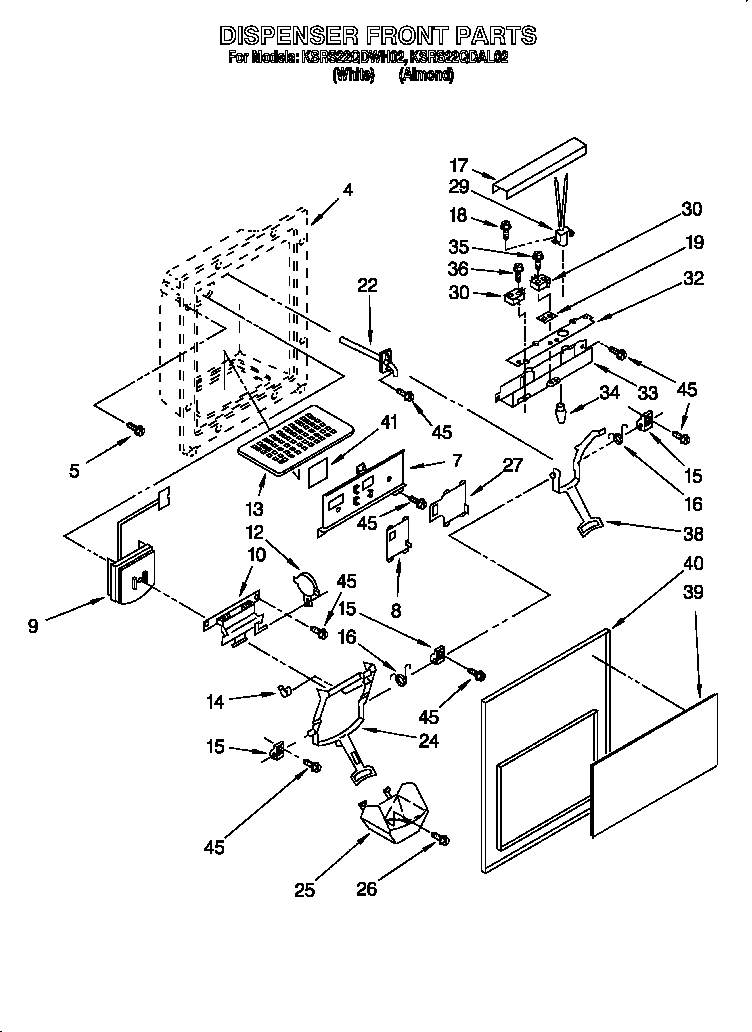

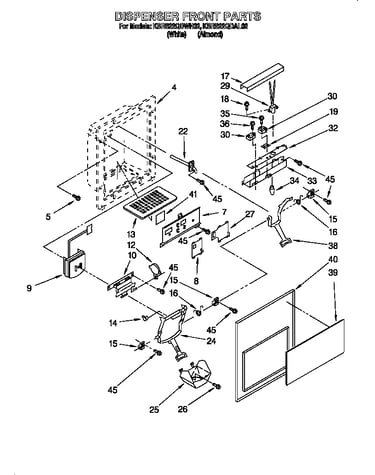

Dispenser front diagram

Refrigerator door chute

Part #2177296

Replaced by #WP2180353

?
Manufacturer substitution
This part replaces 2177296. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Defrost Timer 2162046
#6

Control diagram

Refrigerator defrost timer

Part #2162046

Replaced by #W10822278

?
Manufacturer substitution
This part replaces 2162046. Substitute parts can look different from the original.
BEST SELLER
$27.99 |
18% OFF Phone Price : $33.99
In Stock
Drier Tube 2164409
#27

Unit diagram

Drier tube

Part #2164409

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 2164409. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Refrigerator Compressor 2183418
#28

Unit diagram

Refrigerator compressor

Part #2183418

Replaced by #W10309990

?
Manufacturer substitution
This part replaces 2183418. Substitute parts can look different from the original.
BEST SELLER
$338.61 |
$12.00 OFF Phone Price : $350.61
In Stock
Refrigerator Evaporator Motor 2149299
#7

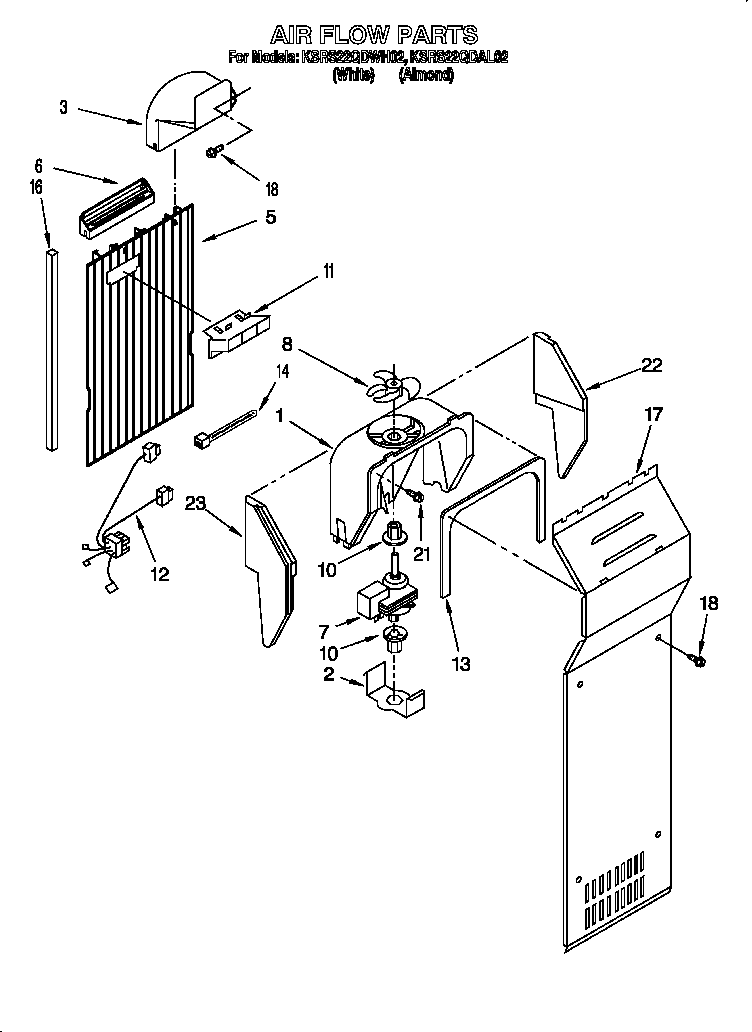

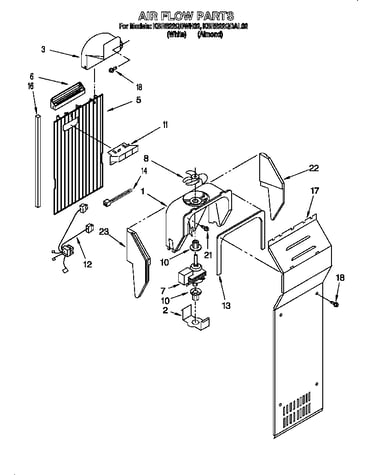

Air flow diagram

Refrigerator evaporator motor

Part #2149299

Replaced by #4389144

?
Manufacturer substitution
This part replaces 2149299. Substitute parts can look different from the original.
BEST SELLER
$60.42 |
9% OFF Phone Price : $66.42
In Stock
