GE
Upright Freezer

Model # FUM21DMBRWH Official GE freezer - b series

Here are the diagrams and repair parts for Official GE FUM21DMBRWH freezer - b series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 79 parts  |
Freezer Dryer Filter WR86X10014
#740

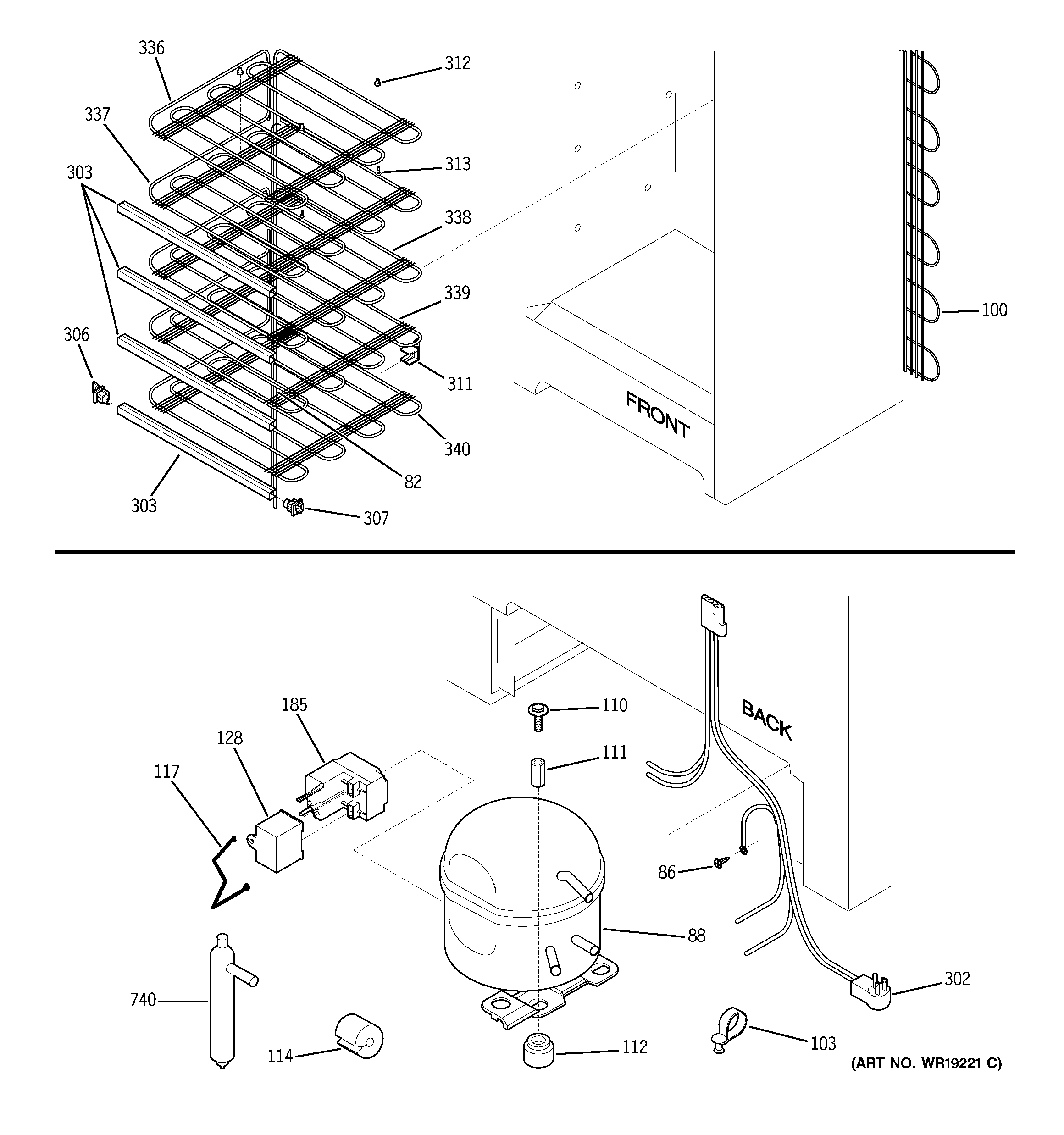

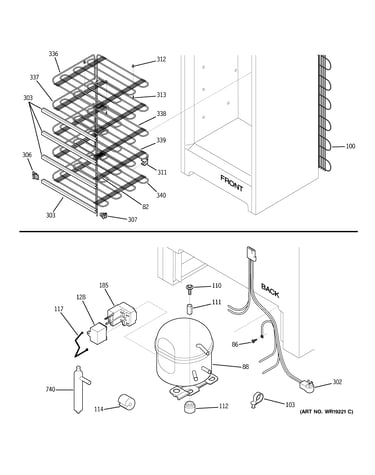

Unit parts diagram

Freezer dryer filter

Part #WR86X10014

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X10014. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Freezer Door Switch WR23X10303
#41

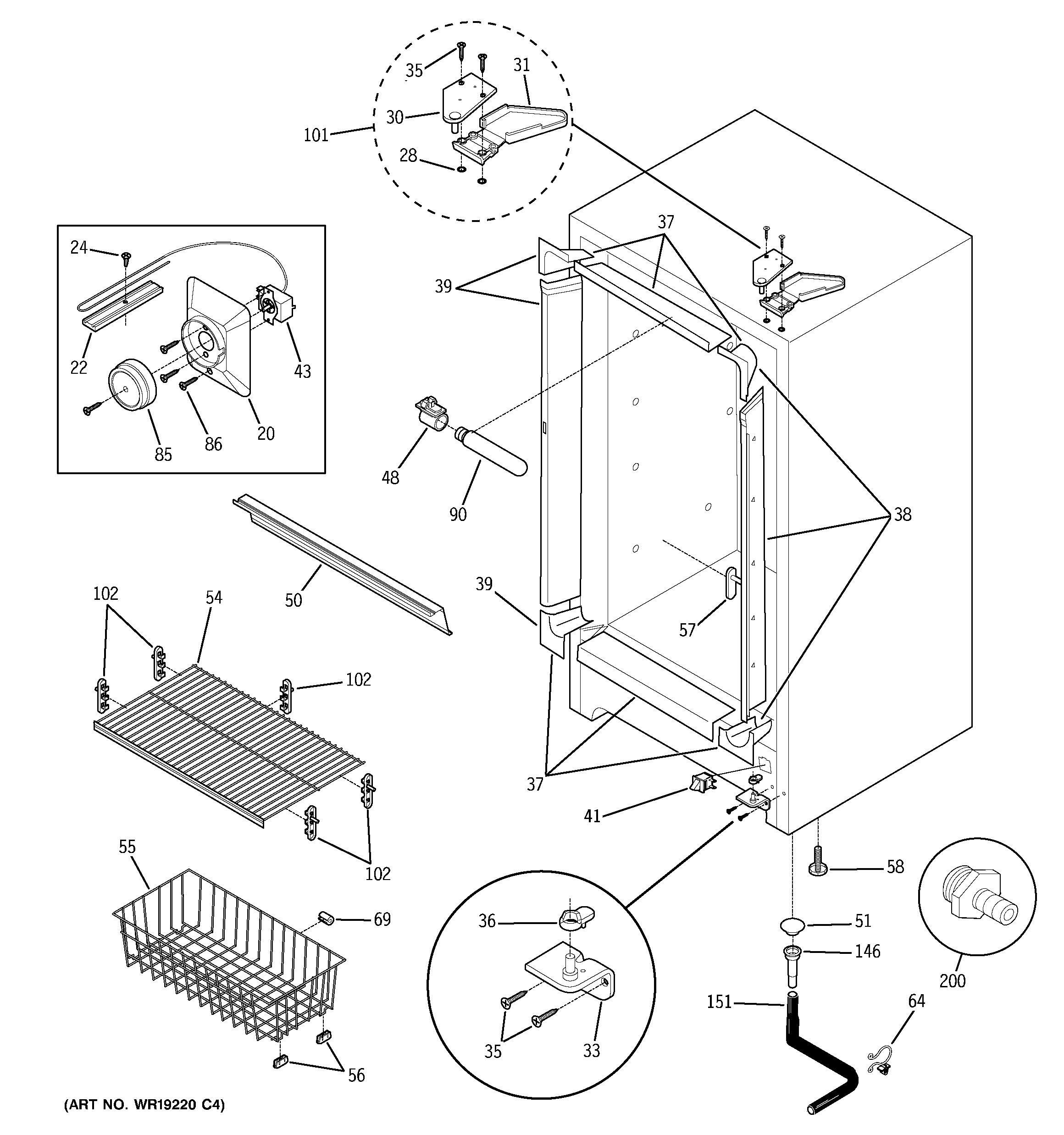

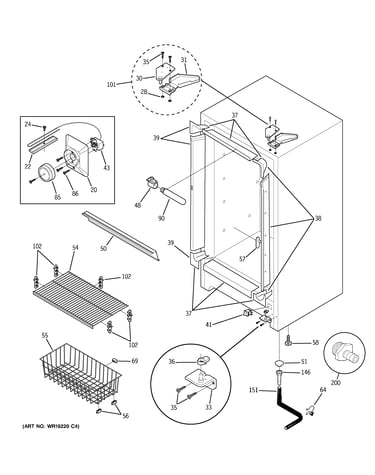

Cabinet diagram

Freezer door switch

Part #WR23X10303

$64.46 |
9% OFF Phone Price : $70.46
In Stock
Condenser WR84X5007
#100

Unit parts diagram

Condenser

Part #WR84X5007

$279.53
In Stock
Temperature Complete Knob WR02X10860
#85

Cabinet diagram

Temperature complete knob

Part #WR02X10860

$38.89 |
13% OFF Phone Price : $44.89
In Stock
Glide Basket WR02X11444
#56

Cabinet diagram

Glide basket

Part #WR02X11444

$81.57 |
7% OFF Phone Price : $87.57
In Stock
Freezer Door Gasket WR24X10010
#8

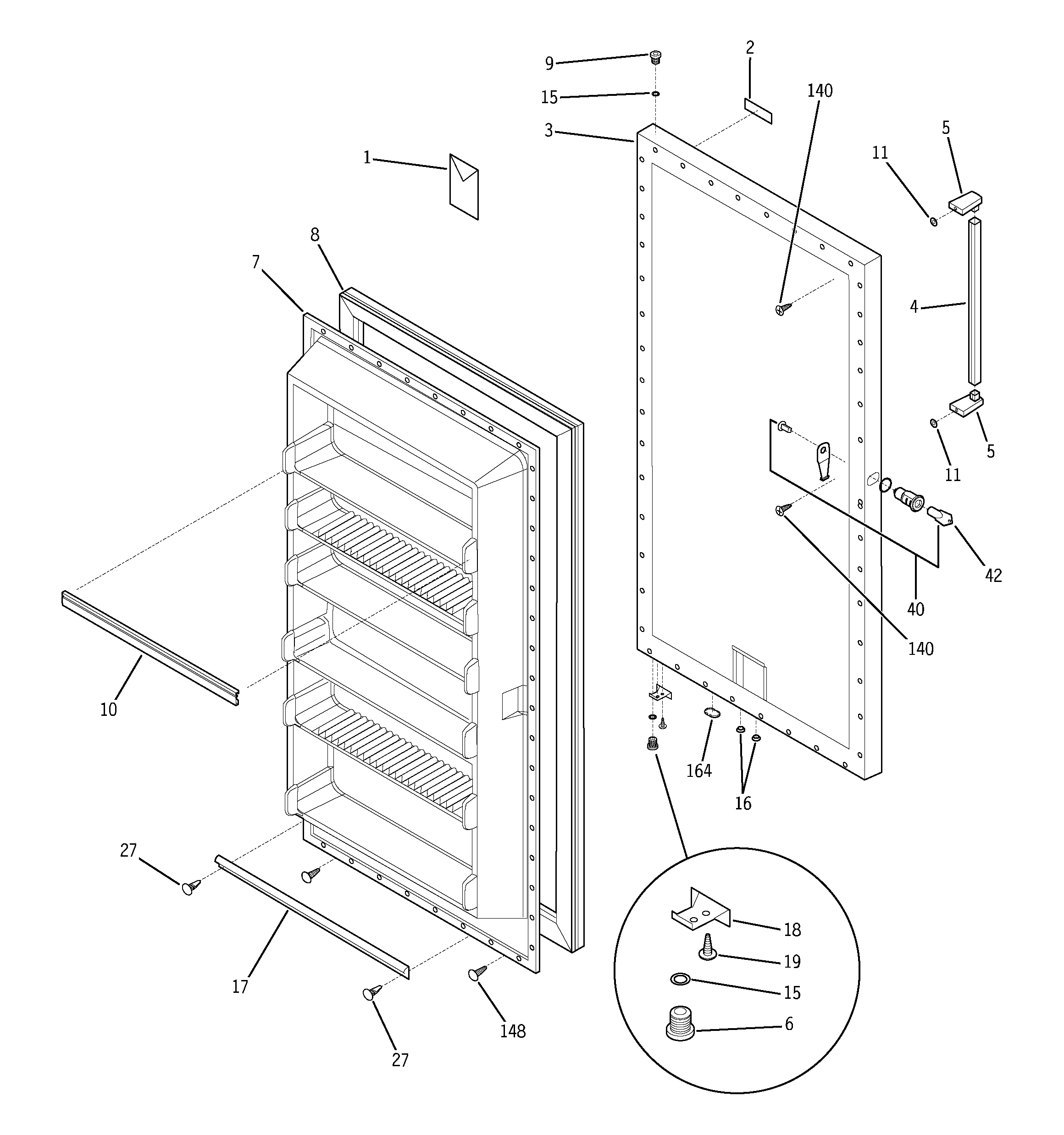

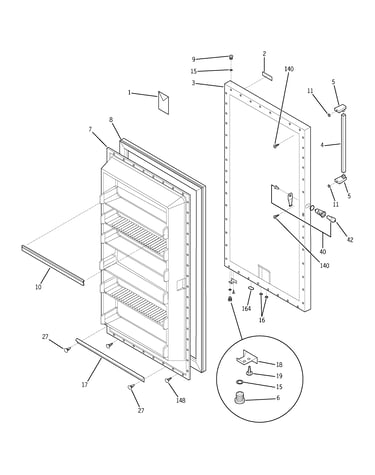

Freezer door diagram

Freezer door gasket

Part #WR24X10010

$186.70 |
6% OFF Phone Price : $198.70
In Stock
Bumper WR02X6361
#69

Cabinet diagram

Bumper

Part #WR02X6361

Replaced by #WR2X6361

?
Manufacturer substitution
This part replaces WR02X6361. Substitute parts can look different from the original.
$17.11
In Stock
Mounting Sleeve WR02X9497
#111

Unit parts diagram

Mounting sleeve

Part #WR02X9497

Replaced by #WR2X9497

?
Manufacturer substitution
This part replaces WR02X9497. Substitute parts can look different from the original.
$45.51
In Stock
Shelf Trim WR38X10088
#303

Unit parts diagram

Shelf trim

Part #WR38X10088

Replaced by #WR38X32250

?
Manufacturer substitution
This part replaces WR38X10088. Substitute parts can look different from the original.
$111.07
In Stock
Adjustment Foot WR02X9485
#58

Cabinet diagram

Adjustment foot

Part #WR02X9485

Replaced by #WR2X9485

?
Manufacturer substitution
This part replaces WR02X9485. Substitute parts can look different from the original.
$20.43 |
23% OFF Phone Price : $26.43
In Stock
