Downdraft Ventilation System

Model # KPEC992MSS Official KitchenAid vent system

Here are the diagrams and repair parts for Official KitchenAid KPEC992MSS vent system, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
KPEC992MSS Vent System
Blower Bracket 8190606
#5

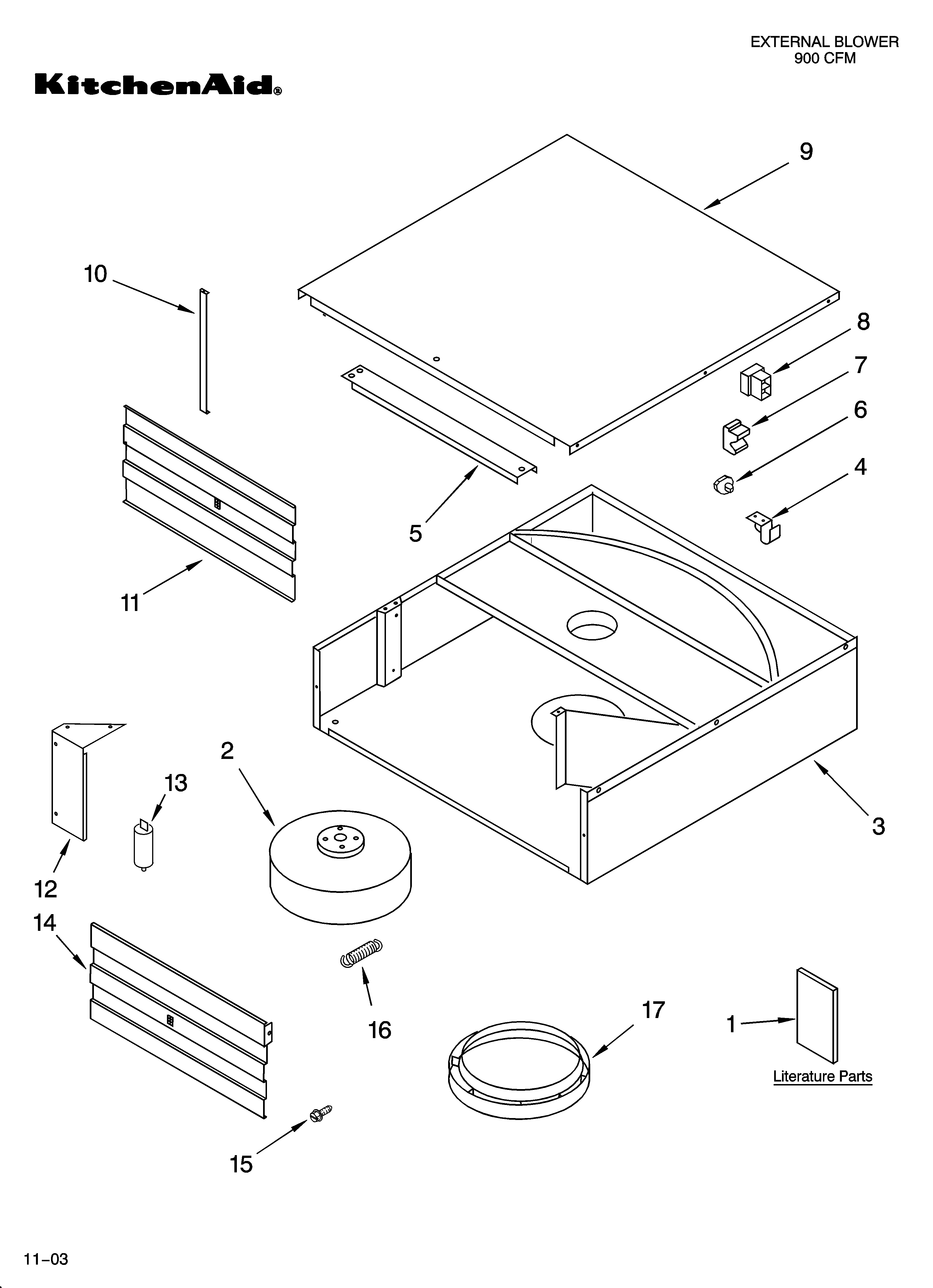

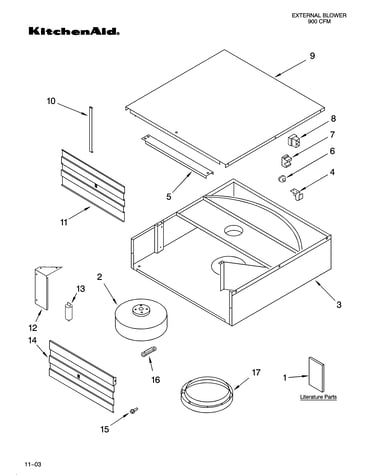

Exterior ventilation parts diagram

Blower bracket

Part #8190606

The manufacturer no longer makes this part, and there's no substitute part

Air Duct 8189539
#17

Exterior ventilation parts diagram

Air duct

Part #8189539

The manufacturer no longer makes this part, and there's no substitute part

Installation Instructions LIT8285494
#1

Exterior ventilation parts diagram

Installation instructions

Part #LIT8285494

The manufacturer no longer makes this part, and there's no substitute part

Connector 4360162
#7

Exterior ventilation parts diagram

Connector

Part #4360162

The manufacturer no longer makes this part, and there's no substitute part

Damper Hood 8190609
#11

Exterior ventilation parts diagram

Damper hood

Part #8190609

The manufacturer no longer makes this part, and there's no substitute part

Wire Cover 8190610
#12

Exterior ventilation parts diagram

Wire cover

Part #8190610

The manufacturer no longer makes this part, and there's no substitute part

Housng-fan 8190605
#3

Exterior ventilation parts diagram

Housng-fan

Part #8190605

The manufacturer no longer makes this part, and there's no substitute part

Grill Vent 8190612
#14

Exterior ventilation parts diagram

Grill vent

Part #8190612

The manufacturer no longer makes this part, and there's no substitute part

Cover 8190607
#9

Exterior ventilation parts diagram

Cover

Part #8190607

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Male Wire Connector 4360161
#8

Exterior ventilation parts diagram

Range hood male wire connector

Part #4360161

The manufacturer no longer makes this part, and there's no substitute part
