Model # RO1000 Official Waterworks reverse osmosis water system

Here are the diagrams and repair parts for Official Waterworks RO1000 reverse osmosis water system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |

Water Softener Filter Screen (replaces Ws03x10015, Ws3x10015) 7095030
#30

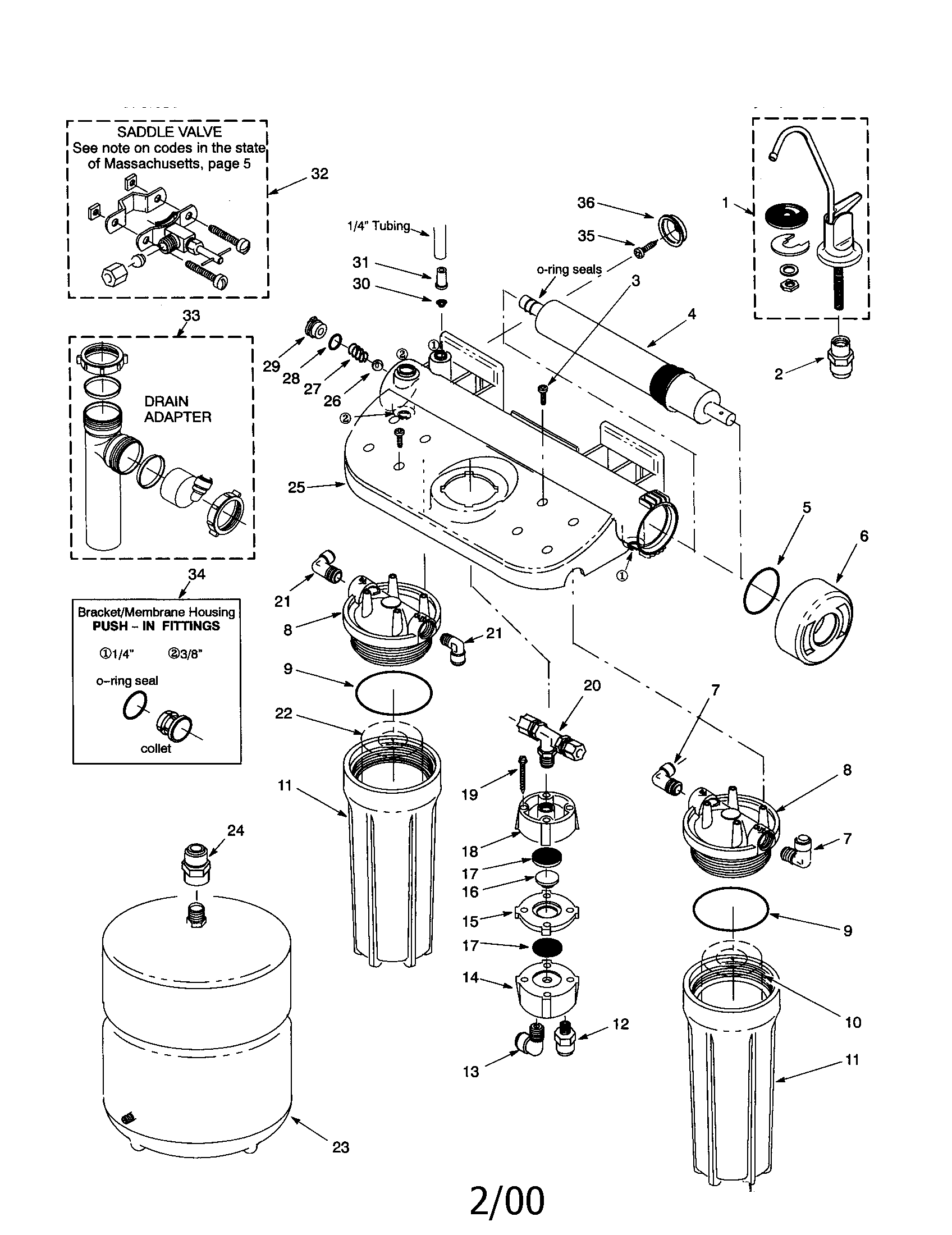

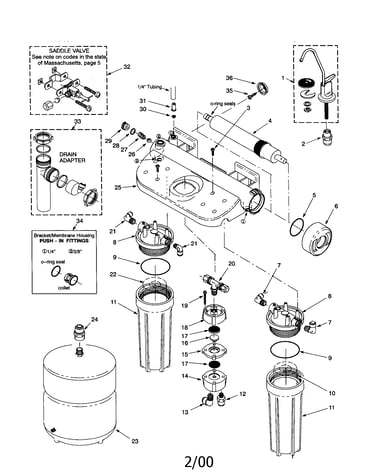

Reverse osmosis drinking water diagram

Water softener filter screen (replaces ws03x10015, ws3x10015)

Part #7095030

$24.59
20% OFF Phone Price : $30.59
In Stock
Cartridge 42-34702
#4

Reverse osmosis drinking water diagram

Cartridge

Part #42-34702

Replaced by #7221217

?
Manufacturer substitution
This part replaces 42-34702. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$100.09
11% OFF Phone Price : $112.09
In Stock
Waterworks Reverse Osmosis System Water Push-in Fitting Kit 7209566
#34

Reverse osmosis drinking water diagram

Waterworks reverse osmosis system water push-in fitting kit

Part #7209566

This item is not returnable
In Stock
Head (gray) 7156535
#8

Reverse osmosis drinking water diagram

Head (gray)

Part #7156535

Replaced by #7179185

?
Manufacturer substitution
This part replaces 7156535. Substitute parts can look different from the original.
In Stock
Adapter 7207938
#24

Reverse osmosis drinking water diagram

Adapter

Part #7207938

Replaced by #7251034

?
Manufacturer substitution
This part replaces 7207938. Substitute parts can look different from the original.
$44.49
12% OFF Phone Price : $50.49
In Stock
Waterworks Screw, #10-12 X 5/8 7185788
#3

Reverse osmosis drinking water diagram

Waterworks screw, #10-12 x 5/8

Part #7185788

This item is not returnable
In Stock
Drain Adapter 7192230
#33

Reverse osmosis drinking water diagram

Drain adapter

Part #7192230

In Stock
Waterworks Reverse Osmosis System O-ring 7133464
#28

Reverse osmosis drinking water diagram

Waterworks reverse osmosis system o-ring

Part #7133464

This item is not returnable
In Stock
Waterworks Elbow (gray) 7207881
#7

Reverse osmosis drinking water diagram

Waterworks elbow (gray)

Part #7207881

$14.29
12% OFF Phone Price : $16.29
In Stock
Waterworks Reverse Osmosis System Storage Tank Fitting 7209574
#34A

Reverse osmosis drinking water diagram

Waterworks reverse osmosis system storage tank fitting

Part #7209574

This item is not returnable
$14.29
12% OFF Phone Price : $16.29
In Stock
