Payne
Heating & Cooling Combined Unit

Model # PH2PNB060000AA Official Payne heat pump

Here are the diagrams and repair parts for Official Payne PH2PNB060000AA heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 111 parts  |
Contactor HN51JD024
#54

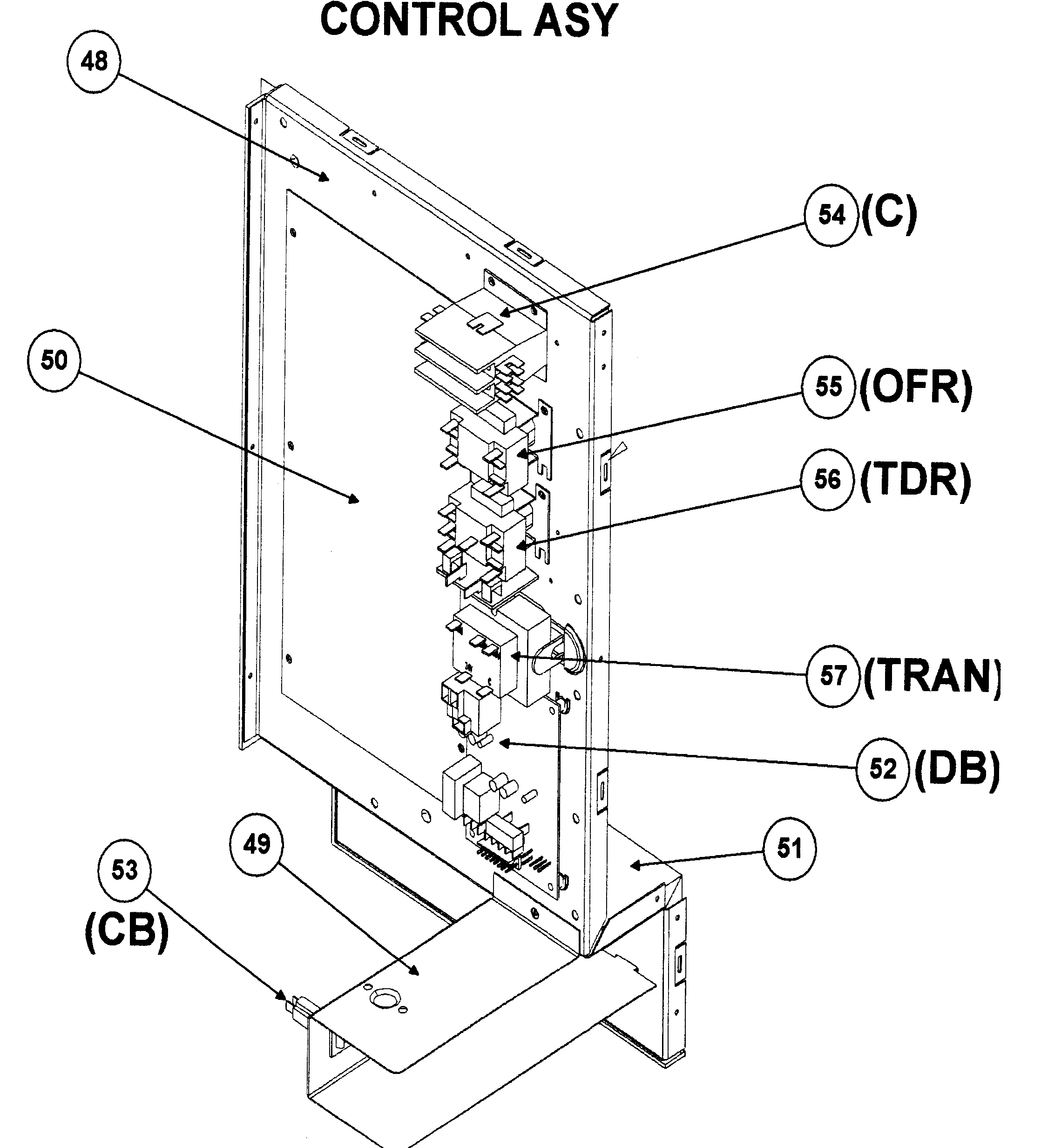

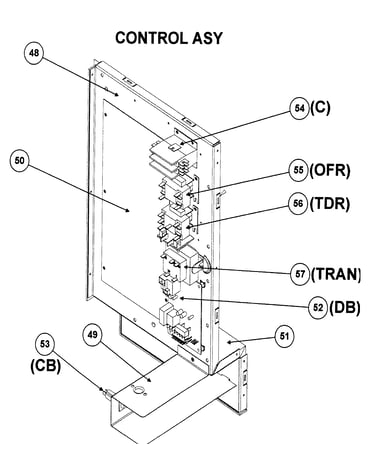

Control box assy diagram

Contactor

Part #HN51JD024

The manufacturer no longer makes this part, and there's no substitute part

Central Air Conditioner Wire Harness 9962-0083
#110

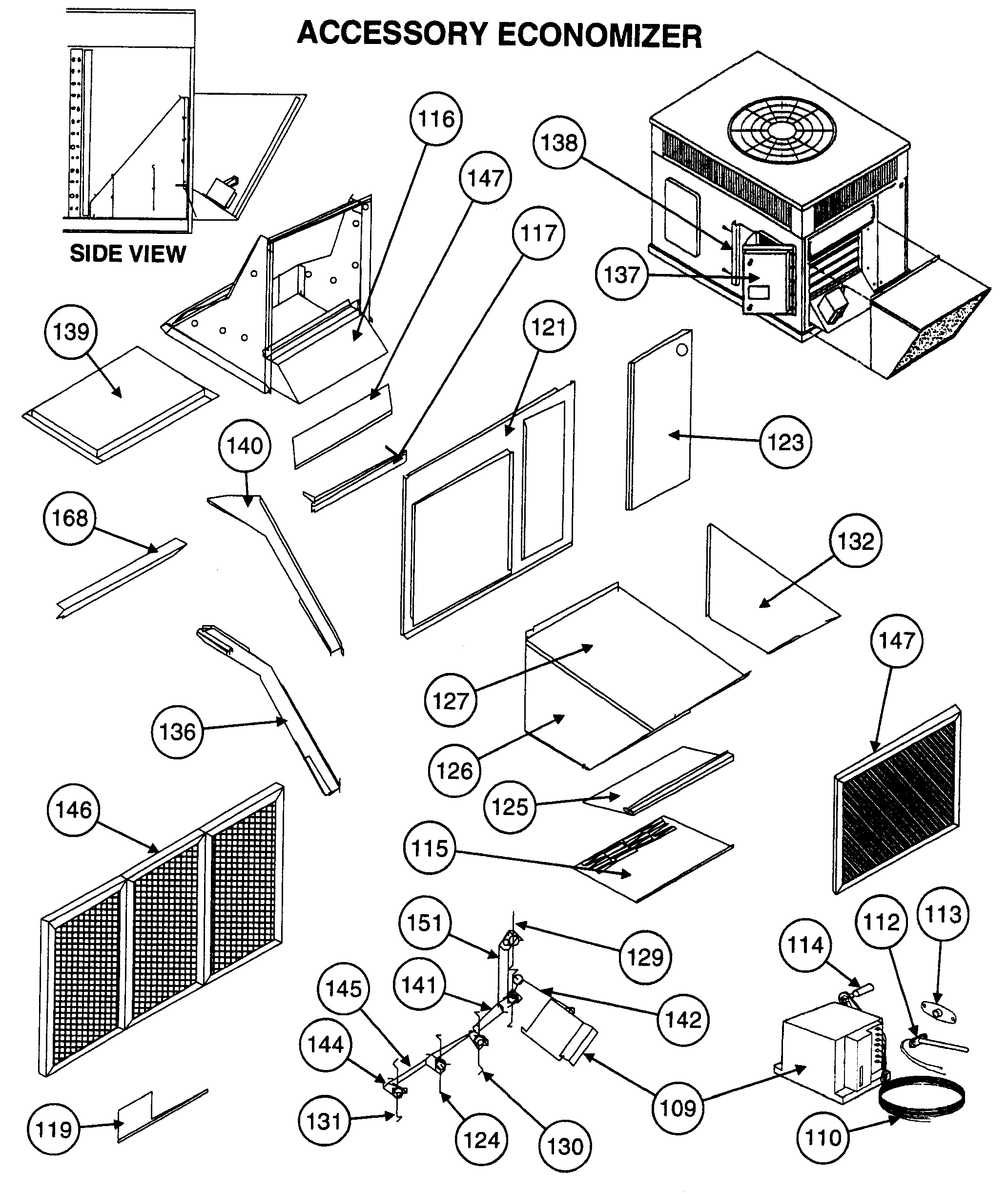

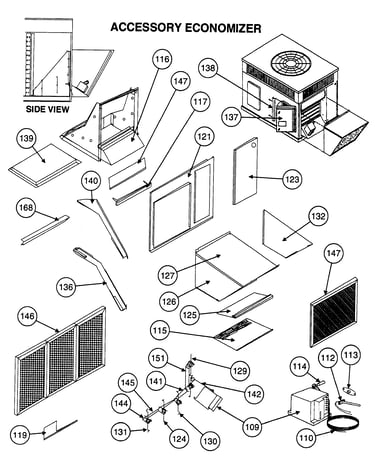

Accessory economizer diagram

Central air conditioner wire harness

Part #9962-0083

$357.73
In Stock
Mtr Mnt Band P251-0078
#71

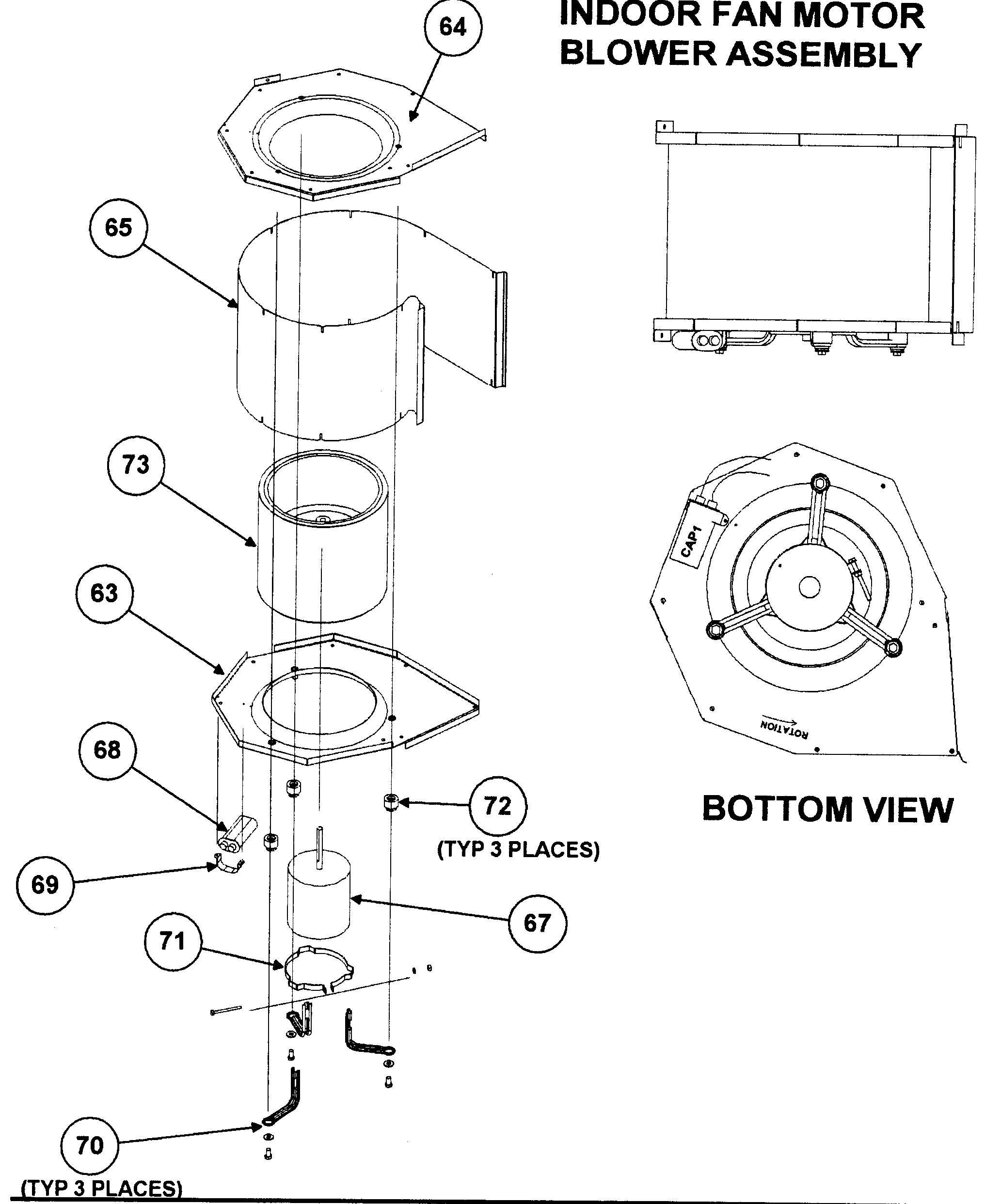

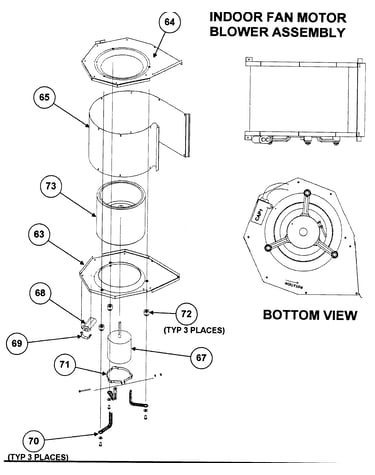

Indoor fan motor/blower assy/bottom view diagram

Mtr mnt band

Part #P251-0078

$24.58
In Stock
Grille 50HJ501200
#36

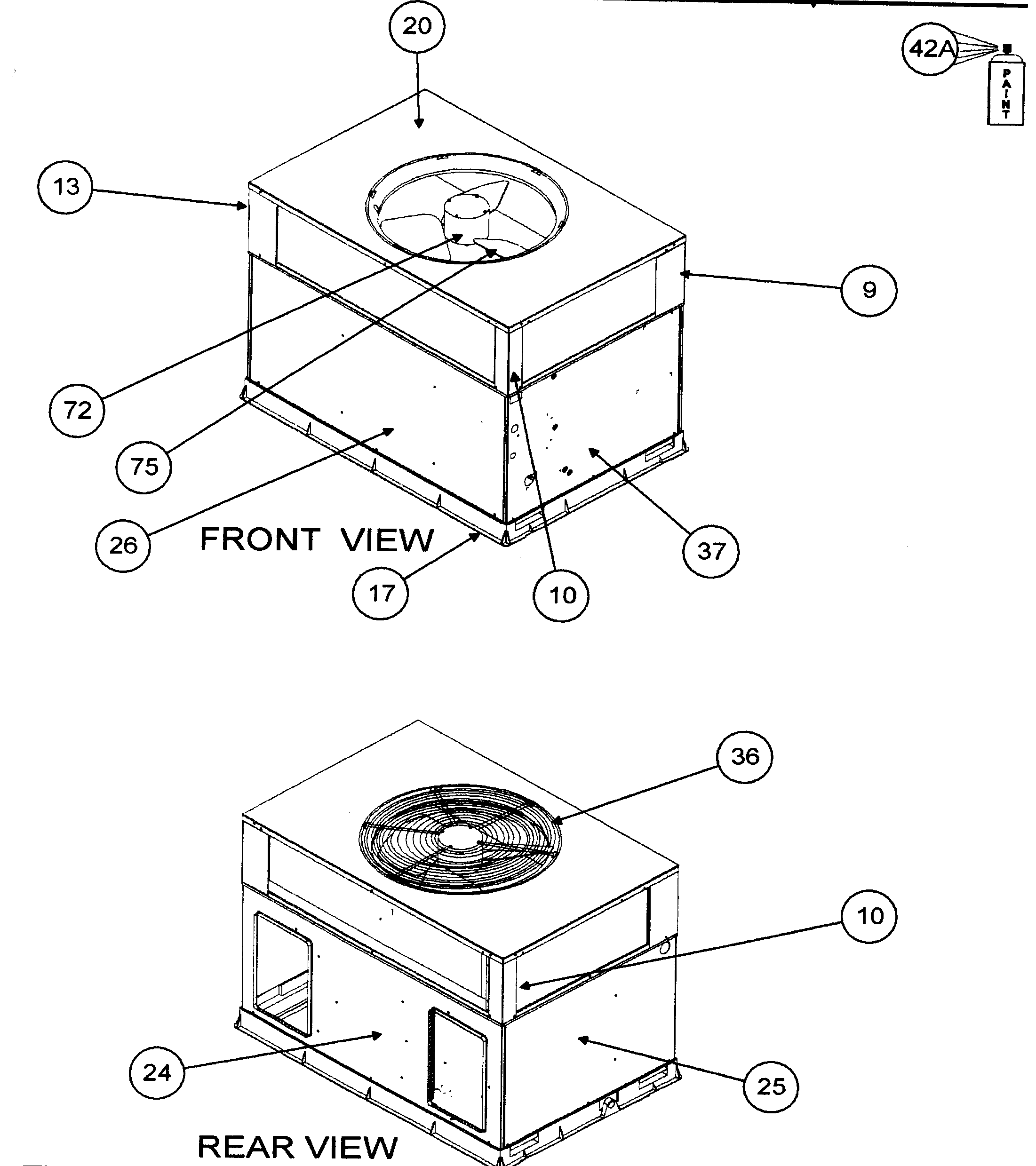

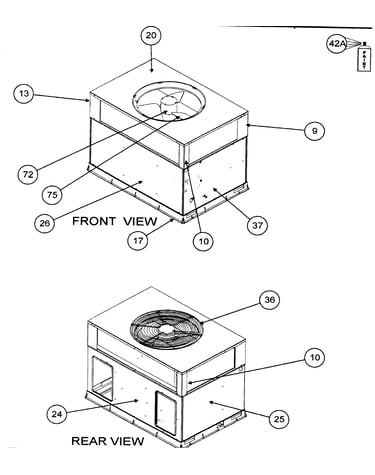

Front view/rear view diagram

Grille

Part #50HJ501200

$163.72
In Stock
Top, Evap 48GS400244
#18

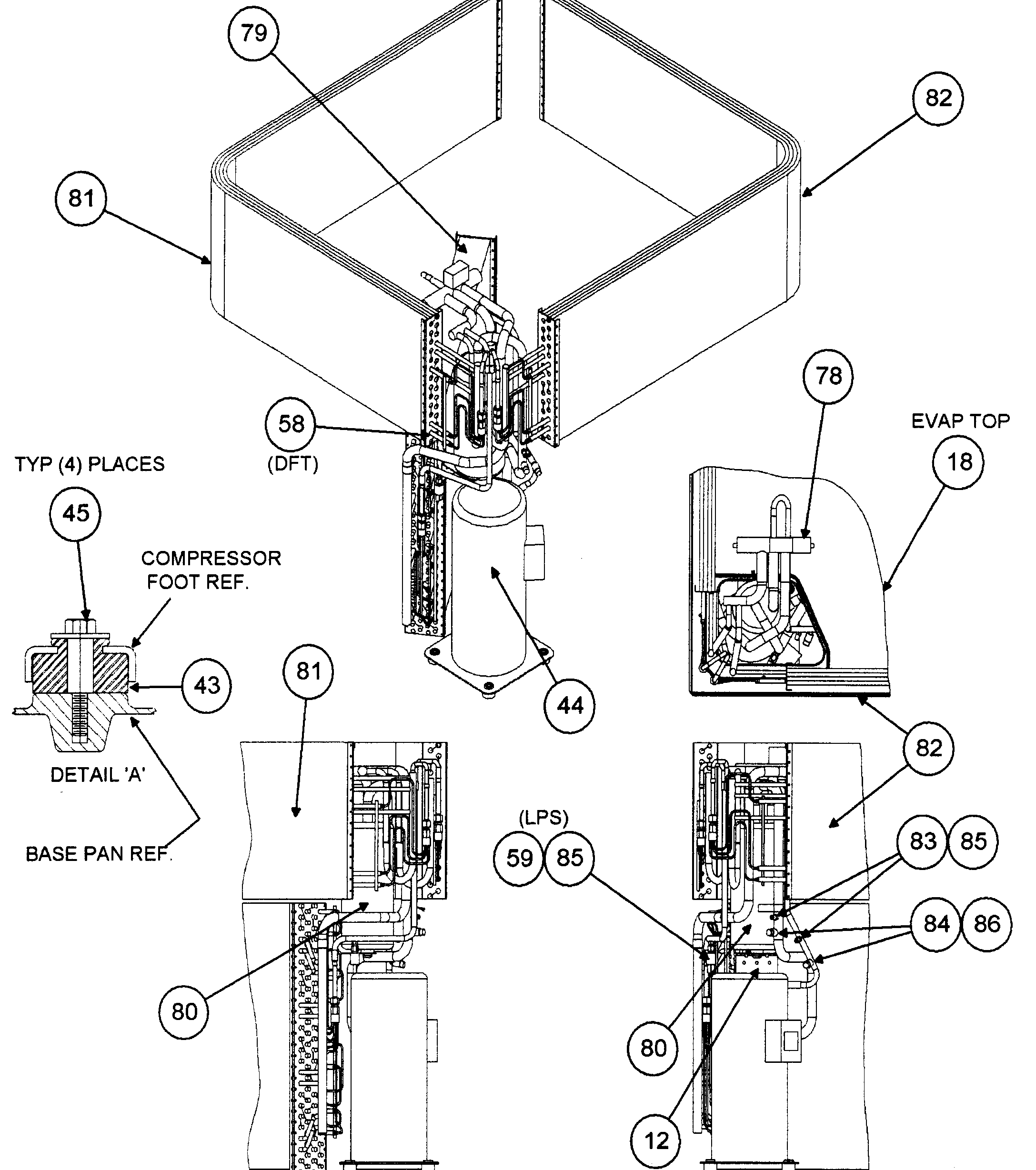

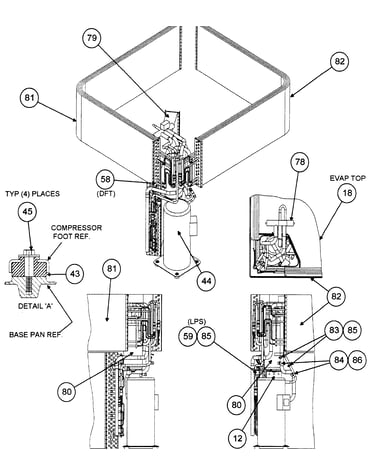

Inside view 2 diagram

Top, evap

Part #48GS400244

$427.15
In Stock
Blower Assembly 48GX400129
#62

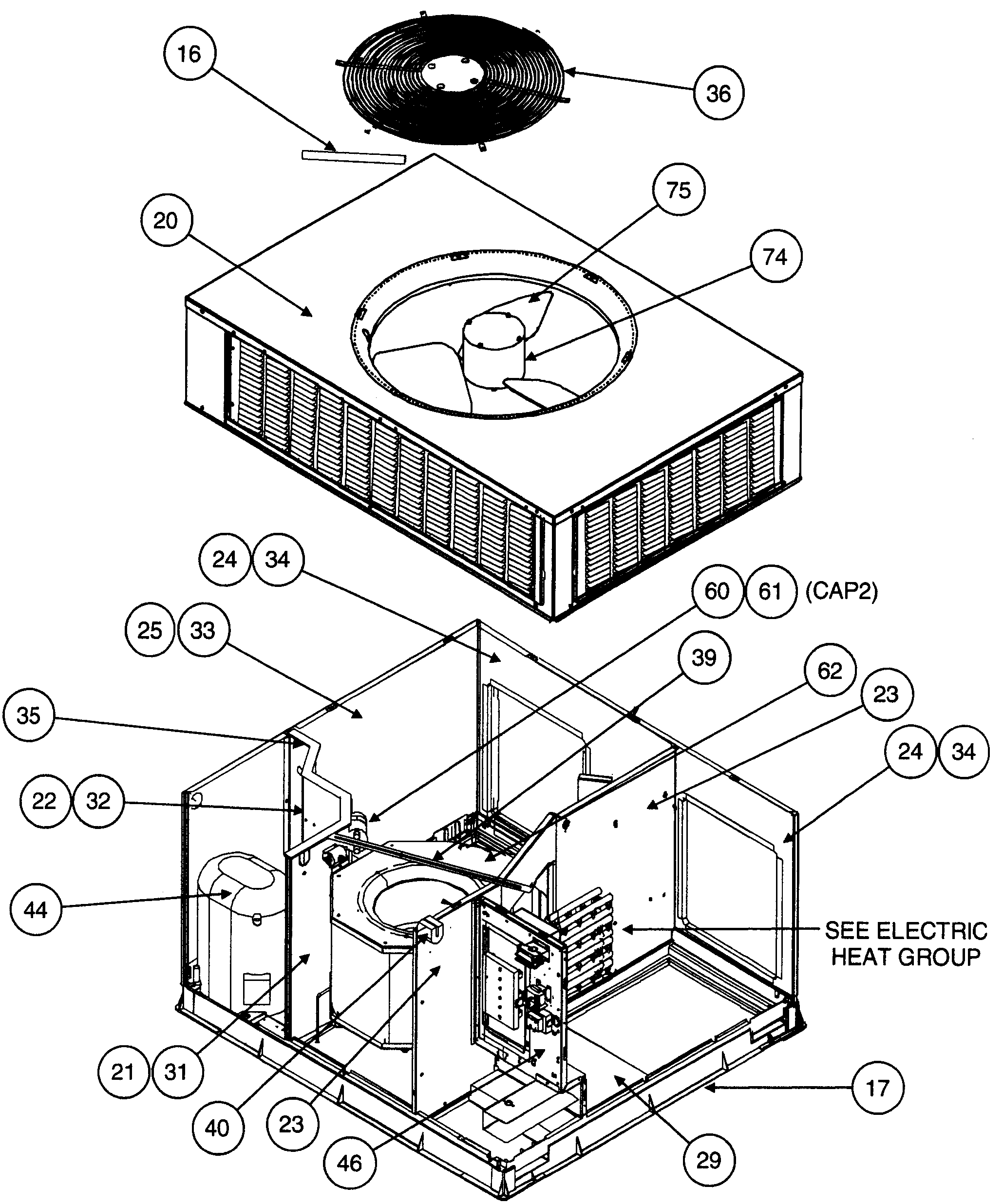

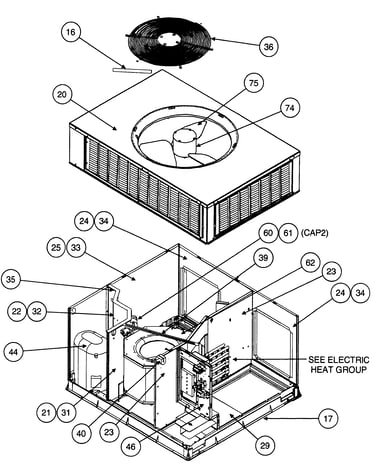

Inside view 1 diagram

Blower assembly

Part #48GX400129

$1230.72
In Stock
Valve EC39DM061
#NI

Front view/rear view diagram

Valve

Part #EC39DM061

This item is not returnable
$5.66
In Stock
Grommet KA56TR056
#72

Front view/rear view diagram

Grommet

Part #KA56TR056

$25.31
In Stock
Dry Bulb 9901-0183
#113

Accessory economizer diagram

Dry bulb

Part #9901-0183

$84.76
In Stock
Paint 313974-751
#NI

Front view/rear view diagram

Paint

Part #313974-751

$60.89
In Stock
