Model # 292105200 Official Kenmore 52" turn-of-the-century deluxe ceiling fan

Here are the diagrams and repair parts for Official Kenmore 292105200 52" turn-of-the-century deluxe ceiling fan, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |
Pipe 4105-0032-001
#35B

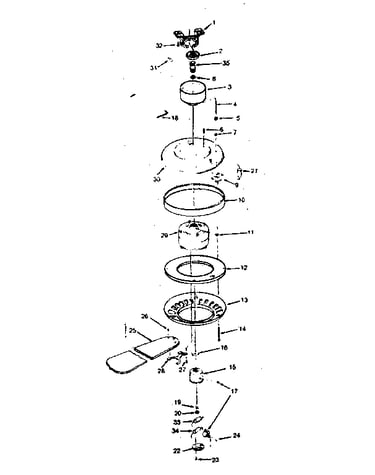

Replacement parts diagram

Pipe

Part #4105-0032-001

The manufacturer no longer makes this part, and there's no substitute part

Low Housing 2701-0977-003
#13A

Replacement parts diagram

Low housing

Part #2701-0977-003

The manufacturer no longer makes this part, and there's no substitute part

Motor 3900-0546-000
#29

Replacement parts diagram

Motor

Part #3900-0546-000

The manufacturer no longer makes this part, and there's no substitute part

Cover 2701-0913-007
#3A

Replacement parts diagram

Cover

Part #2701-0913-007

The manufacturer no longer makes this part, and there's no substitute part

Screw 5202-0330-003
#14B

Replacement parts diagram

Screw

Part #5202-0330-003

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 4100-0004-008
#7A

Replacement parts diagram

Hex nut

Part #4100-0004-008

The manufacturer no longer makes this part, and there's no substitute part

Screw 5202-0306-004
#6

Replacement parts diagram

Screw

Part #5202-0306-004

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 4100-0184-000
#20

Replacement parts diagram

Lock nut

Part #4100-0184-000

The manufacturer no longer makes this part, and there's no substitute part

Screw 5202-0330-002
#14A

Replacement parts diagram

Screw

Part #5202-0330-002

The manufacturer no longer makes this part, and there's no substitute part

Band Trim 1214-0013-013
#10B

Replacement parts diagram

Band trim

Part #1214-0013-013

The manufacturer no longer makes this part, and there's no substitute part
