Model # 380A Official Toastmaster toaster oven

Here are the diagrams and repair parts for Official Toastmaster 380A toaster oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |
Timer Assembly 15675A18
#22

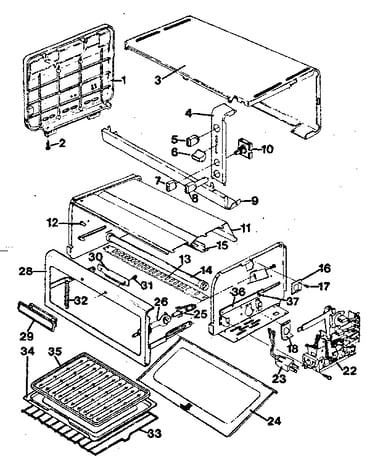

Replacement parts diagram

Timer assembly

Part #15675A18

The manufacturer no longer makes this part, and there's no substitute part

Nameplate 15706A24

#NI

All parts diagram

Nameplate

Part #15706A24

The manufacturer no longer makes this part, and there's no substitute part

Baffle 2746A3A
#11

Replacement parts diagram

Baffle

Part #2746A3A

The manufacturer no longer makes this part, and there's no substitute part

Screw A401-834
#31

Replacement parts diagram

Screw

Part #A401-834

The manufacturer no longer makes this part, and there's no substitute part

Lever 15681A15

#NI

All parts diagram

Lever

Part #15681A15

The manufacturer no longer makes this part, and there's no substitute part

Door Spring 15685A27
#32

Replacement parts diagram

Door spring

Part #15685A27

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 14340A12
#25

Replacement parts diagram

Thermostat

Part #14340A12

The manufacturer no longer makes this part, and there's no substitute part

Tray Assembly 16994A1B
#24

Replacement parts diagram

Tray assembly

Part #16994A1B

The manufacturer no longer makes this part, and there's no substitute part

End Panel 15698A12
#1

Replacement parts diagram

End panel

Part #15698A12

The manufacturer no longer makes this part, and there's no substitute part

Shaft 2763A6A
#26

Replacement parts diagram

Shaft

Part #2763A6A

The manufacturer no longer makes this part, and there's no substitute part
