Model # M3-5 Official Thermador oven door

Here are the diagrams and repair parts for Official Thermador M3-5 oven door, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 17 parts  |
Door Liner 14-08-303-08
#6

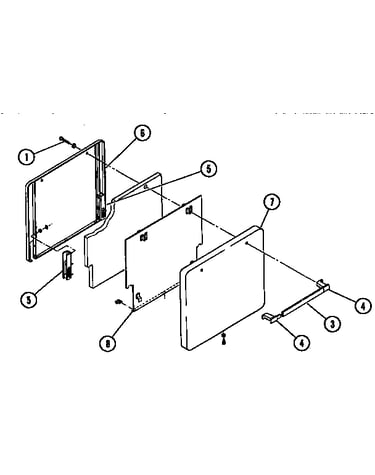

Replacement parts diagram

Door liner

Part #14-08-303-08

The manufacturer no longer makes this part, and there's no substitute part

Partition, Door 14-08-391
#8A

Replacement parts diagram

Partition, door

Part #14-08-391

The manufacturer no longer makes this part, and there's no substitute part

Panel, Avocado 14-12-421-06
#7B

Replacement parts diagram

Panel, avocado

Part #14-12-421-06

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Saddle, Door 14-12-305

#NI

All parts diagram

Bracket, saddle, door

Part #14-12-305

The manufacturer no longer makes this part, and there's no substitute part

Hinge Channel, Right 14-08-305
#5

Replacement parts diagram

Hinge channel, right

Part #14-08-305

The manufacturer no longer makes this part, and there's no substitute part

Bolt, Handle (#10-24 X 2 Screw) 14-90-099
#1

Replacement parts diagram

Bolt, handle (#10-24 x 2 screw)

Part #14-90-099

The manufacturer no longer makes this part, and there's no substitute part

Hinge Channel, Left 14-08-306
#5A

Replacement parts diagram

Hinge channel, left

Part #14-08-306

The manufacturer no longer makes this part, and there's no substitute part

Panel, Door, Stainless Steel 14-08-387
#7D

Replacement parts diagram

Panel, door, stainless steel

Part #14-08-387

The manufacturer no longer makes this part, and there's no substitute part

Handle Assembly (see Note) 14-12-844
#3

Replacement parts diagram

Handle assembly (see note)

Part #14-12-844

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Saddle, Liner 14-12-319

#NI

All parts diagram

Bracket, saddle, liner

Part #14-12-319

The manufacturer no longer makes this part, and there's no substitute part
