Tappan
Gas Range

Model # 76-4232-45-14 Official Tappan gas range - lt32489020

Here are the diagrams and repair parts for Official Tappan 76-4232-45-14 gas range - lt32489020, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

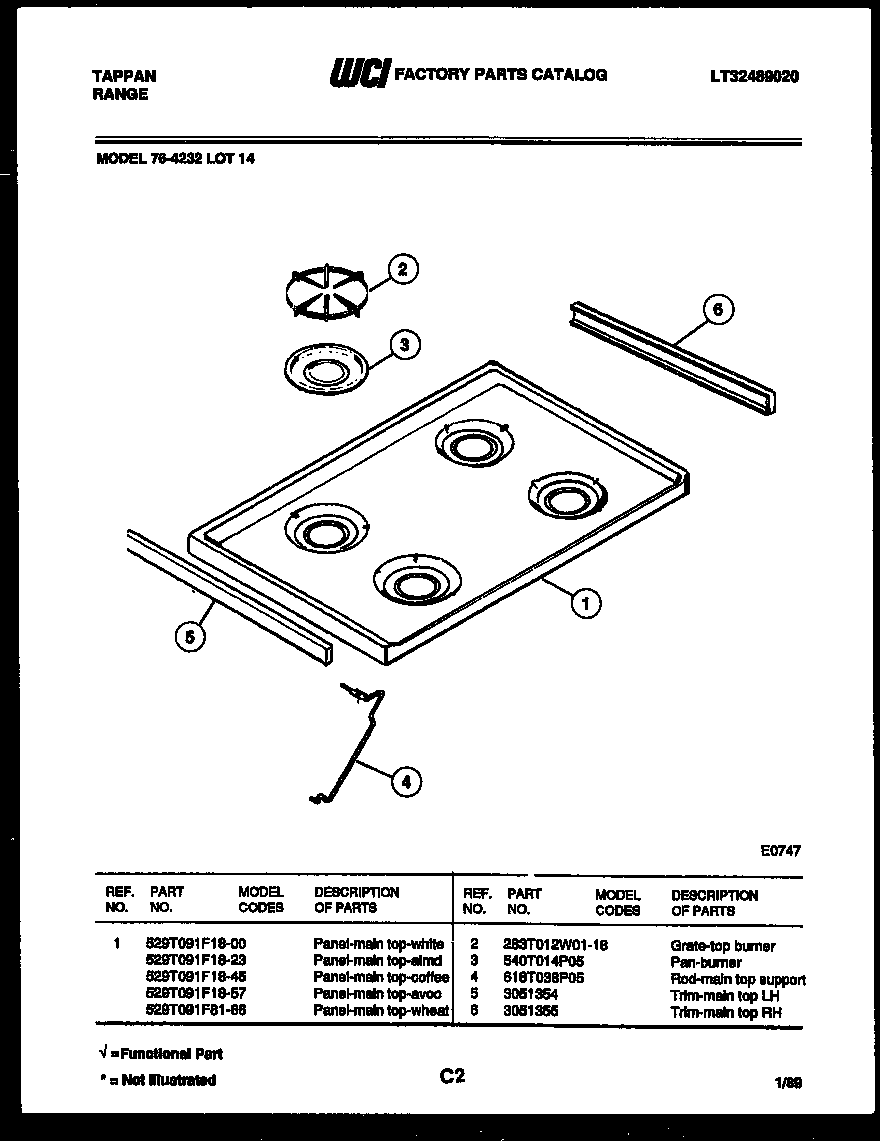

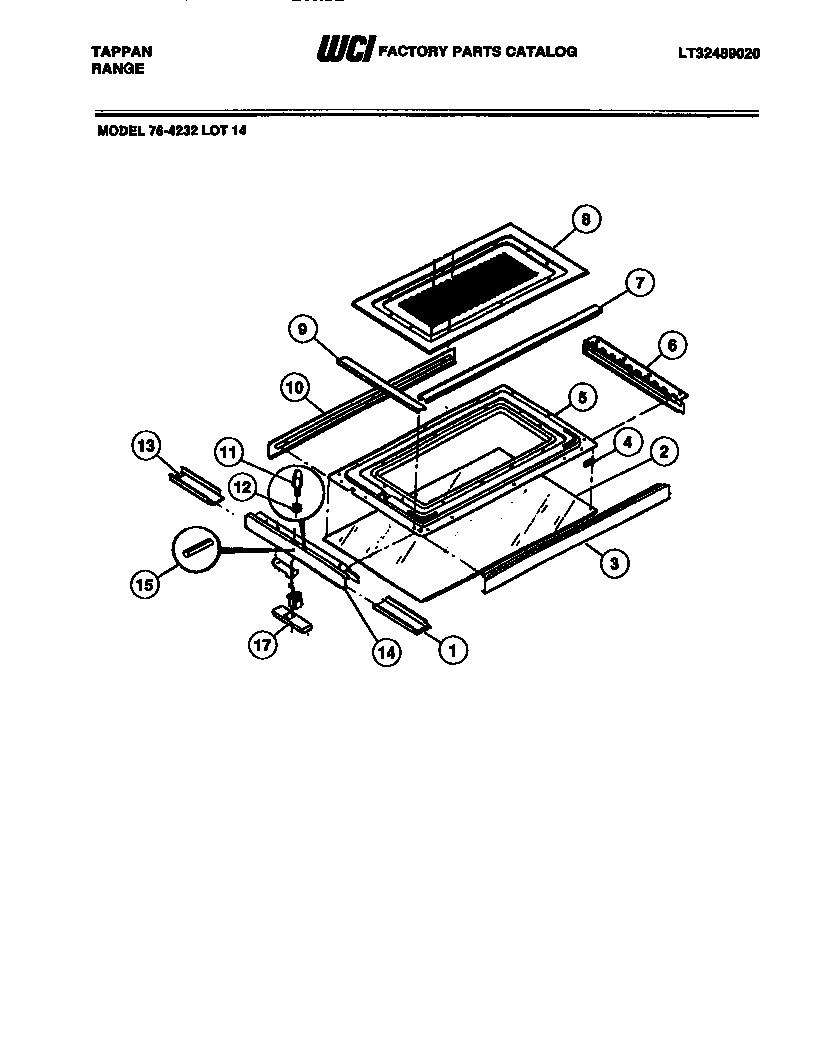

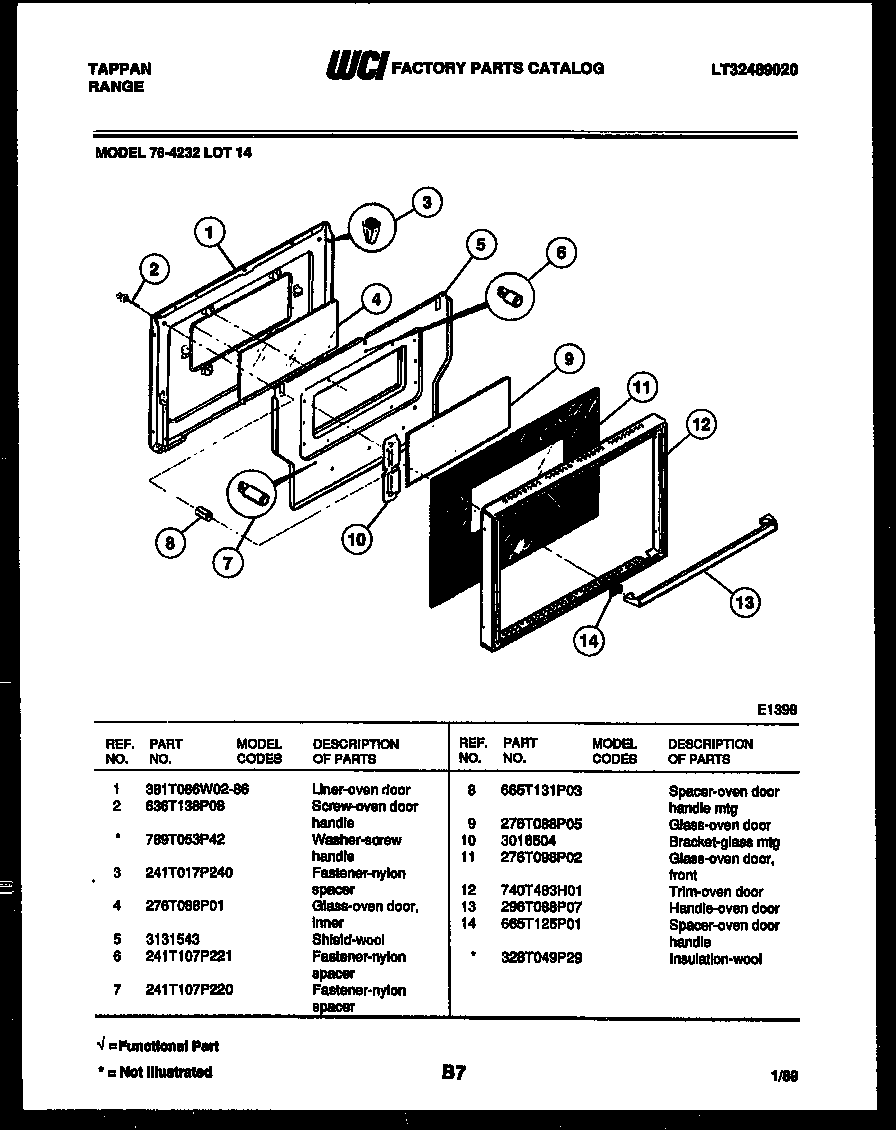

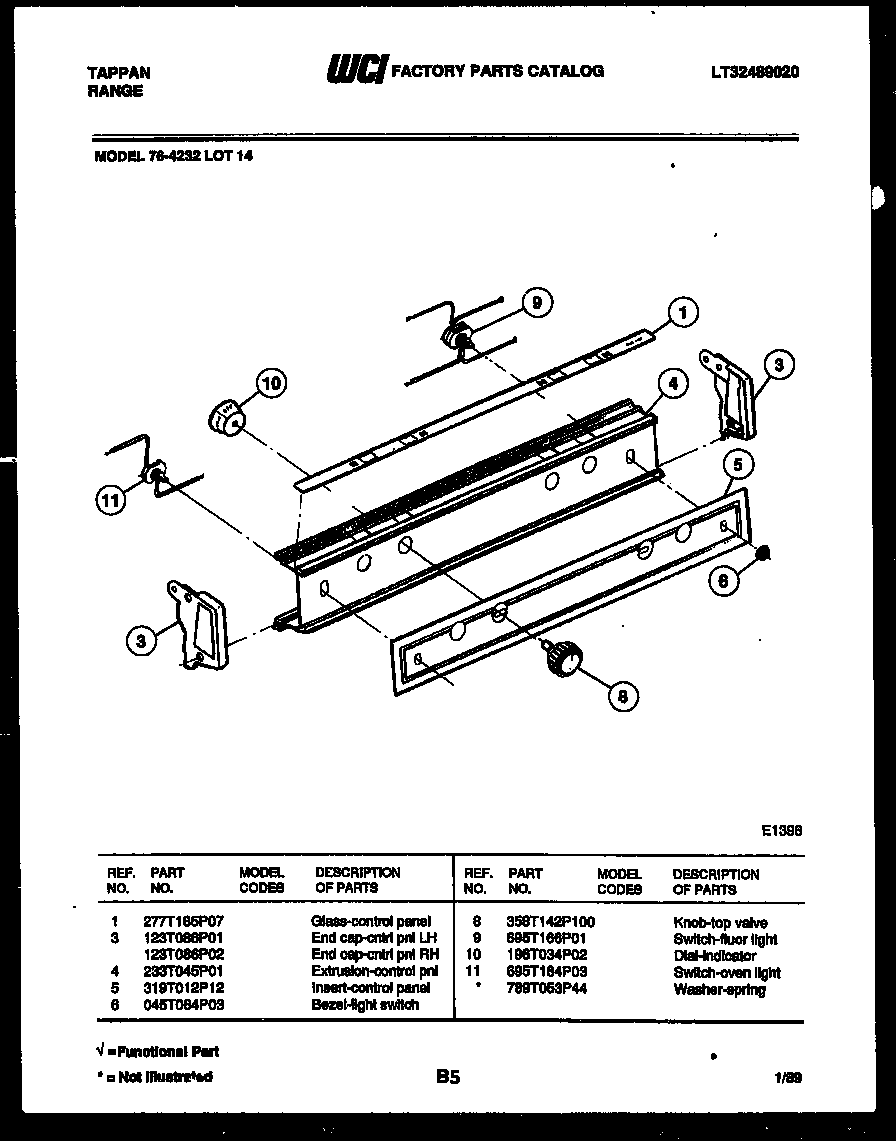

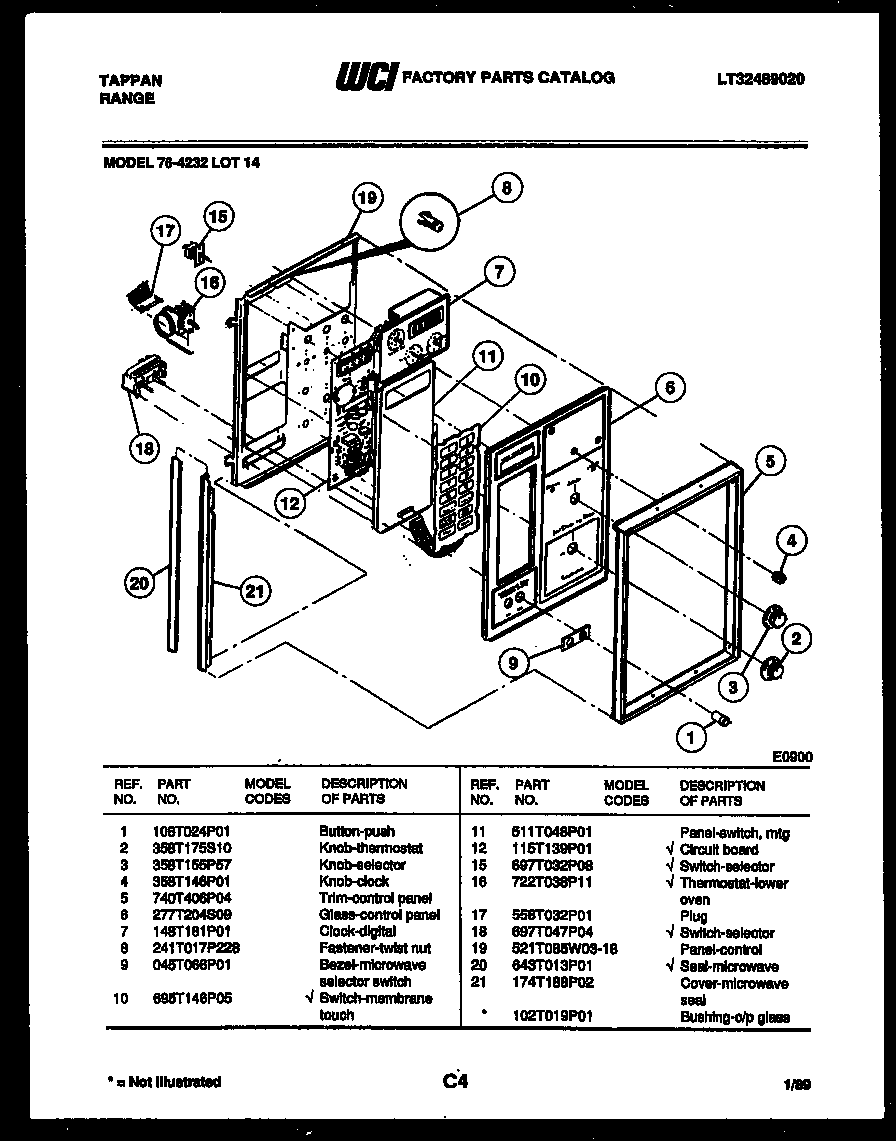

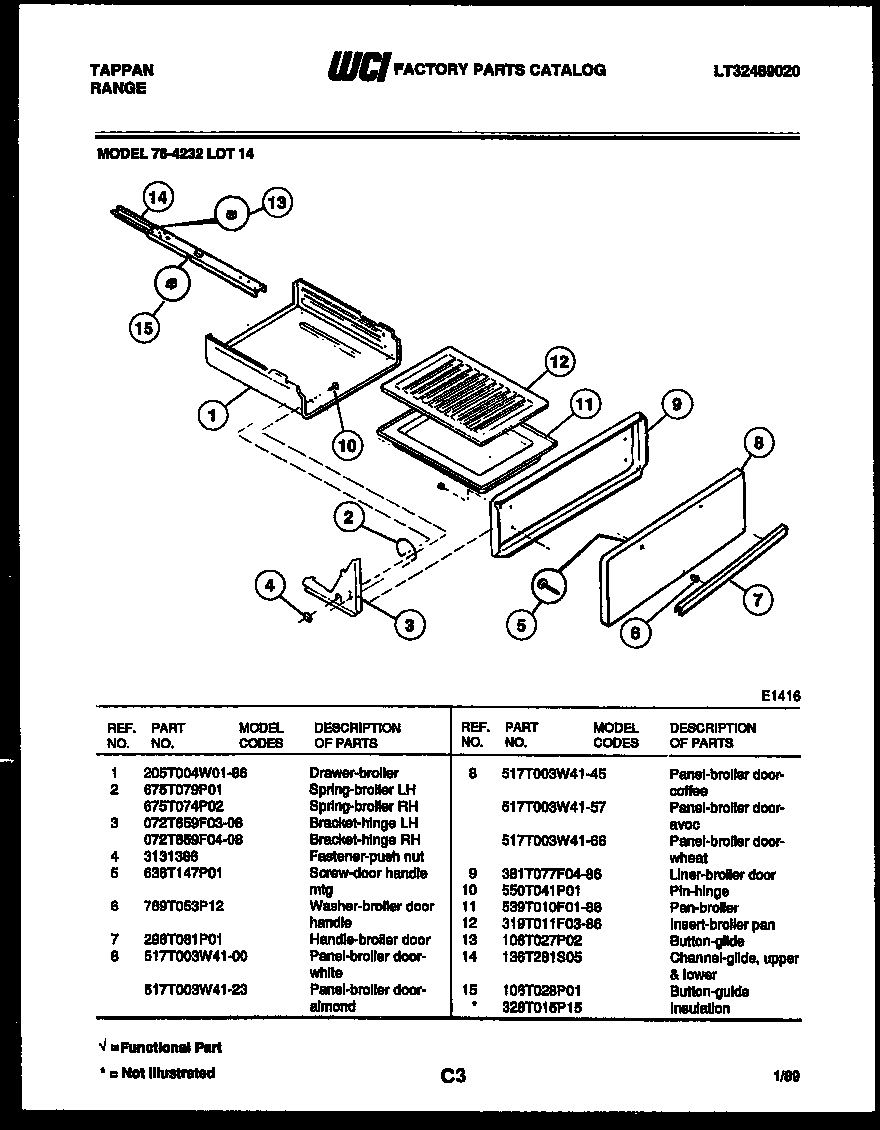

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 264 parts  |

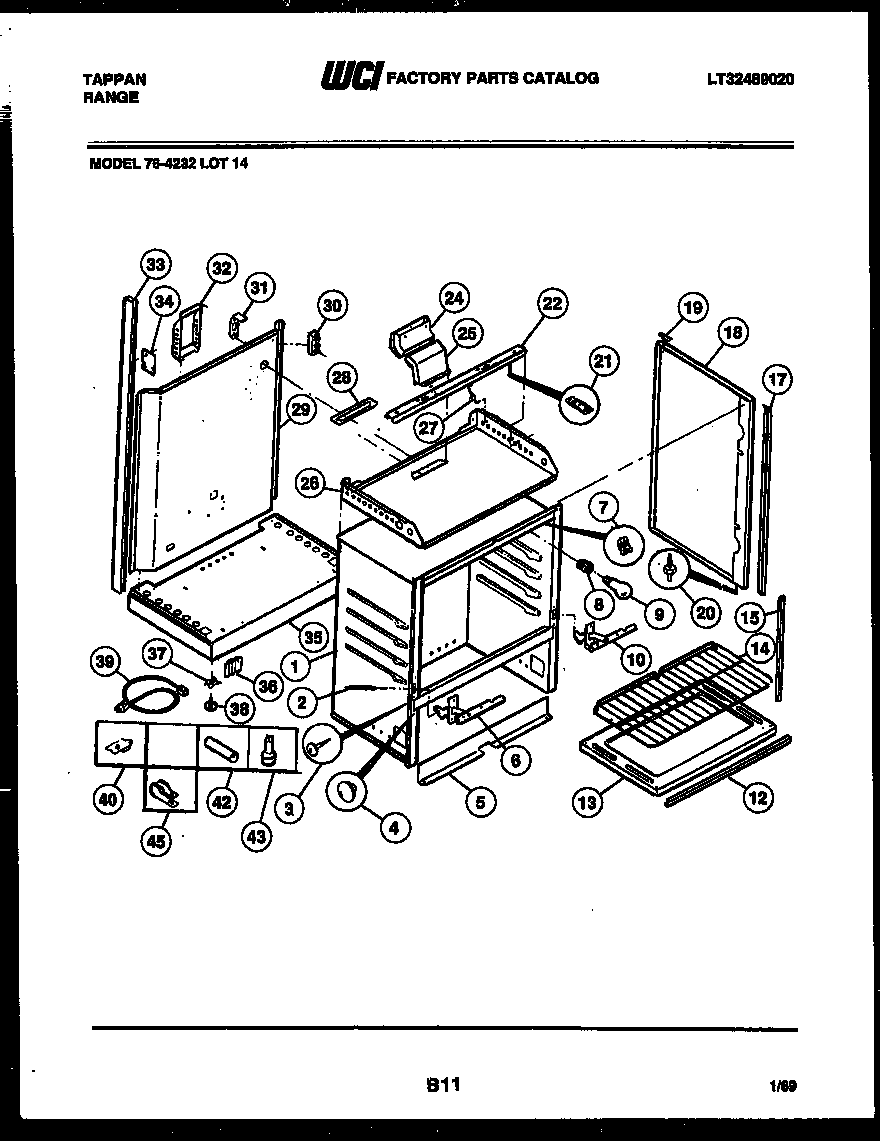

Light 374T018P05
#9

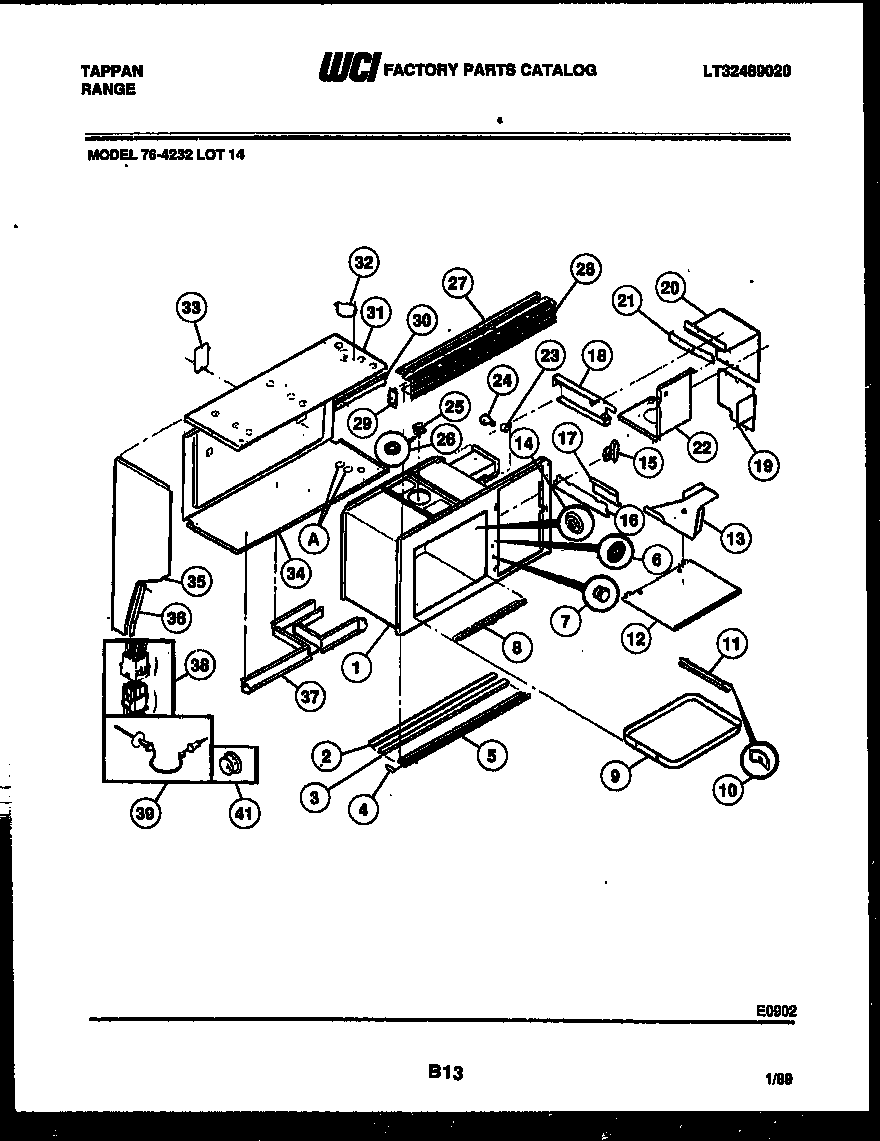

Oven body parts diagram

Light

Part #374T018P05

Replaced by #316538904

?
Manufacturer substitution
This part replaces 374T018P05. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Nut 479T069P03
#23

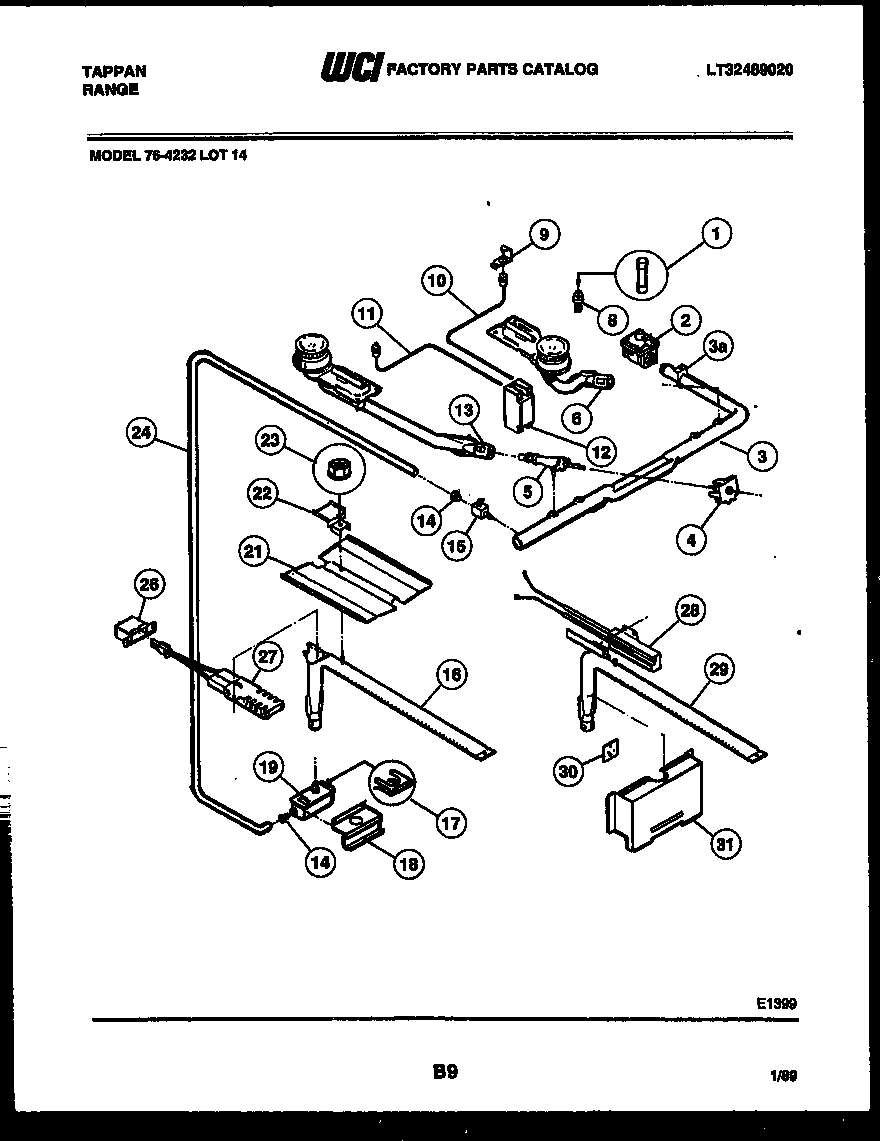

Burner parts diagram

Nut

Part #479T069P03

Replaced by #5303013272

?
Manufacturer substitution
This part replaces 479T069P03. Substitute parts can look different from the original.
This item is not returnable
$18.59 |
10% OFF Phone Price : $20.59
In Stock
Igniter 3131113
#12

Burner parts diagram

Igniter

Part #3131113

Replaced by #5303912606

?
Manufacturer substitution
This part replaces 3131113. Substitute parts can look different from the original.
$101.91 |
11% OFF Phone Price : $113.91
In Stock
Range Oven Burner Igniter 316T023P05
#27

Burner parts diagram

Range oven burner igniter

Part #316T023P05

$130.69 |
8% OFF Phone Price : $142.69
In Stock
Clip 145T025P01
#7

Oven body parts diagram

Clip

Part #145T025P01

Replaced by #5303284616

?
Manufacturer substitution
This part replaces 145T025P01. Substitute parts can look different from the original.
This item is not returnable
$9.59 |
9% OFF Phone Price : $10.59
In Stock

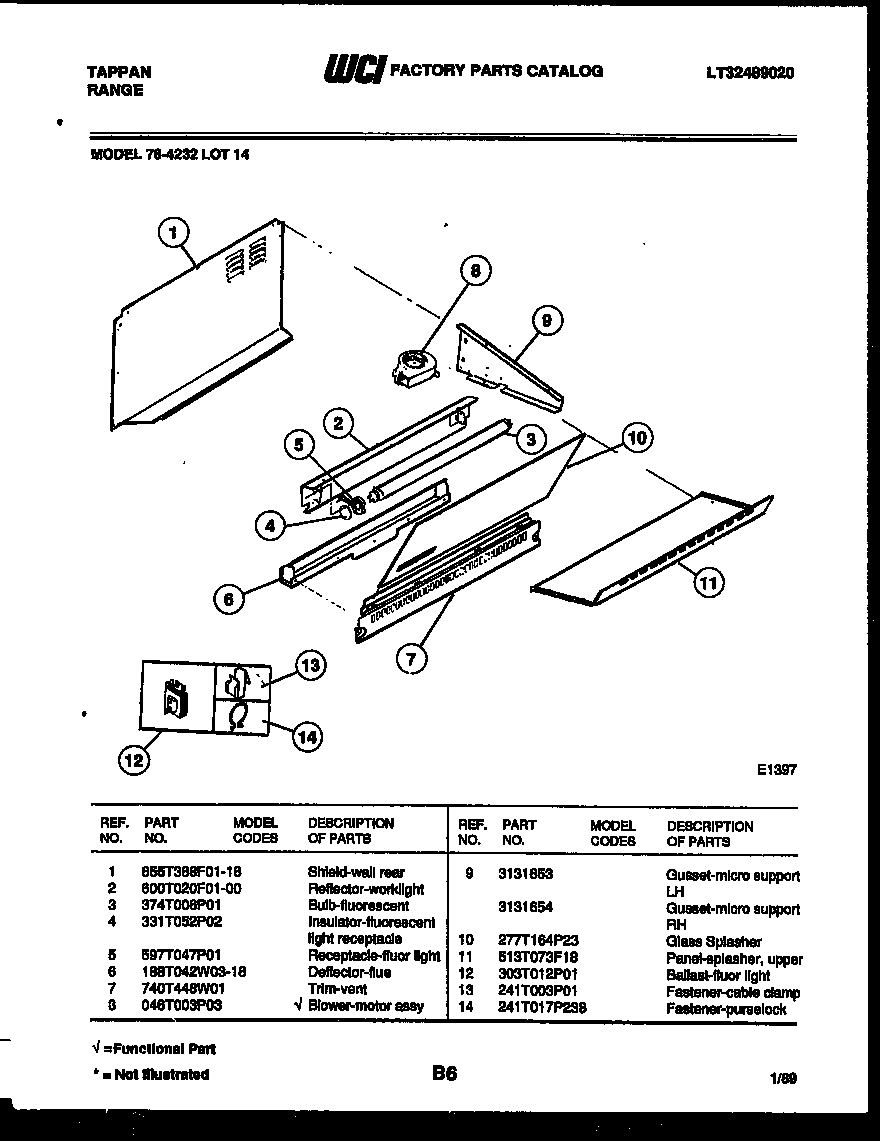

Holder Ot 241T017P238
#14

Splasher control diagram

Holder ot

Part #241T017P238

This item is not returnable
$2.29
In Stock
Bracket 072T655F01
#18

Burner parts diagram

Bracket

Part #072T655F01

This item is not returnable
$2.99
In Stock
Grommet 287T003P08
#7

Microwave body parts diagram

Grommet

Part #287T003P08

This item is not returnable
$2.29
In Stock
Triac 742T005P01
#21

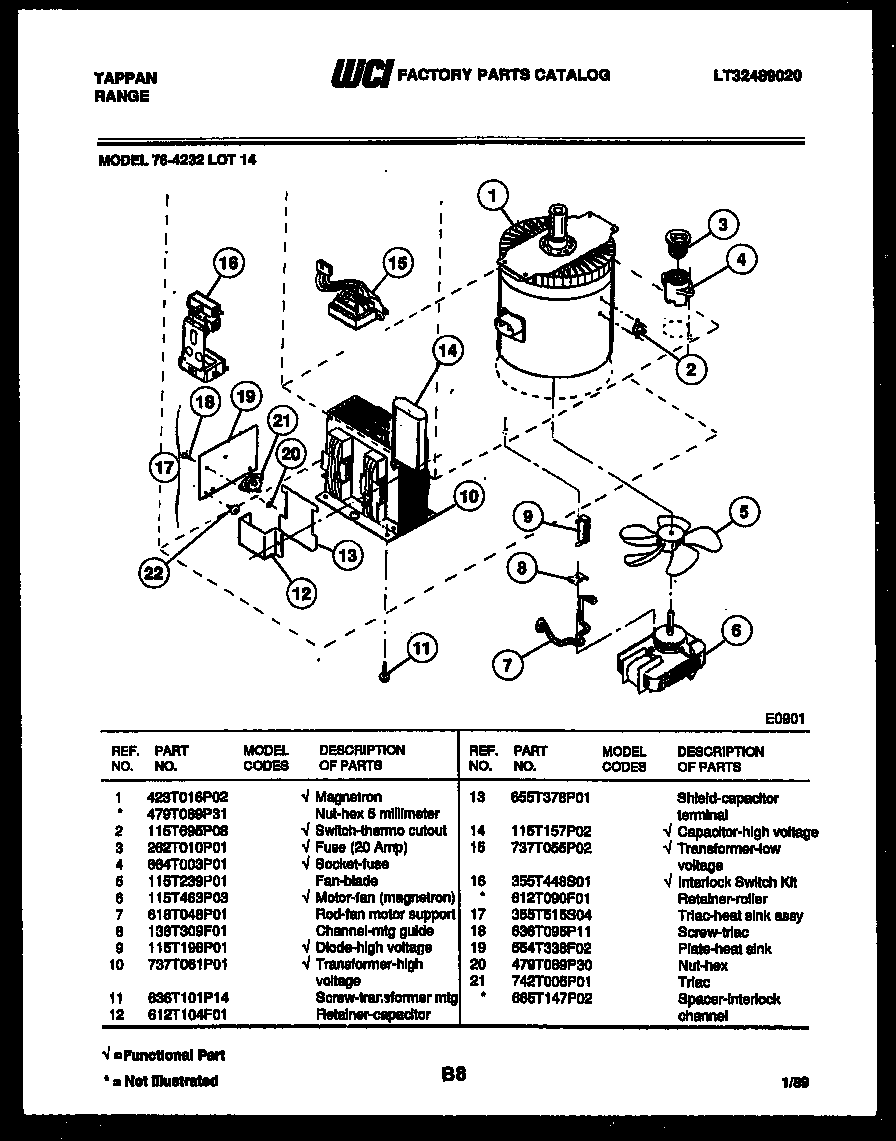

Power control diagram

Triac

Part #742T005P01

$29.99
In Stock
Terminal 711T047P93
#43

Oven body parts diagram

Terminal

Part #711T047P93

$11.20
In Stock
