Model # MAV7600CGW Official Maytag washer
Here are the diagrams and repair parts for Official Maytag MAV7600CGW washer, as well as links to manuals and error code tables, if available.

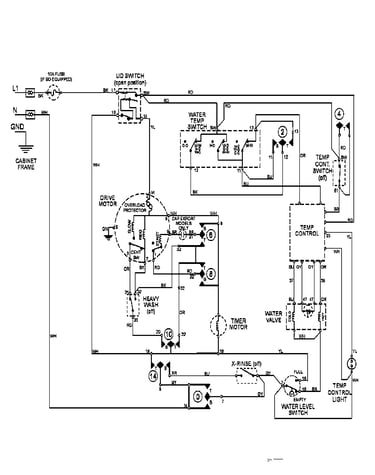

Error CodesBy Schematic
By Part

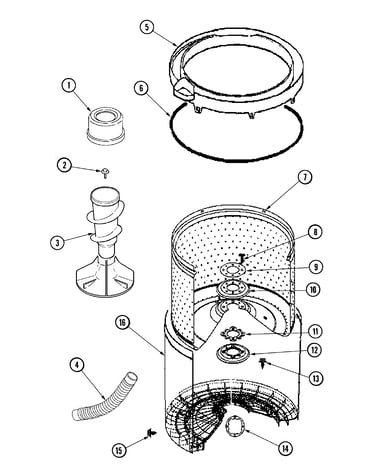

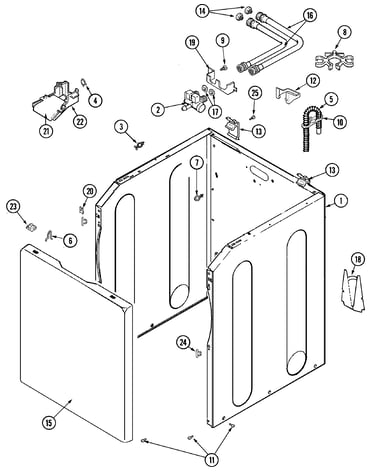

SELECT DIAGRAM
Browse Parts forMAV7600CGW Washer
- #12A

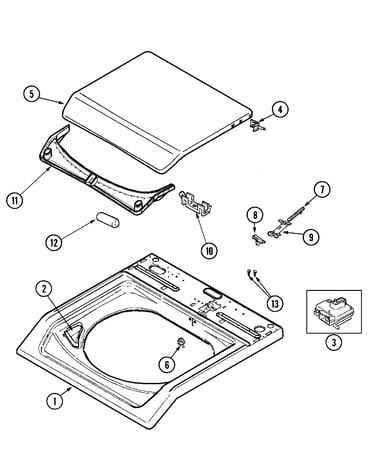

Top diagram
Washer screwPart #211294
Replaced by #WP90767
?Manufacturer substitutionThis part replaces 211294. Substitute parts can look different from the original.This item is not returnable$4.31 |19% OFF Phone Price : $5.31In Stock - #12

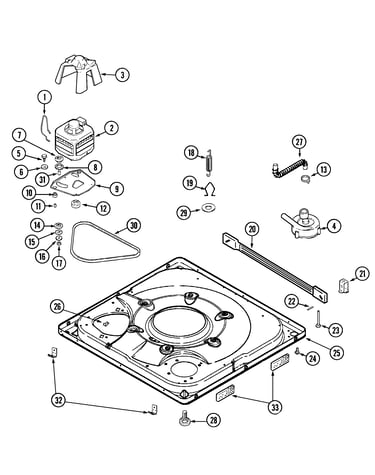

Base diagram
PulleyPart #22004297
Replaced by #WP21001950
?Manufacturer substitutionThis part replaces 22004297. Substitute parts can look different from the original.$125.99 |9% OFF Phone Price : $137.99In Stock - #4
Base diagram
PumpPart #21001873
Replaced by #WP35-6780
?Manufacturer substitutionThis part replaces 21001873. Substitute parts can look different from the original.$100.37 |11% OFF Phone Price : $112.37In Stock - #30
Base diagram
Washer drive beltPart #21352320
Replaced by #WP21352320
?Manufacturer substitutionThis part replaces 21352320. Substitute parts can look different from the original.$14.38 |12% OFF Phone Price : $16.38In Stock - Washer screw
Part #22001995
Replaced by #W11573574
?Manufacturer substitutionThis part replaces 22001995. Substitute parts can look different from the original.$46.36In Stock - #4
Transmission diagram
Cam replacemPart #LA-2007
Replaced by #12002213
?Manufacturer substitutionThis part replaces LA-2007. Substitute parts can look different from the original.$34.49 |15% OFF Phone Price : $40.49In Stock - #3
Transmission diagram
PulleyPart #12001797
Replaced by #12002213
?Manufacturer substitutionThis part replaces 12001797. Substitute parts can look different from the original.$34.49 |15% OFF Phone Price : $40.49In Stock - #24
Transmission diagram
Thrust brg kPart #12500036
Replaced by #12002213
?Manufacturer substitutionThis part replaces 12500036. Substitute parts can look different from the original.$34.49 |15% OFF Phone Price : $40.49In Stock - #13
Top diagram
Bracket screwPart #22003217
Replaced by #WP489128
?Manufacturer substitutionThis part replaces 22003217. Substitute parts can look different from the original.This item is not returnable$8.12 |11% OFF Phone Price : $9.12In Stock - #1

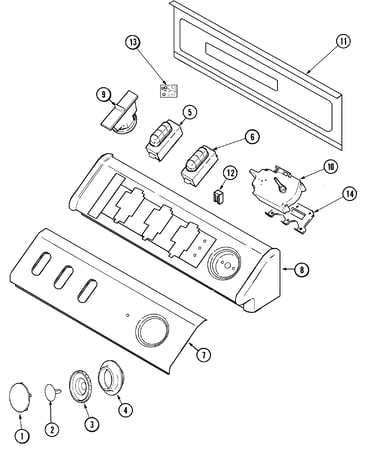

Control panel diagram
Laundry appliance timer knob insertPart #22001664
Replaced by #WP22001664
?Manufacturer substitutionThis part replaces 22001664. Substitute parts can look different from the original.This item is not returnable$6.36 |14% OFF Phone Price : $7.36In Stock
