Model # JP356SM1SS Official GE electric cooktop

Here are the diagrams and repair parts for Official GE JP356SM1SS electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 51 parts  |
Screw WH02X0930
#875

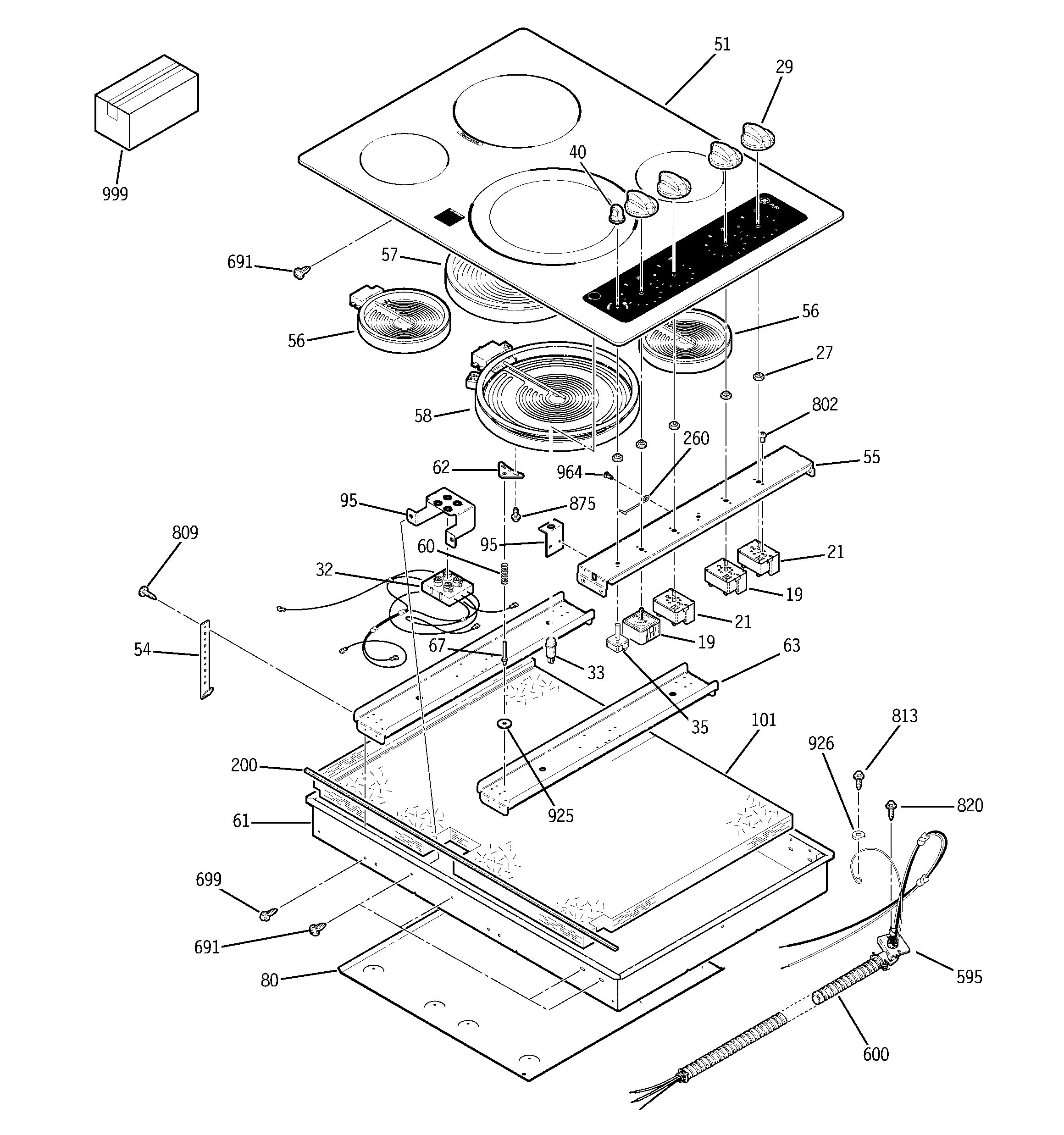

Cooktop parts diagram

Screw

Part #WH02X0930

Replaced by #WH2X930

?
Manufacturer substitution
This part replaces WH02X0930. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Surface Burner Knob (replaces Wb03t10221) WB03T10272
#40

Cooktop parts diagram

Range surface burner knob (replaces wb03t10221)

Part #WB03T10272

This item is not returnable
$18.59 |
10% OFF Phone Price : $20.59
In Stock
Cooktop Burner Knob WB03T10271
#29

Cooktop parts diagram

Cooktop burner knob

Part #WB03T10271

$28.69 |
17% OFF Phone Price : $34.69
In Stock
Screw WB01X1137
#809

Cooktop parts diagram

Screw

Part #WB01X1137

Replaced by #WB1X1137

?
Manufacturer substitution
This part replaces WB01X1137. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw - Black WB01K5162
#691

Cooktop parts diagram

Screw - black

Part #WB01K5162

Replaced by #WB1K5162

?
Manufacturer substitution
This part replaces WB01K5162. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Washer WB01K5117
#925

Cooktop parts diagram

Washer

Part #WB01K5117

Replaced by #WB1K5117

?
Manufacturer substitution
This part replaces WB01K5117. Substitute parts can look different from the original.
$8.11
In Stock
Range Main Top WB62T10582
#51

Cooktop parts diagram

Range main top

Part #WB62T10582

$371.93 |
54% OFF Was : $813.33
In Stock
Kenmore Range Surface Element Control Switch (replaces Wb24k10066, Wb24t10057) WB24T10119
#19

Cooktop parts diagram

Kenmore range surface element control switch (replaces wb24k10066, wb24t10057)

Part #WB24T10119

$68.42 |
8% OFF Phone Price : $74.42
In Stock
Range Wire Harness Retainer WB02T10086
#964

Cooktop parts diagram

Range wire harness retainer

Part #WB02T10086

$24.29 |
20% OFF Phone Price : $30.29
In Stock
Range Surface Element Spring WB09T10005
#60

Cooktop parts diagram

Range surface element spring

Part #WB09T10005

$7.88 |
11% OFF Phone Price : $8.88
In Stock
