Model # MH1160XSS1 Official Whirlpool microwave/hood combo
Here are the diagrams and repair parts for Official Whirlpool MH1160XSS1 microwave/hood combo, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manualBy Schematic
SELECT DIAGRAM
Browse Parts for
MH1160XSS1 Microwave/Hood Combo
#27

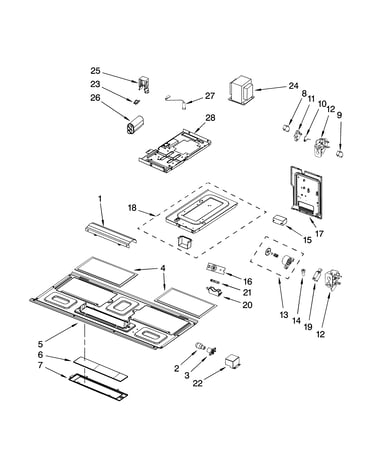

Interior and ventilation parts diagram
Diode
Part #W10163432
Replaced by #W11256462
?
Manufacturer substitution
This part replaces W10163432. Substitute parts can look different from the original.
$24.65 |
20% OFF Phone Price : $30.65
In Stock
#26
Interior and ventilation parts diagram
Microwave high-voltage capacitor
Part #W10138798
Replaced by #W10850446
?
Manufacturer substitution
This part replaces W10138798. Substitute parts can look different from the original.
$94.83 |
6% OFF Phone Price : $100.83
In Stock
#9
Interior and ventilation parts diagram
Microwave/hood micro-switch
Part #8206347
Replaced by #W10269458
?
Manufacturer substitution
This part replaces 8206347. Substitute parts can look different from the original.
$24.27 |
20% OFF Phone Price : $30.27
In Stock
#3
Air flow parts diagram
Lamp assembly
Part #4393681
Replaced by #8206232A
?
Manufacturer substitution
This part replaces 4393681. Substitute parts can look different from the original.
$8.63 |
10% OFF Phone Price : $9.63
In Stock
#2
Interior and ventilation parts diagram
Microwave/hood light bulb
Part #8206232
Replaced by #8206232A
?
Manufacturer substitution
This part replaces 8206232. Substitute parts can look different from the original.
$8.63 |
10% OFF Phone Price : $9.63
In Stock
#8
Interior and ventilation parts diagram
Microwave/hood switch
Part #8206345
Replaced by #W10211972
?
Manufacturer substitution
This part replaces 8206345. Substitute parts can look different from the original.
$29.69 |
17% OFF Phone Price : $35.69
In Stock
#21
Interior and ventilation parts diagram
Microwave fuse (replaces w10422951)
Part #W10138793
Replaced by #W11707984
?
Manufacturer substitution
This part replaces W10138793. Substitute parts can look different from the original.
$53.15
In Stock
#12
Interior and ventilation parts diagram
Microwave door interlock support, upper
Part #8206419
Replaced by #WP8206419
?
Manufacturer substitution
This part replaces 8206419. Substitute parts can look different from the original.
$12.11 |
14% OFF Phone Price : $14.11
In Stock
#12A
Interior and ventilation parts diagram
Interlock
Part #W10156813
Replaced by #WPW10156813
?
Manufacturer substitution
This part replaces W10156813. Substitute parts can look different from the original.
$7.56 |
12% OFF Phone Price : $8.56
In Stock
#16
Air flow parts diagram
Magnetron
Part #8206341
The manufacturer no longer makes this part, and there's no substitute part
