Model # DSC-HX7VG Official Sony digital camera

Here are the diagrams and repair parts for Official Sony DSC-HX7VG digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |
Bt-070 Pcb 188305611
#107

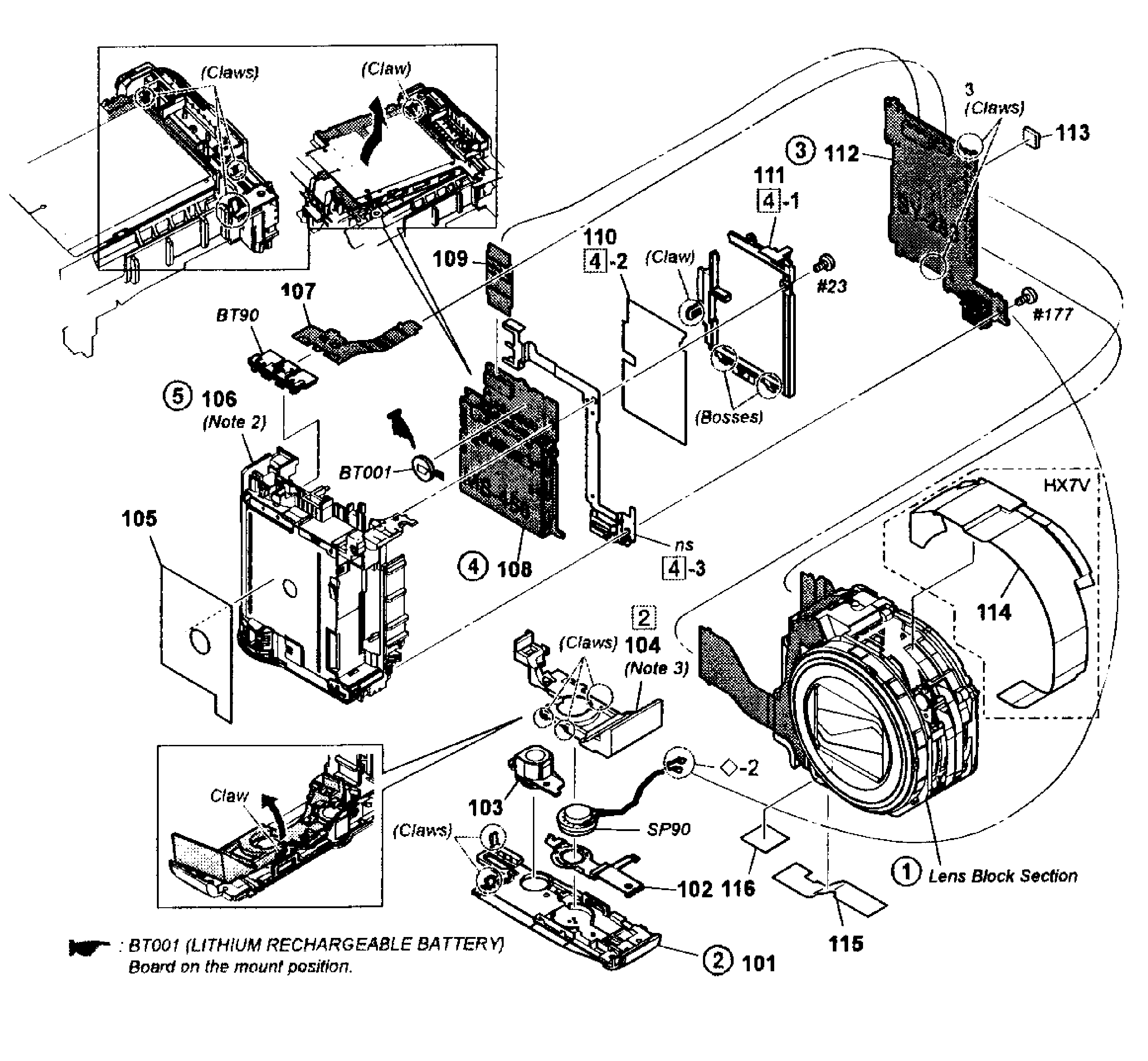

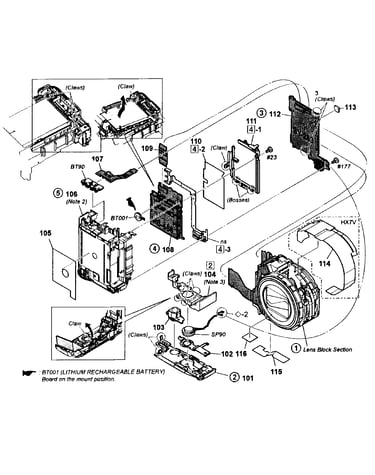

Main section diagram

Bt-070 pcb

Part #188305611

This item is not returnable
$5.80
In Stock
Plate 427124301
#102

Main section diagram

Plate

Part #427124301

This item is not returnable
$4.84
In Stock
Cabinet Go 427125531
#1

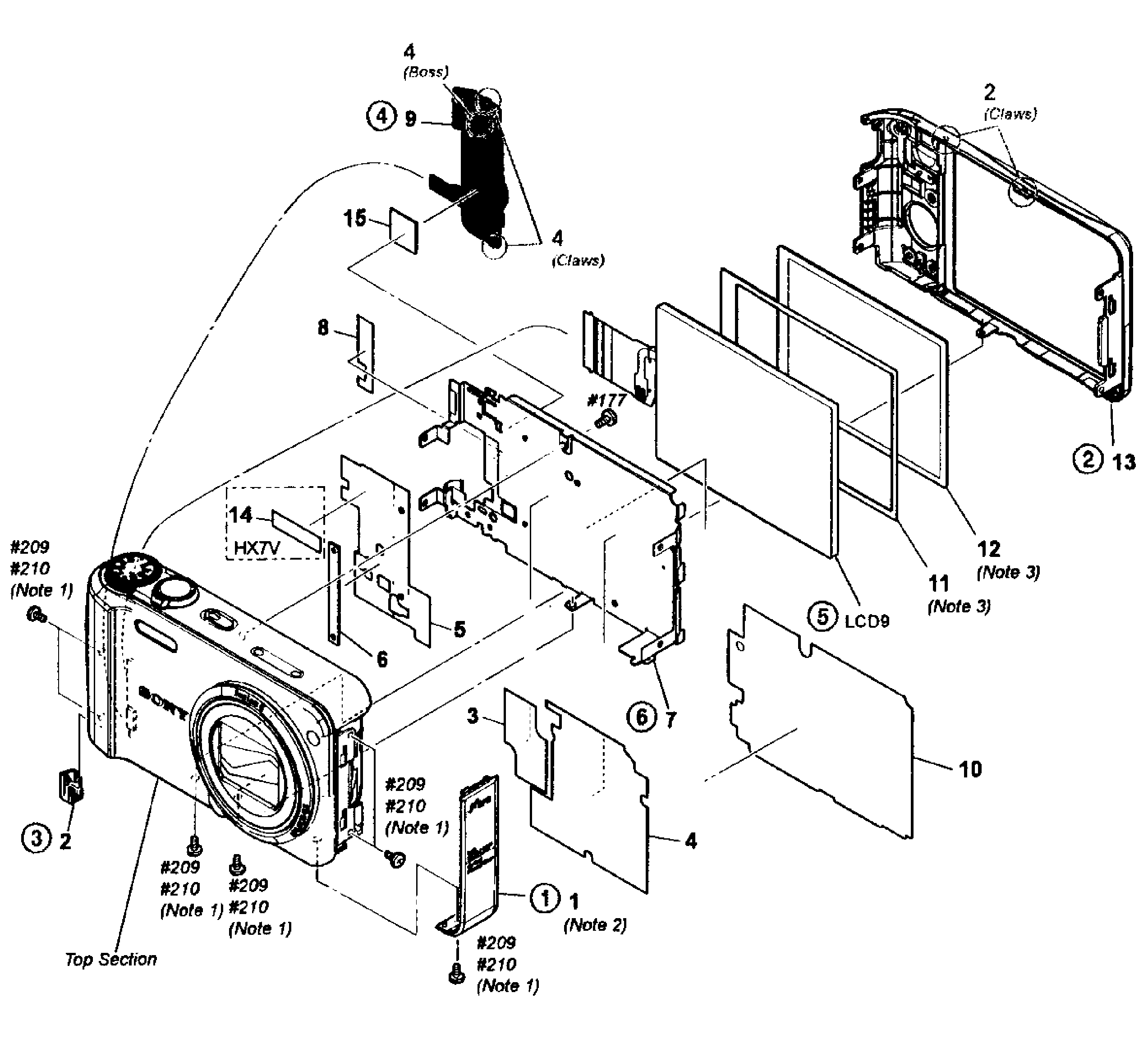

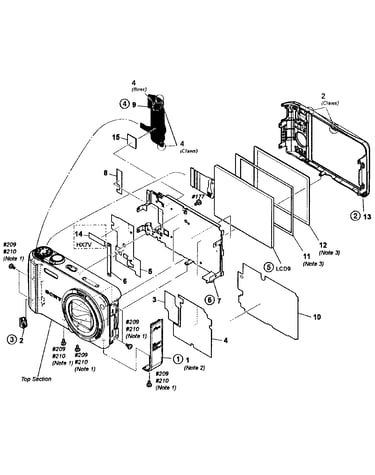

Rear assy diagram

Cabinet go

Part #427125531

$32.67
In Stock
Screw Tripler 427124401
#103

Main section diagram

Screw tripler

Part #427124401

$11.75
In Stock
Holder 427124101
#111

Main section diagram

Holder

Part #427124101

$13.89
In Stock
Ring Ornament 417473511
#156

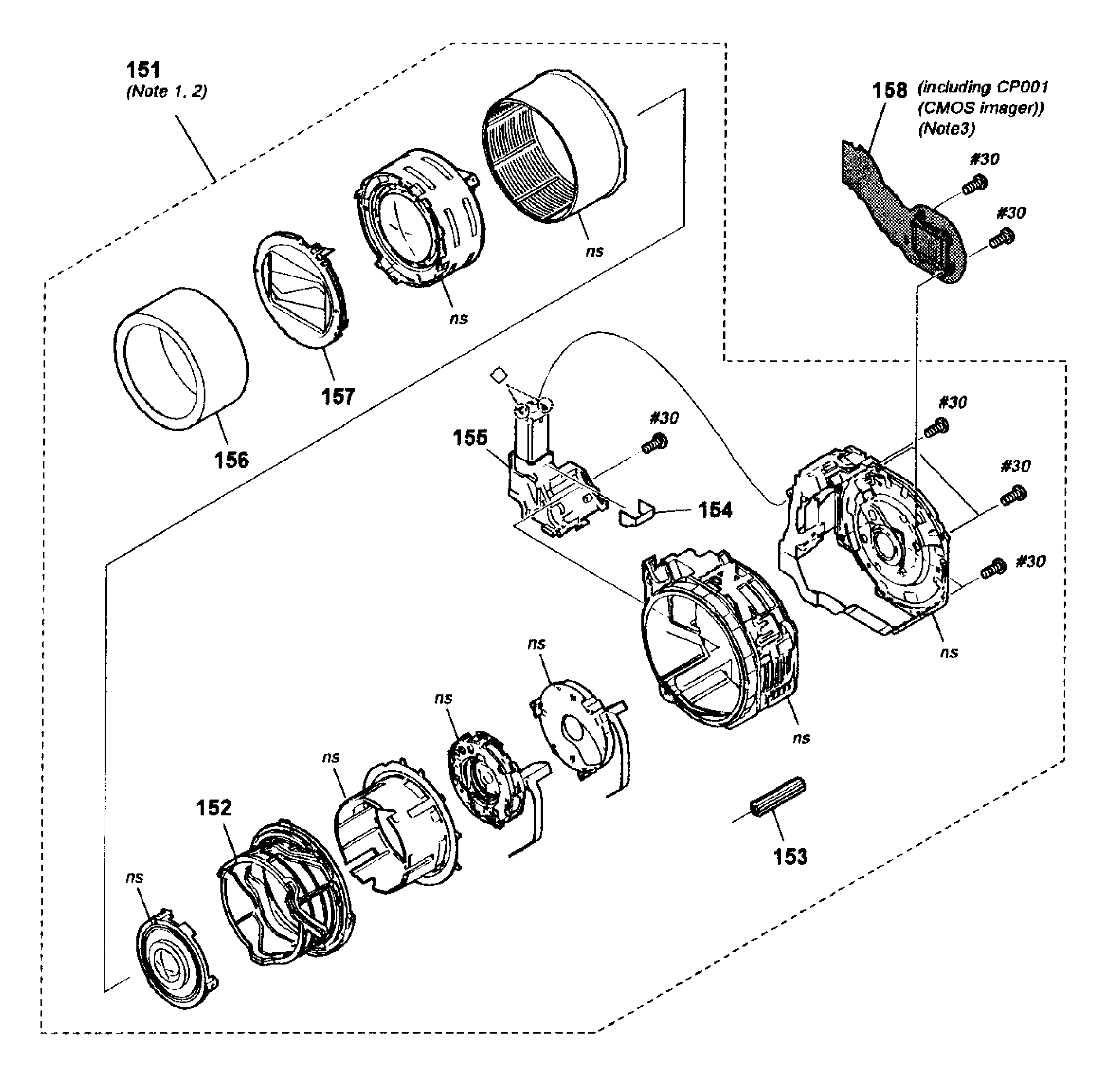

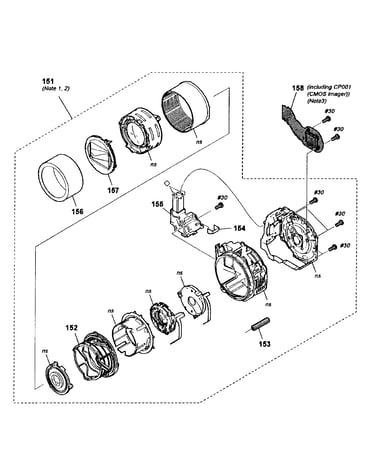

Lens assy diagram

Ring ornament

Part #417473511

$25.27
In Stock
Gasket 427257801
#68

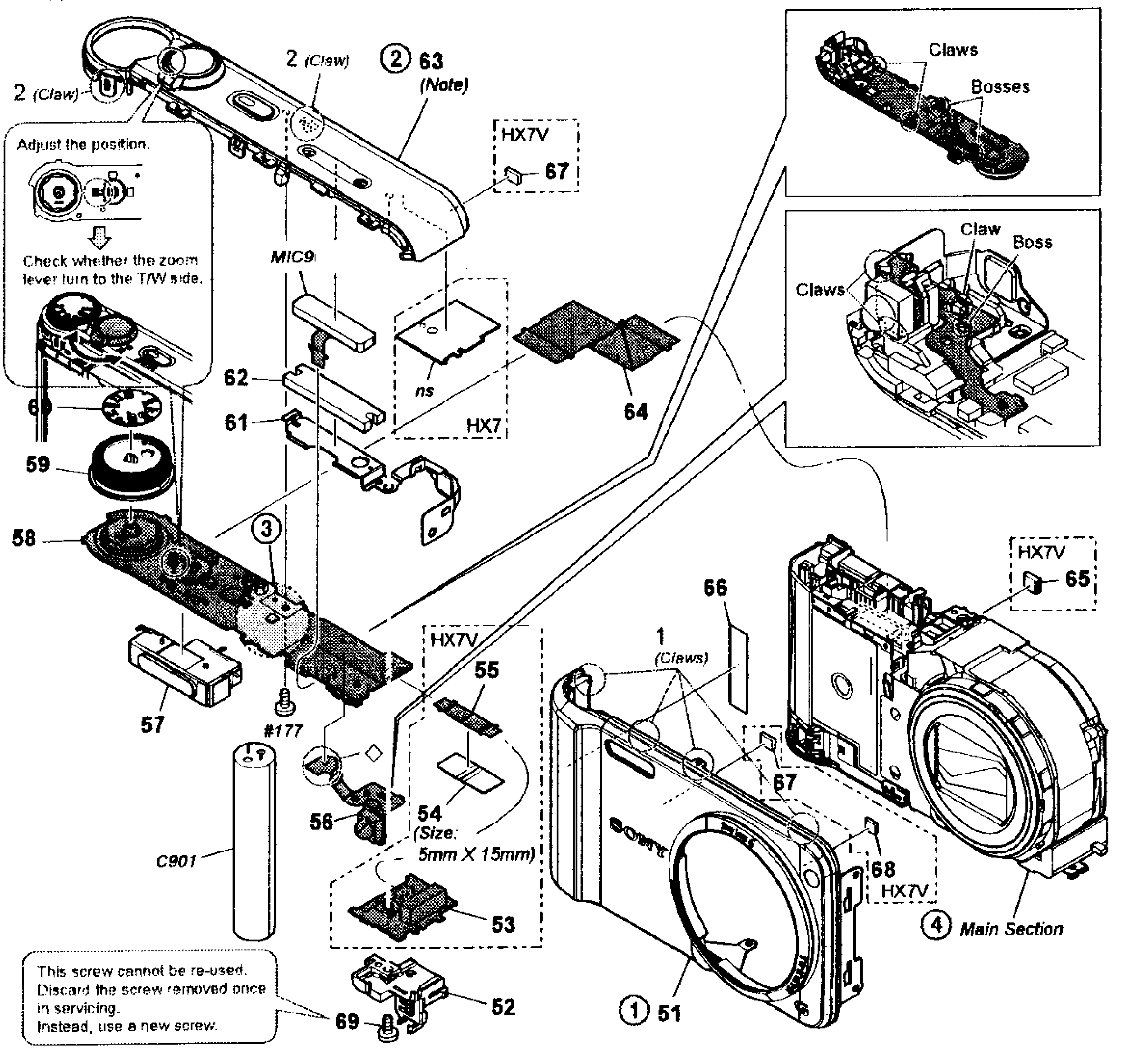

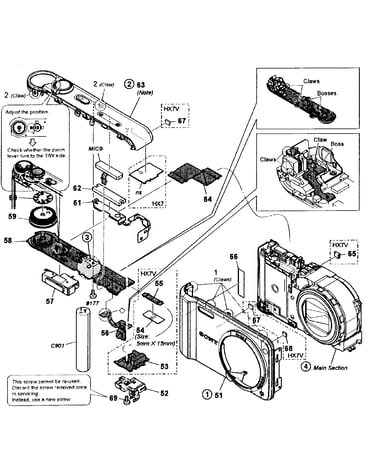

Top assy diagram

Gasket

Part #427257801

This item is not returnable
$2.65
In Stock
Sheet Lens 427123501
#114

Main section diagram

Sheet lens

Part #427123501

$20.13
In Stock
Gear,narut 417473301
#153

Lens assy diagram

Gear,narut

Part #417473301

This item is not returnable
$2.16
In Stock
Block Zoom 148785911
#155

Lens assy diagram

Block zoom

Part #148785911

$8.49
In Stock
