Model # VUD140 Official Viking Range undercounter dishwasher

Here are the diagrams and repair parts for Official Viking Range VUD140 undercounter dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

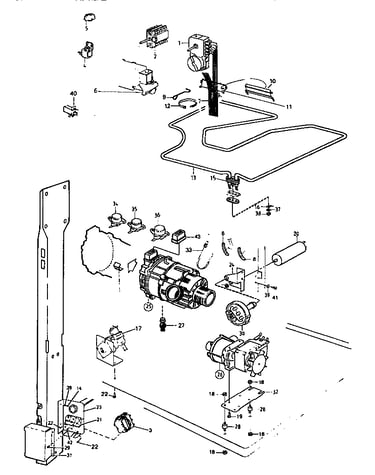

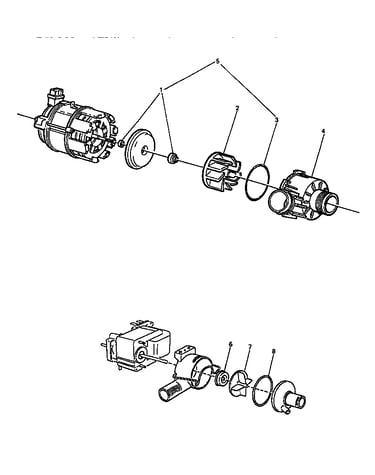

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 222 parts  |
Viking Range Bushing Splash PD330018
#28

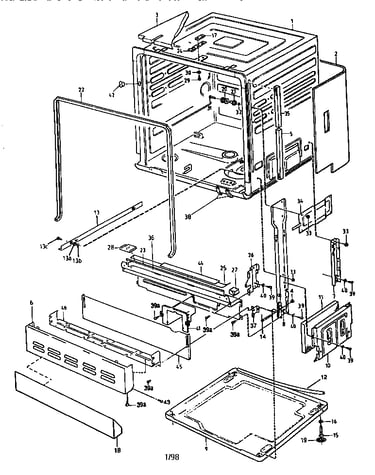

Cabinet diagram

Viking range bushing splash

Part #PD330018

The manufacturer no longer makes this part, and there's no substitute part

Viking Range Shaft PD300080
#6

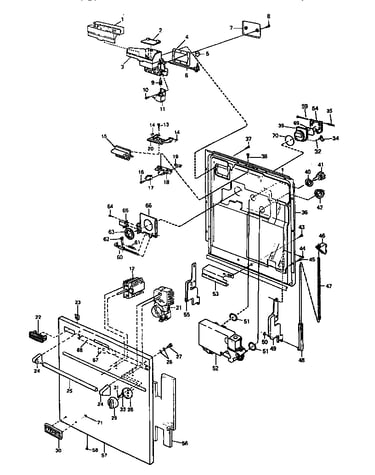

Door and door panel diagram

Viking range shaft

Part #PD300080

The manufacturer no longer makes this part, and there's no substitute part

Dishwasher Detergent Dispenser PD350011
Dishwasher detergent dispenser

Part #PD350011

The manufacturer no longer makes this part, and there's no substitute part

Viking Range Seal PD300014
#4

Door and door panel diagram

Viking range seal

Part #PD300014

The manufacturer no longer makes this part, and there's no substitute part

Viking Range Spring PD300012
#21

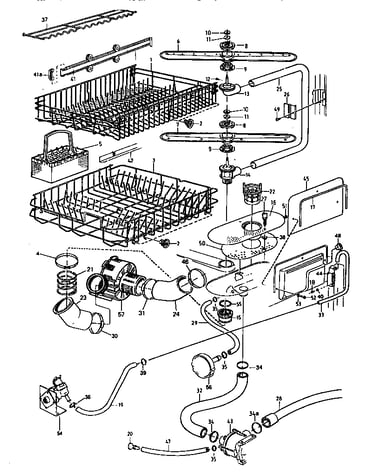

Wash system diagram

Viking range spring

Part #PD300012

The manufacturer no longer makes this part, and there's no substitute part

Screw PD100008
Screw

Part #PD100008

The manufacturer no longer makes this part, and there's no substitute part

Viking Range Pipe PD340006
#33

Wash system diagram

Viking range pipe

Part #PD340006

The manufacturer no longer makes this part, and there's no substitute part

Viking Range Hose Clamp PD300005
#34A

Wash system diagram

Viking range hose clamp

Part #PD300005

The manufacturer no longer makes this part, and there's no substitute part

Viking Range Hose PD320002
#47

Wash system diagram

Viking range hose

Part #PD320002

The manufacturer no longer makes this part, and there's no substitute part

Viking Range Bearing PD300037
#14

Wash system diagram

Viking range bearing

Part #PD300037

The manufacturer no longer makes this part, and there's no substitute part
