Kenmore
Gas Range

Model # 1037387811 Official Kenmore 30" gas self-cleaning range

Here are the diagrams and repair parts for Official Kenmore 1037387811 30" gas self-cleaning range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

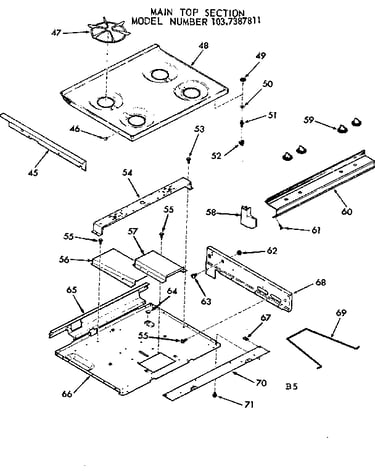

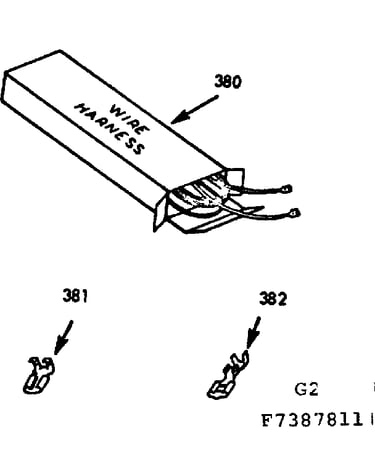

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 269 parts  |
Igniter 311846
#124

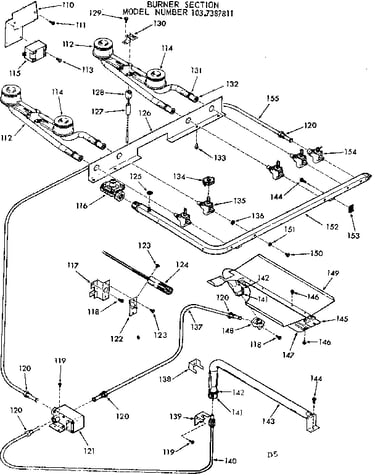

Burner section diagram

Igniter

Part #311846

Replaced by #WB2X9154

?
Manufacturer substitution
This part replaces 311846. Substitute parts can look different from the original.
BEST SELLER
$86.63 |
6% OFF Phone Price : $92.63
In Stock
Screw 105771
Screw

Part #105771

Replaced by #WB1X1293

?
Manufacturer substitution
This part replaces 105771. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw 102430
#203

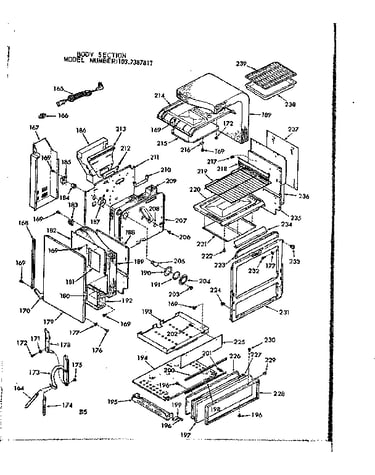

Body section diagram

Screw

Part #102430

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 102430. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw 102428
Screw

Part #102428

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 102428. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw 295849
Screw

Part #295849

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 295849. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Seal 302935
#267

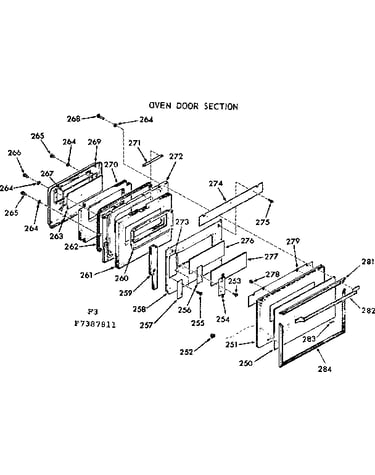

Oven door section diagram

Seal

Part #302935

Replaced by #WB2X9168

?
Manufacturer substitution
This part replaces 302935. Substitute parts can look different from the original.
This item is not returnable
$9.62 |
9% OFF Phone Price : $10.62
In Stock
Screw 303820
#35

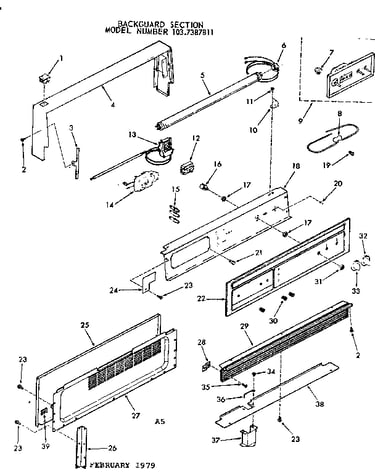

Backguard section diagram

Screw

Part #303820

Replaced by #WB1X1118

?
Manufacturer substitution
This part replaces 303820. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Retainer 310909
#260

Oven door section diagram

Retainer

Part #310909

$15.39
In Stock
Spacer 310929
#256

Oven door section diagram

Spacer

Part #310929

This item is not returnable
$2.49
In Stock
Bracket 311689
#122

Burner section diagram

Bracket

Part #311689

$7.71
In Stock
