GE
Upright Freezer

Model # FUG17DSARWH Official GE freezer - a series

Here are the diagrams and repair parts for Official GE FUG17DSARWH freezer - a series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 87 parts  |
Temperature Control WR09X10099
#43

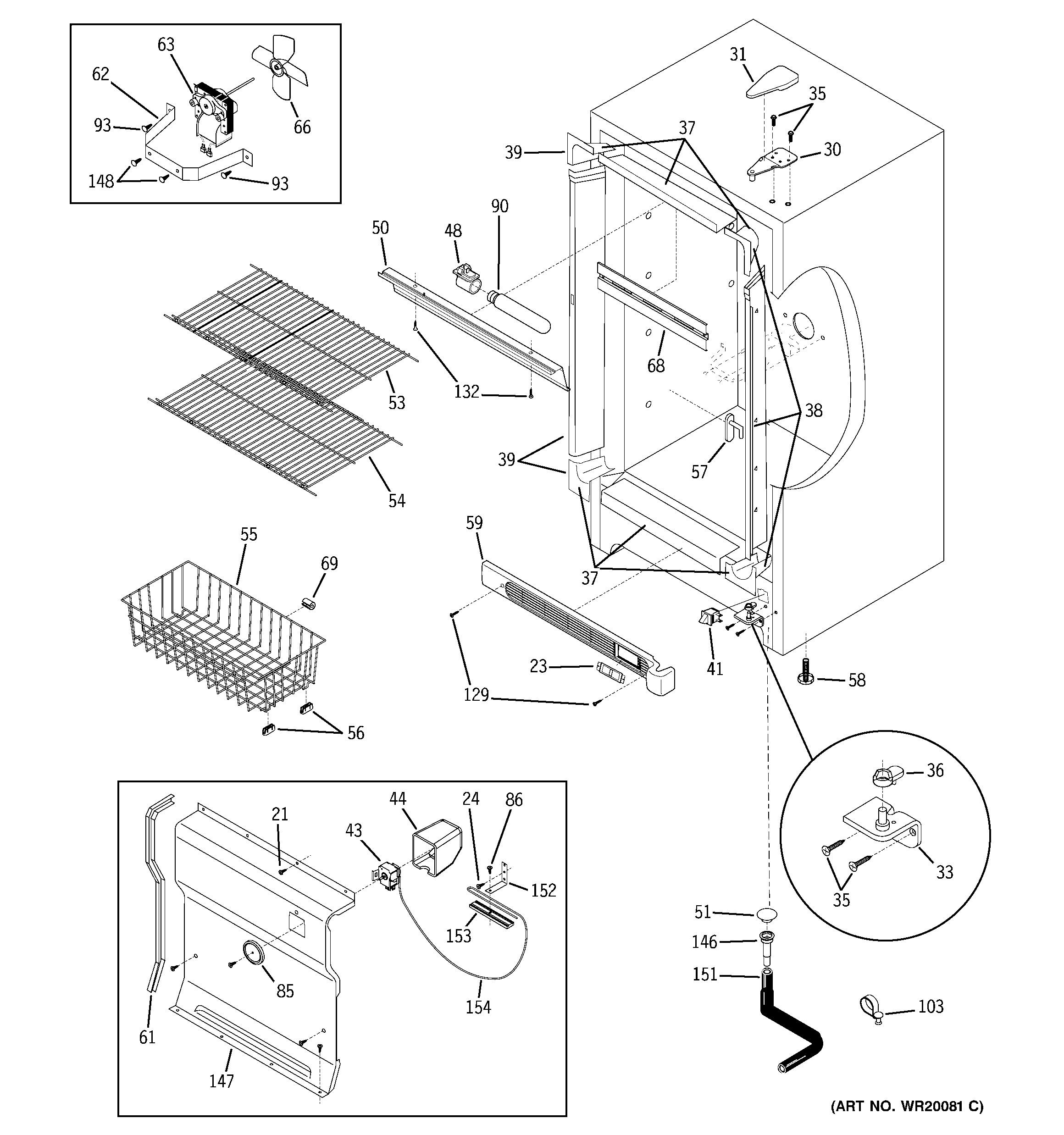

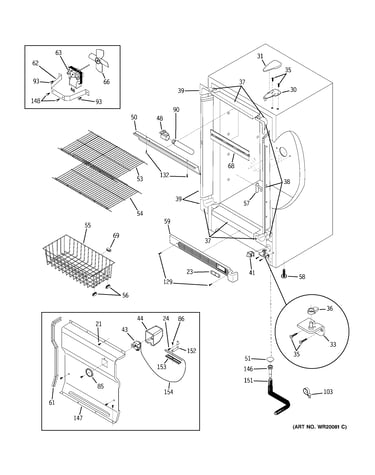

Cabinet diagram

Temperature control

Part #WR09X10099

Replaced by #WR09X29511

?
Manufacturer substitution
This part replaces WR09X10099. Substitute parts can look different from the original.
$118.50 |
9% OFF Phone Price : $130.50
In Stock
Clamp Capillary Tube WR02X11441
#153

Cabinet diagram

Clamp capillary tube

Part #WR02X11441

$8.11
In Stock
Freezer Door Switch WR23X10303
#41

Cabinet diagram

Freezer door switch

Part #WR23X10303

$64.46 |
9% OFF Phone Price : $70.46
In Stock
Condenser WR84X5007
#100

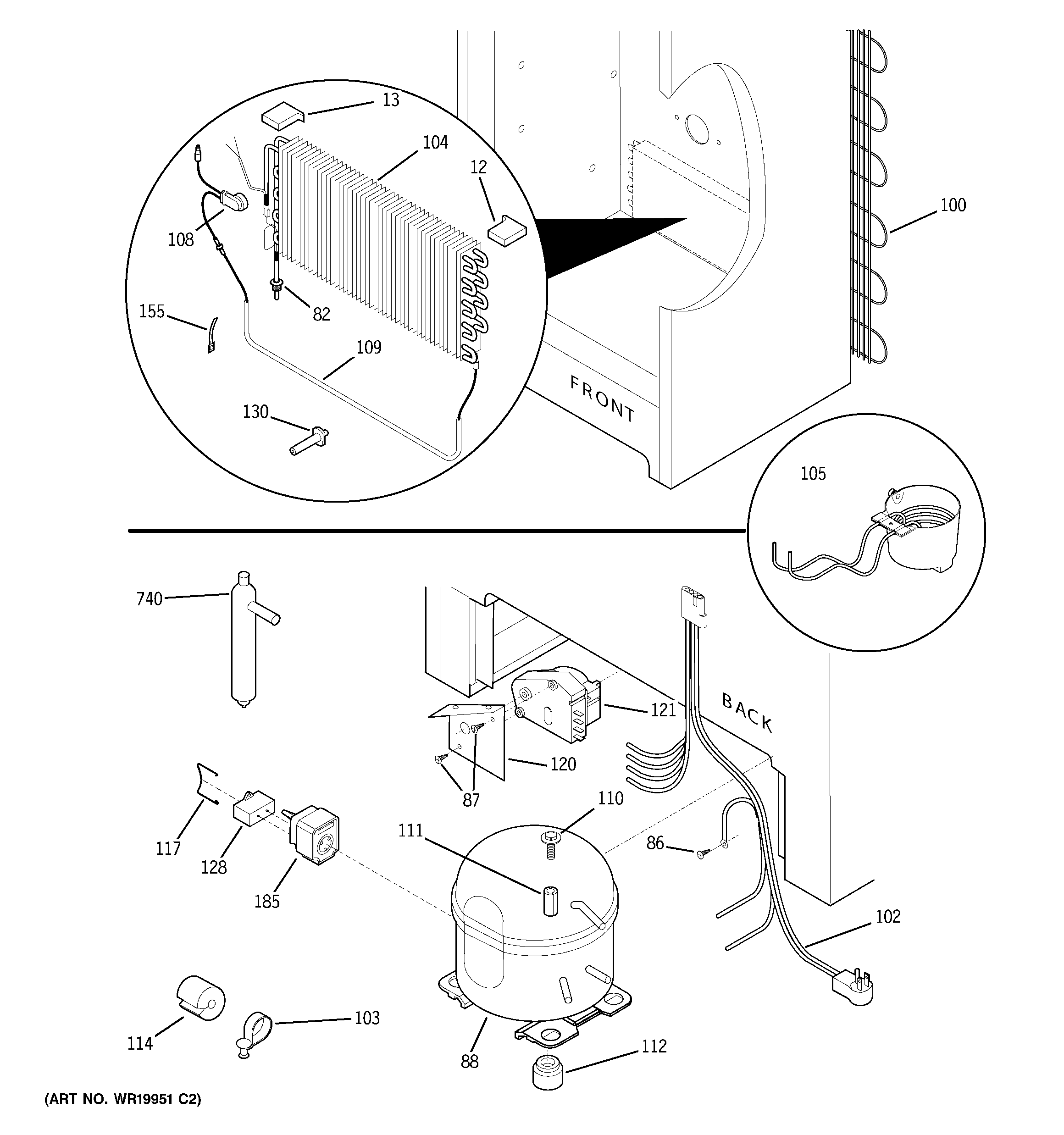

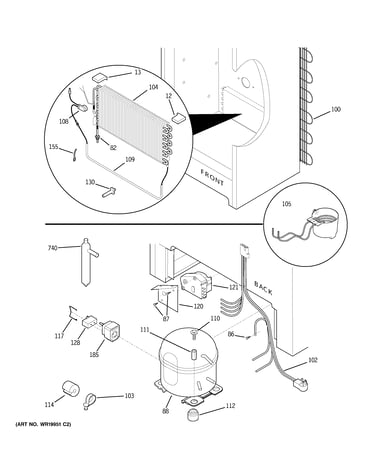

Unit parts diagram

Condenser

Part #WR84X5007

$279.53
In Stock
Temperature Complete Knob WR02X10860
#85

Cabinet diagram

Temperature complete knob

Part #WR02X10860

$38.89 |
13% OFF Phone Price : $44.89
In Stock
Strap-evap/h WR02X11458
#155

Unit parts diagram

Strap-evap/h

Part #WR02X11458

$33.20 |
15% OFF Phone Price : $39.20
In Stock
Glide WR02X6808
#56

Cabinet diagram

Glide

Part #WR02X6808

Replaced by #WR02X11444

?
Manufacturer substitution
This part replaces WR02X6808. Substitute parts can look different from the original.
$81.57 |
7% OFF Phone Price : $87.57
In Stock
Mounting Sleeve WR02X9497
#111

Unit parts diagram

Mounting sleeve

Part #WR02X9497

Replaced by #WR2X9497

?
Manufacturer substitution
This part replaces WR02X9497. Substitute parts can look different from the original.
$45.51
In Stock
Freezer Door Gasket WR24X10009
#8

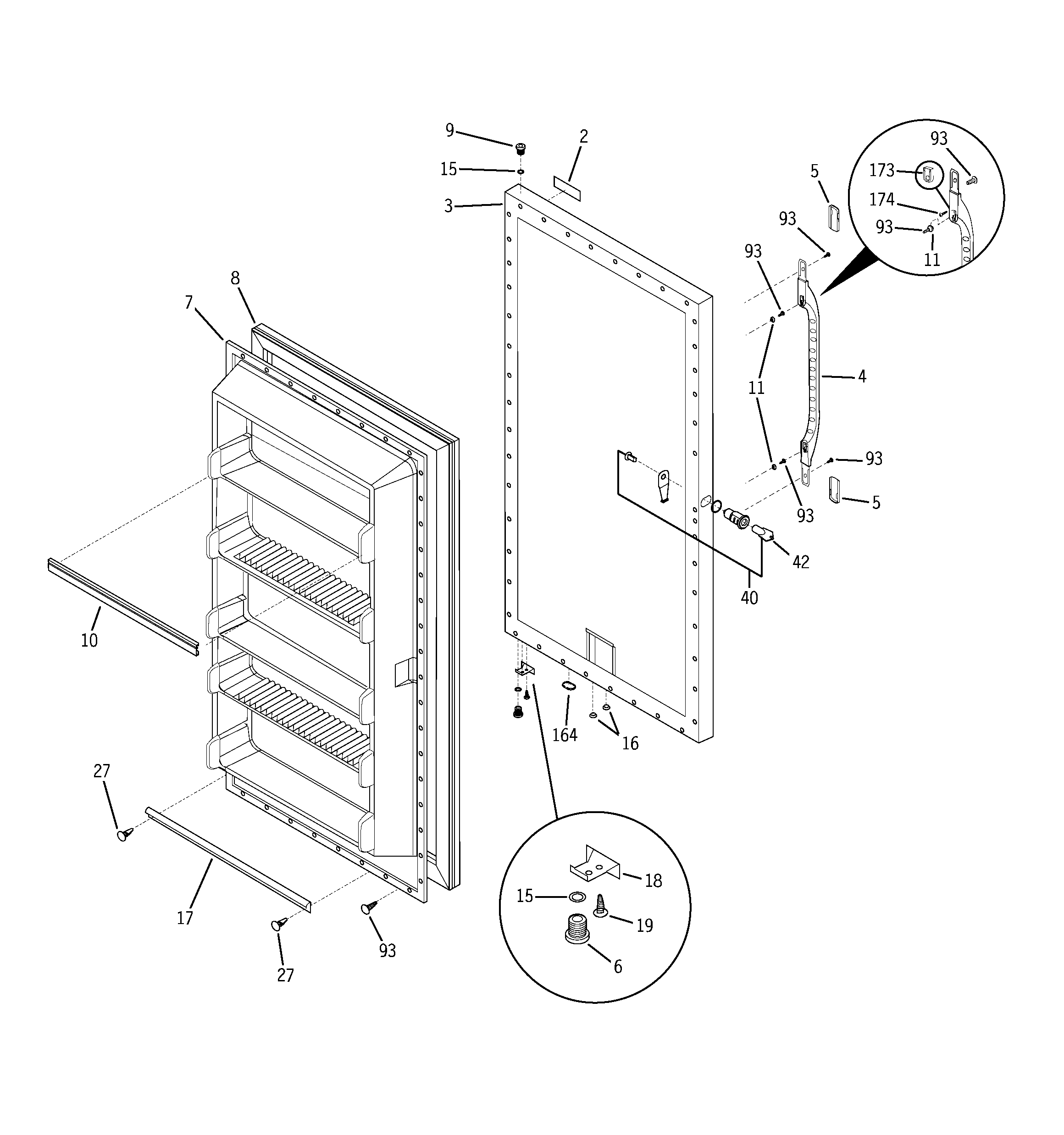

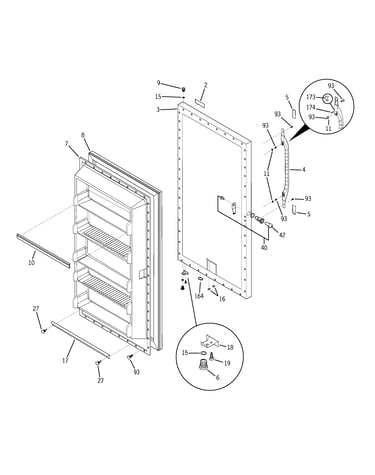

Door diagram

Freezer door gasket

Part #WR24X10009

Replaced by #WR14X28402

?
Manufacturer substitution
This part replaces WR24X10009. Substitute parts can look different from the original.
$217.77
In Stock
Bracket WR02X8729
#152

Cabinet diagram

Bracket

Part #WR02X8729

Replaced by #WR2X8729

?
Manufacturer substitution
This part replaces WR02X8729. Substitute parts can look different from the original.
$14.11
In Stock
