Model # 502474461 Official Sears 27" lightweight bicycle

Here are the diagrams and repair parts for Official Sears 502474461 27" lightweight bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

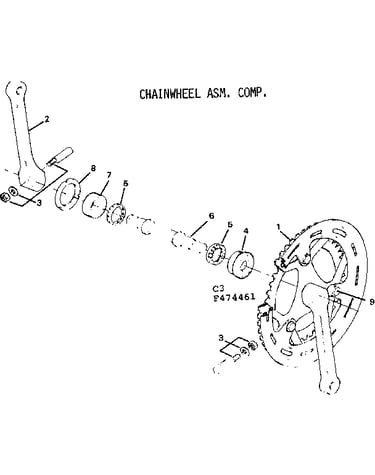

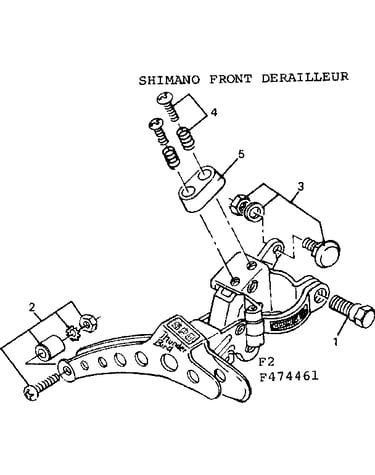

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 129 parts  |
Brake Shoe 308697
#12

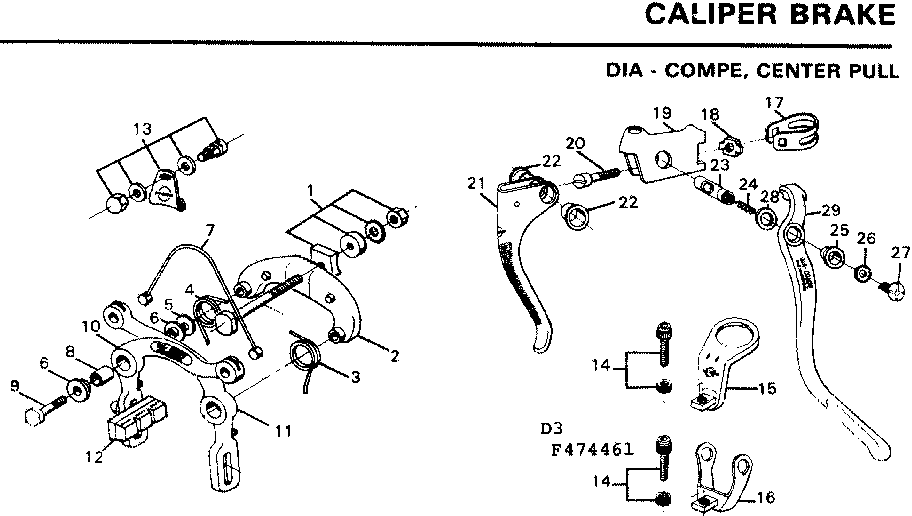

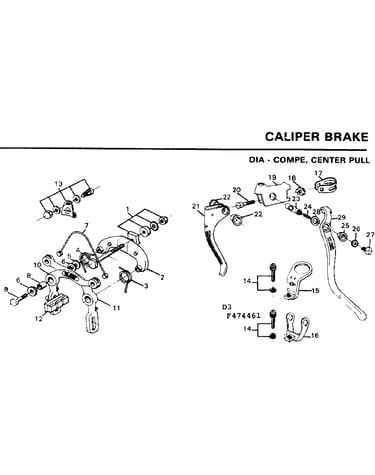

Caliper brake diagram

Brake shoe

Part #308697

The manufacturer no longer makes this part, and there's no substitute part

Eagle Ii 302809
Eagle ii

Part #302809

The manufacturer no longer makes this part, and there's no substitute part

Frame 34512BDJ
#1

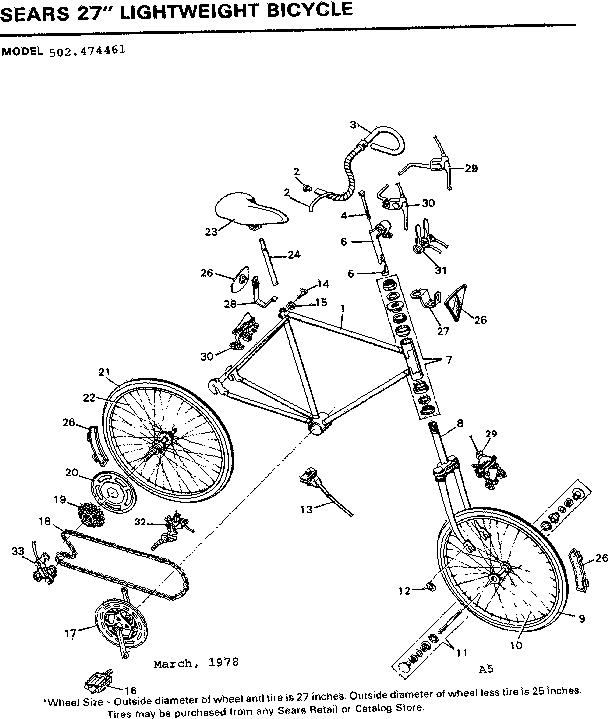

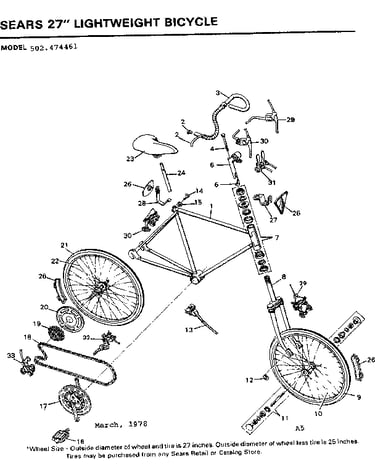

Unit parts diagram

Frame

Part #34512BDJ

The manufacturer no longer makes this part, and there's no substitute part

Cap 300517
#13

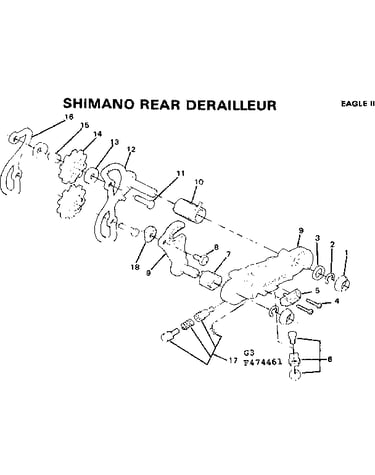

Shimano rear derailleur diagram

Cap

Part #300517

The manufacturer no longer makes this part, and there's no substitute part

Reflect Pkg 34140
#26

Unit parts diagram

Reflect pkg

Part #34140

The manufacturer no longer makes this part, and there's no substitute part

Hanger 304220
#15

Caliper brake diagram

Hanger

Part #304220

The manufacturer no longer makes this part, and there's no substitute part

Plate 302794
#10

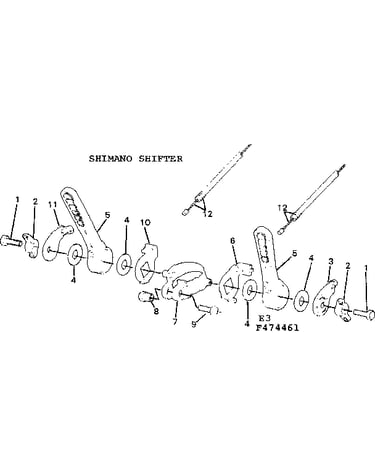

Shimano shifter diagram

Plate

Part #302794

The manufacturer no longer makes this part, and there's no substitute part

Dera Cable 300599
#12

Shimano shifter diagram

Dera cable

Part #300599

The manufacturer no longer makes this part, and there's no substitute part

(4-6) Expander Bolt, Washer, And Wedge N/P
(4-6) expander bolt, washer, and wedge

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Rear Brake 34576PA
Rear brake

Part #34576PA

The manufacturer no longer makes this part, and there's no substitute part
