Model # 11629160 Official Kenmore powermate attachment

Here are the diagrams and repair parts for Official Kenmore 11629160 powermate attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |

Muskin Yoke Bearing Seal 741423
#88

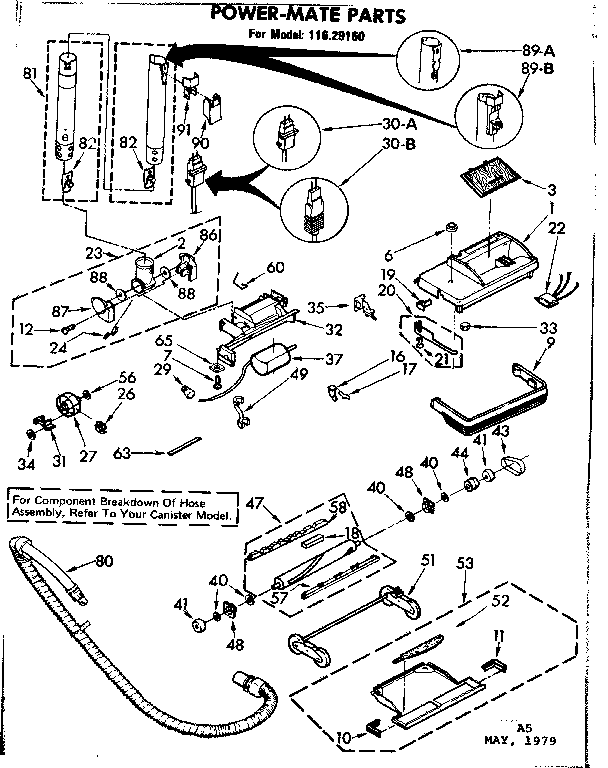

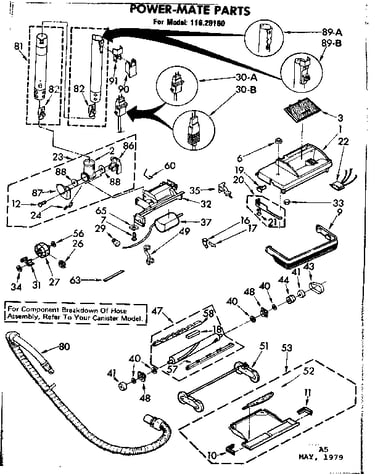

Power mate diagram

Muskin yoke bearing seal

Part #741423

The manufacturer no longer makes this part, and there's no substitute part

Indicator 741606
#6

Power mate diagram

Indicator

Part #741606

The manufacturer no longer makes this part, and there's no substitute part

(not Serviced, Use Old ) Screw, Motor  Brush N/P
(not serviced, use old ) screw, motor brush

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Bearing And Holder 726205
#41

Power mate diagram

Vacuum beater bar bearing and holder

Part #726205

The manufacturer no longer makes this part, and there's no substitute part

Nozzle 741609
#1

Power mate diagram

Nozzle

Part #741609

The manufacturer no longer makes this part, and there's no substitute part

Brush-rtry 741626
#47

Power mate diagram

Brush-rtry

Part #741626

The manufacturer no longer makes this part, and there's no substitute part

Bearing 741574
#87

Power mate diagram

Bearing

Part #741574

The manufacturer no longer makes this part, and there's no substitute part

Screw 681297
#12

Power mate diagram

Screw

Part #681297

The manufacturer no longer makes this part, and there's no substitute part

Clean Edge 676142
#11

Power mate diagram

Clean edge

Part #676142

The manufacturer no longer makes this part, and there's no substitute part

Hood 741624
#3

Power mate diagram

Hood

Part #741624

The manufacturer no longer makes this part, and there's no substitute part
