Painting Power Tool

Model # 919156140 Official Craftsman spray gun with drip-free cup

Here are the diagrams and repair parts for Official Craftsman 919156140 spray gun with drip-free cup, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
919156140 Power Tools
Fluid Tip SGB-25
#4

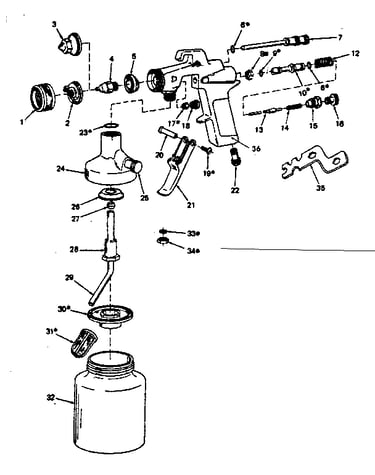

Unit parts diagram

Fluid tip

Part #SGB-25

The manufacturer no longer makes this part, and there's no substitute part

Baffle SGB-5
#5

Unit parts diagram

Baffle

Part #SGB-5

The manufacturer no longer makes this part, and there's no substitute part

Diaphragm SGB-22
#30

Unit parts diagram

Diaphragm

Part #SGB-22

The manufacturer no longer makes this part, and there's no substitute part

Adjusting Screw SGB-14
#16

Unit parts diagram

Adjusting screw

Part #SGB-14

The manufacturer no longer makes this part, and there's no substitute part

O-ring STD302020
#23

Unit parts diagram

O-ring

Part #STD302020

The manufacturer no longer makes this part, and there's no substitute part

O-ring STD302011
#6

Unit parts diagram

O-ring

Part #STD302011

The manufacturer no longer makes this part, and there's no substitute part

Wrench SGA-29
#35

Unit parts diagram

Wrench

Part #SGA-29

The manufacturer no longer makes this part, and there's no substitute part

Air Cap SGB-38
#2

Unit parts diagram

Air cap

Part #SGB-38

The manufacturer no longer makes this part, and there's no substitute part

Comp. Ring SS-8560
#27

Unit parts diagram

Comp. ring

Part #SS-8560

The manufacturer no longer makes this part, and there's no substitute part

Paint Sprayer Owner's Manual SI-2-43-1-F

#NI

All parts diagram

Paint sprayer owner's manual

Part #SI-2-43-1-F

The manufacturer no longer makes this part, and there's no substitute part
