Model # A519W Official Jenn-Air range accessories

Here are the diagrams and repair parts for Official Jenn-Air A519W range accessories, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |
Fluorescent Light 703597
#14

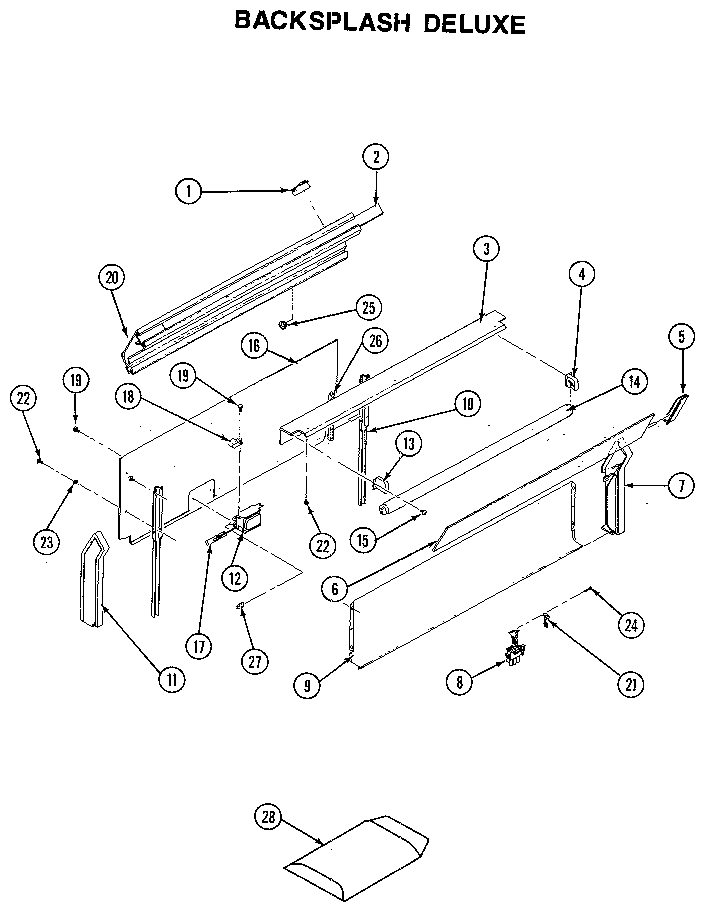

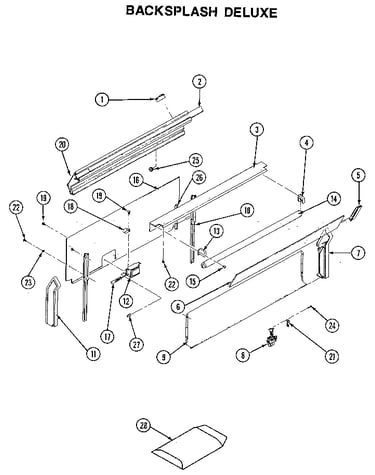

Backsplash deluxe diagram

Fluorescent light

Part #703597

Replaced by #WPY0067945

?
Manufacturer substitution
This part replaces 703597. Substitute parts can look different from the original.
$22.67
In Stock
Cable Tie 702105
#10A

Backsplash deluxe diagram

Cable tie

Part #702105

Replaced by #WPW10339879

?
Manufacturer substitution
This part replaces 702105. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw 708955
Screw

Part #708955

Replaced by #WP12990527

?
Manufacturer substitution
This part replaces 708955. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw 708360
#22

Backsplash deluxe diagram

Screw

Part #708360

Replaced by #WP74004005

?
Manufacturer substitution
This part replaces 708360. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Cap End Rh 703591
#7

Backsplash deluxe diagram

Cap end rh

Part #703591

The manufacturer no longer makes this part, and there's no substitute part

Socket Lt Rh 703599
#4

Backsplash deluxe diagram

Socket lt rh

Part #703599

The manufacturer no longer makes this part, and there's no substitute part

Screw 702976
#22A

Backsplash deluxe diagram

Screw

Part #702976

The manufacturer no longer makes this part, and there's no substitute part

Range Backsplash 703590
#9

Backsplash deluxe diagram

Range backsplash

Part #703590

The manufacturer no longer makes this part, and there's no substitute part

Trim Glass Panel 703601
#5

Backsplash deluxe diagram

Trim glass panel

Part #703601

The manufacturer no longer makes this part, and there's no substitute part

Grommet 703352
#26

Backsplash deluxe diagram

Grommet

Part #703352

The manufacturer no longer makes this part, and there's no substitute part
