Gas Walk-Behind Mower

Model # 917388834 Official Craftsman rotary lawn mower

Here are the diagrams and repair parts for Official Craftsman 917388834 rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 178 parts  |
Lock Nut 83923
#39

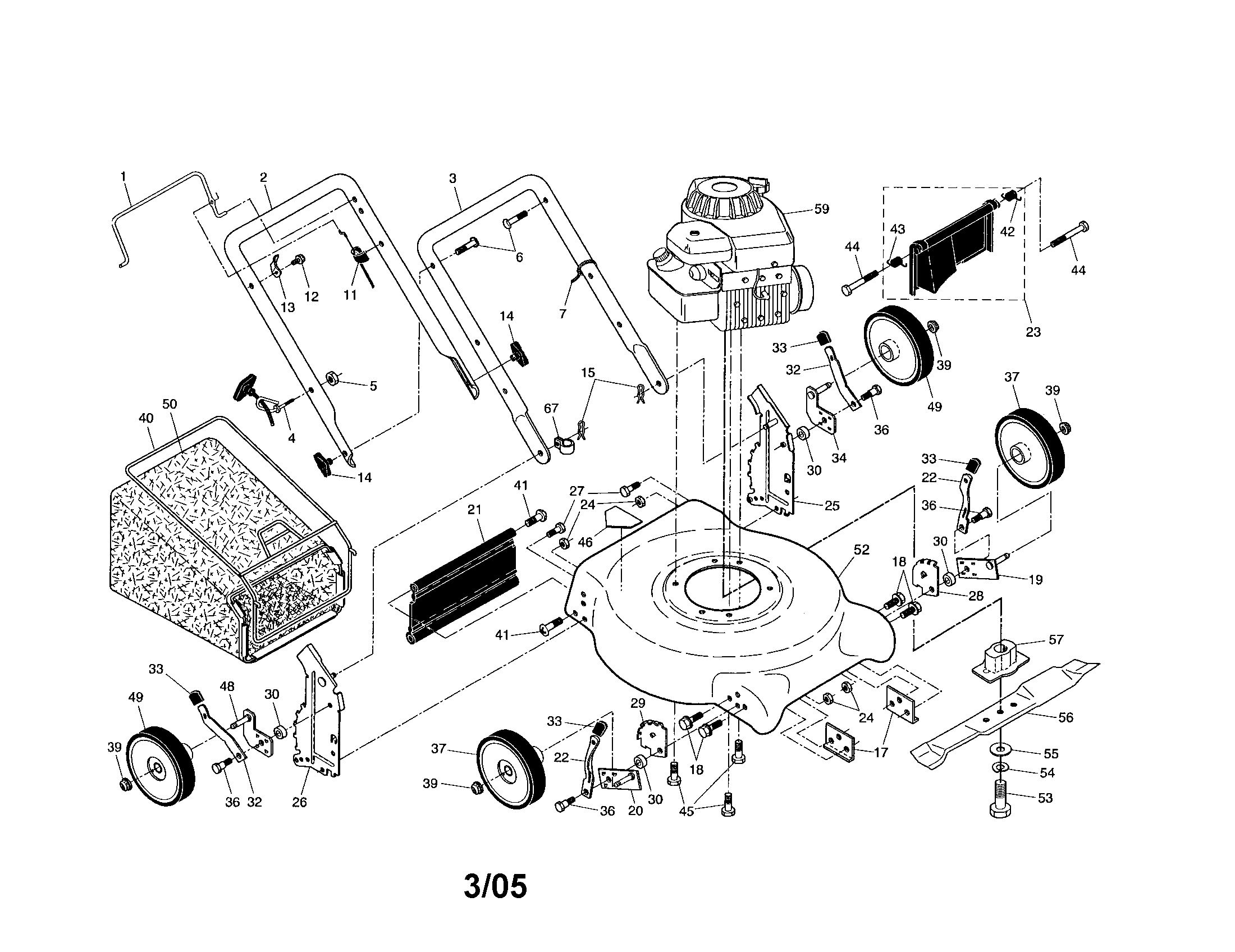

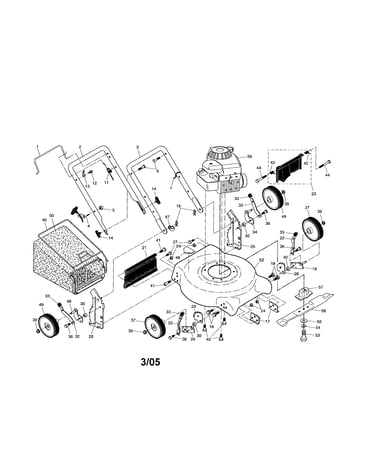

Engine/housing/handle/bag/wheels diagram

Lock nut

Part #83923

Replaced by #532409149

?
Manufacturer substitution
This part replaces 83923. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Hndl.knob.bl 189713X428
#14

Engine/housing/handle/bag/wheels diagram

Hndl.knob.bl

Part #189713X428

Replaced by #532185577

?
Manufacturer substitution
This part replaces 189713X428. Substitute parts can look different from the original.
BEST SELLER
$10.64 |
16% OFF Phone Price : $12.64
In Stock
Lawn Mower Wheel 193851X460
#49

Engine/housing/handle/bag/wheels diagram

Lawn mower wheel

Part #193851X460

Replaced by #532427026

?
Manufacturer substitution
This part replaces 193851X460. Substitute parts can look different from the original.
$17.31 |
10% OFF Phone Price : $19.31
In Stock
Lawn Mower Axle 186575X004
#48

Engine/housing/handle/bag/wheels diagram

Lawn mower axle

Part #186575X004

Replaced by #532186575

?
Manufacturer substitution
This part replaces 186575X004. Substitute parts can look different from the original.
$17.11
In Stock
Lawn & Garden Equipment Washer (replaces 532851074, 5328510-74) 851074
#55

Engine/housing/handle/bag/wheels diagram

Lawn & garden equipment washer (replaces 532851074, 5328510-74)

Part #851074

Replaced by #532851074

?
Manufacturer substitution
This part replaces 851074. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Lawn & Garden Equipment Screw 851084
#53

Engine/housing/handle/bag/wheels diagram

Lawn & garden equipment screw

Part #851084

Replaced by #532851084

?
Manufacturer substitution
This part replaces 851084. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Handle Bolt 191574
#6

Engine/housing/handle/bag/wheels diagram

Handle bolt

Part #191574

Replaced by #532191574

?
Manufacturer substitution
This part replaces 191574. Substitute parts can look different from the original.
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Lawn & Garden Equipment Hinge Screw 88652
#41

Engine/housing/handle/bag/wheels diagram

Lawn & garden equipment hinge screw

Part #88652

Replaced by #532088652

?
Manufacturer substitution
This part replaces 88652. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Walk-behind Lawn Mower Selector Knob 87877
#33

Engine/housing/handle/bag/wheels diagram

Walk-behind lawn mower selector knob

Part #87877

Replaced by #532087877

?
Manufacturer substitution
This part replaces 87877. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Gbag.2251113 194349
#50

Engine/housing/handle/bag/wheels diagram

Gbag.2251113

Part #194349

Replaced by #532410666

?
Manufacturer substitution
This part replaces 194349. Substitute parts can look different from the original.
$66.54 |
8% OFF Phone Price : $72.54
In Stock
