Model # 9174360-37 Official Craftsman transaxle

Here are the diagrams and repair parts for Official Craftsman 9174360-37 transaxle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |
Bolt 2274J
#2

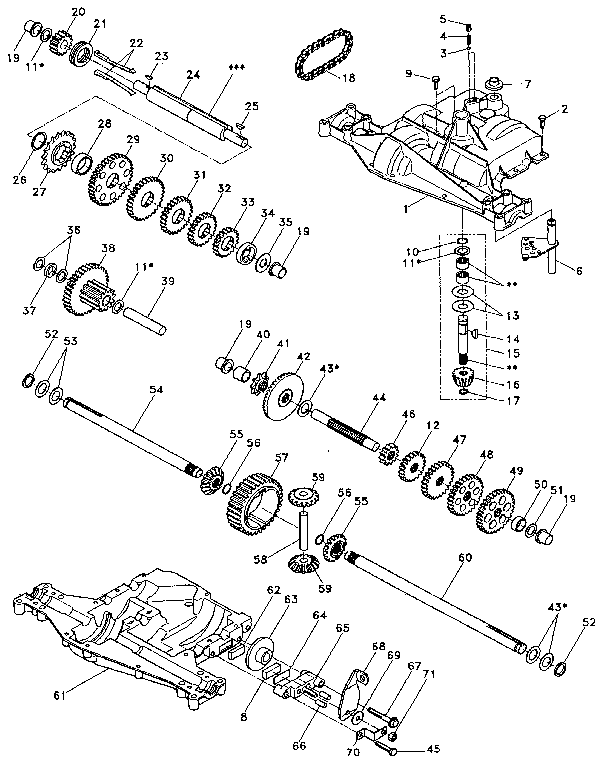

Transaxle diagram

Bolt

Part #2274J

The manufacturer no longer makes this part, and there's no substitute part

Washer 105925X
#35

Transaxle diagram

Washer

Part #105925X

Replaced by #583647501

?
Manufacturer substitution
This part replaces 105925X. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Flat Head Rivet 134798
#61

Transaxle diagram

Flat head rivet

Part #134798

Replaced by #582997301

?
Manufacturer substitution
This part replaces 134798. Substitute parts can look different from the original.
$272.69
In Stock
Washer 2226J
#51

Transaxle diagram

Washer

Part #2226J

Replaced by #583728901

?
Manufacturer substitution
This part replaces 2226J. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Tractor Accessories Ring 2267J
#10

Transaxle diagram

Tractor accessories ring

Part #2267J

Replaced by #812000028

?
Manufacturer substitution
This part replaces 2267J. Substitute parts can look different from the original.
This item is not returnable
$5.00 |
17% OFF Phone Price : $6.00
In Stock
Gear 12t 105933X
#46

Transaxle diagram

Gear 12t

Part #105933X

Replaced by #583656701

?
Manufacturer substitution
This part replaces 105933X. Substitute parts can look different from the original.
$70.64
In Stock
Washer 108996X
#69

Transaxle diagram

Washer

Part #108996X

Replaced by #583657101

?
Manufacturer substitution
This part replaces 108996X. Substitute parts can look different from the original.
$10.26
In Stock
Sprocket 120470X
#27

Transaxle diagram

Sprocket

Part #120470X

Replaced by #532120470

?
Manufacturer substitution
This part replaces 120470X. Substitute parts can look different from the original.
$34.04
In Stock
Washer 2264J
#53

Transaxle diagram

Washer

Part #2264J

Replaced by #583729701

?
Manufacturer substitution
This part replaces 2264J. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Disc 7294J
#63

Transaxle diagram

Disc

Part #7294J

The manufacturer no longer makes this part, and there's no substitute part
