Model # MSY-GE15NA-8 Official Mitsubishi split-type air conditioner

Here are the diagrams and repair parts for Official Mitsubishi MSY-GE15NA-8 split-type air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |
Varistor E12B75385
#14

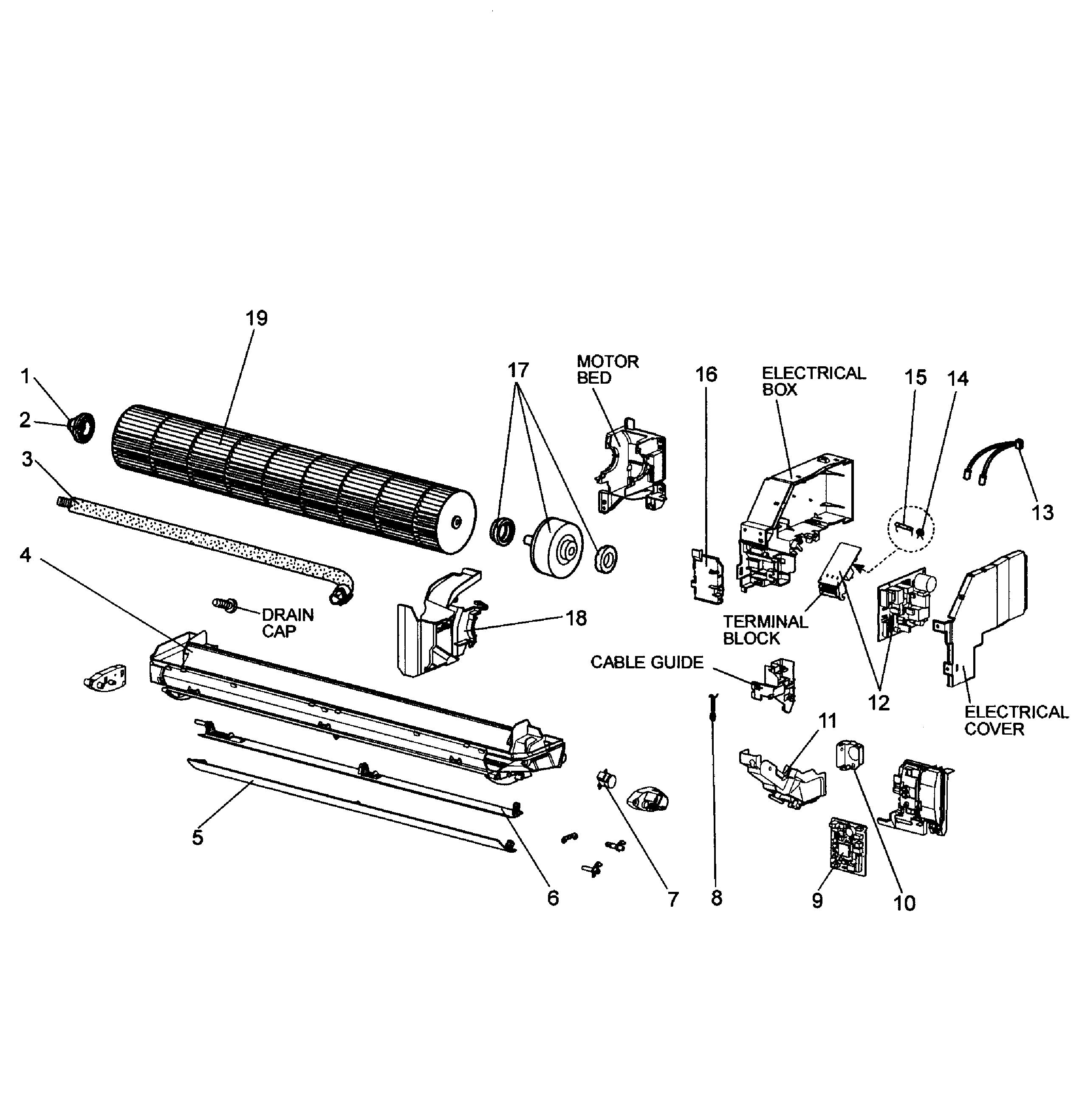

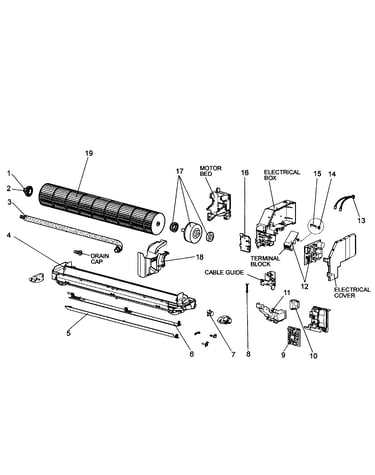

Fan assy diagram

Varistor

Part #E12B75385

The manufacturer no longer makes this part, and there's no substitute part

V A Clamp E12E79784
#16

Fan assy diagram

V a clamp

Part #E12E79784

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Wall Installation Plate E12D68970
#8

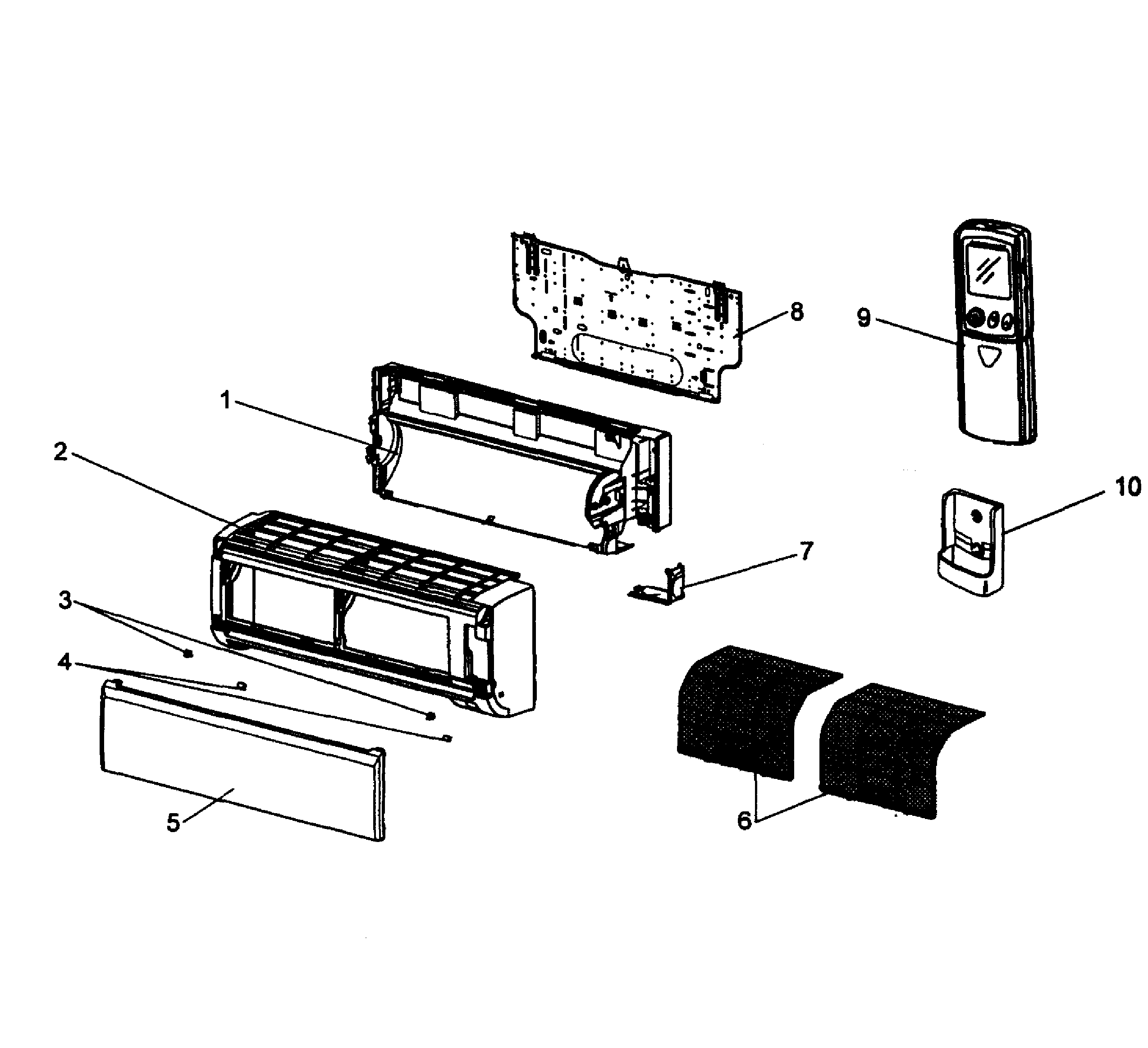

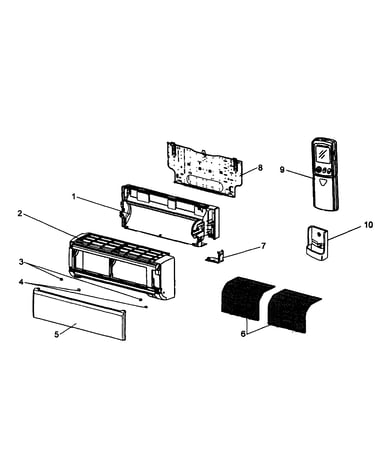

Cabinet parts diagram

Room air conditioner wall installation plate

Part #E12D68970

The manufacturer no longer makes this part, and there's no substitute part

Fuse E12A49382
#15

Fan assy diagram

Fuse

Part #E12A49382

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Anti-allergy Air Filter MAC-408FT-E
#NI

Cabinet parts diagram

Room air conditioner anti-allergy air filter

Part #MAC-408FT-E

The manufacturer no longer makes this part, and there's no substitute part

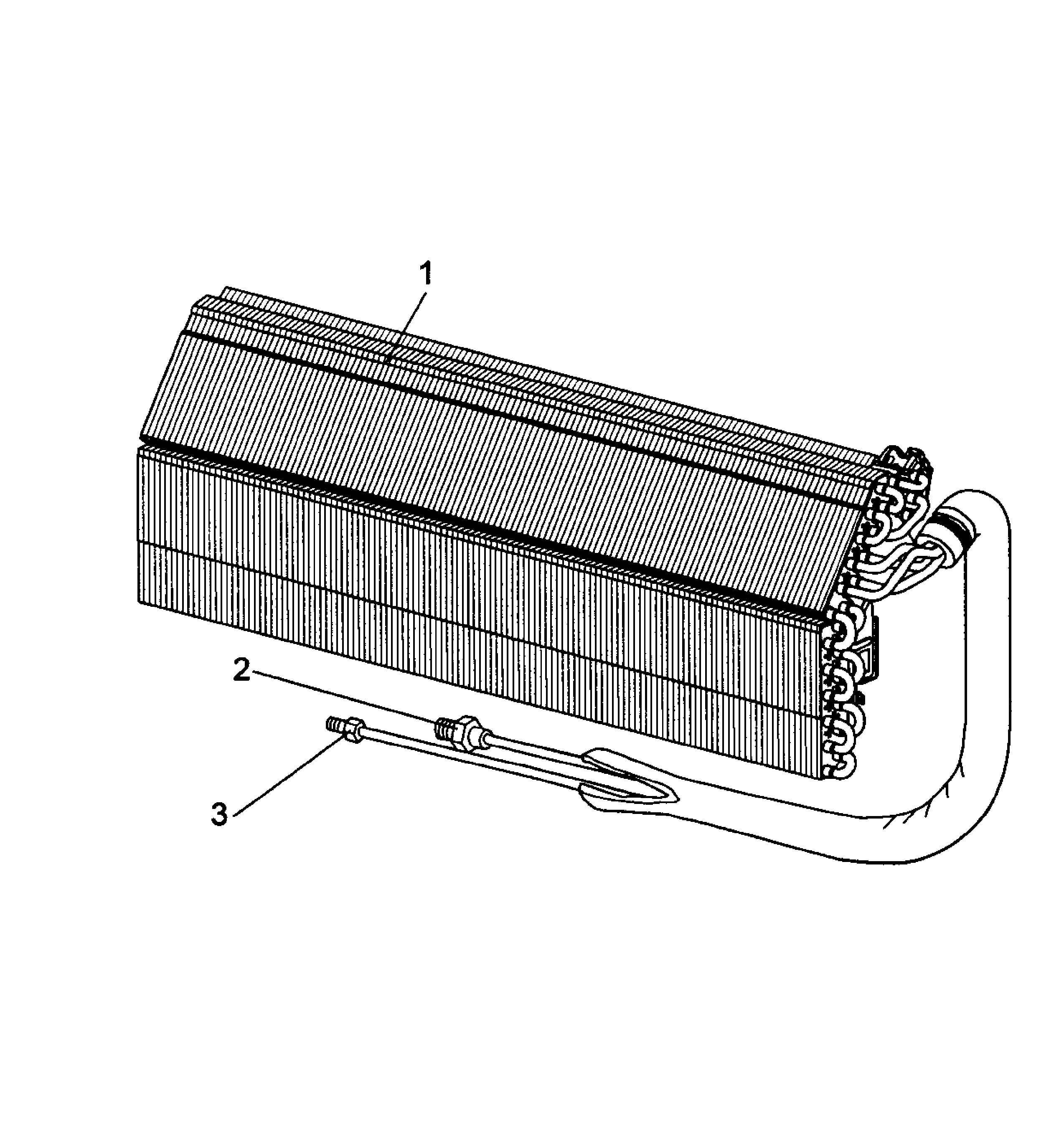

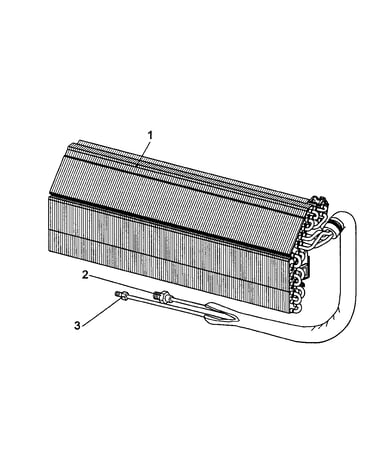

Central Air Conditioner Evaporator Coil Housing E12D68234
#1

Cabinet parts diagram

Central air conditioner evaporator coil housing

Part #E12D68234

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Front Panel E12E79010
#5

Cabinet parts diagram

Room air conditioner front panel

Part #E12E79010

The manufacturer no longer makes this part, and there's no substitute part

Mitsubishi Pc Board E12G48452
#9

Fan assy diagram

Mitsubishi pc board

Part #E12G48452

The manufacturer no longer makes this part, and there's no substitute part

Vane, Lower E12D68041
#6

Fan assy diagram

Vane, lower

Part #E12D68041

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Remote Control E12E83426
#9

Cabinet parts diagram

Room air conditioner remote control

Part #E12E83426

The manufacturer no longer makes this part, and there's no substitute part
