Fisher & Paykel
Washer

Model # WL37T26DW2-96113A Official Fisher & Paykel washer

Here are the diagrams and repair parts for Official Fisher & Paykel WL37T26DW2-96113A washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

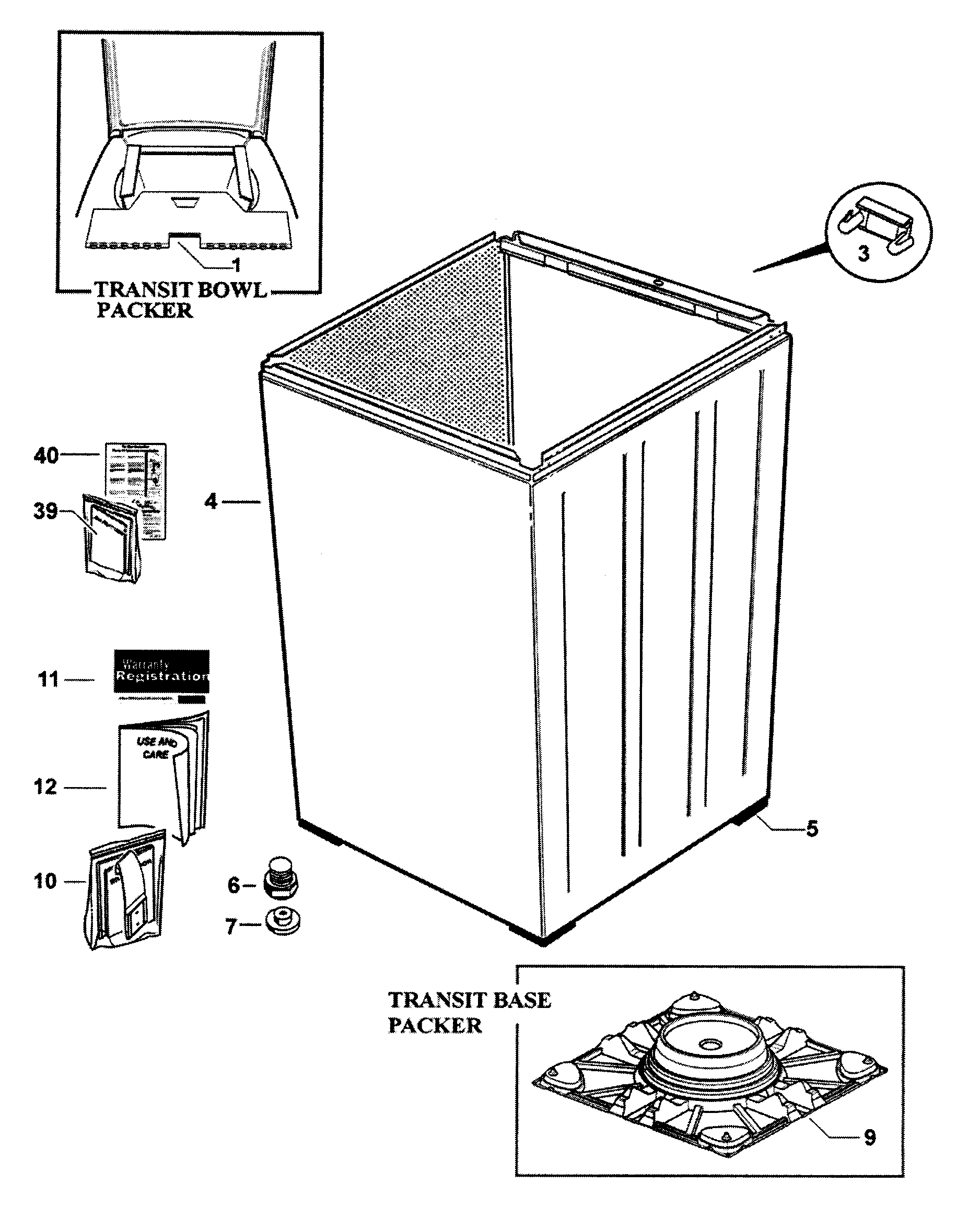

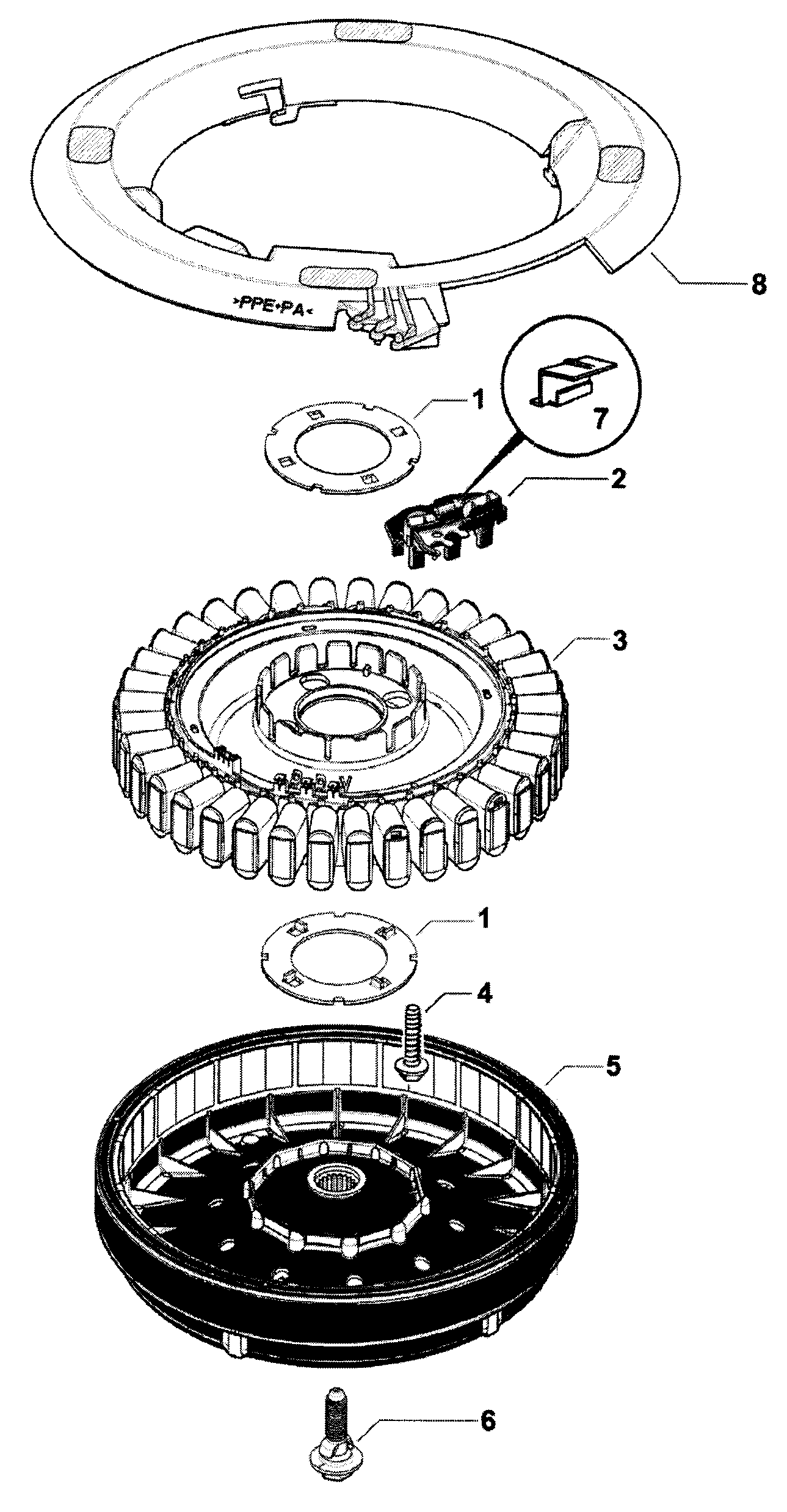

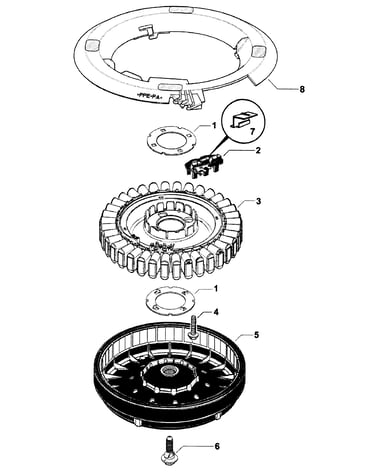

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |
Fisher & Paykel Washer Tub Fill Nozzle Elbow 425974P
#33

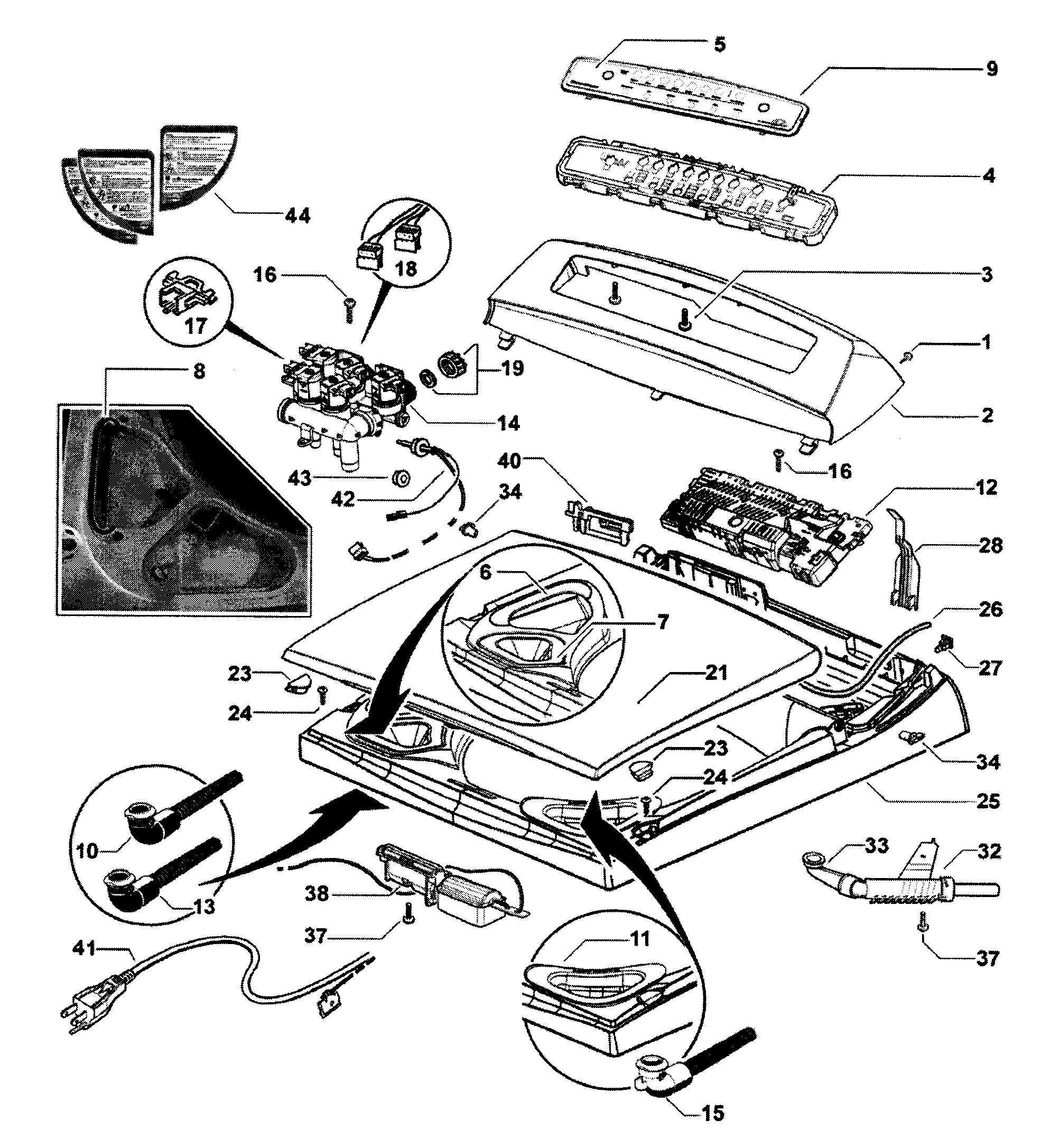

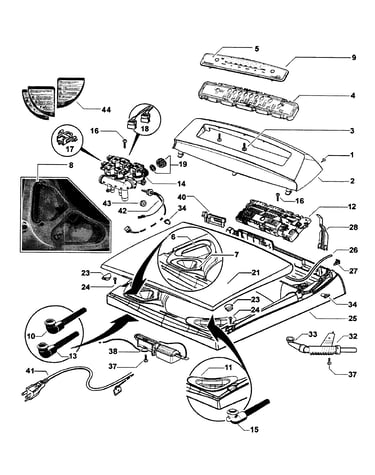

Top assy diagram

Fisher & paykel washer tub fill nozzle elbow

Part #425974P

This item is not returnable
$26.49 |
18% OFF Phone Price : $32.49
In Stock
Fisher & Paykel Washer Tub Fill Nozzle 420833P
#32

Top assy diagram

Fisher & paykel washer tub fill nozzle

Part #420833P

$55.45 |
10% OFF Phone Price : $61.45
In Stock
Fisher & Paykel Washer Agitator Cap And Bolt 421040P
#5

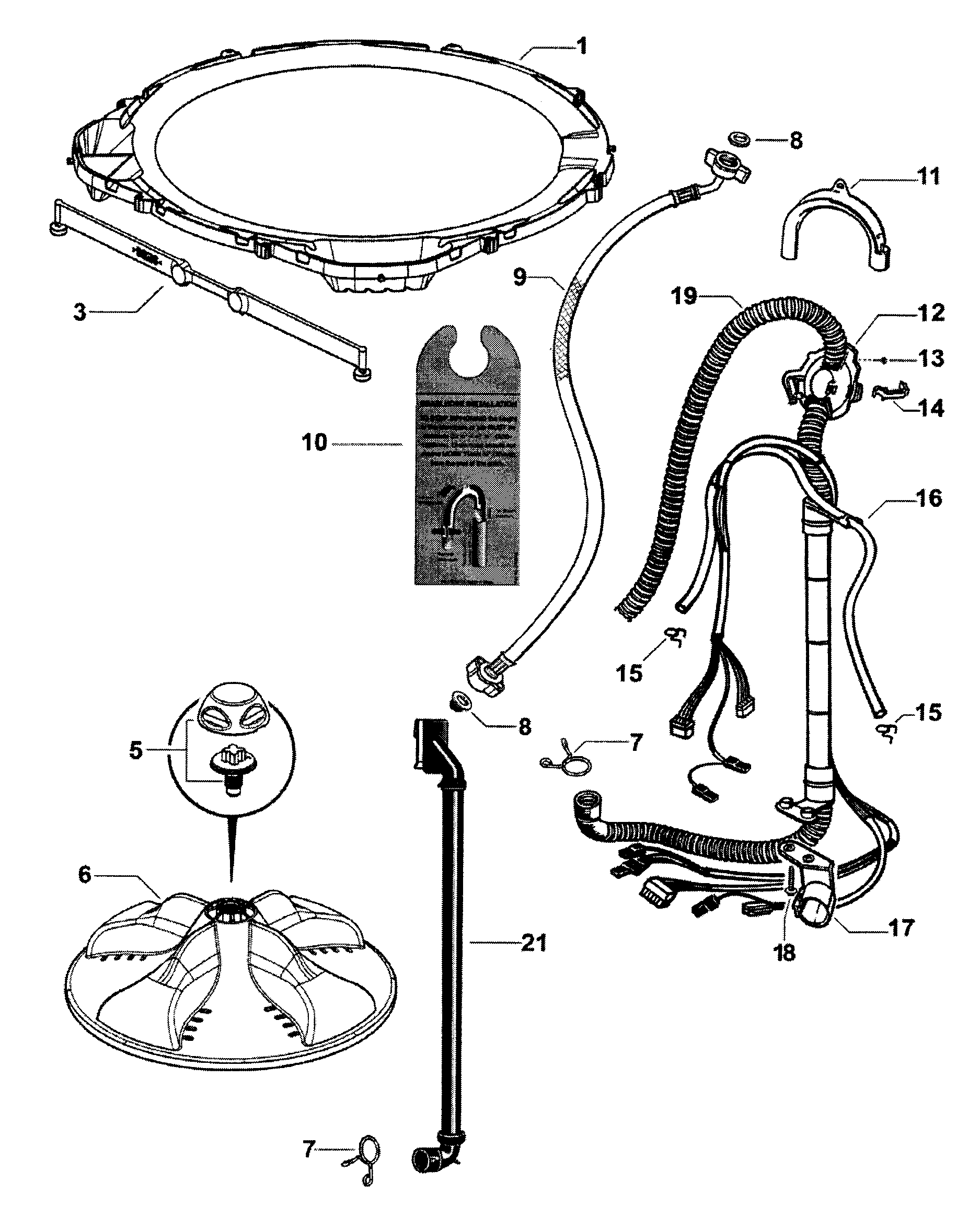

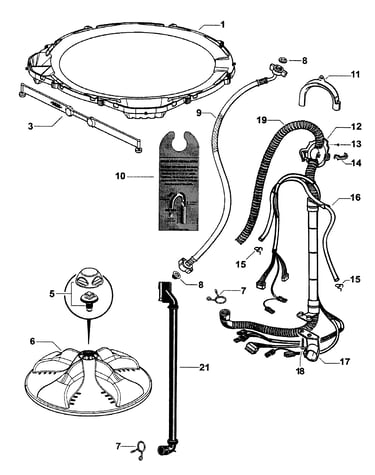

Agitator diagram

Fisher & paykel washer agitator cap and bolt

Part #421040P

This item is not returnable
$22.91 |
21% OFF Phone Price : $28.91
In Stock
Fisher & Paykel Buffer Lid 426793P
#23

Top assy diagram

Fisher & paykel buffer lid

Part #426793P

$9.49
In Stock
Neck Ring 421041
#1

Agitator diagram

Neck ring

Part #421041

$107.19 |
10% OFF Phone Price : $119.19
In Stock
Fisher & Paykel Washer Drain Pump Bellows O-ring 425149
#13

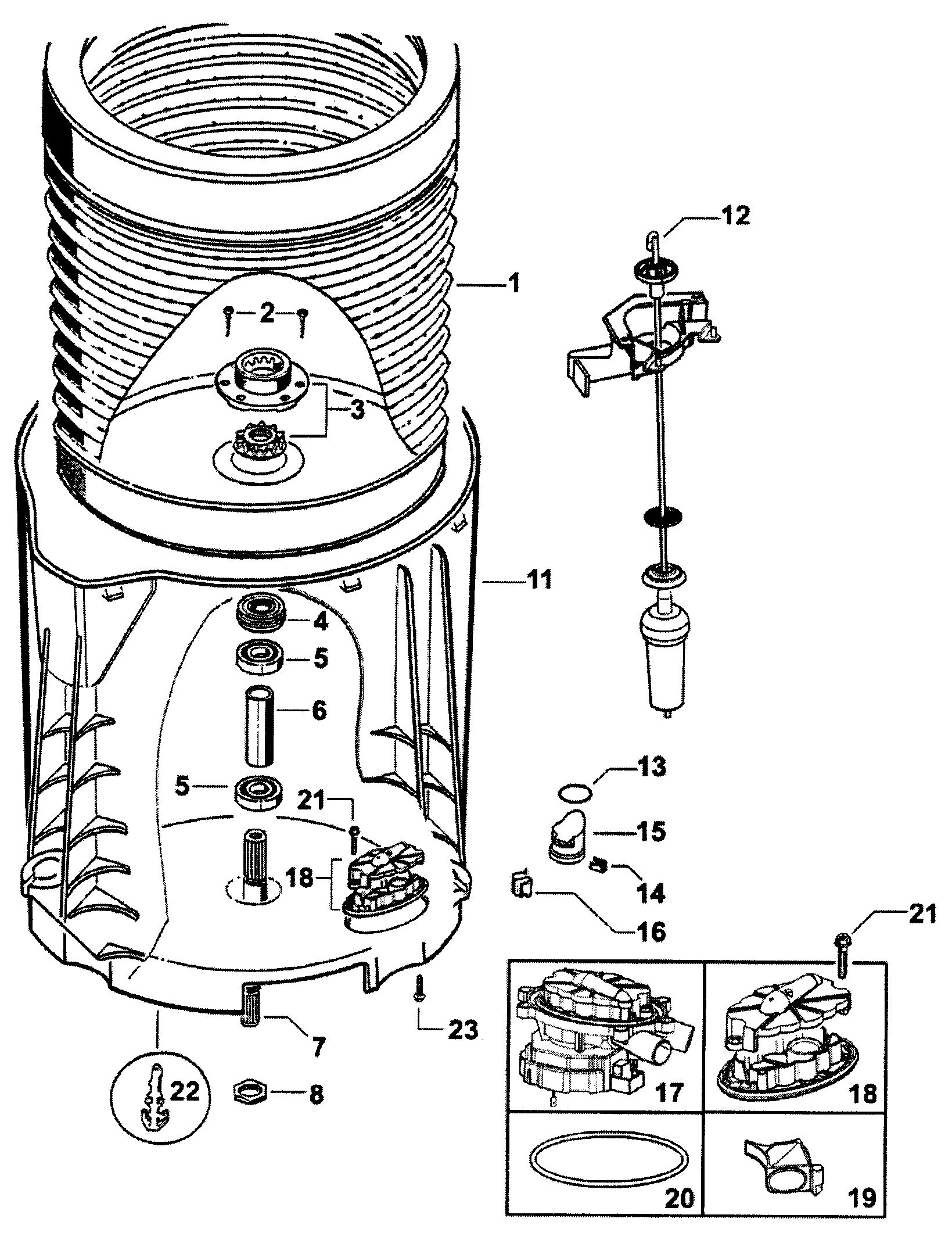

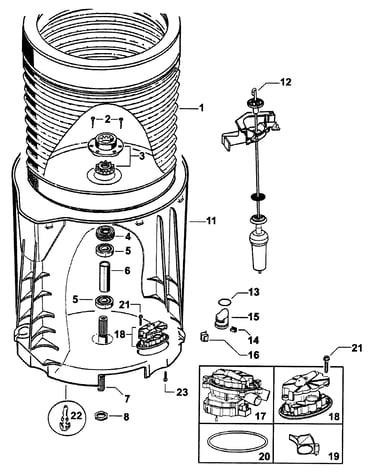

Bowls/pump diagram

Fisher & paykel washer drain pump bellows o-ring

Part #425149

$15.49 |
11% OFF Phone Price : $17.49
In Stock
Recirculation Hose 420514
#21

Agitator diagram

Recirculation hose

Part #420514

Replaced by #420514P

?
Manufacturer substitution
This part replaces 420514. Substitute parts can look different from the original.
$26.84 |
18% OFF Phone Price : $32.84
In Stock
Fisher & Paykel Fisher & Paykel Panel 478151
#5

Top assy diagram

Fisher & paykel fisher & paykel panel

Part #478151

$38.22 |
14% OFF Phone Price : $44.22
In Stock
Fisher & Paykel Fascia Display Aqs Led 421082
Fisher & paykel fascia display aqs led

Part #421082

$30.33 |
17% OFF Phone Price : $36.33
In Stock
Washer Hose Clamp 420677
#7

Agitator diagram

Washer hose clamp

Part #420677

This item is not returnable
$6.49
In Stock
