Bosch
Electric Wall Oven

Model # HBN446AUC/01 Official Bosch electric built-in oven

Here are the diagrams and repair parts for Official Bosch HBN446AUC-01 electric built-in oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 135 parts  |
Oven Bulb 420228
#420228

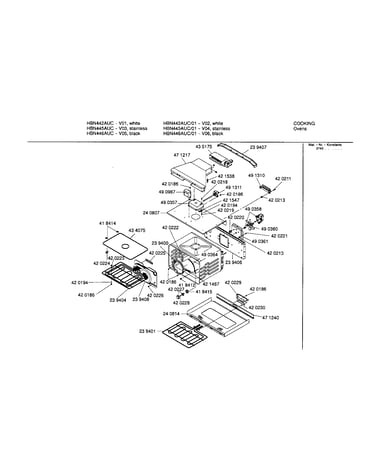

Cavity diagram

Oven bulb

Part #420228

Replaced by #00189351

?
Manufacturer substitution
This part replaces 420228. Substitute parts can look different from the original.
$25.79 |
19% OFF Phone Price : $31.79
In Stock
Decorative Strip 471240
#471240

Cavity diagram

Decorative strip

Part #471240

The manufacturer no longer makes this part, and there's no substitute part

Oven Handle 239464
#239464

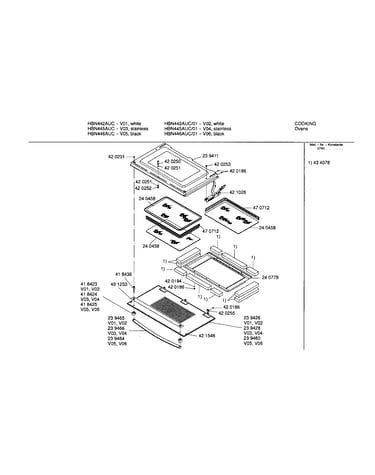

Door diagram

Oven handle

Part #239464

The manufacturer no longer makes this part, and there's no substitute part

Cap 421020
#421020

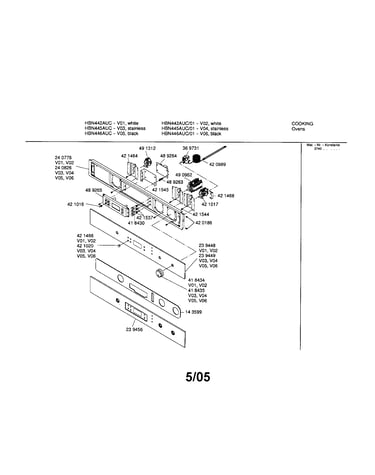

Fascia panel diagram

Cap

Part #421020

The manufacturer no longer makes this part, and there's no substitute part

Heat Element 239401
#239401

Cavity diagram

Heat element

Part #239401

The manufacturer no longer makes this part, and there's no substitute part

Oven Lens 420227
#420227

Cavity diagram

Oven lens

Part #420227

The manufacturer no longer makes this part, and there's no substitute part

Door Seal 239406
Door seal

Part #239406

The manufacturer no longer makes this part, and there's no substitute part

Oven Door 418436
#418436

Door diagram

Oven door

Part #418436

The manufacturer no longer makes this part, and there's no substitute part

Cover, L 240811
#240811

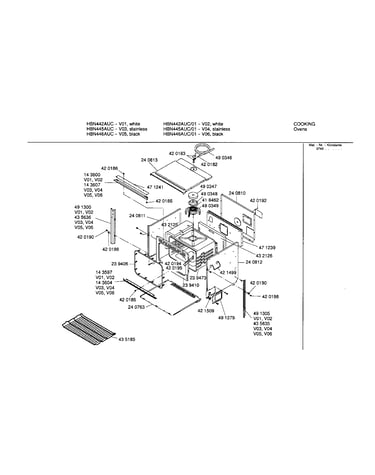

Body diagram

Cover, l

Part #240811

The manufacturer no longer makes this part, and there's no substitute part

Nut 420209
#420209

Internal top panel diagram

Nut

Part #420209

The manufacturer no longer makes this part, and there's no substitute part
