Model # 291376011 Official Craftsman 16" hand lawn mower

Here are the diagrams and repair parts for Official Craftsman 291376011 16" hand lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 35 parts  |

Lawn Mower Ball Bearing 30137
#2

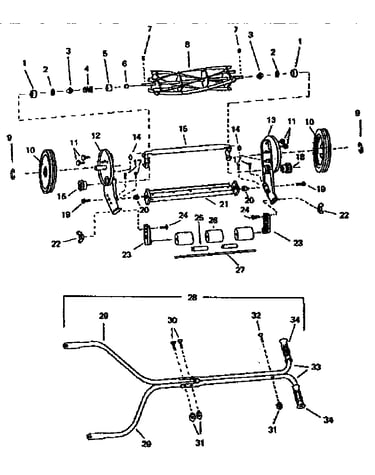

Replacement parts diagram

Lawn mower ball bearing

Part #30137

The manufacturer no longer makes this part, and there's no substitute part

Torsion Bar 30610-2-10
#15

Replacement parts diagram

Torsion bar

Part #30610-2-10

The manufacturer no longer makes this part, and there's no substitute part

Wing Nut 30643
#22

Replacement parts diagram

Wing nut

Part #30643

The manufacturer no longer makes this part, and there's no substitute part

Cutter Bar Stud 30519
#20

Replacement parts diagram

Cutter bar stud

Part #30519

The manufacturer no longer makes this part, and there's no substitute part

Hndl As Comp 10205-2
#28

Replacement parts diagram

Hndl as comp

Part #10205-2

The manufacturer no longer makes this part, and there's no substitute part

Handle Bolt 30112-2
#30

Replacement parts diagram

Handle bolt

Part #30112-2

The manufacturer no longer makes this part, and there's no substitute part

Reel Spacer 30307
#6

Replacement parts diagram

Reel spacer

Part #30307

The manufacturer no longer makes this part, and there's no substitute part

Handle Section 30082-3
#29

Replacement parts diagram

Handle section

Part #30082-3

The manufacturer no longer makes this part, and there's no substitute part

Plate 10102-40
#13

Replacement parts diagram

Plate

Part #10102-40

The manufacturer no longer makes this part, and there's no substitute part

Plate 10102-41
#12

Replacement parts diagram

Plate

Part #10102-41

The manufacturer no longer makes this part, and there's no substitute part
