Frigidaire
Electric Cooktop

Model # FPIC3077RFC Official Frigidaire frigidaire/cooktop

Here are the diagrams and repair parts for Official Frigidaire FPIC3077RFC frigidaire/cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

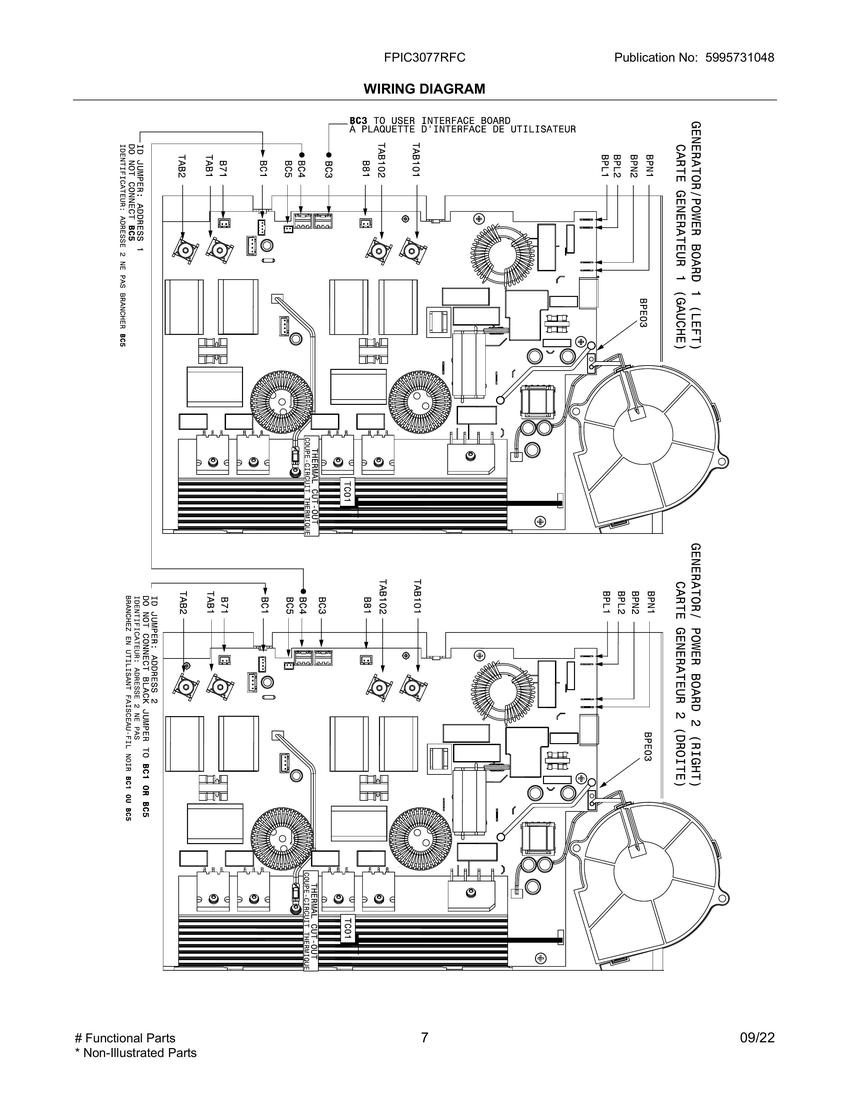

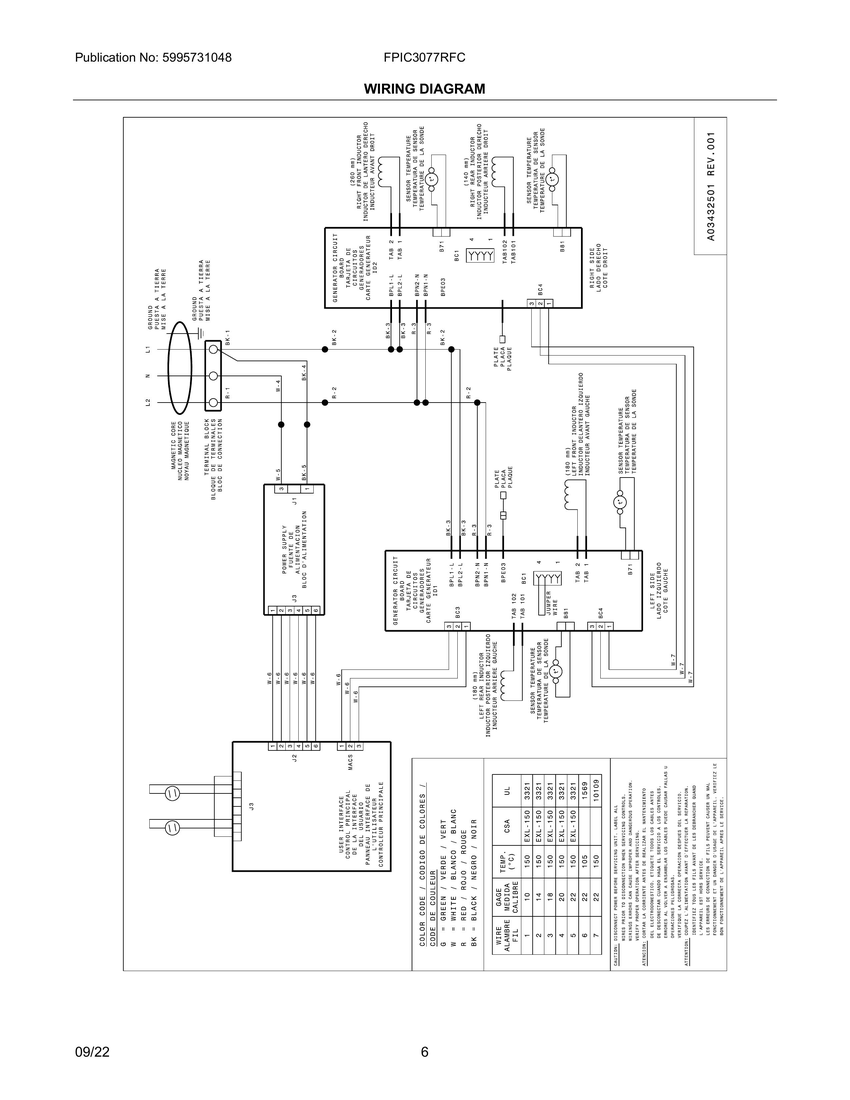

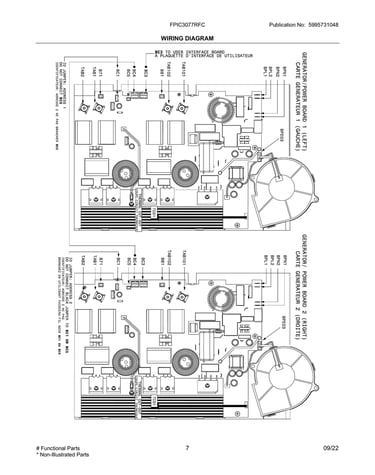

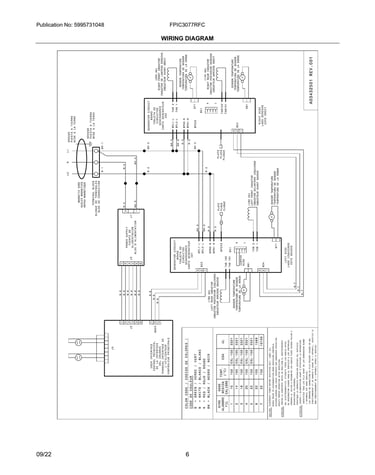

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |
Element,induction Coil ,180 Mm 357226364
#15A

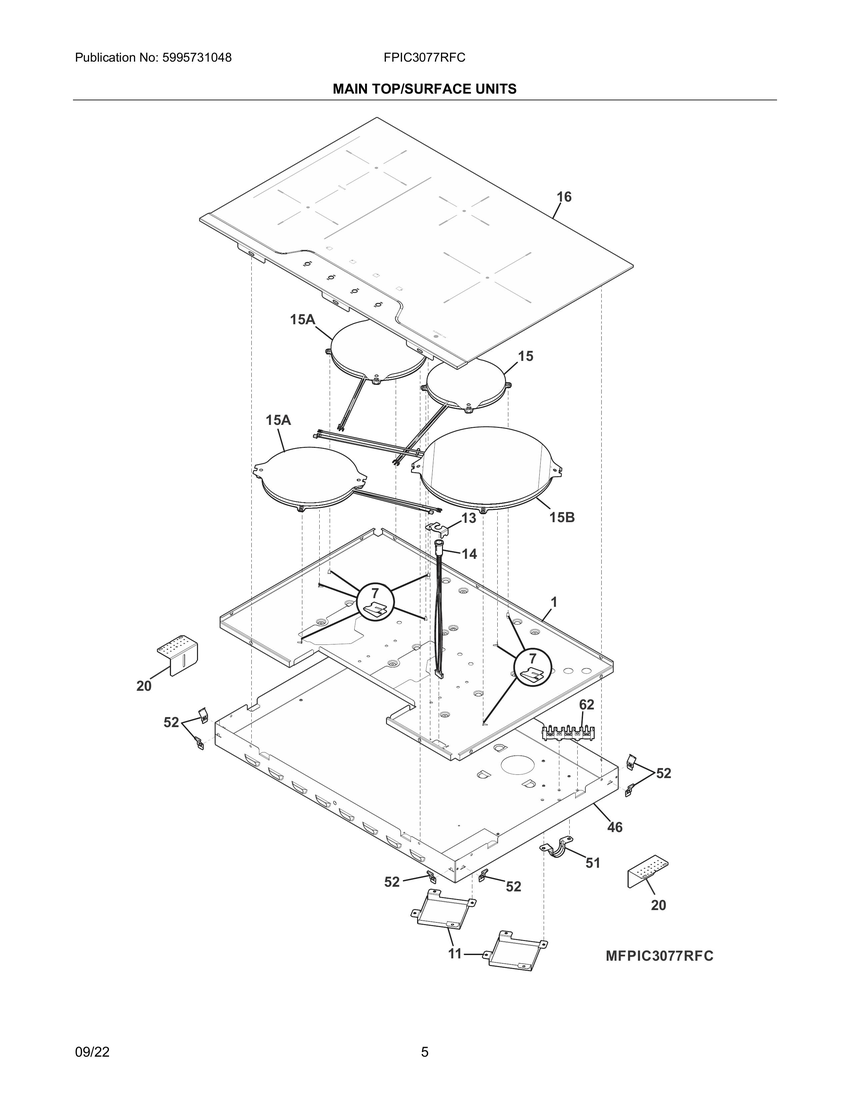

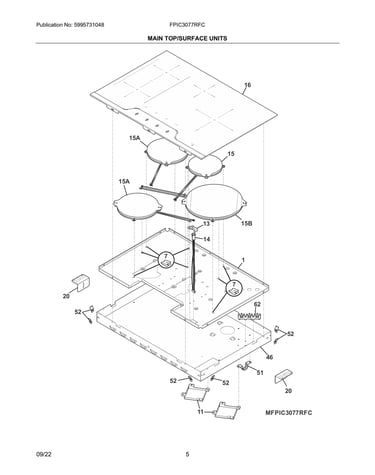

Maintop/surface units|mfpic3077rfc.svg diagram

Element,induction coil ,180 mm

Part #357226364

$111.20
In Stock
Range Nut 316247700
#34

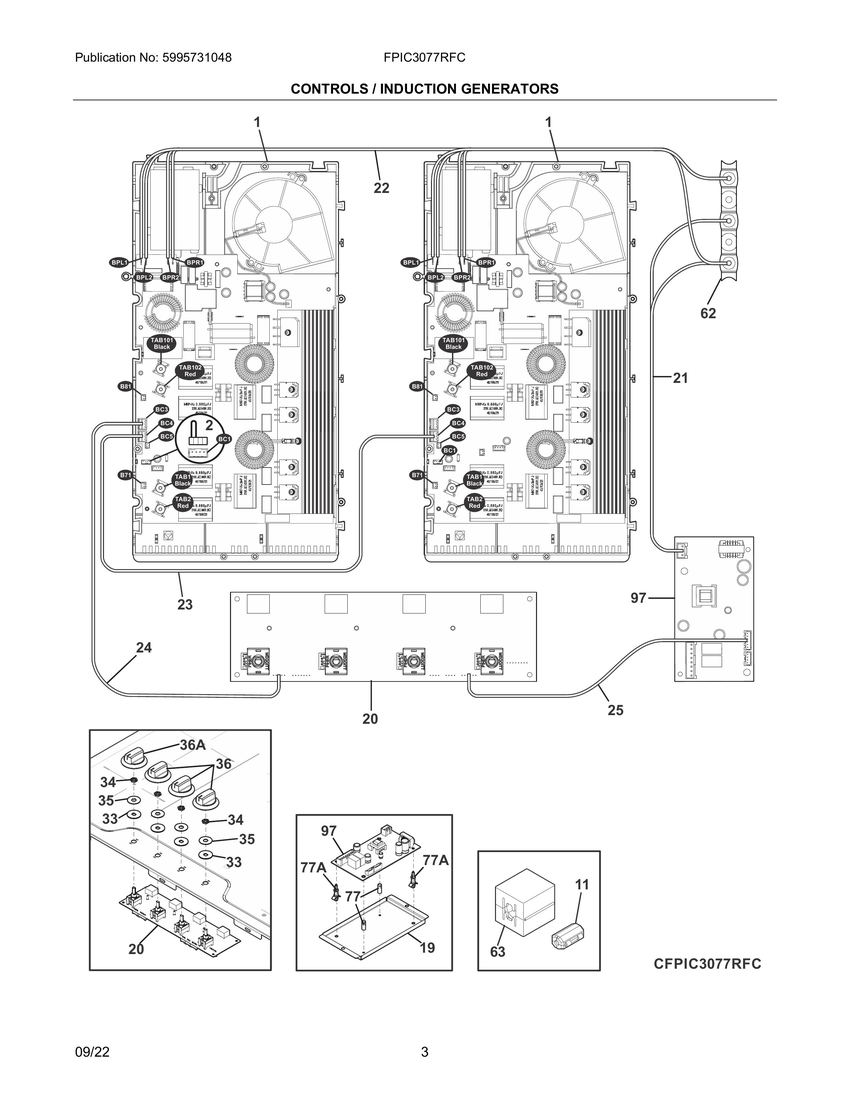

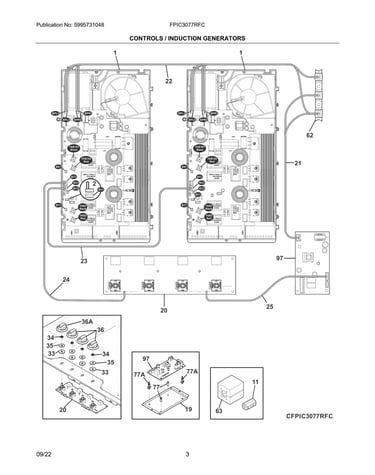

Controls/induct generators|cfpic3077rfc.svg diagram

Range nut

Part #316247700

This item is not returnable
$16.77
In Stock
Box,protection ,smps1 5304506069
#19

Controls/induct generators|cfpic3077rfc.svg diagram

Box,protection ,smps1

Part #5304506069

$9.97
In Stock
Harness,wiring ,ui Board ,to Lh Zone 5304506072
#24

Controls/induct generators|cfpic3077rfc.svg diagram

Harness,wiring ,ui board ,to lh zone

Part #5304506072

$10.80
In Stock
Range Screw, 8 X 5/8-in 3131048
#NI

Maintop/surface units|mfpic3077rfc.svg diagram

Range screw, 8 x 5/8-in

Part #3131048

$21.71
In Stock
Cooktop Power Control Board 808844401
#97

Controls/induct generators|cfpic3077rfc.svg diagram

Cooktop power control board

Part #808844401

This item is not returnable
$159.70 |
7% OFF Phone Price : $171.70
In Stock
Range Power Control Board Support 316114100
#77A

Controls/induct generators|cfpic3077rfc.svg diagram

Range power control board support

Part #316114100

$52.42 |
10% OFF Phone Price : $58.42
In Stock
Element,induction Coil ,140 Mm 357226265
#15

Maintop/surface units|mfpic3077rfc.svg diagram

Element,induction coil ,140 mm

Part #357226265

$105.04
In Stock
Knob,control ,dual 5304506075
#36A

Controls/induct generators|cfpic3077rfc.svg diagram

Knob,control ,dual

Part #5304506075

$75.13
In Stock
Cooktop Centering Spring 387174602
#52

Maintop/surface units|mfpic3077rfc.svg diagram

Cooktop centering spring

Part #387174602

This item is not returnable
$6.63
In Stock
