Model # GCWP1005M2CC Official GE washer
Here are the diagrams and repair parts for Official GE GCWP1005M2CC washer, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
GCWP1005M2CC Washer
#300

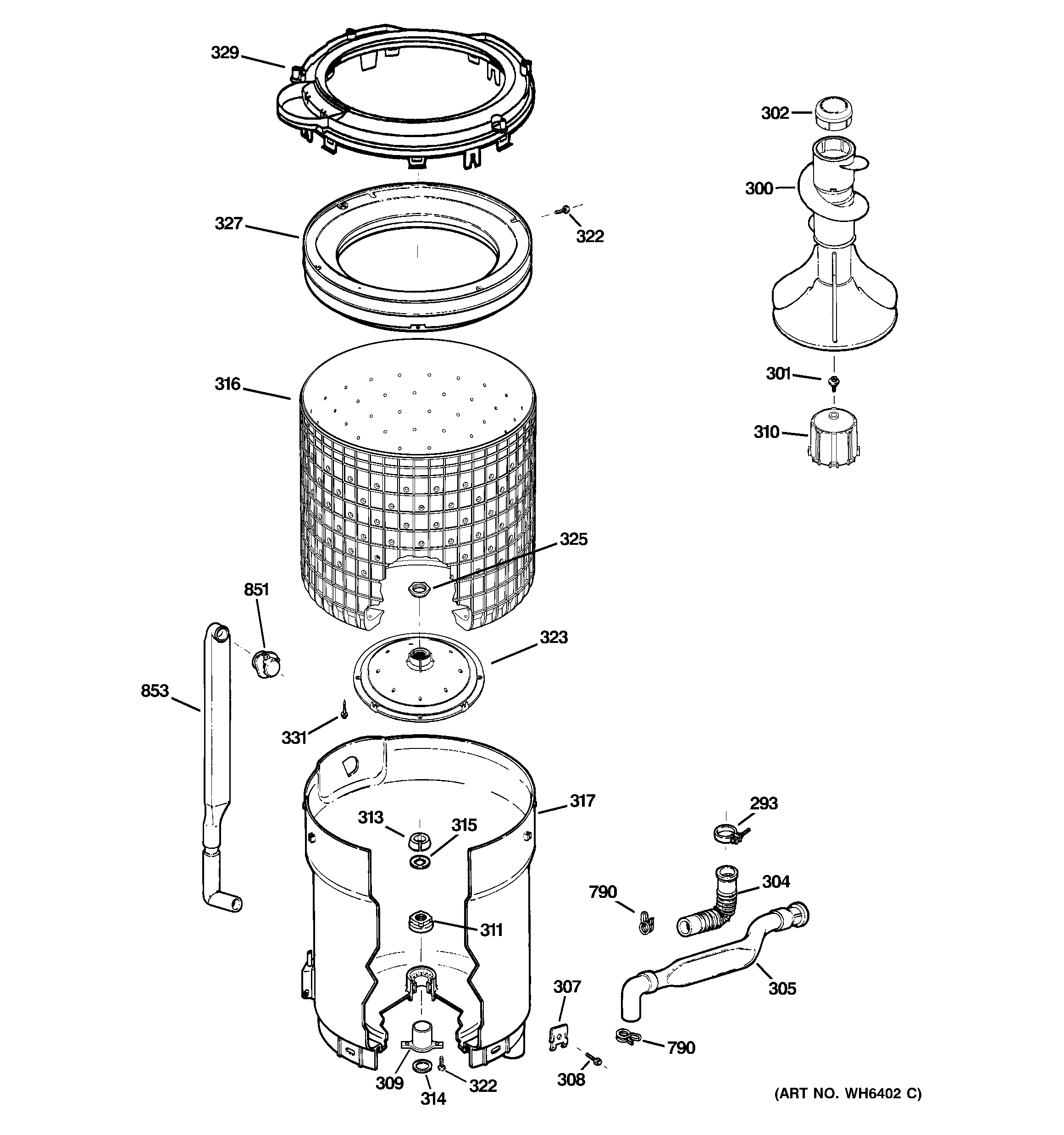

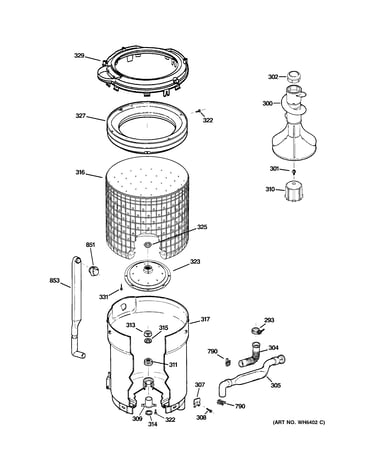

Tub, basket & agitator diagram
Washer agitator (replaces wh43x25442)
Part #WH43X10034
$57.86 |
9% OFF Phone Price : $63.86
In Stock
#388

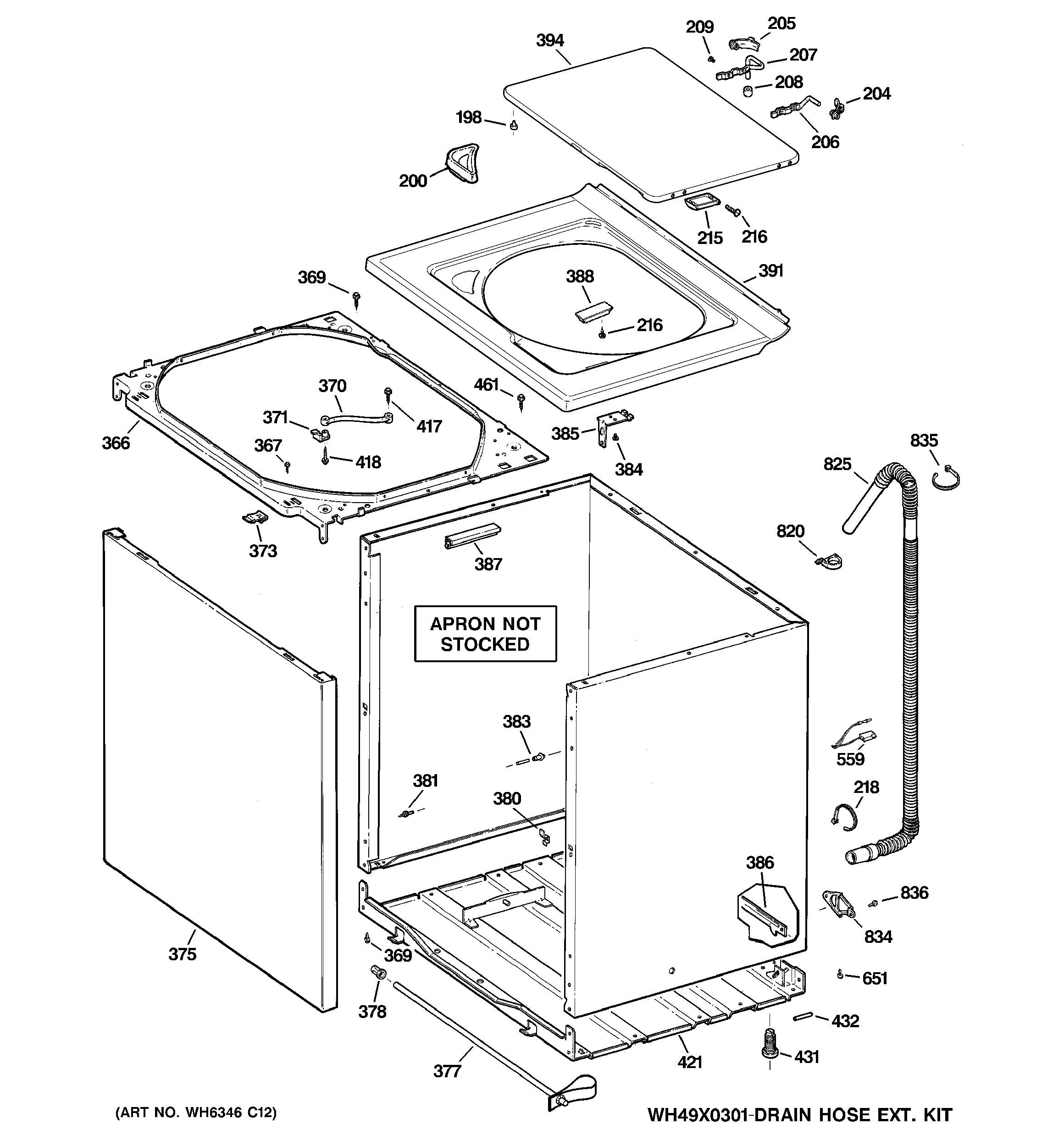

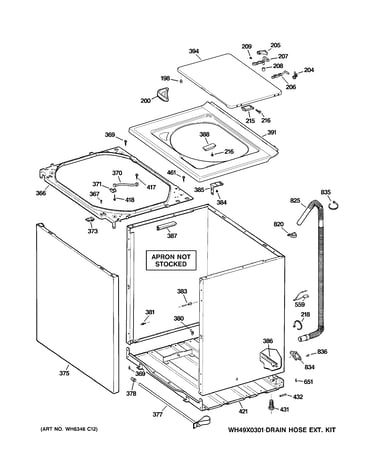

Cabinet, cover & front panel diagram
Washer lid switch assembly
Part #WH12X10334
$34.95 |
15% OFF Phone Price : $40.95
In Stock
#310
Tub, basket & agitator diagram
Washer agitator coupler
Part #WH43X10032
$24.86 |
19% OFF Phone Price : $30.86
In Stock
#630

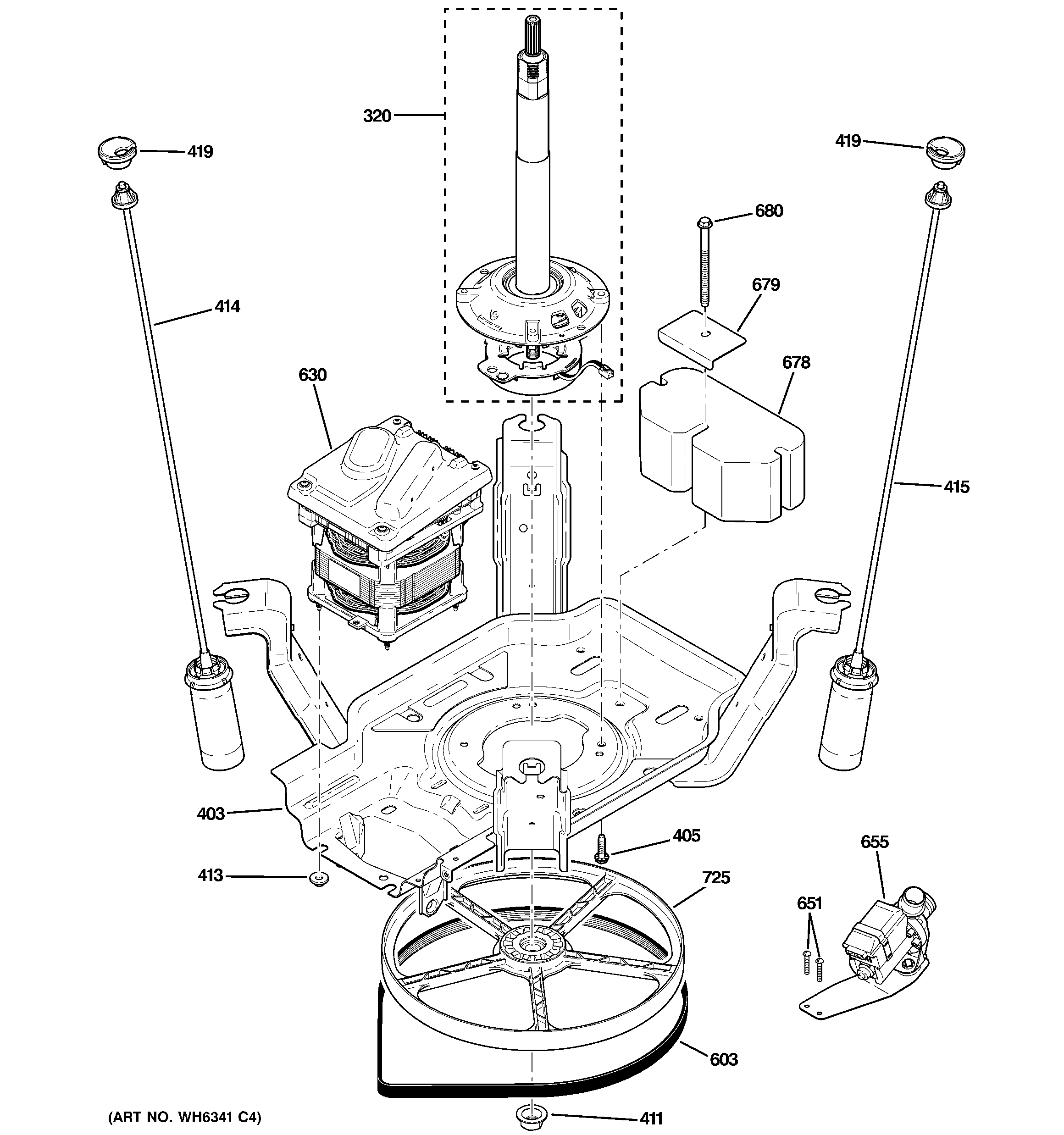

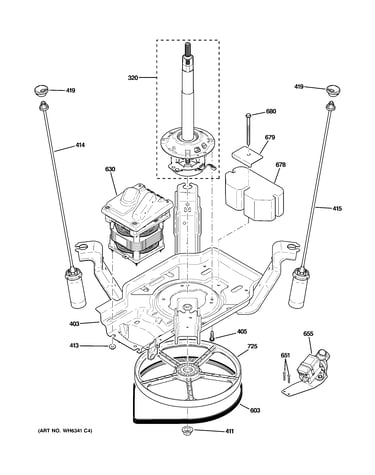

Suspension, pump & drive components diagram
Motor assembly
Part #WH20X10057
The manufacturer no longer makes this part, and there's no substitute part
#655
Suspension, pump & drive components diagram
Washer drain pump assembly
Part #WH23X10013
Replaced by #WH23X10030
?
Manufacturer substitution
This part replaces WH23X10013. Substitute parts can look different from the original.
$58.79 |
9% OFF Phone Price : $64.79
In Stock
#370
Cabinet, cover & front panel diagram
Strap dampng
Part #WH01X10046
Replaced by #WH1X2727
?
Manufacturer substitution
This part replaces WH01X10046. Substitute parts can look different from the original.
$30.67 |
16% OFF Phone Price : $36.67
In Stock
#725
Suspension, pump & drive components diagram
Washer drive pulley (replaces wh07x10018)
Part #WH07X10019
$75.82 |
7% OFF Phone Price : $81.82
In Stock
#301
Tub, basket & agitator diagram
Washer screw
Part #WH02X10237
$7.88 |
11% OFF Phone Price : $8.88
In Stock
#805

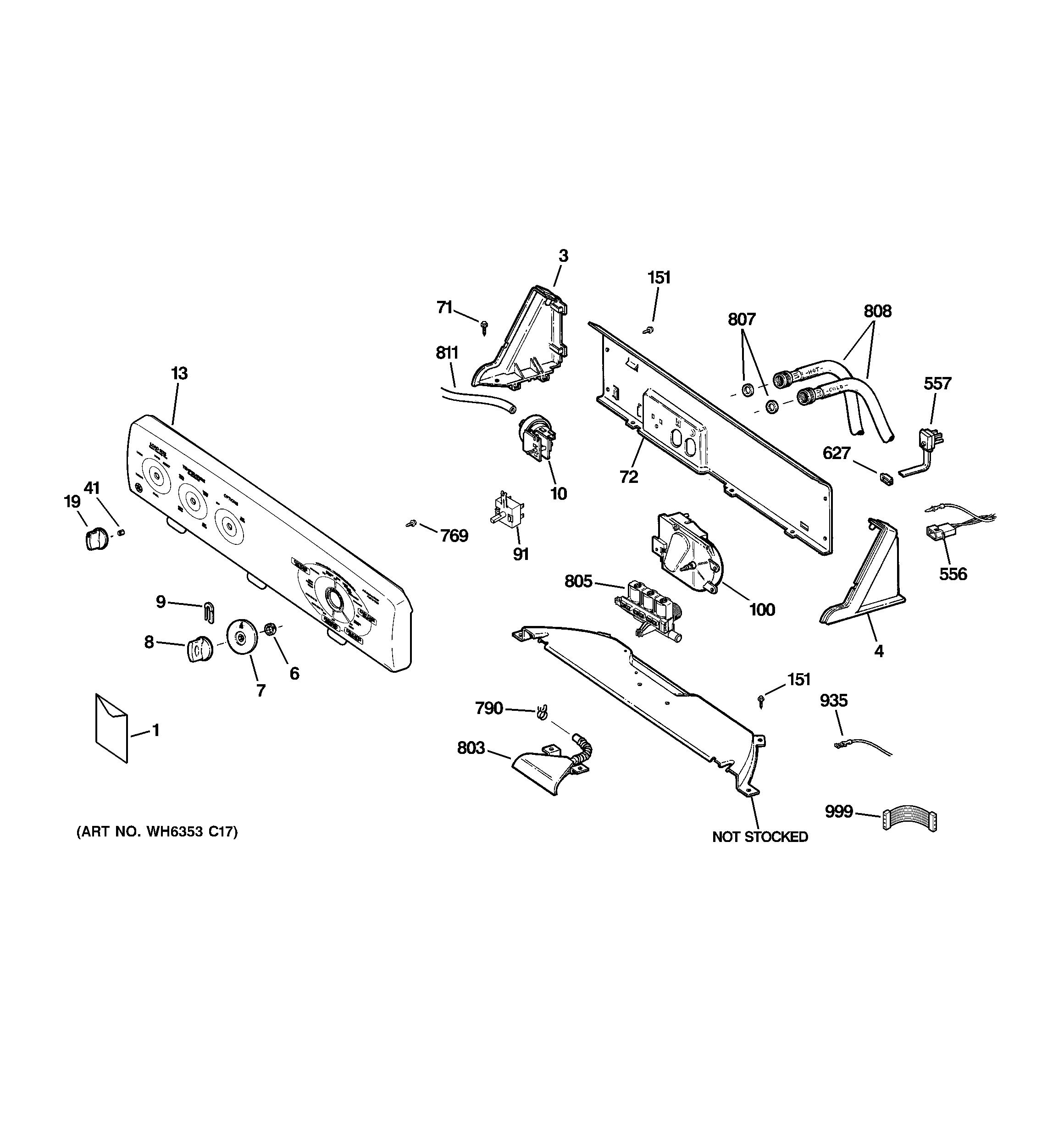

Controls & backsplash diagram
Washer water inlet valve
Part #WH13X10048
Replaced by #WH13X23974
?
Manufacturer substitution
This part replaces WH13X10048. Substitute parts can look different from the original.
$44.09 |
12% OFF Phone Price : $50.09
In Stock
#304
Tub, basket & agitator diagram
Washer drain hose
Part #WH41X10163
Replaced by #WH41X22935
?
Manufacturer substitution
This part replaces WH41X10163. Substitute parts can look different from the original.
This item is not returnable
$15.53 |
11% OFF Phone Price : $17.53
In Stock
Most common symptoms to help you fix your washers
Choose a symptom to see related washer repairs.
Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control b…
Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspensio…
Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve a…
Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system…
Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in…
Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lo…
Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interf…
Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board…
Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water tem…
