GE
Countertop Microwave

Model # JE1250GV01 Official GE microwave

Here are the diagrams and repair parts for Official GE JE1250GV01 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 84 parts  |
Je1250 Gv U 49-8614

#NI

All parts diagram

Je1250 gv u

Part #49-8614

$8.49
In Stock
Je1250 Uc 49-8490

#NI

All parts diagram

Je1250 uc

Part #49-8490

$8.49
In Stock
Thermo Co WB6X276
#1776

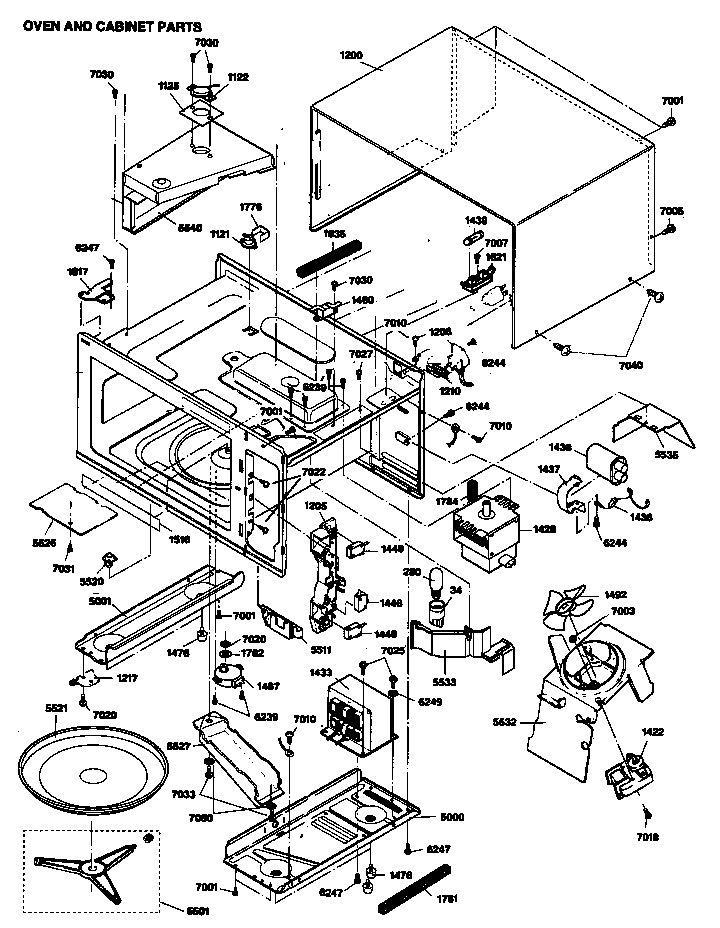

Oven and cabinet parts diagram

Thermo co

Part #WB6X276

The manufacturer no longer makes this part, and there's no substitute part

Fuse Holder WB8X307
#1621

Oven and cabinet parts diagram

Fuse holder

Part #WB8X307

The manufacturer no longer makes this part, and there's no substitute part

Waveguide WB6X156

#NI

All parts diagram

Waveguide

Part #WB6X156

The manufacturer no longer makes this part, and there's no substitute part

Complete Turntable WB6X155

#NI

All parts diagram

Complete turntable

Part #WB6X155

The manufacturer no longer makes this part, and there's no substitute part

Drive Panel WB55X889
#1802

Wiring harness diagram

Drive panel

Part #WB55X889

The manufacturer no longer makes this part, and there's no substitute part

Microwave Turntable Support WB6X160

#NI

All parts diagram

Microwave turntable support

Part #WB6X160

The manufacturer no longer makes this part, and there's no substitute part

High-voltage Capacitor WB27X829
#1438

Oven and cabinet parts diagram

High-voltage capacitor

Part #WB27X829

The manufacturer no longer makes this part, and there's no substitute part

Ck Gd Lab WB4X181
#1516

Oven and cabinet parts diagram

Ck gd lab

Part #WB4X181

The manufacturer no longer makes this part, and there's no substitute part
